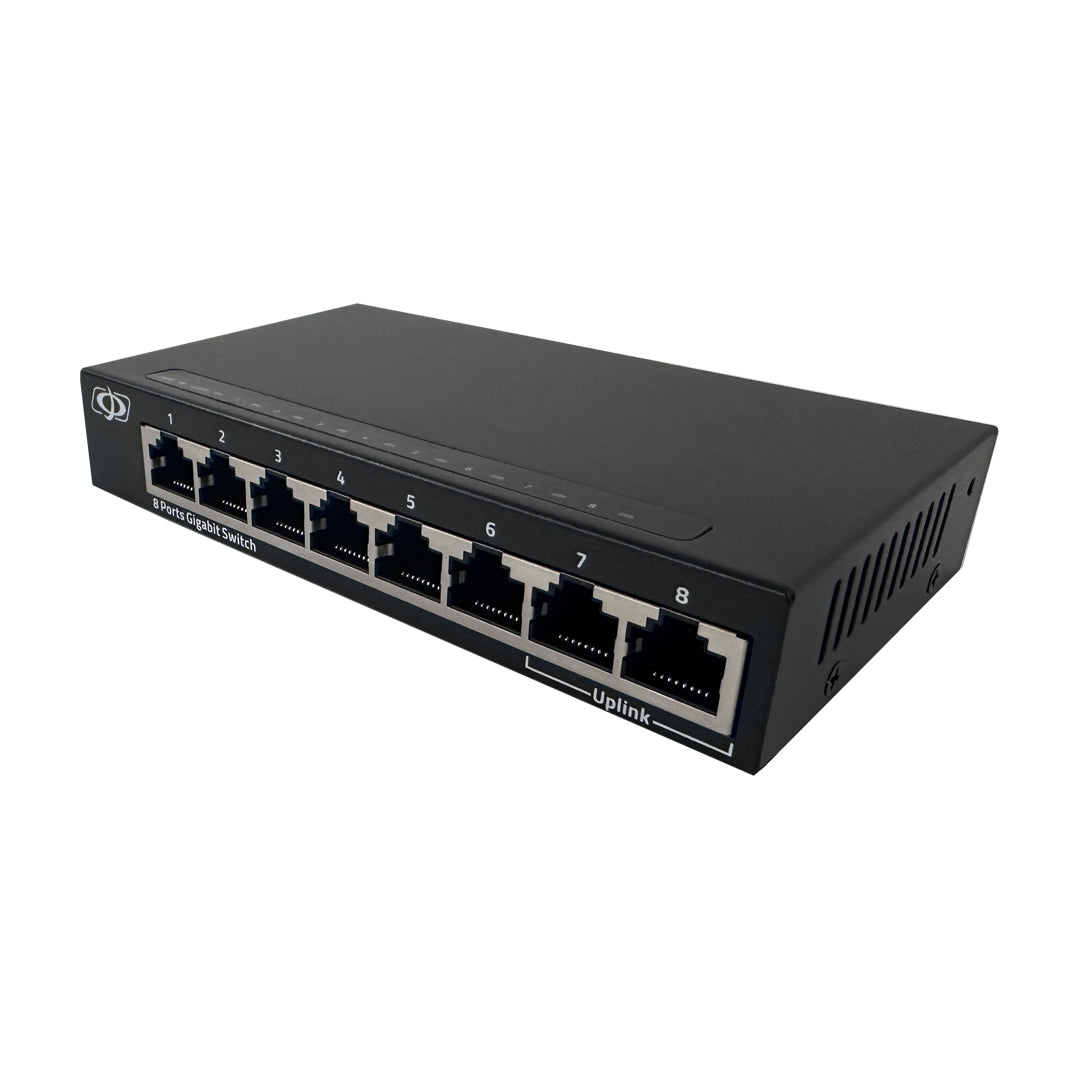

This 8-port switch is a gigabit Ethernet switch, providing 8 Gigabit Ethernet ports to upload data via the convergence switch. The switch is reliable, easy to install and maintain, and equipped with rapid switch function. With multiple access ports, the switch is applicable for access or aggregation and upload of small-scale LAN devices.

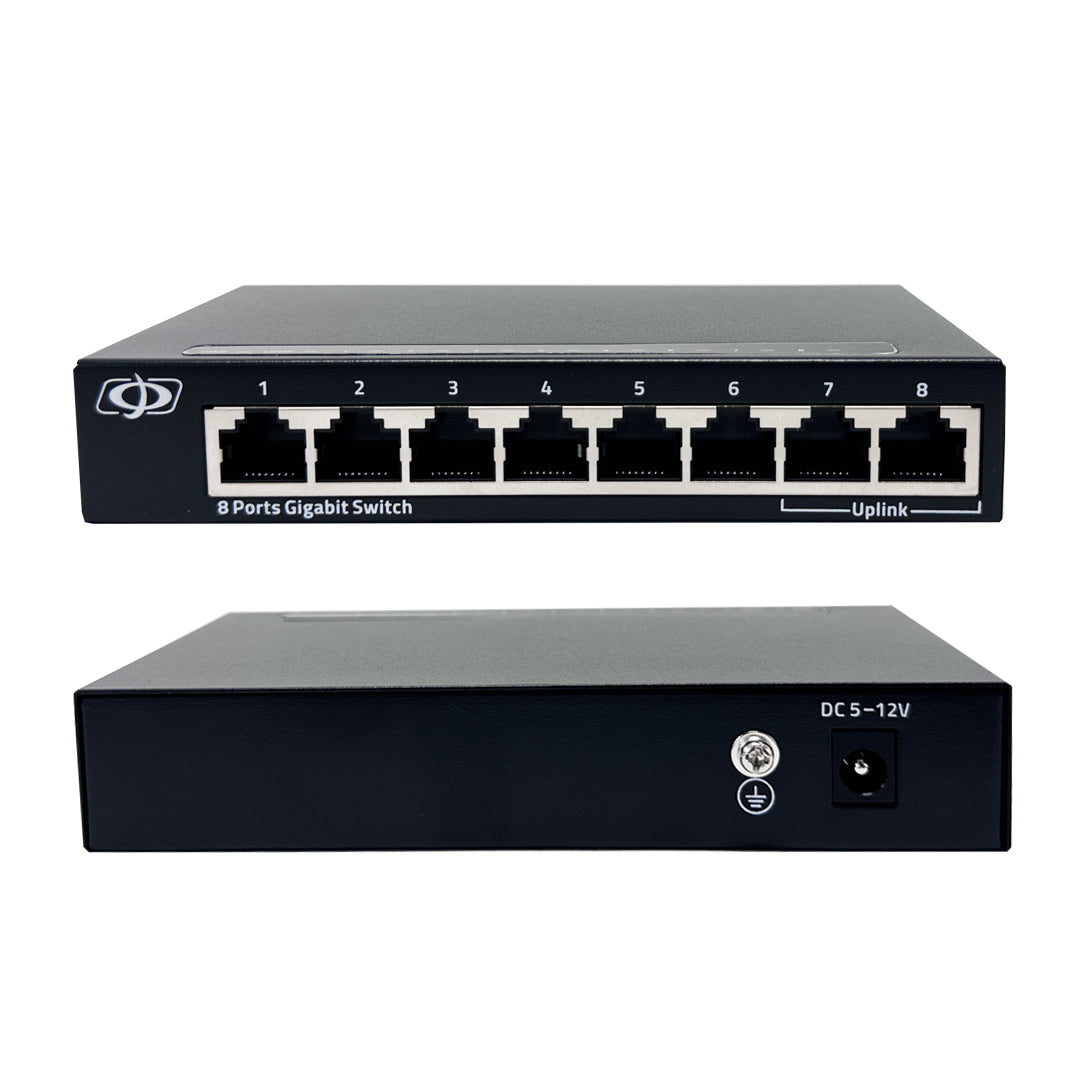

Note: The ports labeled as uplinks can be used as a regular ethernet port or as an uplink port to another switch.
Features
- 8 x 10/100/1000M Gigabit Unmanaged Ethernet ports
- Metal enclosure
- Reliable fan-free design
- -10°C to 50°C temperature range
- Support auto MDI/MDIX
- Panel indicators to monitor working status and help fault analysis
- Flow control, full duplex adopts IEEE802.3x standard, half duplex adopts Back pressure standard
- Port 1-2 supports QoS data priority
- Loop alarm
- 16 Gbps total bandwidth
Application
Specifications
| Physical Characteristics | ||||
|---|---|---|---|---|
| Dimensions | 137 x 77 x 26 mm |
|||
| Shell | Metal Material, Fan-Free Design | |||
| Operating Temperature | -10°C to 50°C | |||
| Storage Temperature | -40°C to 70°C | |||
| Operating Humidity / Storage Humidity |
Working Humidity: 10%~90%, non-condensing Storage Humidity: 5%~90%, non-condensing |
|||

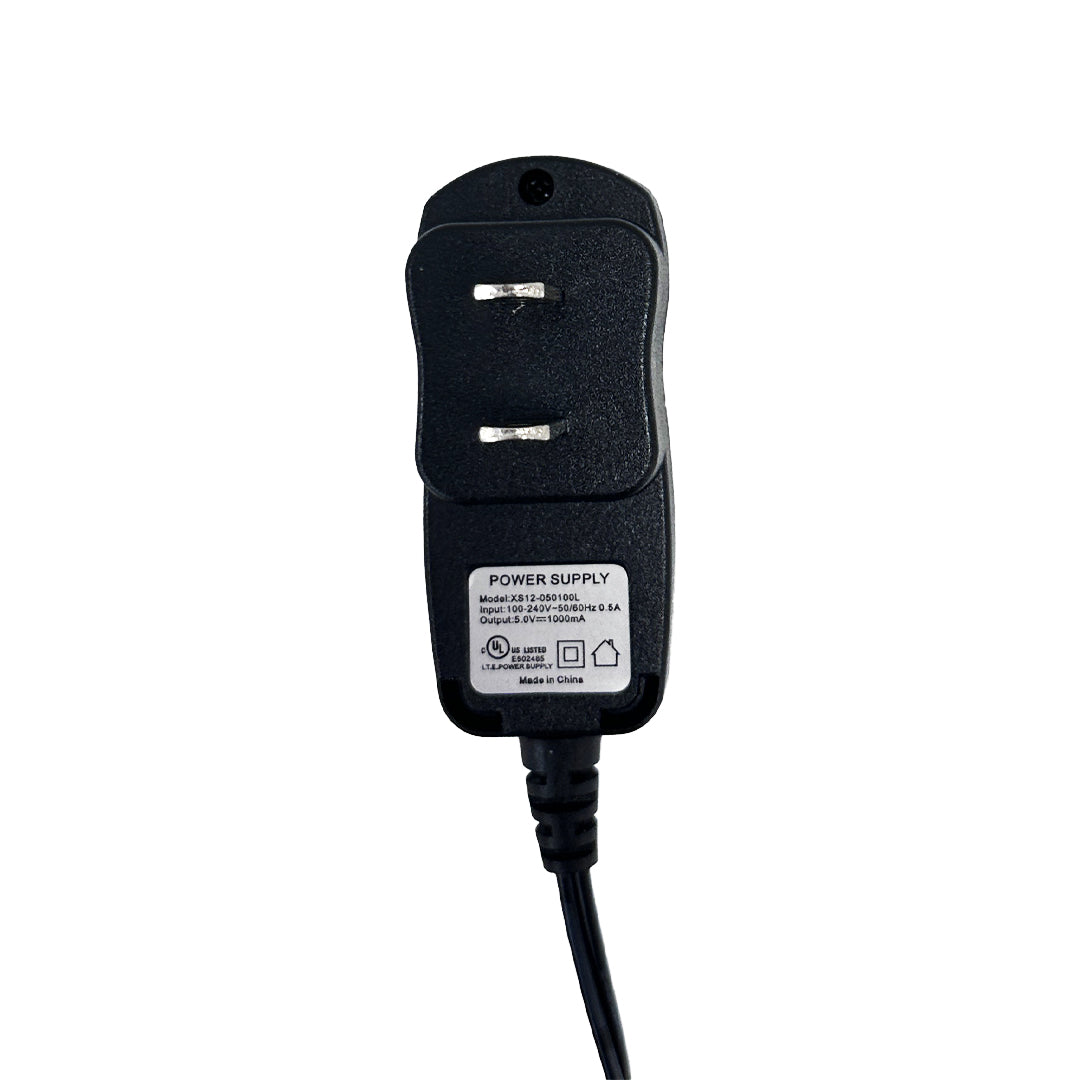

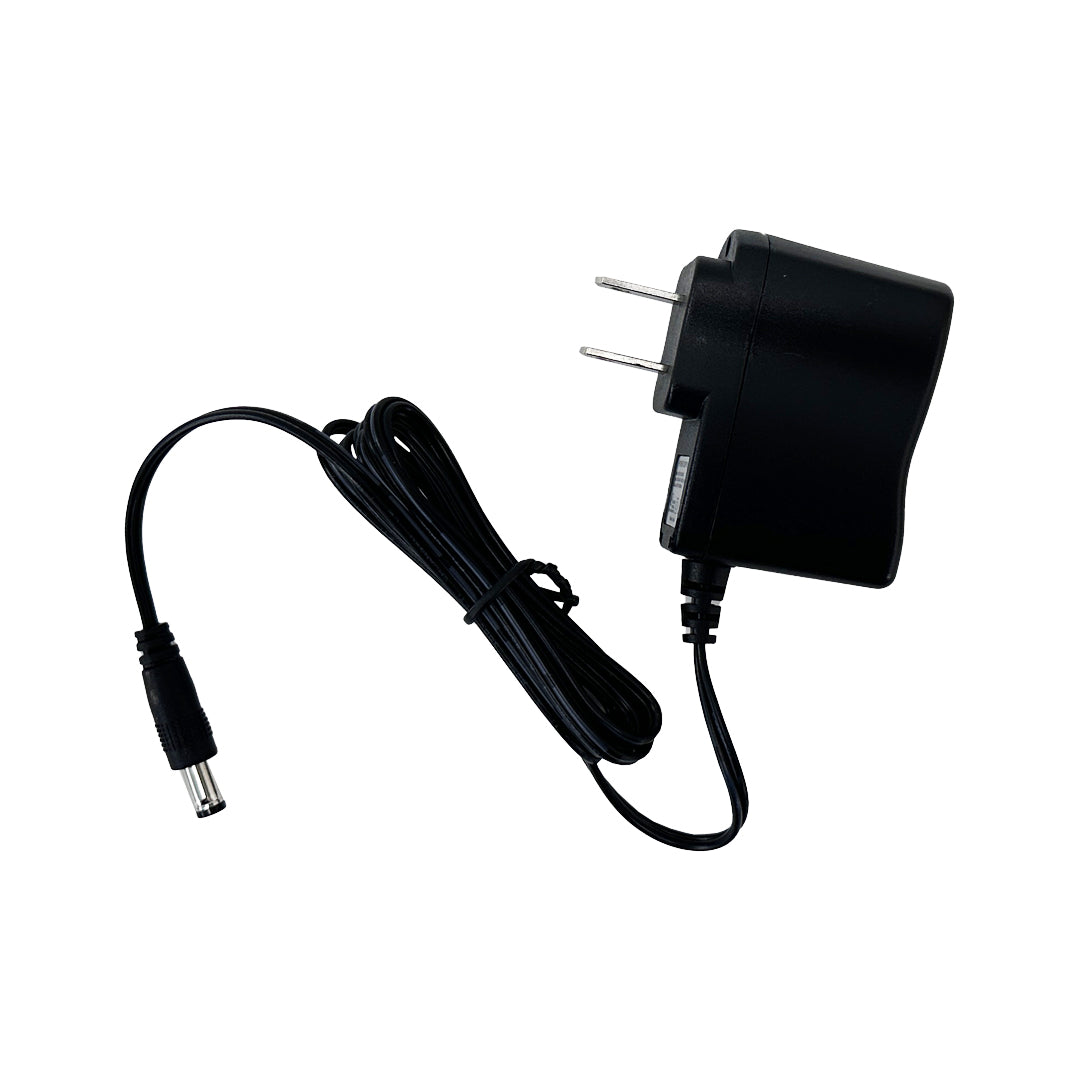

| Power Supply | Input: 100-240V AC, 50/60Hz, 0.3A Output: 5V DC, 1A |
|||
| Ports | 8 x 10/100/1000Mbps auto-negotiation RJ45 ports | |||
| Port Loopguard | Supported | |||
| Port Type | RJ45 port, Full duplex, MDI/MDI-X adaptive | |||
| Uplink Port | Port 8 | |||
| LED Indicator | 1 * Power LED 8 * Link/Act LED |
|||
| Performance | ||||
| Network Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
|||
| Total Bandwidth | 16Gbps | |||
| Network Medium |
10Base-T: Cat3, 4, 5 or above UTP (≤100m) 100Base-TX: Cat5 or above UTP (≤100m) 1000Base-TX: Cat5 or above UTP (≤100m) |
|||
| MAC Address Table | 1K | |||
| Jumbo Frame | 2K | |||
| Transfer Mode | Store-and-forward switching | |||
| Packet Forwarding Rate | 11.9 Mpps | |||
| Internal Cache/ Buffer | 2.5 Mbits | |||
| Switching Capacity | 16 Gbps | |||
| MTBF | 100000 hours | |||
| Environmental | ||||
| RoHS | Yes | |||
| FCC | Yes | |||
| CE | Yes | |||
| c(UL)us | DC power adapter - Yes | |||
| Packaging Information | ||||
| Package Quantity | 1 | |||
| Product Weight | 0.6 lbs | |||
