Overview
This 8 channel NVR is a network video recorder that can support up to 8MP IP cameras. It has 8 built in plug & play PoE ports to make set up simple and easy. With space for one hard drive and a capacity of up to 8TB, it can support Ultra 265/H.265/H.264 video format compression to put less stress on storage and bandwidth usage. A local monitor can be connected either through the HDMI or VGA ports.
Features
- Support Ultra 265/H.265/H.264 video formats
- 8-channel input
- Plug & Play with 8 independent PoE network interfaces
- Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T) and RTSP protocols
- Support HDMI and VGA simultaneous output
- Up to 8 Megapixels resolution recording
- 1 SATA HDDs, up to 8TB for each HDD
- ANR technology to enhance the storage reliability when the network is disconnected
- Support cloud upgrade
Application
Specifications
Physical Characteristics | |
---|---|
Dimensions | 260mm × 222mm × 47mm (10.2" × 8.7" × 1.8") |
Operating Temperature | -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) |
Power Supply | 52V DC/1.8A |
Power Consumption | ≤ 10W (without hard disks) |
Video and Audio Input | |
IP Video Input | 8-channel |
Two-Way Audio Input | 1-channel, RCA |
Video and Audio Output | |
HDMI/VGA Output | HDMI: 4K (3840x2160)@30, 1920x1080p@60, 1920x1080p@50, 1600x1200@60, 1280x1024@60, 1280x720@60, 1024x768@60 VGA: 1920x1080p@60, 1920x1080p@50, 1280x1024@60, 1600x1200@60, 1280x720@60, 1024x768@60 |
Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
Audio Output | 1-channel, RCA |
Two-way Audio | 1-ch, RCA(Using the audio input and output) |
Audio Compression | G.711A, G.711U |
Synchronous Playback | 8-channel |
Liveview Display | 1/4/6/8/9 |
Corridor Mode Screen | 3/4/5/7/9 |
Network | |
Incoming Bandwidth | 80Mbps |
Outgoing Bandwidth | 64Mbps |
Remote Users | 128 |
Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP |
Browser | IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows |
Snapshot | |
FTP/Schedule/Event Snapshot | 4-ch snapshot, up to D1 resolution |
Decoding | |
Decoding Format | Ultra 265/H.265 |
Liveview/Playback | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
Capability | 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 9 x 4MP@25, 10 x 3MP@30, 16 x 1080p@30 |
Hard Disk | |
SATA | 1 SATA interfaces |
Capacity | Up to 8TB for each disk |
Smart | |
VCA Detection By Camera | Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, SMD(Smart Motion Detection) |
VCA Search | Behavior Search, People Counting Report |
People Counting | People Flow Counting, Crowd Density Monitoring |
Smart Intrusion Prevention (SIP) By Camera | Total 4-ch |
General Alarm | |
Network Interface | Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection |
Alert Alarm | IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
External Interface | |
Network Interface | 1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface |
USB Interface | Front panel: 1 x USB2.0, Rear panel: 1 x USB3.0 |
Alarm In | NA |
Alarm Out | NA |
RS232, RS485 | N/A |
PoE | |
Interface | 8 RJ-45 10M/100M self-adaptive Ethernet Interface |
Max Power | Max 30W for single port Max 75W in total |
Supported Standard | IEEE 802.3af/at |
Certification | |
Certification | CE, FCC, UL, RoHS, WEEE |
CE | EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017 |
FCC | Part15 Subpart B, ANSI C63.4 |
Packaging Information | |

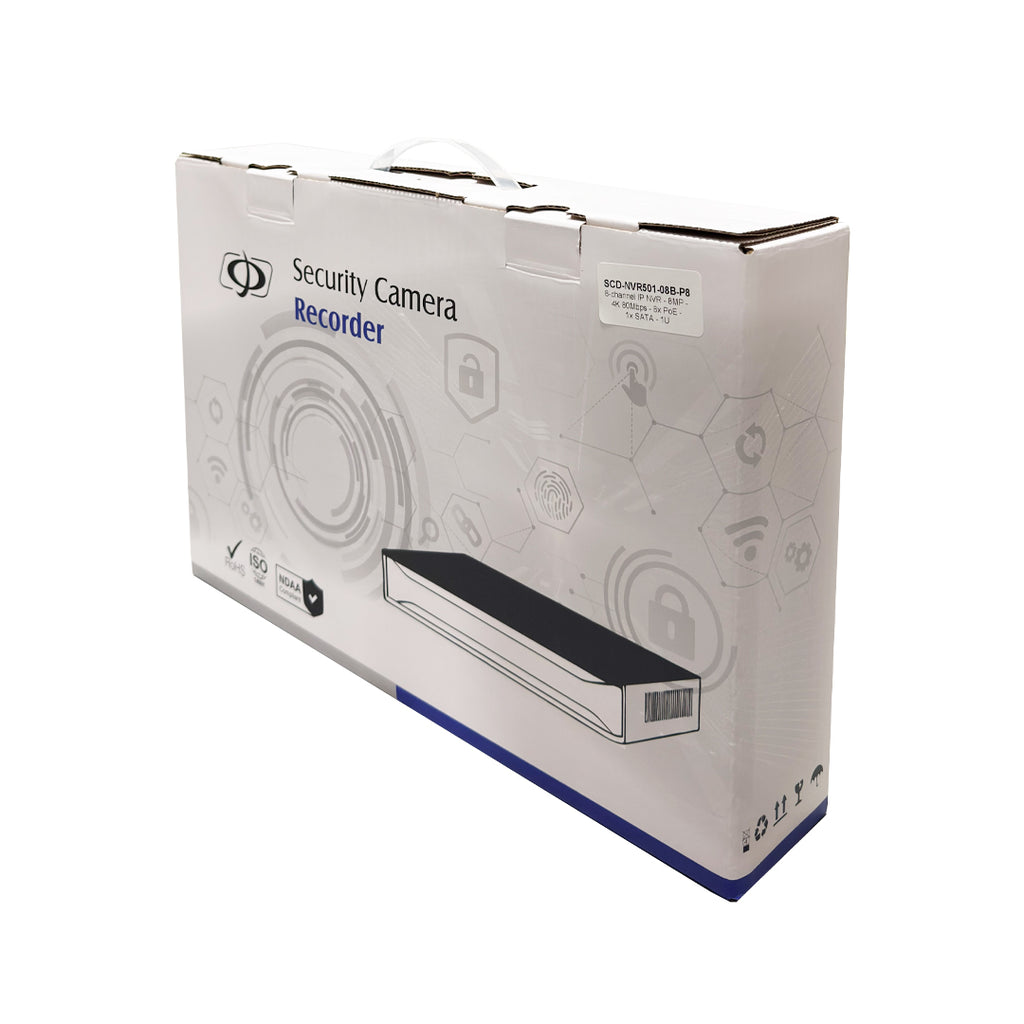

Package Contents | 1 - NVR 1 - Hard Disk Data Cable 1 - Hard Disk Power Cable 1 - Power Cable 1 - Mouse 4 - Screws 1 - User Manual |
Product Weight | 5.73 lbs [2.6 kg] |
This hard disk drive is engineered to work for surveillance security systems. It is designed for high temperature, always-on, surveillance security systems to ensure reliability and quality video playback.
Features
- Engineered specifically for surveillance security systems
- Prioritized write-operations for maximized surveillance performance
- Tuned for write-intensive, low bit-rate, high stream-count applications typical to most surveillance applications
- Reduced video frame loss
- TLER and ATA streaming support
- Optimized performance for up to 32 high-definition surveillance cameras
Physical Characteristics | |||||||
---|---|---|---|---|---|---|---|
Form Factor | 3.5 inch | ||||||
Dimensions | ˆ… 5.7" x 4.0" x 1.0" (ˆ… 147 x 102 x 26mm) | ||||||
Operating Temperature | 0°C to 65°C | ||||||
Non-Operating Temperature | -40°C to 70°C | ||||||
Performance | |||||||
Formatted Capacity (Part Number) | 1TB (WD10PURX) | 2TB (WD20PURX) | 4TB (WD40PURX) | 6TB (WD62PURX) | 8TB (WD84PURZ) | 10TB (WD101PURP) | |
Cache | 64MB | 128MB | 256MB | ||||
Data Transfer Rate | Buffer to Host - 6 GB/s Host to/from drive (sustained) - 110 MB/s |
Buffer to Host - 6 GB/s Host to/from drive (sustained) - 145 MB/s |
Buffer to Host - 6 GB/s Host to/from drive (sustained) - 150 MB/s |
Buffer to Host - 6 GB/s Host to/from drive (sustained) - 175 MB/s |
Buffer to Host - 6 GB/s Host to/from drive (sustained) - 245 MB/s |
Buffer to Host - 6 GB/s Host to/from drive (sustained) - 265 MB/s |
|
Hard Disk Interface | SATA | ||||||
Rotational Speed (RPM) | IntelliPowerTM | ||||||
Load/Unload Cycles | 300,000 | 600,000 | |||||
Non-Recoverable Read Errors per Bits Read | < 1 in 1014 | < 1 in 1015 | |||||
Power Management | |||||||
Average Power Requirements | Read/Write - 3.3W Idle - 2.9W Standby and Sleep - 0.4W |
Read/Write - 4.4W Idle - 4.1W Standby and Sleep - 0.4W |
Read/Write - 5.1W Idle - 4.5W Standby and Sleep - 0.4W |
Read/Write - 5.3W Idle - 4.9W Standby and Sleep - 0.4W |
Read/Write - 8.6W Idle - 7.4W Standby and Sleep - 0.4W |
Read/Write - 9W Idle - 8W Standby and Sleep - 0.5W |
|
Approvals | |||||||
RoHS | Yes | ||||||
Packaging Information | |||||||
Package Quantity | 1 | ||||||
Product Weight | 0.99 lbs [0.45 kg] | 1.40 lbs [0.64 kg] | 1.50 lbs [0.68 kg] | 1.65 lbs [0.75 kg] | 1.58 lbs [0.72 kg] | 1.65 lbs [0.75 kg] |
Phantom Camview iOS App
Supports iOS 8.0 or later & requires macOS 11.0 or later and a Mac with the Apple M1 chip or later. Compatible with iPhone, iPad, iPod touch and Mac.
PhantomCamStation Windows app to set up cameras
3-YEAR WARRANTY
Infinite Cables Inc. offers a 3-year warranty on all cameras and hard drives to be free from defects in material and workmanship.
This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.
Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
SKU | Weight | |
SCD-NVR501-08B-P8 | 5.73 lb |
