Description

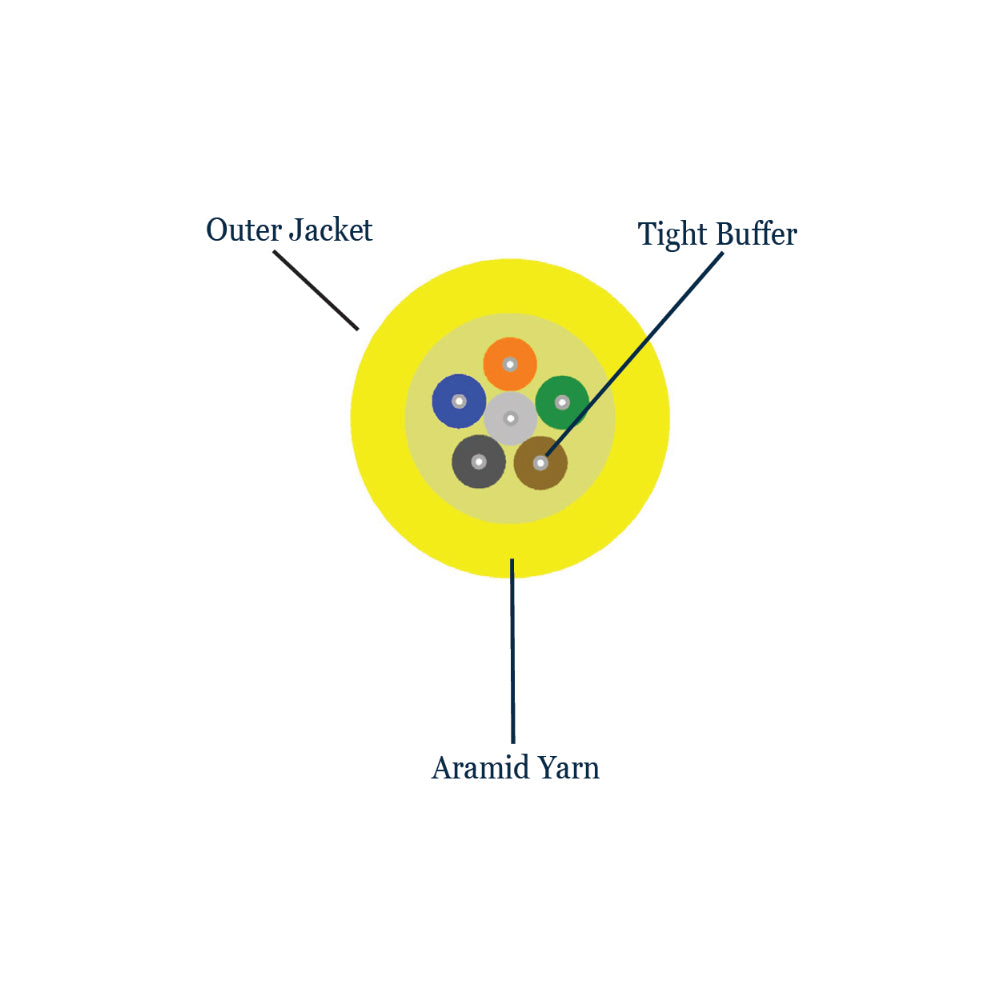

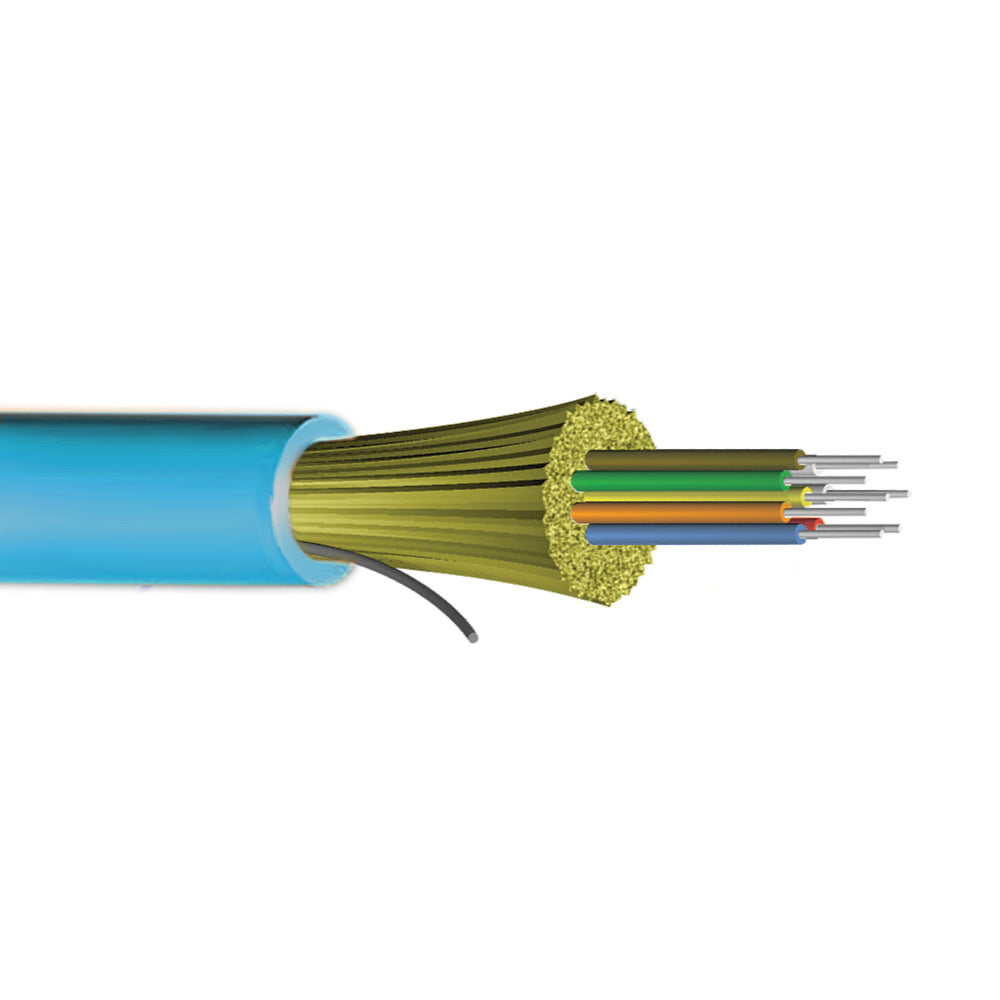

This bulk OM3 fiber cable is indoor plenum rated and has a tight buffer construction. It is OFNP rated for plenum and general inside plant environments.
Features
- 900μm Tight Buffers
- Aramid yarn strength members
- Exclusive use of Corning® optical fibers
- Jacket print ensures product identification and fiber compatibility
- Durable jacket offers added protection during installation and in rugged use applications
| Physical Characteristics | |
|---|---|
| Color | Aqua |
| Fiber Optic Type | OM3 50 micron Multimode Plenum Indoor Cable |
| Fiber Count | 6-Strand/ 12-Strand/ 24-Strand |
| Glass Fiber | Corning ClearCurve |
| Outer Jacket Material/Tight Buffer Material | Flame Retardant PVC |
| Strength Member | Aramid Yarn |
| Weight | 57 lbs / km : 6-Strand 81 lbs / km : 12-Strand 138 lbs / km : 24-Strand |
| Nominal Outer Diameter | 4.8mm : 6-Strand 5.8mm : 12-Strand 7.8mm : 24-Strand |
| Minimum Bend Radius, Installation | 7.2cm : 6-Strand 8.7cm : 12-Strand 11.7cm : 24-Strand |
| Minimum Bend Radius, Operation | 4.8cm : 6-Strand 5.8cm : 12-Strand 7.8cm : 24-Strand |
| Operating Temperature | 0 deg C ~ +70 deg C |
| Storage Temperature | -40 deg C ~ +70 deg C |
| Wavelength | 850 / 1300nm |
| Maximum Attenuation | 3.0 / 1.0 dB/km |
| Link Length | 550m (10Gb/s@850nm) |
| Bandwidth (EMB High Performance) | 2000 @850nm MHz.km |
| Certification(s) | |
| UL | Compliant |
| Product Support | |
| RoHS | Compliant |
| Country of Origin | USA |
Spec Sheets
Lead-time
This item is custom cut to length.
The cable required is in stock and custom cuts typically ship out within 1-2 business days.
For the lead-time on a larger quantity orders, please contact us via phone at 1-866-207-6442 or email at sales@infinitecables.com. One of our sales reps will be able to provide an accurate lead-time
Product Weights
| SKU | Options | Weight |
| BK-F6CP-OM3-P-T | 6-Strand | 0.06 lb |
| BK-F12CP-OM3-P-T | 12-Strand | 0.08 lb |
| BK-F24CP-OM3-P-T | 24-Strand | 0.14 lb |
