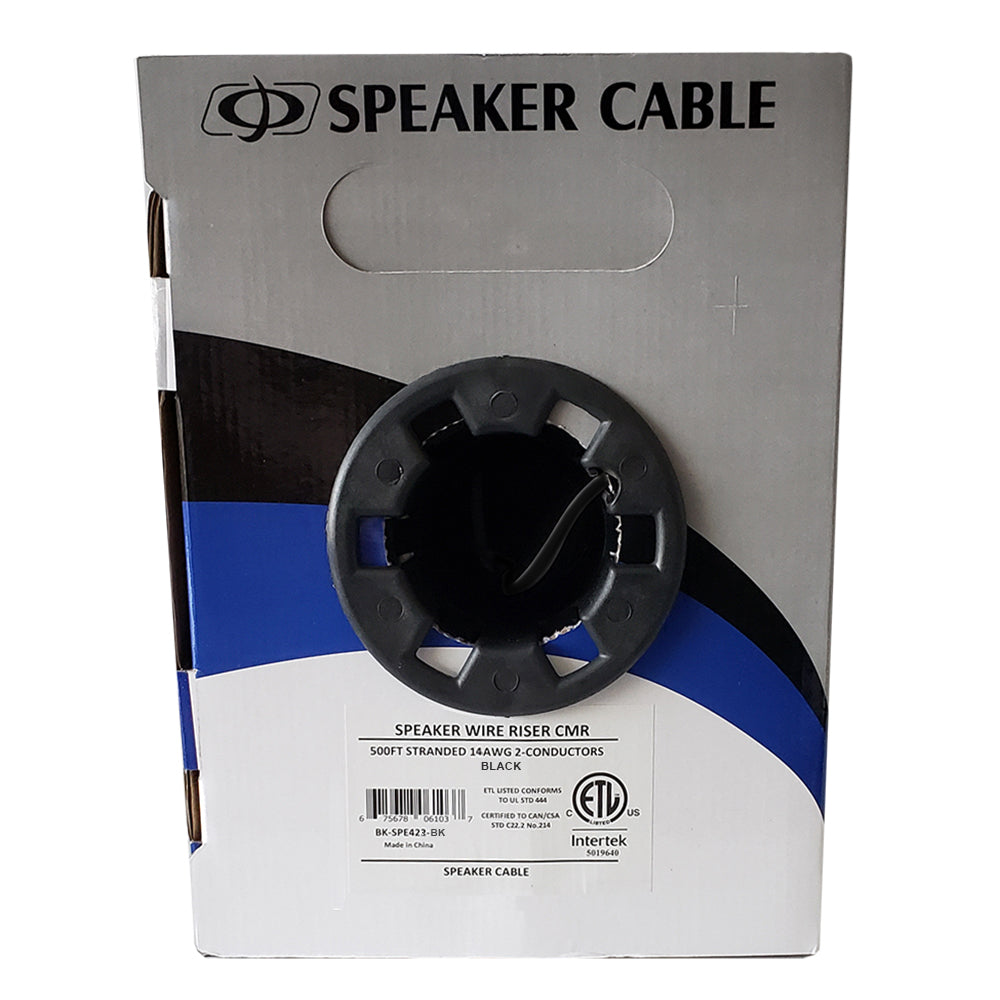

500ft 2C 14AWG In-Wall Bulk Speaker Cable CMR

Speaker Bulk CableSKU: BK-SPE423-BK

Color: Black
Sale price$155.20 CAD
Sold out

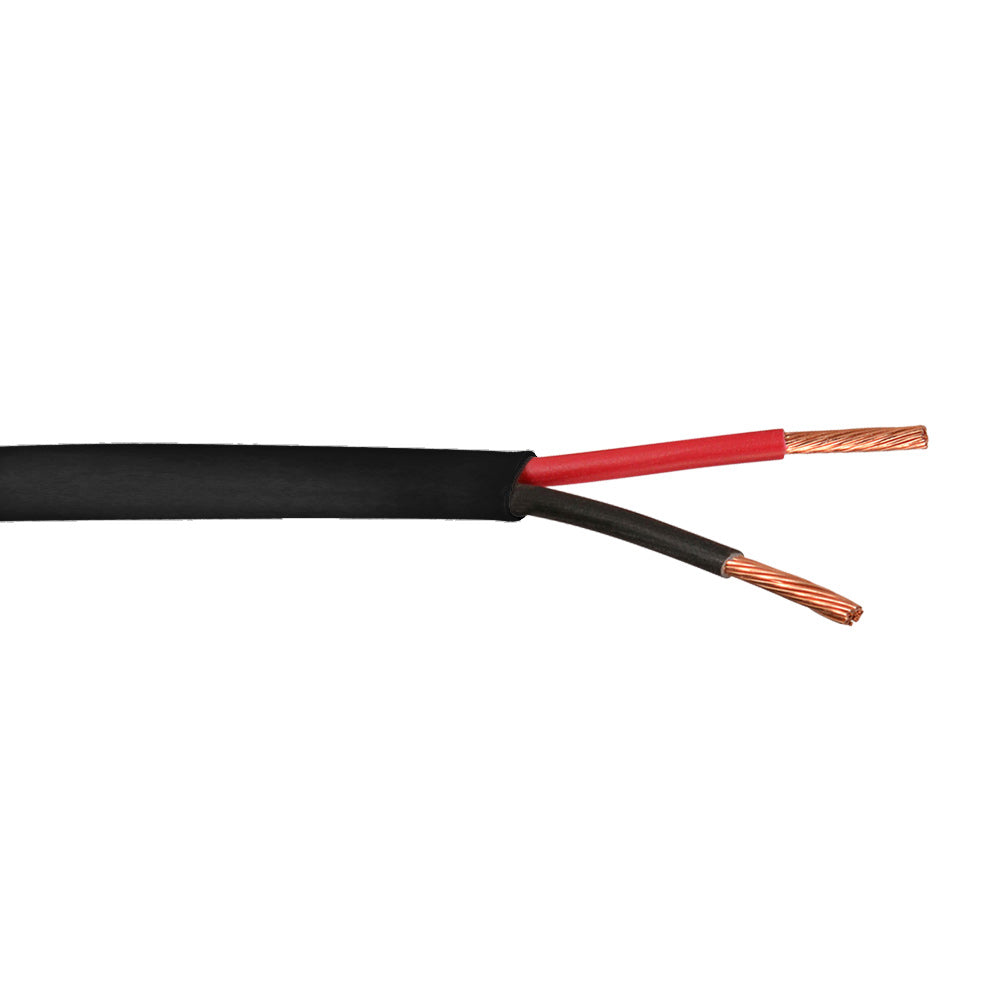

This bulk in-wall speaker cable is made from oxygen free multi-stranded copper cable to capture all highs & lows for optimum audio performance. It is typically run in walls and used to connect speakers to amplifiers.

Physical Characteristics
Cable Length 500 foot [152.4m]

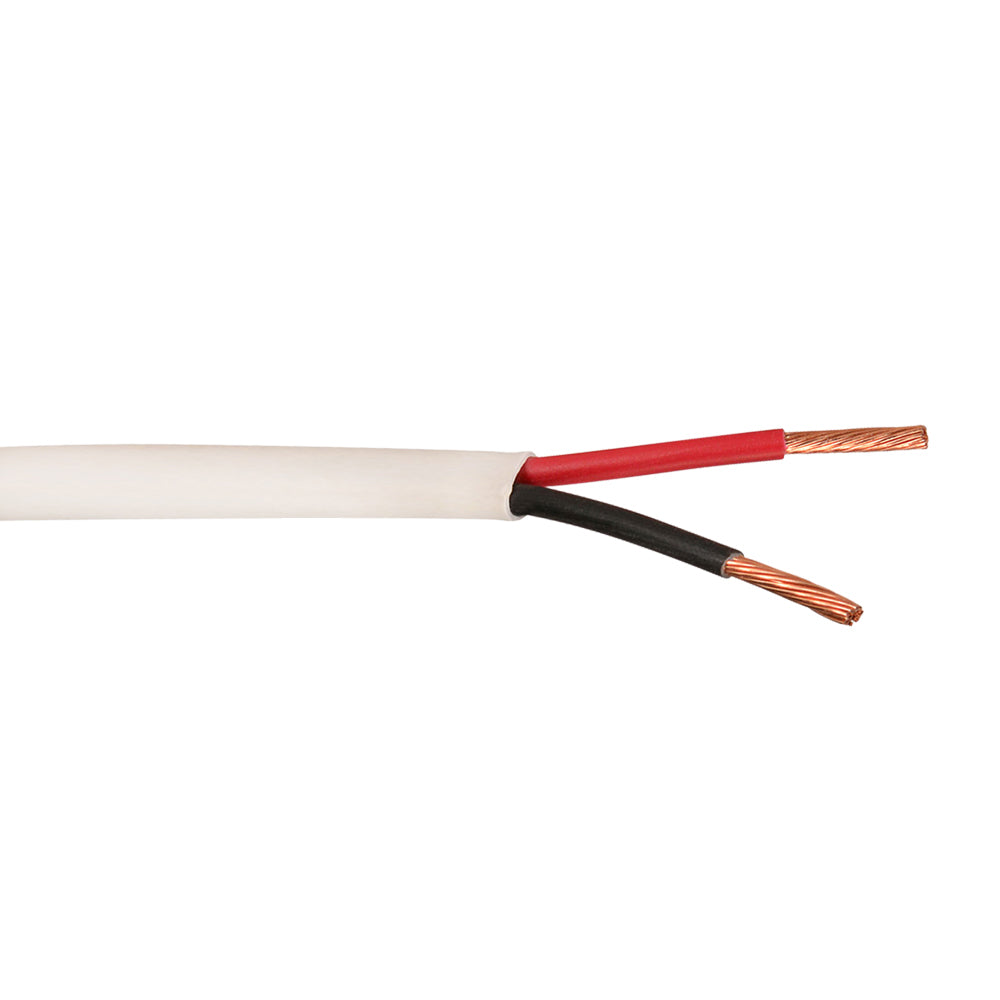

Color Black/White
Number of Conductors 2 Conductor
Temperature Rating -20°C ~ 75°C
Wire Gauge 14 AWG
Conductor Material 100% Bare Oxygen Free Copper (OFC)
Stranding 105 * 34AWG
Jacket Material PVC - Polyvinyl Chloride
Jacket Rating CMR [Riser Rated]
Nominal Jacket Thickness 0.45mm
Nominal Overall Diameter 7.0mm
Nominal Insulation Thickness 0.38mm
Nominal Insulation Diameter 2.8mm
Max Voltage Rating
Nominal Conductor DCR 2.53 Ohm/1000ft
Nominal Capacitance Conductor-to-Conductor 22 pF/ft
Mechanical Characteristics
Before Tensile Strength (Mpa) >=13.8
Aging Elongation (%) >=100
Aging Condition
(ÂșC x hrs)
After Tensile Strength (Mpa) >=85% of unaged
Aging Elongation (%) >=50% of unaged
Cold Bend
(-20±2Âș Cx4hrs)
No Crack
c(ETL)us Yes
Reach Yes
RoHS Yes
Packaging Information
Package Quantity 1
Product Weight 29.1 lbs [13.1kg]
