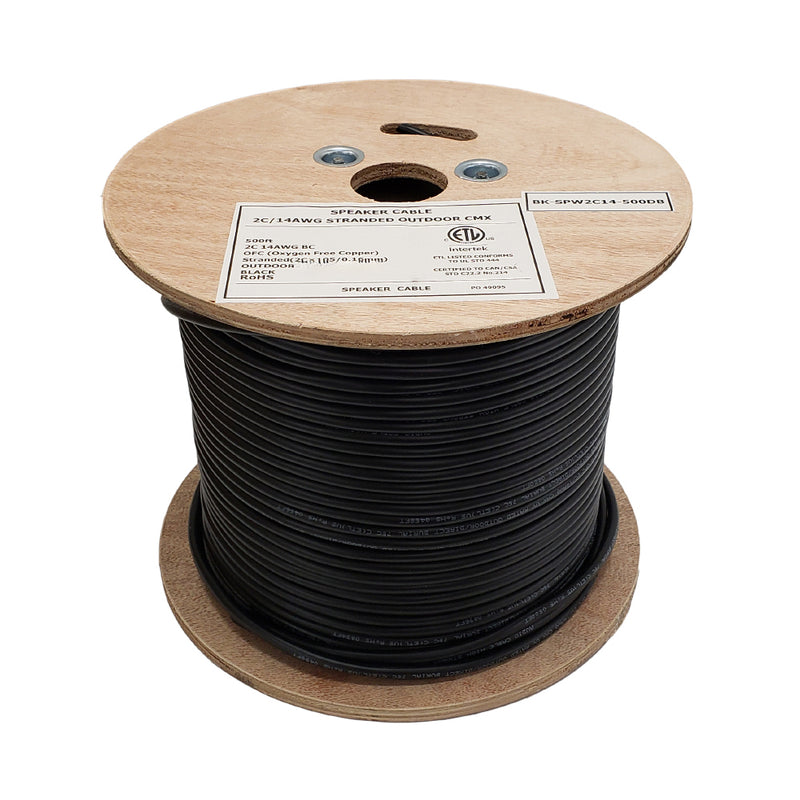

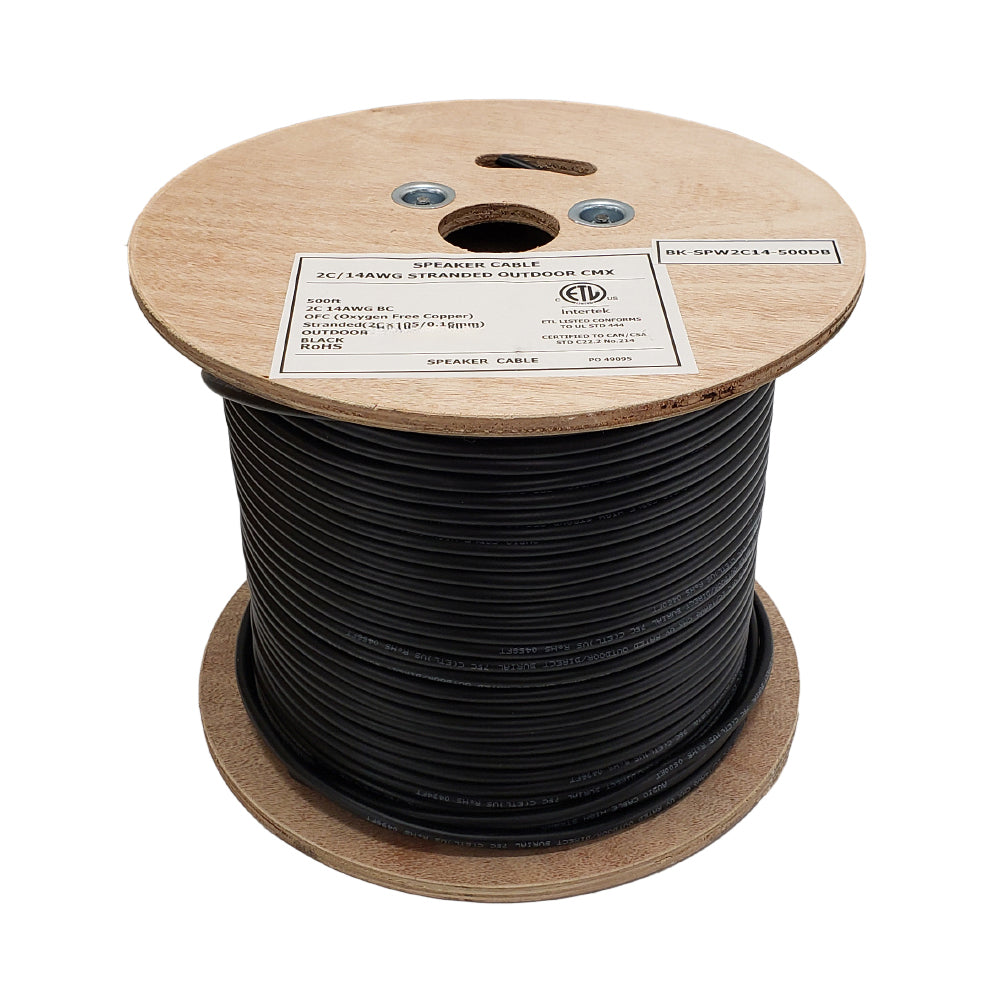

500ft 2C 14AWG Outdoor Bulk Speaker Cable CMX - Black

Speaker Bulk CableSKU: BK-SPW2C14-500DB

Price:
Sale price$197.70 CAD
Stock:
In stock

This item does not qualify for free shipping.



Description

This bulk outdoor speaker cable is made from multi-stranded copper cable to capture all highs & lows for optimum audio performance. It is typically run outdoors and used to connect speakers to amplifiers.

Physical Characteristics
Color Black
Temperature Rating 75ºC
Cable Diameter 6.40±0.10mm
Number of Conductors 2 Conductor
Wire Gauge 14AWG
Conductor Material Stranded Bare Copper
Conductor Diameter 105/0.16±0.004mm
Assembly Diameter 5.20±0.20
Jacket Material UV CMX PVC
Jacket Rating Outdoor
Jacket
Average Thickness
0.60mm
Jacket
Minimum Thickness
0.54mm
Insulation
Average Thickness
0.355mm
Insulation
Minimum Thickness
0.330mm
Insulation Diameter 2.60±0.05
Ripcord Nylon
Cable Shielding None
Max Voltage Rating
300V
Flammability Test CMX
Capacitance < 9.8nF/100M
Resistance 70+/-10 OHM
Conductor Resistance Max 15.5ohm/km at 20„ƒ
Insulator Resistance Min 50Mohm km at 20„ƒ
Mechanical Characteristics
Before Aging Tensile Strength (Mpa): >=13.8
Elongation (%): >=100
Aging Condition
(deg C x hrs)
100x168
After Aging Tensile Strength (Mpa): >=85% of unaged
Elongation (%): >=50% of unaged
Approvals
ETL, c(ETL) Yes
Environmental
RoHS Yes
Packaging Information
Package Quantity 1
Product Weight 19.9 lbs
