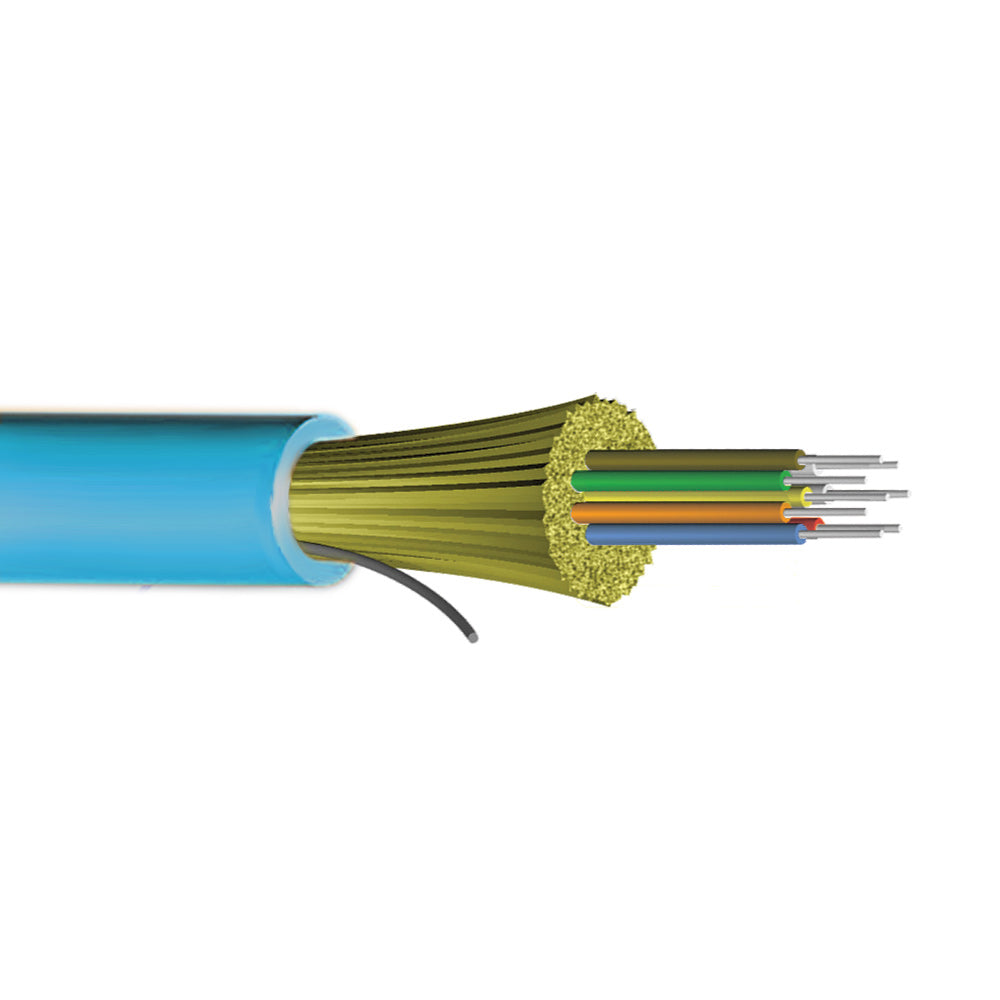

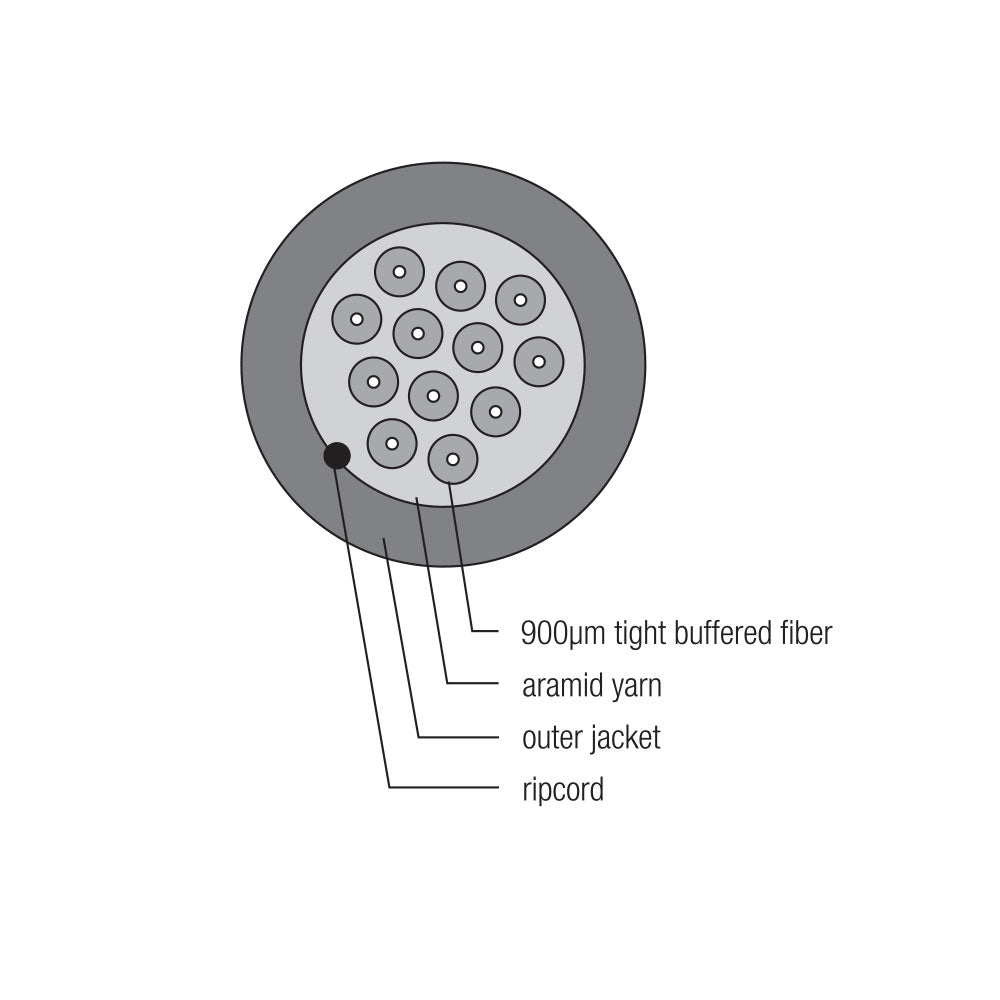

This bulk OM4 fiber cable is indoor/outdoor plenum rated and has a tight buffer construction. It is OFNP rated for plenum and general inside plant environments. It also has a UV stabilizer for protection against exposure to the sun plus an anti-fungus protection for use in underground applications.
Features
- Cables are water blocked and exceed water penetration requirements of ICEA S-104-696and GR-20-CORE.
- Outer jacket is moisture-resistant, fungus-resistant and UV resistant for outdoor use.
- With an overall OFNP (Plenum) rating, this cable is suitable for installations inmost spaces requiring UL flame ratings: Plenum, Riser, General Purpose and outside plant.
- Tested to meet or exceed EIA/TIA 568 / GR-409-CORE and ICEA-S-104-696.
- RoHS/REACH Compliant
Physical Characteristics
|
Color |
Aqua |
Fiber Optic Type |
OM4 50µ Multimode Plenum Indoor/Outdoor Tight Buffered Cable |
Fiber Count |
12-Strand |
Sub Unit Diameter |
900 Micron |
Nominal Diameter |
7.0mm |
Tension(Installation) |
300 lbs |
Tension(Long Term) |
90 lbs |
Bending Radius(Installation) |
10.5cm |
Bending Radius(Long Term) |
7.0cm |
Operating Temperature |
-40 deg C ~ +70 deg C
|
Storage Temperature |
-40 deg C ~ +70 deg C |
Installation |
-10 deg C ~ +70 deg C |
Attenuation Range |
@850nm 3.0dB/km @1300nm 1.2dB/km |
Bandwidth Range |
@850nm > 3500 MHz/km @1300nm > 550 MHz/km |
Gigabit Ethernet Min. Link Distance |
850nm = 1040 1300nm = 540 |
10 Gigabit Ethernet Min. Link Distance |
850nm = 550 |
Fire Rating |
OFNP |
UV Stabilizer |
Yes |
Anti-Fungus Protection |
Yes |
Certification(s)
|
ETL |
Yes |
c(ETL) |
Yes |
Product Support
|
RoHS |
Yes |
Country of Origin |
USA |
Manufacturing Information
|
Manufacturer |
AFL |
Packaging Information
|
Package Quantity |
1 |
