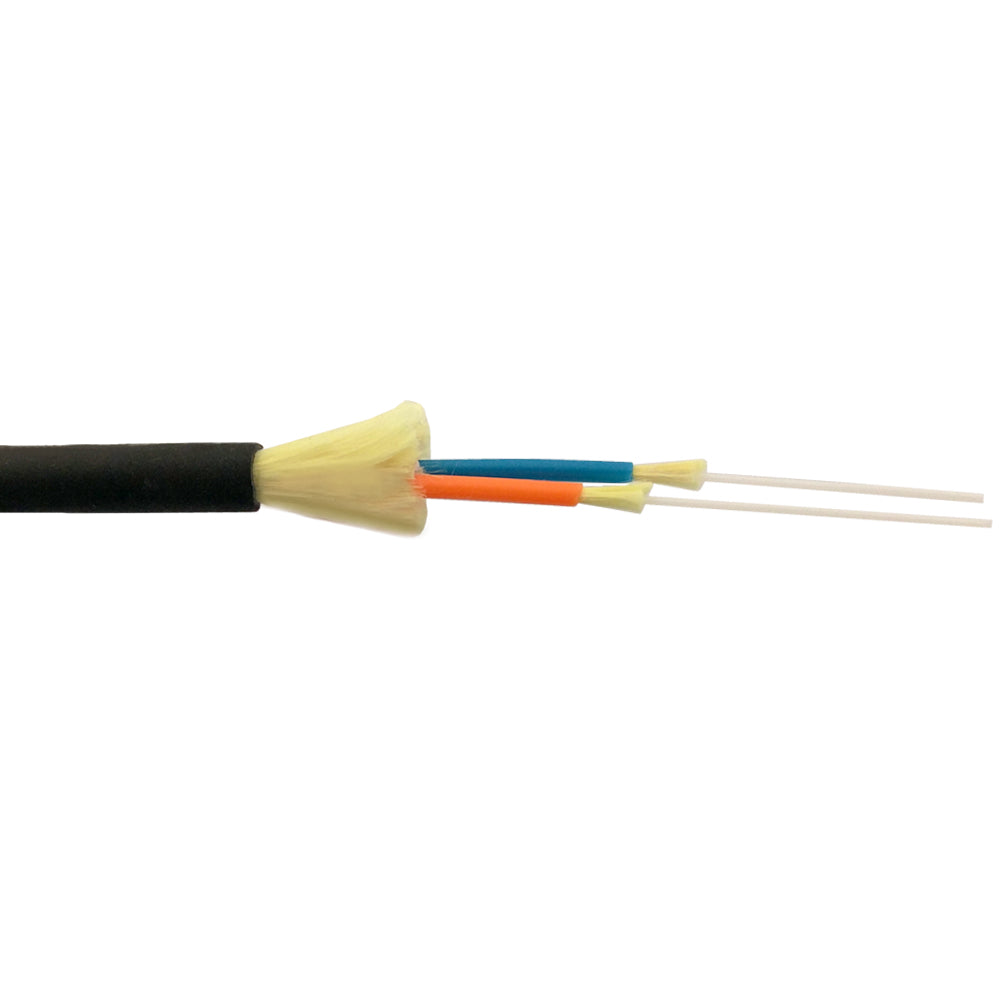

This bulk OM3 tactical fiber cable can be used outdoors in permanent or temporary applications. Ideal for use in installations where extreme Product Support conditions are present. Common applications for this cable include installation on outdoor service poles, field deployment in abusive environments, high traffic areas, security and sensing applications, broadcast deployments and temporary installation of critical communications lines where quick retrieval and re-use is necessary.
Features
- Cut resistant polyurethane jacket
- Highly flexible construction allows for multiple deployments
- All aramid strength members
- Performance in wide temperature range
- High impact and crush resistance
- Durable in high traffic areas
- Perfect fit for IP67 fiber optic connectors

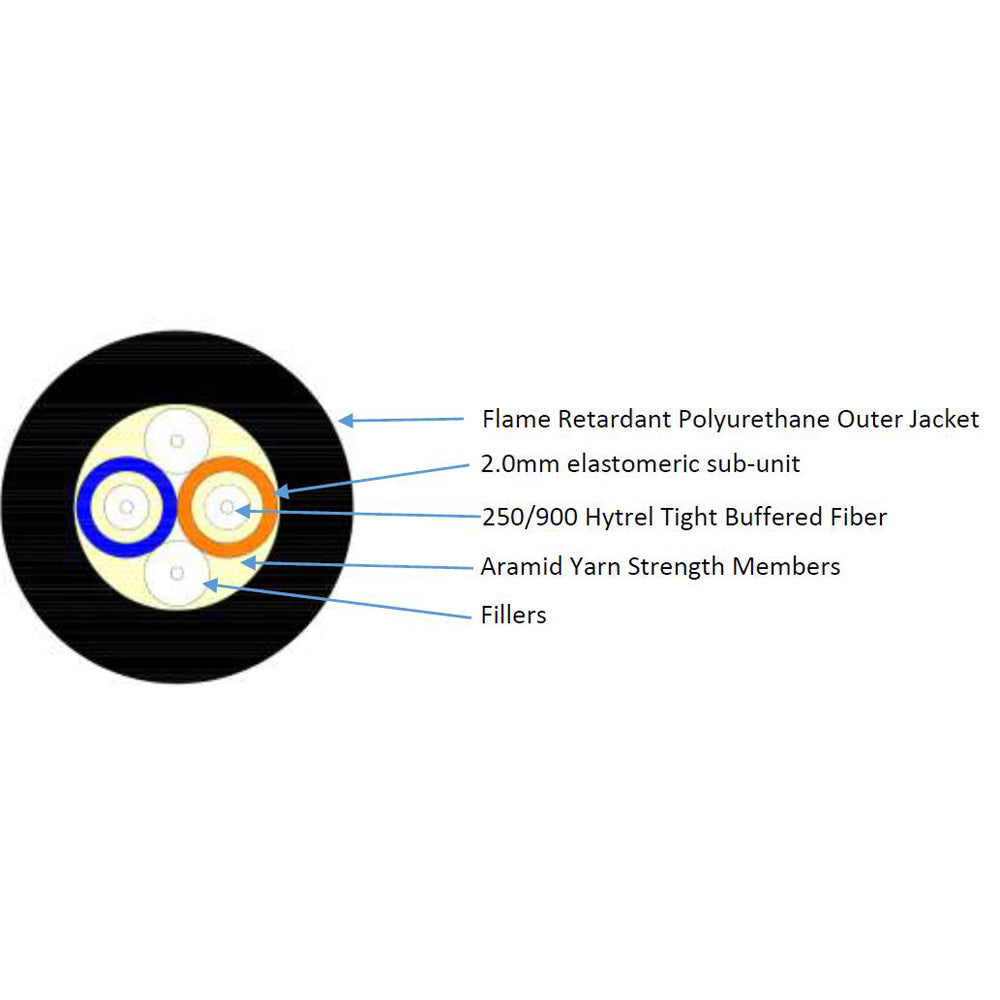

| Physical Characteristics | |
|---|---|
| Color | Black |
| Fiber Optic Type | OM3 50 micron multimode Tactical AFL Cable |
| Fiber Count | 2-Strand / 6-Strand |
| Glass Fiber | Corning ClearCurve |
| Nominal Diameter | 6.4mm (2-Strand) 8.8mm (6-Strand) |
| Sub Unit Diameter |
2.0mm |
| Tension(Installation) | 490 lbs (2-Strand) 475 lbs (6-Strand) |
| Tension(Long Term) | 120 lbs (2-Strand) 75 lbs (6-Strand) |
| Bending Radius | 6.4cm (2-Strand) 8.8cm (6-Strand) |
| Operating Temperature | -55°C ~ +85°C |
| Storage Temperature | -60°C ~ +85°C |
| Attenuation Range | @850nm 2.3dB/km @1300nm 0.6dB/km |
| Bandwidth Range | @850nm > 1500 MHz/km @1300nm > 500 MHz/km |
| Certification(s) | |
| ETL | Compliant |
| c(ETL) | Compliant |
| Product Support | |
| RoHS | Compliant |
| Country of Origin | USA |
This item is custom cut to length.
The cable required is in stock and custom cuts typically ship out within 1-2 business days.
For the lead-time on a larger quantity orders, please contact us via phone at 1-866-207-6442 or email at sales@infinitecables.com. One of our sales reps will be able to provide an accurate lead-time
| SKU | Options | Weight |
| BK-F2T-OM3 | 2-Strand | 0.24 lb |
| BK-F6T-OM3 | 6-Strand | 0.58 lb |
