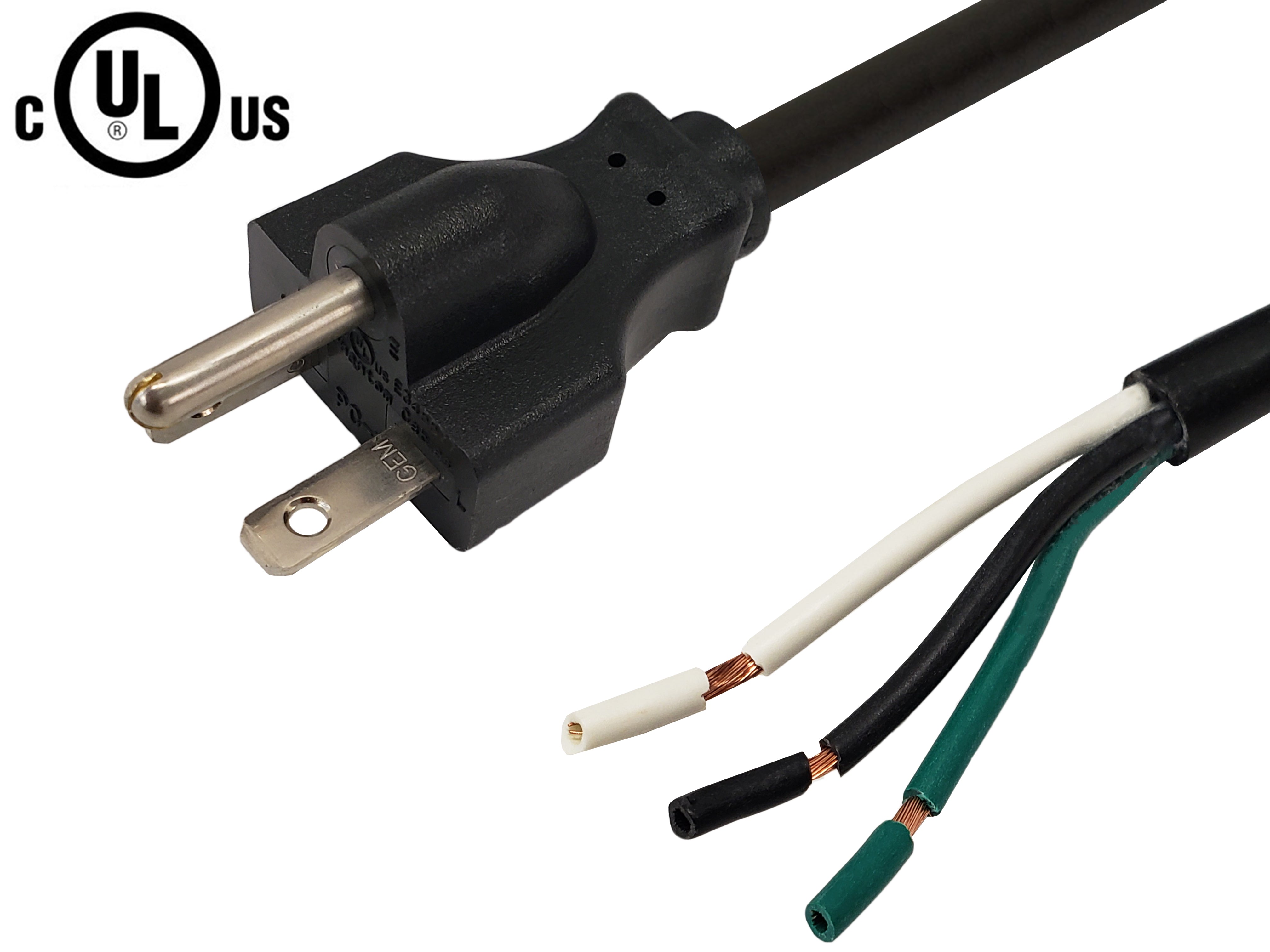

5-20P to ROJ Power Cable - SJT


Length: 3ft
Wire Gauge: 12AWG
Price:
Sale price$8.85 CAD
Stock:
In stock


Description

Overview

This power cord consists of a 5-20P male on one end and is un-terminated on the other with the outer jacket removed. These cords are typically hardwired directly to equipment. The cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment. The connectors are premium quality molds to ensure a snug fit into receptacles. Each assembly is 100% continuity and HVT (High Voltage) tested as well as an overall inspection before shipping.

Heavy Duty SJT Jacket

Molded strain relief combined with a heavy duty SJT jacket makes for a high quality, robust cable.

100% Continuity and High Voltage Tested

All cables are 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.

c(UL)us Approved

Both cable and connectors use to manufacture these assemblies are c(UL)us approved. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector.

Specifications

Physical Characteristics
Color Black
Number of Conductors 3 Conductor
Wire Gauge 12 AWG
Jacket Heavy Duty SJT
Jacket Material 100% Virgin PVC - Polyvinyl Chloride
Jacket Fire Rating VW-1
Strain Relief Molded 100% Virgin PVC
Conductor Material 100% bare copper
Temperature Rating -20 deg C to 105 deg C
Connector(s)
Connector A NEMA 5-20P
Connector B Un-terminated - Outer Jacket Removed
Performance
Power Rating 20 Amp / 125 Volt
Approvals
5-20P c(UL)us
Cable c(UL)us
ISO ISO 9001:2015, ISO 14000
Product Support
RoHS Yes
Reach Yes
Conflict Minerals Yes
Country of Origin Vietnam
Packaging Information
Package Quantity 1
Warranty Information
Warranty Limited Lifetime
Cable Weights
3ft 6ft 8ft 10ft
0.14 lbs 0.23 lbs 0.53 lbs 0.77 lbs
SKU Options Weight
PWC-RN15D-03 3ft / 12AWG 0.36 lb
PWC-RN15D-06 6ft / 12AWG 0.65 lb
PWC-RN15D-08 8ft / 12AWG 0.85 lb
PWC-RN15D-10 10ft / 12AWG 1.03 lb
