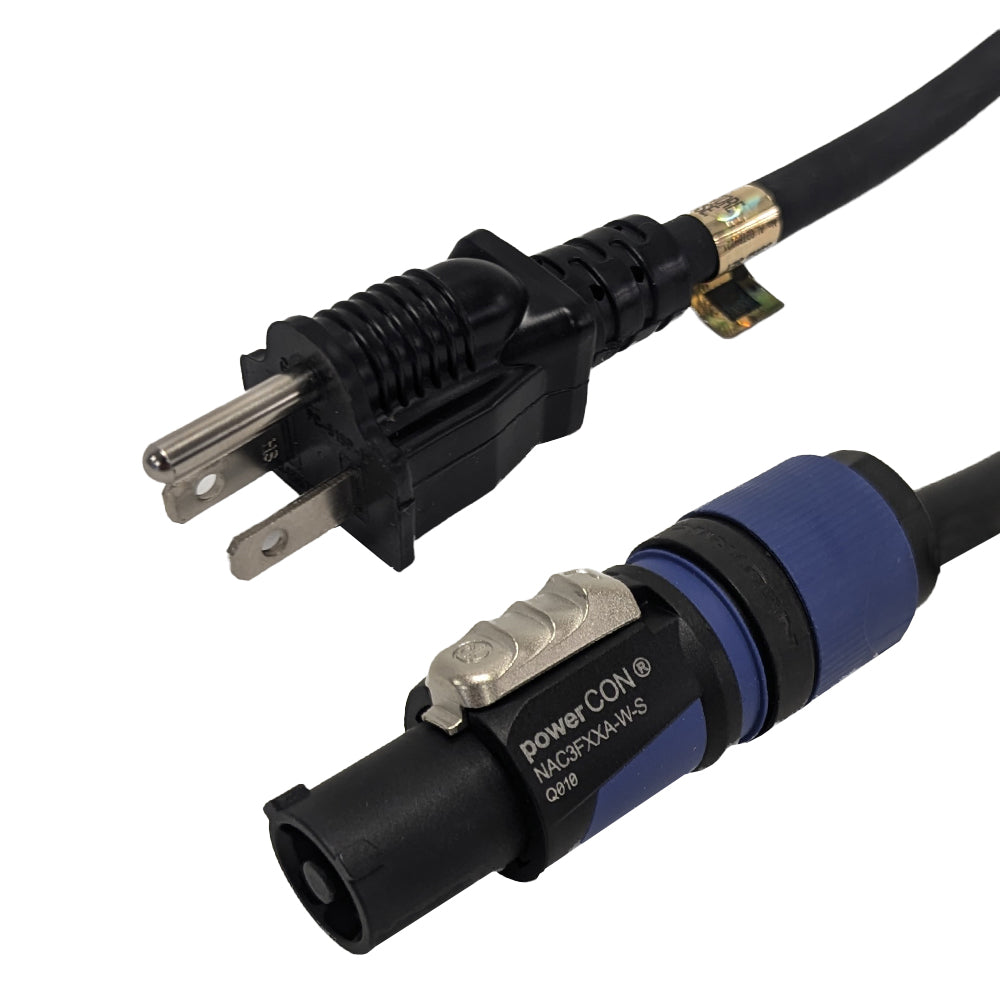

This power cord consists of a 5-15P male on one end and a powerCON blue AC power-in on the other end. It is typically used to connect a pro AV applications.
Specifications
Physical Characteristics
Color
Black
Number of Conductors
3 Conductor
Wire Gauge
14AWG
Jacket
SJOW
Jacket Material
100% Virgin PVC - Polyvinyl Chloride
Jacket Fire Rating
VW-1
Strain Relief
Molded 100% Virgin PVC
Temperature Rating
-20 deg C to 105 deg C
Connector(s)
Connector A
NEMA 5-15P
Connector B
powerCON Blue AC Power-in
Performance
Power Rating
15 Amp / 125 Volt (14AWG)
Approvals
5-15P, powerCON AC Power-in
c(UL)us
Cable
c(UL)us
powerCON AC Power-in
VDE
Environmental
RoHS
Yes
Reach
Yes
Conflict Minerals
Yes
Packaging Information
Package Quantity
1
Warranty Information
Warranty
Limited Lifetime
Cable Weights
1.5ft
3ft
6ft
10ft
15ft
25ft
35ft
50ft
100ft
0.19 lbs
0.29 lbs
0.50 lbs
0.70 lbs
1.00 lbs
1.57 lbs
2.10 lbs
2.90 lbs
4.80 lbs
Lead-time
This item is assembled once an order is received.
All parts required to assemble this item are in stock and small quantities typically ship out the same business day or the next business day.
For the lead-time on a larger quantity orders, please contact us via phone at1-866-207-6442or email at sales@infinitecables.com. One of our sales reps will be able to provide an accurate lead-time.
Product Weight
1.5ft
PCON-105C-01.5 0.22 lb
3ft
PCON-105C-03 0.36 lb
6ft
PCON-105C-06 0.65 lb
10ft
PCON-105C-10 1.03 lb
15ft
PCON-105C-15 1.5 lb
25ft
PCON-105C-25 2.51 lb
35ft
PCON-105C-35 3.54 lb
50ft
PCON-105C-50 5.02 lb
100ft
PCON-105C-100 0.17 lb
