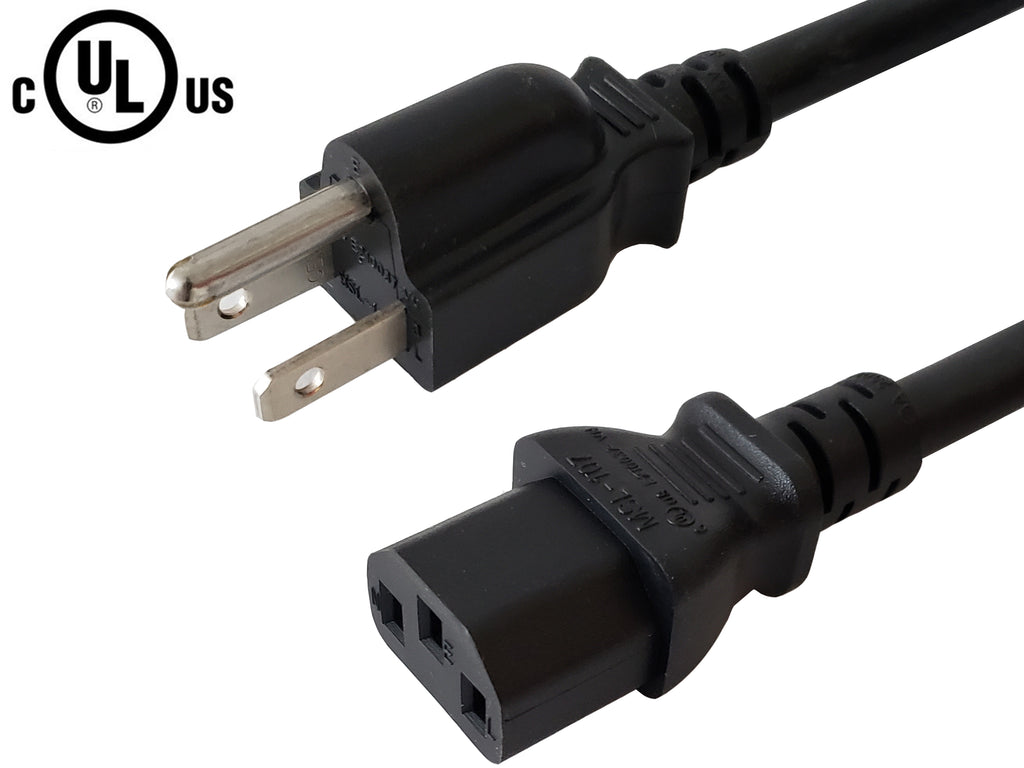

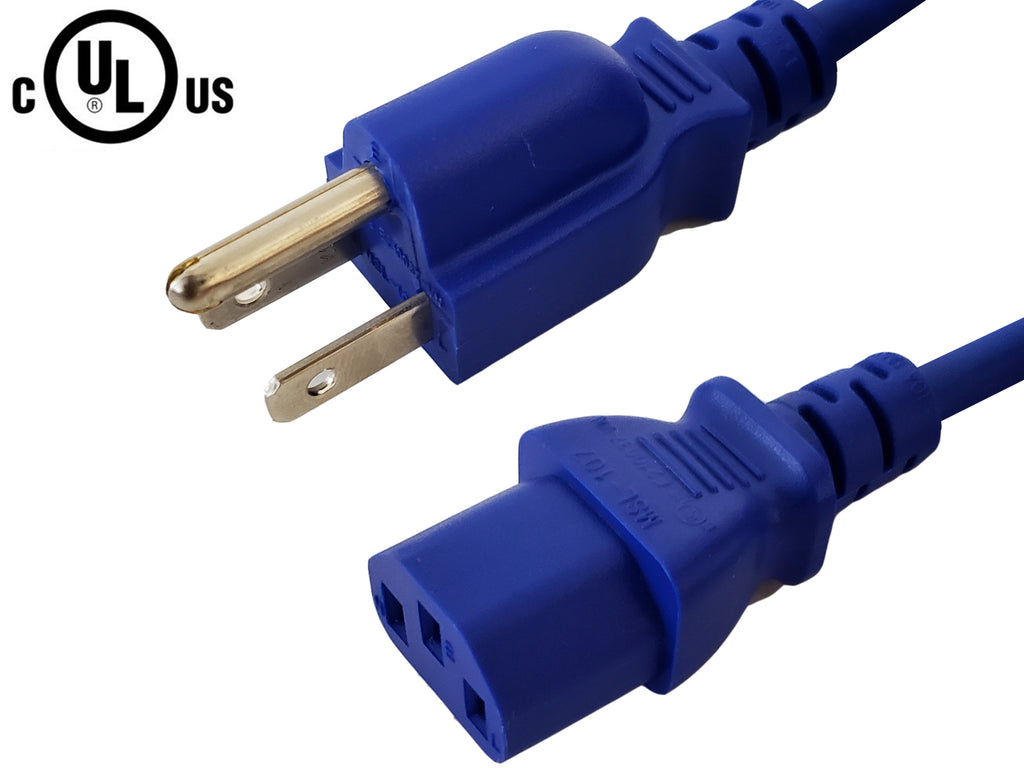

This power cord consists of a 5-15P male on one end and a C13 female on the other end. It is typically used to connect a networking equipment such as a server to a PDU or a wall outlet. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector. Premium quality connectors are used to ensure a secure fit. Each assembly is 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.
|
Physical Characteristics
|
| Color |
Blue |
| Number of Conductors |
3 Conductor |
| Wire Gauge |
14AWG (PWC-105C-CT)
18AWG (PWC-105-CT) |
| Jacket |
Heavy Duty SJT |
| Jacket Material |
100% Virgin PVC - Polyvinyl Chloride |
| Jacket Fire Rating |
VW-1
|
| Strain Relief |
Molded 100% Virgin PVC |
| Conductor Material |
100% bare copper |
| Temperature Rating |
-20 deg C to 105 deg C |
|
Connector(s)
|
| Connector A |
IEC 60320 C13 |
| Connector B |
NEMA 5-15P |
|
Performance
|
| Power Rating |
10 Amp / 125 Volt (PWC-105-CT)
|
|
Approvals
|
| C13 |
c(UL)us |
| 5-15P |
c(UL)us |
| Cable |
c(UL)us
|
| ISO |
ISO 9001:2015, ISO 14000 |
|
Environmental
|
| RoHS |
Compliant |
| Reach |
Compliant |
| Conflict Minerals |
Compliant |
|
Packaging Information
|
| Package Quantity |
1 |
|
Warranty Information
|
| Warranty |
Limited Lifetime |
| 3ft |
6ft |
10ft |
15ft |
25ft |
| 0.20 lbs |
0.40 lbs |
0.70 lbs |
1.00 lbs |
1.57 lbs |
