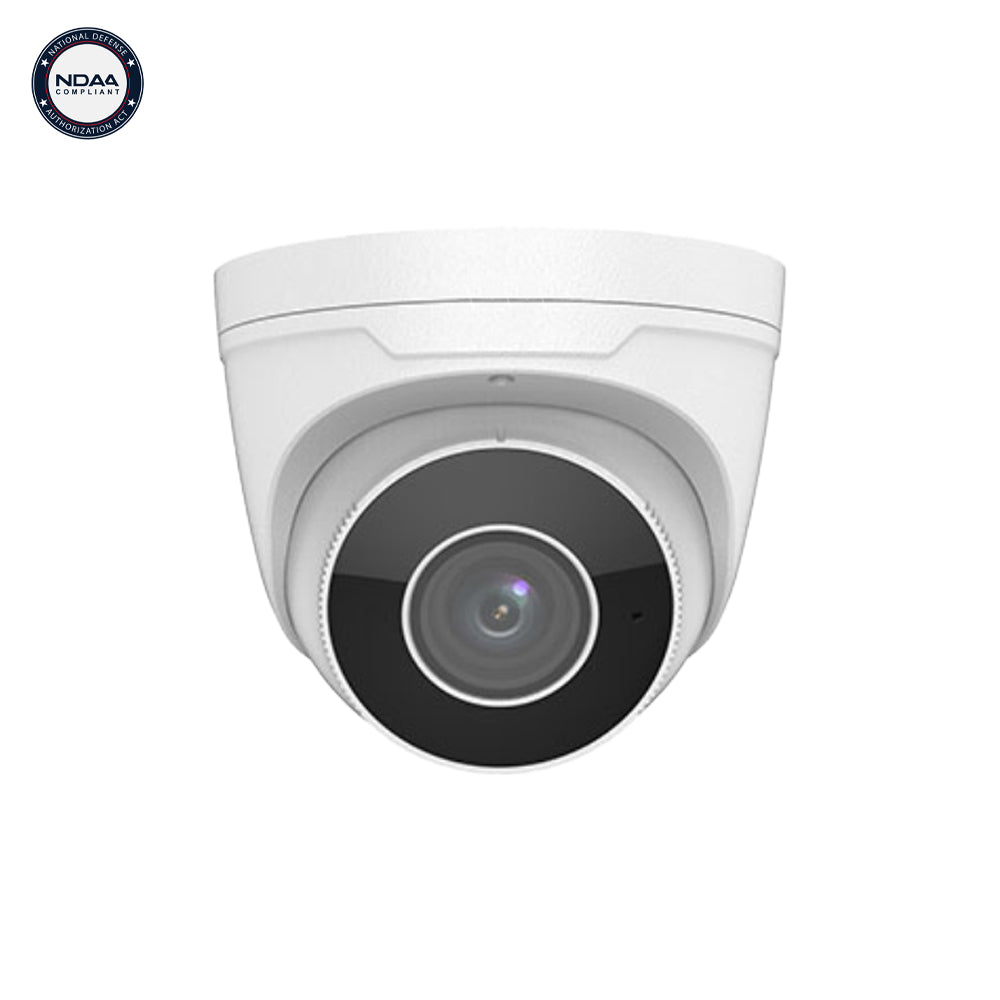

4MP Varifocal Turret IP Camera - 2.8~12mm - Smart IR - IP67 Rated - White


Price:
Sale price$560.85 CAD

Contact sales to place an order, 1-866-207-6442 or sales@infinitecables.com.



Description

Overview

This 4MP indoor/outdoor, IP based turret camera provides a sharp, high definition images in daylight or nighttime settings. The camera has a 2.8 to 12 mm motorized varifocal lens which delivers 91 ° to 27 ° horizontal field of view. Its maximum resolution is 2592 x 1520 at 20 fps and supports Ultra 265 video compression technology, which assures savings in bandwidth and storage. The camera is IP based with integrated PoE technology which makes for a quick and easy installation over a single CAT5e/CAT6 cable. Its housing is IP67 rated for outdoor use and has 98 feet of night vision using an IR cut filter and IR LEDs.

Features

  • Day/night functionality
  • Optical glass window with higher light transmittance
  • IR anti-reflection window to increase the infrared transmittance
  • Smart IR, up to 30m (98ft) IR distance
  • 2D/3D DNR (Digital Noise Reduction)
  • Ultra 265, H.265, H.264, MJPEG
  • Triple streams
  • 9:16 corridor mode
  • ONVIF Conformance
  • Support PoE power supply
  • Wide temperature range: -40 °C ~ 60 °C (-40 °F ~ 140 °F)
  • Wide voltage range of ±25%
  • IP67
  • 3-Axis

Application

The typical application for most security cameras networks is to connect the IP cameras to a NVR/DVR for simplified playback and additional storage space. Alternatively you can use an IP cameras as a standalone camera and not part of a network by connecting it directly to a POE switch and save the recording on a micro SD card.

NVR Setup



Standalone Camera Setup

Specifications

Camera
Image Sensor 1/3" (4 MP) progressive scan CMOS
Minimum Illumination Color: 0.005 lux @ (f/1.4, AGC on)
0Lux with IR
Shutter Speed Auto/Manual, 1 ~ 1/100000s
Slow Shutter Yes
Day /Night IR cut filter with auto switch (ICR)
S/N >52dB
WDR 120dB
Adjustment Angle Pan: 0° ~ 360° , Tilt: 0° ~ 90°, Rotate: 0° ~ 360°
Lens
Lens Type 2.8 ~ 12mm, AF automatic focusing and motorized zoom lens
Angle of View (H) 91.0° ~ 27.0°
Angle of View (V) 54.4° ~ 13.7°
Angle of View (O) 118.3° ~ 33.2°
DORI
DORI Distance 2.8mm Lens, 63.0m Detect, 25.2m Observe, 12.6m Recognize, 6.3m Identify

12.0mm Lens, 270.0m Detect, 108.0m Observe, 54.0m Recognize, 27.0m Identify
IR
IR Range Up to 30m (98ft)
Wavelength 850 nm
IR On/Off Control Auto/Manual
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile Baseline profile, Main profile, High profile
Frame Rate Main Stream: 4MP (2592*1520), Max 20fps; 4MP (2560*1440), Max 25fps; 3MP (2048*1520), Max 30fps;
Sub Stream: 2MP (1920*1080), Max 30fps;
Third Stream: D1 (720*576), Max 30fps
Video Bit Rate 128 Kbps~16 Mbps
U-code Supported
OSD Up to 8 OSDs
Privacy Mask Up to 8 areas
ROI Up to 8 areas
Motion Detection Up to 4 areas
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital Noise Reduction 2D/3D DNR
Smart IR Support
Flip Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
Dewarping Supported
HLC Supported
BLC Supported
Defog Digital Defog
Smart
General Function Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio Compression G.711
Suppression Supported
Sampling Rate 8KHz
Storage
Edge Storage Micro SD, up to 256GB
Network Storage ANR, NAS(NFS)
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Compatible Integration
ONVIF (Profile S, Profile G, Profile T), API
Client EZStation
EZView
EZLive
Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
Interface
Network 1 * RJ45 10M/100M Base-TX Ethernet
Built-in Mic Supported
Certification
Certifications CE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15
NDAA Compliant Yes
General
Power DC 12V±25%,
PoE (IEEE 802.3af, Mode B – Pins 4, 5, 7 and 8)
Power consumption: Max 8.16W

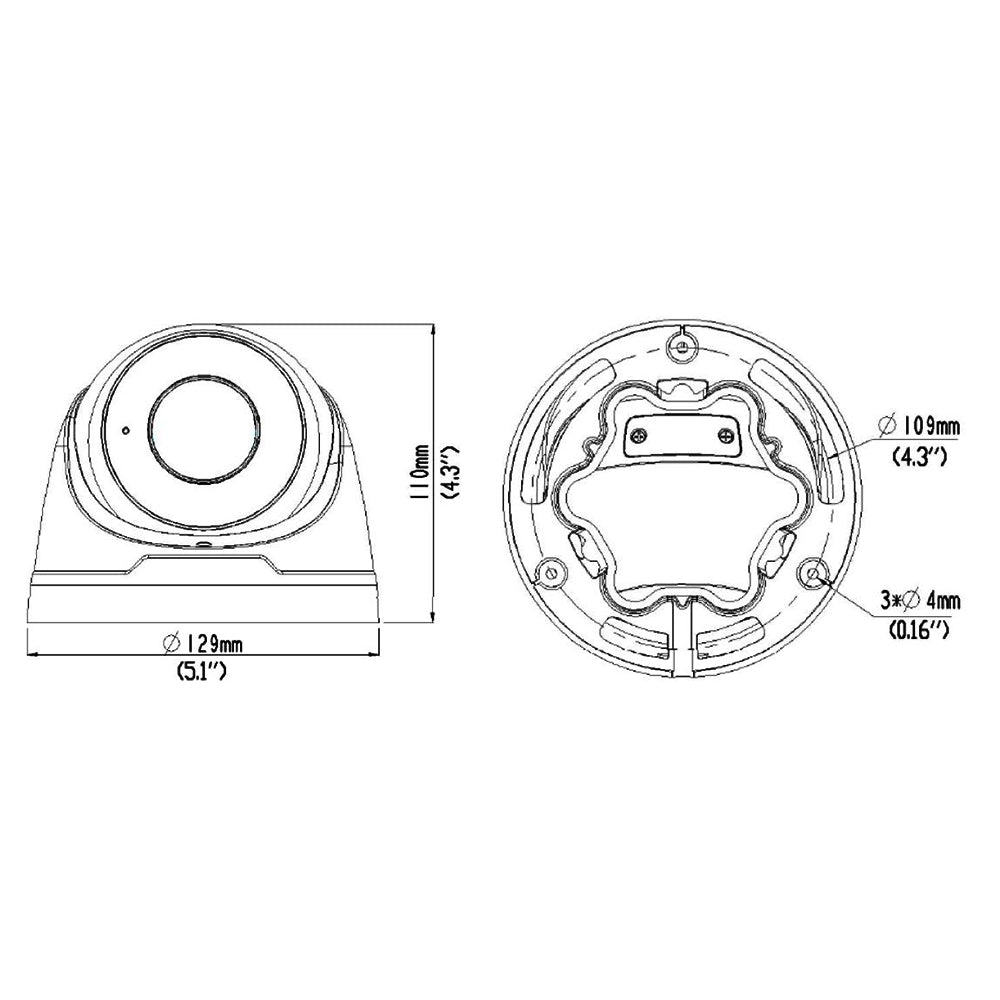

Dimensions
(Ø x H)
Φ129 x 110mm (Ø5.08€� x 4.3€�)
Weight 0.82kg (1.8lb)
Material Metal
Working Environment -40°C ~ 60°C (-40°F ~ 140°F), Humidity: ‰¤95% RH (non-condensing)
Storage Environment -40°C ~ 60°C (-40°F ~ 140°F), Humidity: ‰¤95% RH (non-condensing)
Surge Protection 6KV
Reset Button Supported
Ingress Protection IP67

Quick Start Guide

User Manual

Phantom Camview for Android

Phantom Camview iOS App
Supports iOS 8.0 or later & requires macOS 11.0 or later and a Mac with the Apple M1 chip or later. Compatible with iPhone, iPad, iPod touch and Mac.

PhantomCamTools Windows app

PhantomCamStation Windows app to set up cameras

3-YEAR WARRANTY

Infinite Cables Inc. offers a 3-year warranty on all cameras and hard drives to be free from defects in material and workmanship.

This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.

Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.

SKU Weight
SC-3H43F-IGZ 1.3 lb
