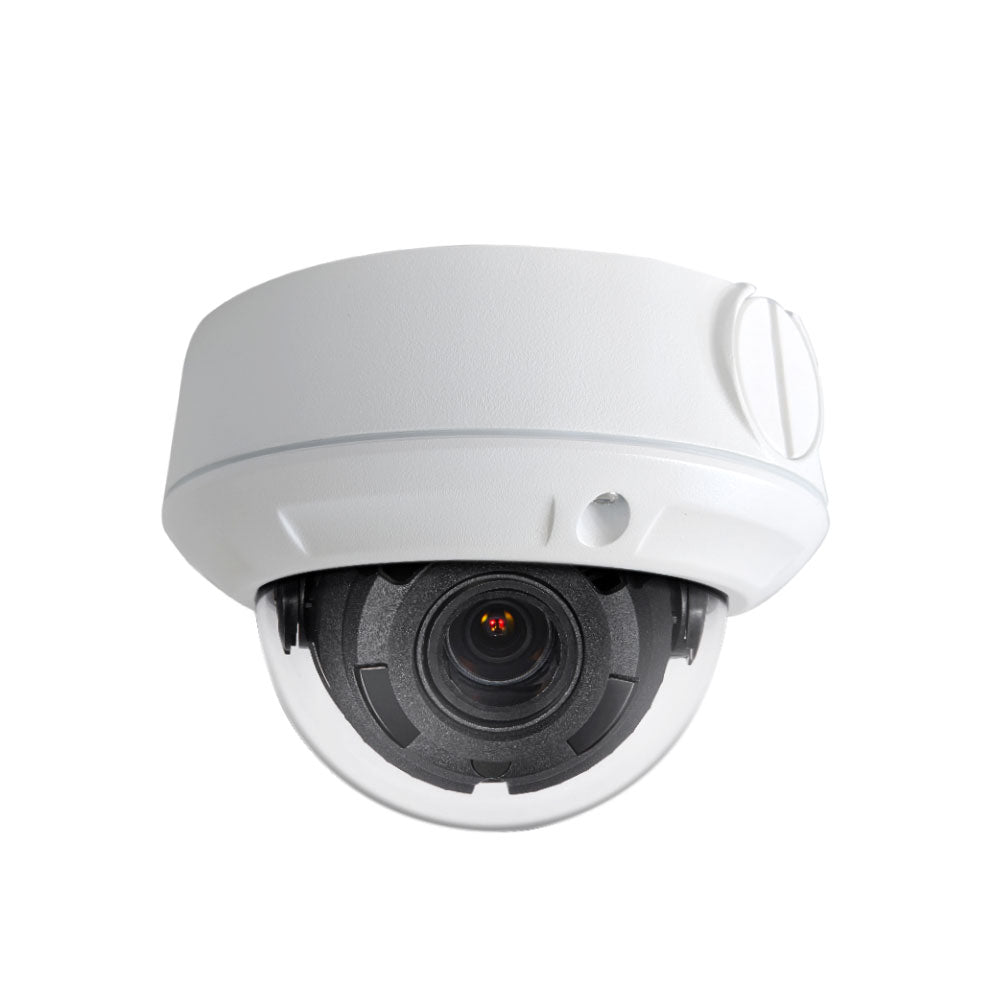

4MP Dome IP Camera - Varifocal Lens - 30m IR Range - IP67 Rated - White

OEM IP Cameras & RecordersSKU: CA-NC224-VDZ

Price:
Sale price$390.00 CAD

Contact sales to place an order, 1-866-207-6442 or sales@infinitecables.com.



Description

Overview

This 4MP indoor/outdoor, IP based dome camera provides a sharp, high definition images in daylight or nighttime settings. The camera has a 2.8 to 12 mm motorized varifocal lens which delivers 98° to 28° horizontal field of view. Its maximum resolution is 2560 x 1440 at 20 fps and supports H.265+ video compression technology, which assures savings in bandwidth and storage. The camera is IP based with integrated PoE technology which makes for a quick and easy installation over a single CAT5e/CAT6 cable. Its housing is IP67 rated for outdoor use and has 100 feet of night vision using an IR cut filter and IR LEDs.

Features

  • 1/3" Progressive Scan CMOS
  • H.265+/H.265/H.264+/H.264/MJPEG
  • Color: 0.01 Lux @(F1.2, AGC ON), 0.018Lux @ (F1.6, AGC ON)
  • Max resolution 2560 x 1440@20fps
  • 2.8 mm to 12 mm manual/motorized varifocal lens
  • Dual stream
  • BLC, 3D DNR
  • IR range up to 30m
  • WDR (Wide Dynamic Range)
  • DC12V&PoE
  • Built-in micro SD/SDHC/SDXC slot
  • Guarding Vision APP

Application

The typical application for most security cameras networks is to connect the IP cameras to a NVR/DVR for simplified playback and additional storage space. Alternatively you can use an IP cameras as a standalone camera and not part of a network by connecting it directly to a POE switch and save the recording on a micro SD card.

Note: Dome cameras are best suited for indoor applications or outdoor applications which are sheltered from direct sunlight and any other adjusted light sources, as the curvature of the dome can cause reflections and glares on the camera lens. Turret cameras are best suited for outdoor applications which are directly exposed to the elements.

NVR Setup

Specifications

Camera
Image Sensor 1/3" Progressive Scan CMOS
Minimum Illumination Color: 0.01 Lux @(F1.2, AGC ON), 0.018Lux @ (F1.6, AGC ON)
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Auto-Iris No
Day /Night IR cut filter
Digital Noise Reduction 3D DNR
WDR 120dB
Angle Adjustment Pan: 0° to 355°, tilt: 0° to 70°, rotation: 0° to 360°
Lens
Focal Length 2.8 to 12 mm motorized varifocal lens
Aperture f/1.6
Focus Auto
FOV Horizontal field of view: 98°to 28°
Vertical field of view: 51°to 16°
Diagonal field of view: 115°to 32°
Lens Mount ’€14
IR
IR Range Up to 100 ft (30 m)
Wavelength 850 nm
Compression Standard
Video Compression Main stream: : H.265/H.264
Sub-stream: H.265/H.264/MJPEG
H.264 Type Baseline Profile/Main Profile/High Profile
H.264+ Main stream supports
H.265 Type Main Profile
H.265+ Main stream supports
Video Bit Rate 32 Kbps to 8 Mbps
Smart Features
Region of Interest One fixed region for main stream and sub-stream
Maximum Resolution 2560 — 1440
Main Stream 50Hz: 20fps (2560 — 1440), 25fps (2304 — 1296, 1920 — 1080, 1280 — 720) 60Hz: 20fps (2560 — 1440), 30fps (2304 — 1296, 1920 — 1080, 1280 — 720)
Sub-Stream 50Hz: 25fps (640 — 480, 640 — 360, 320 — 240)
60Hz: 30fps (640 — 480, 640 — 360, 320 — 240)
Image Enhancement BLC/3D DNR
Image Setting Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Day/Night Switch Auto, scheduled
Network
Network Storage Support Micro SD/SDHC/SDXC card (128G ), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger Motion detection, video tampering alarm, network disconnected, IP address conflicted, illegal login
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General Function One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
API ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View Up to 6 channels
User / Host Up to 32 users. 3 user levels: administrator, operator and user
Client iVMS-4200, Guarding Vision
Web Browser IE 8+, Chrome 31.0 to 44, Firefox 30.0 to 51, Safari 8.0+
Interface
Communication Interface
1-port RJ45 10M/100M self-adaptive Ethernet port
Video Output
1 Vp-p Composite Output(75Ω/BNC)
On-board storage Built-in microSD/SDHC/SDXC slot, up to 128 GB
Reset Button Yes
General
Operating Conditions -30 °C to 50 °C (-22 °F to 122 °F), humidity: 95% or less (non-condensing)

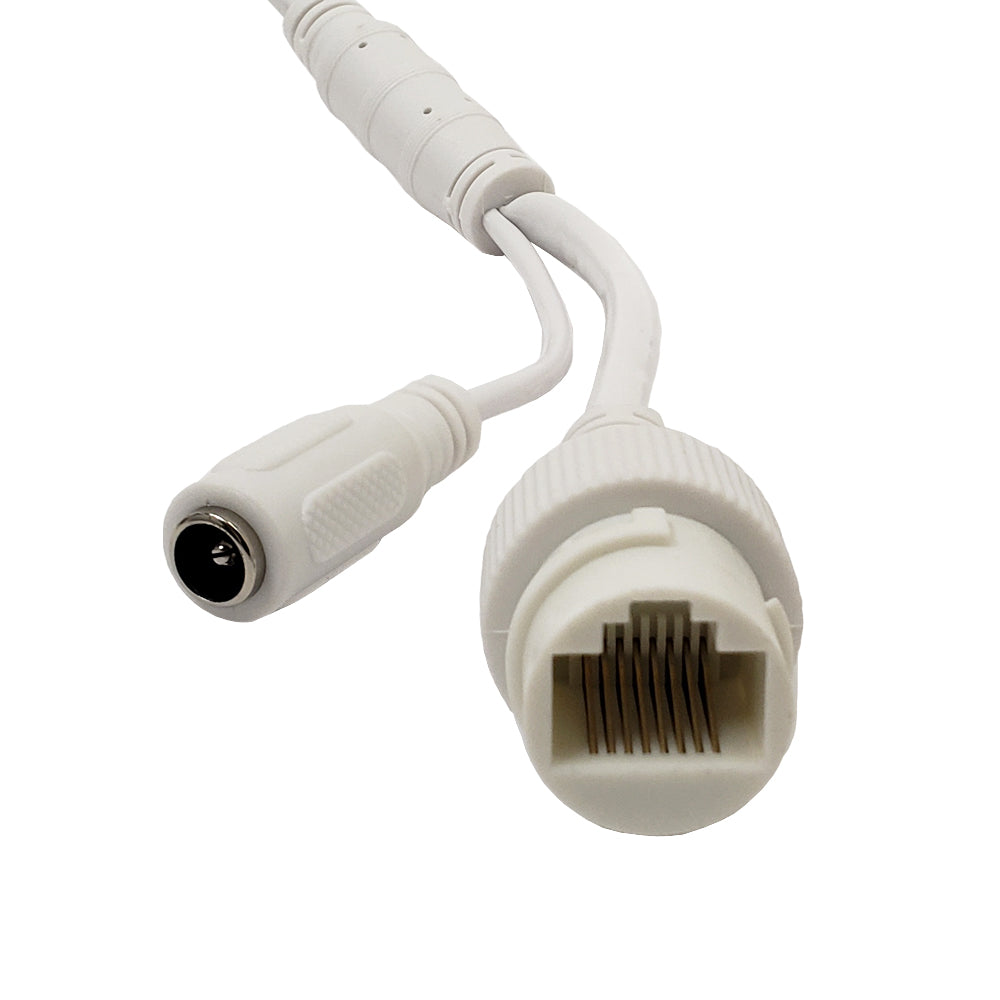

Power Supply 12 VDC ± 25%, 5.5 mm coaxial power plug
PoE (802.3af, class 3)
Power Consumption and Current 12 VDC, 0.8 A, Max: 10 W
PoE: (802.3af, 36 V to 57 V), 0.35 A to 0.2 A, Max: 12 W
Protection Level IP67, IK10 TVS 2000V lightning protection, surge protection and voltage transient protection
Material Metal & Plastic

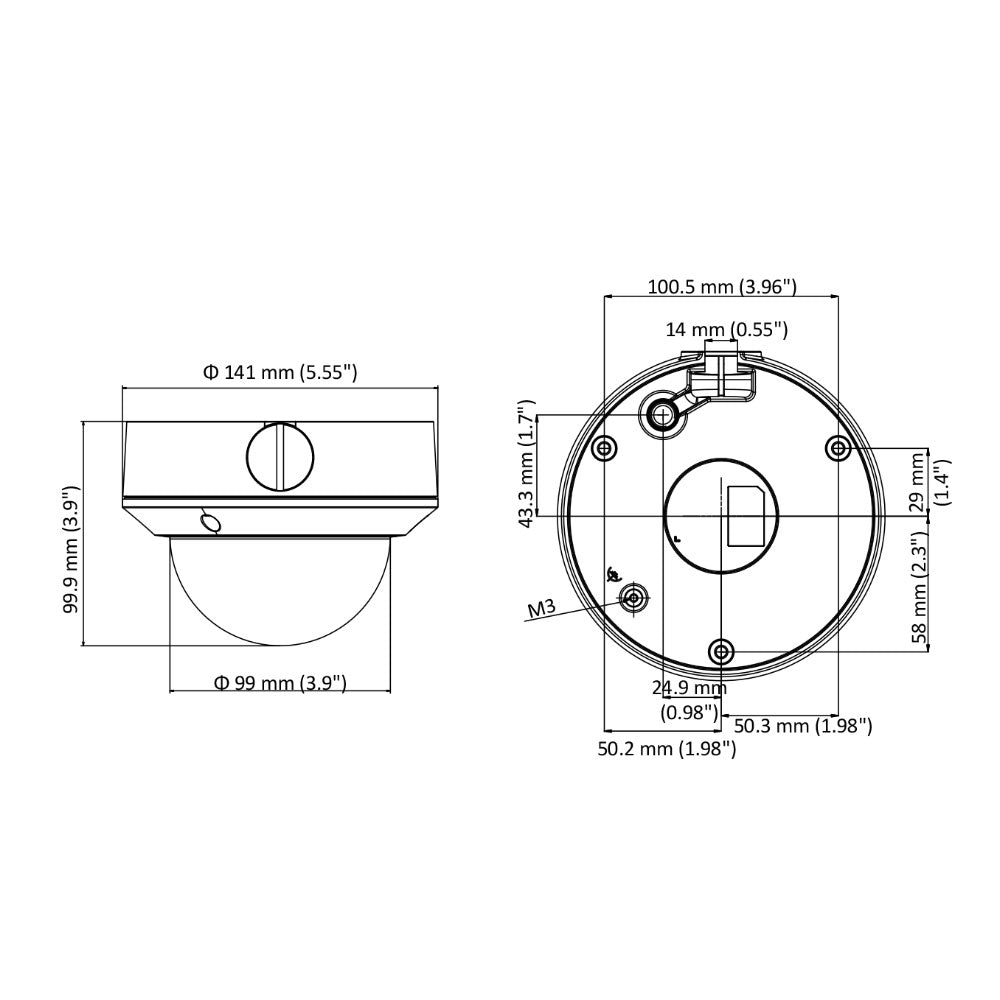

Dimensions ˜ 5.6" x 3.9" (˜ 141 x 99.9 mm)
Weight 1.80 lbs (0.82 kg)
Approvals
c(UL)us Yes
CE Yes
FCC Yes
ONVIF Yes

Data Sheet
RJ45 pin out diagram


Web Portal Remote Access
Register/login with your Guarding Vision account for access to all devices in your account remotely from the browser. Supports Internet Explorer 8+, Chrome 41.0 to 44, Firefox 30.0 to 51 and Safari 8.0 to 11

Guarding vision Android app
Supports Android 4.1 and up

Guarding vision iOS app
Supports iOS 8.0 or later. Compatible with iPhone, iPad and iPod touch

iVMS-4200 video management software for the DVRs, NVRs and IP cameras
Supports macOS version 10.12,10.13 and 10.14 (64-bit)

iVMS-4200 video management software for the DVRs, NVRs and IP cameras
Supports Microsoft Windows 7/Windows 8.1/Windows 10 (32-bit or 64-bit)/Windows XP SP3 (32-bit)/Windows 2008 R2/Windows Server 2012 (64-bit)

SADP Tool V3.1.0.8
Search, activate devices on the network and modify the basic network information
