Overview

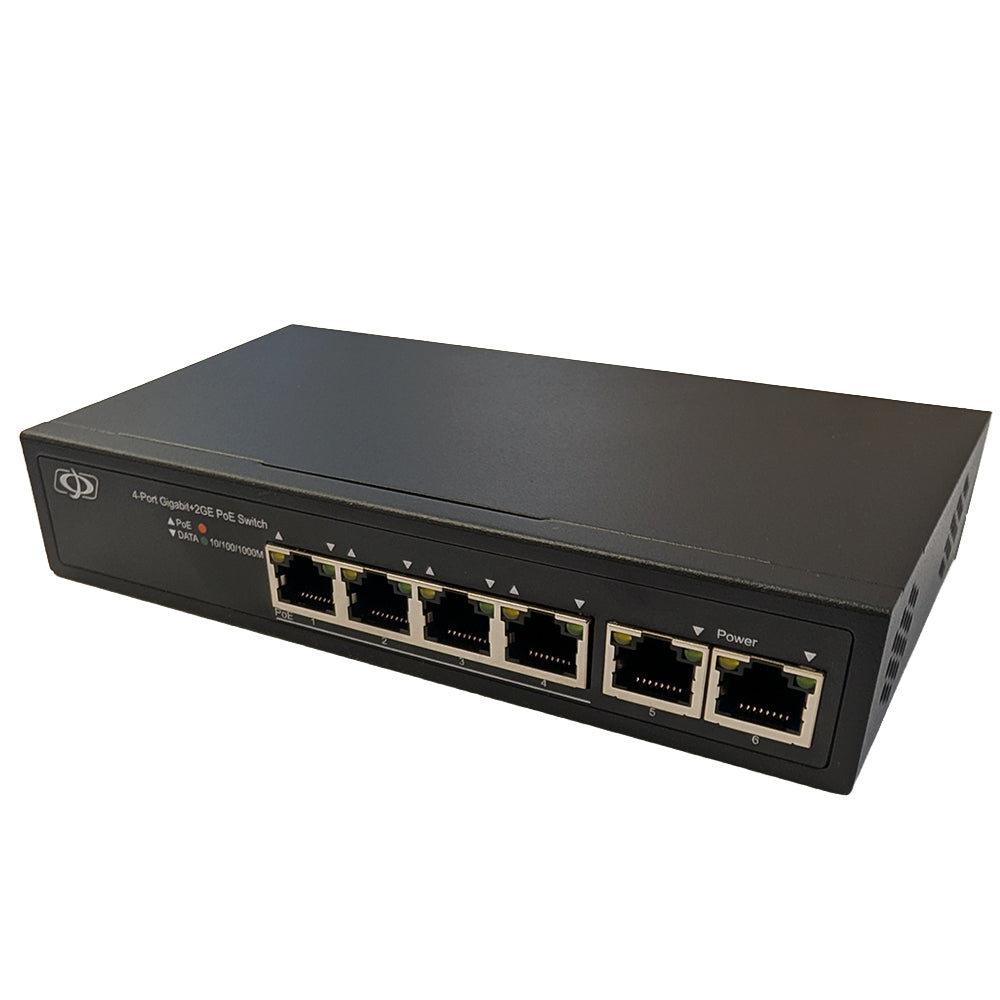

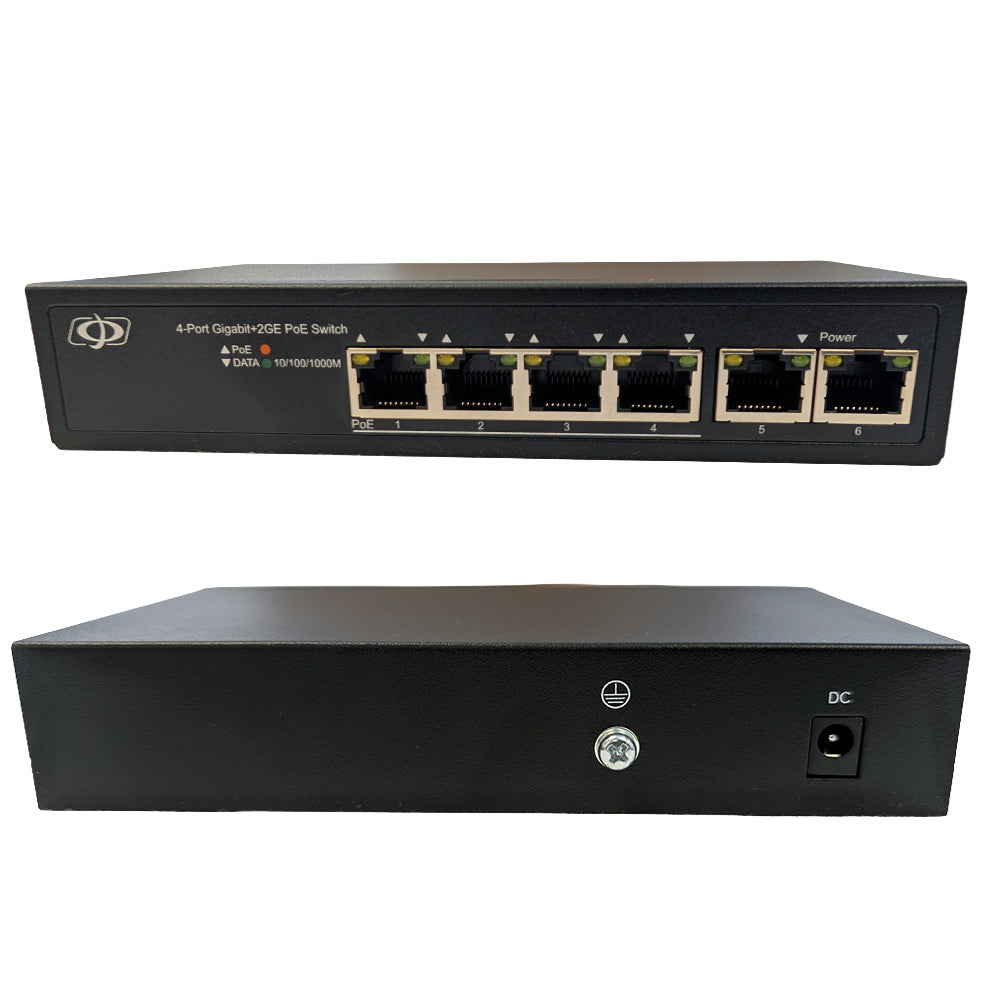

This is a 4+2-port gigabit Ethernet switch, providing 4x 10/100/1000Mbps PoE+ ports and two RJ45 ports. The switch provides power and network to PoE+ compatible devices such as access points, CCTV cameras, voice over IP phone, etc., eliminating the need to power the devices separately.
Features
- Complies with IEEE802.3af/at Standard
- Supports PoE Power up to 30W for each PoE port
- Auto detect power device
- Supports IEEE802.3 x full duplex flow control and Backpressure half duplex flow control
- Line-speed forwarding, intelligent identification
- Supports storage-and- forward for Data exchange
- Support VLAN function
- QoS control, Port1-4 port according to 1: 2: 4: 8 configuration
- Iron shell, no fan
- Support Energy-Efficient Ethernet (EEE) function (IEEE802.3az)
- Supports port power supply prioritization, guarantee the continuous power supply of key nodes
- Extend mode, Single port speed reduction and ensure transmission quality, supporting 200m transmission
Application
Specifications
| Physical Characteristics | |
|---|---|
| Product Dimensions | 168 x 93 x 32mm |
| Shell | Metal Material, Fan-Free Design |
| Operating Temperature | 0°C ~ 40 °C |
| Storage Temperature | -40 °C ~ 70 °C |
| Operating Humidity | 10% ~ 90% non-condensing |
| Storage Humidity | 5% ~ 90% non-condensing |
| Indicator | PWR, LNK/ACT, PoE |
| Power | |
| PoE output-port | Max 30W |
| RJ45 PoE Power Supply | Mode A Anode1/2 Cathode3/6 |
| Power Input | 100-240VAC~50/60Hz 1.8A |
| Power Output | 54.5V/1.32A |
| Surge Protection | Differential mode±2KV，Common mode ±4KV |
| MTBF | >50000 hours |
| Electrostatic standard | Contact ±6KV,Air ±8KV |
| Interface | |
| Ports | 6*10/100/1000Mbps RJ45 port |
| PoE Ports | 1 ~ 4 |
| Performance | |
| Network Standard | IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3az |
| PoE standard | IEEE802.3af/at |
| Network media | 10BASE-T: UTP category 3,4,5 cable（≤100m） 100BASE-TX: UTP category 5, 5e cable（≤100m） 1000BASE-T: UTP category 5, 5e cable（≤100m） |
| MAC Address Table | 4K，Automatic study, automatic updates |
| Transfer Mode | Store-and-forward switching |
| Bandwidth | 12 Gbps |
| Packet Forwarding Rate | 8.9Mpps |
| Jumbo Frame | 9K Bytes |
| Internal Cache/ Buffer | 1.5M bit |
| Approval | |
| c(ETL)us | Compliant |
| Environmental | |
| RoHS | Compliant |
| FCC | Compliant |
| CE | Compliant |
| Packaging Information | |
| Package Quantity | 1 |

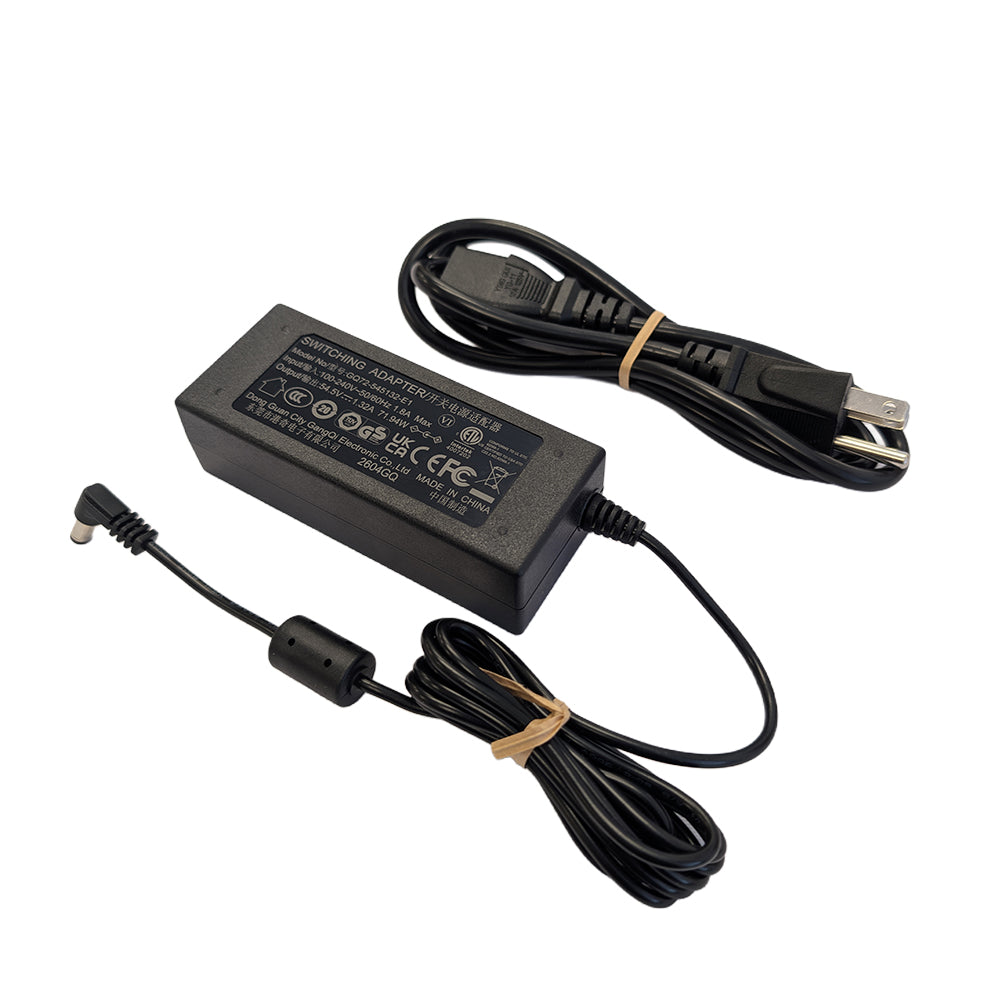

| Content | PoE Switch x 1 User Guide x1 Power Adapter x1 Power Cord x 1 |
| Product Weight | 2.10 lbs |
2-YEAR WARRANTY
Infinite Cables Inc. offers a 2-year warranty on this product to be free from defects in material and workmanship.
This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.
Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
