3GHz 90dB Digital Splitters 8-Way

Video SplittersSKU: MB-TVD3-18

Price:
Sale price$10.00 CAD
Stock:
Sold out


Description

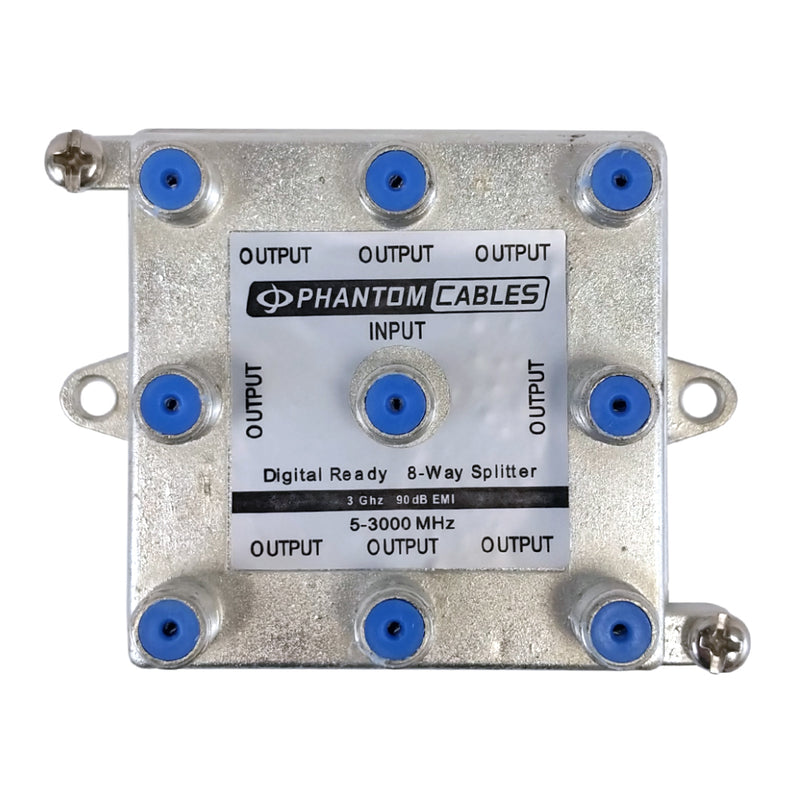

This digital splitter has a F-Type female input on one side and eight F-Type female outputs on the other side. It is typically used to split broadband or CATV 5-3000MHz 75Ω Ohm sources such as hybrid distribution networks, HDTV, voice, data, modem and digital converter applications to dual outputs.

  • Broadband and CATV 5-3000MHz 75Ω Splitter
  • Suitable for Hybrid Distribution Networks, HDTV, Voice, Data, Modem and Digital Converter Applications
  • Gold-Plated Beryllium-Copper Two-Prong Contacts
  • Reduced Aperture Flat-Ended Ports
  • High-Performance Printed Board Circuitry
  • Tongue-and-Groove Housing
  • All Ports DC Power Capacitor-Blocked
  • Low Intermodulation Hum
  • Soldered-Back Cover 90dB min. EMI-RFI Shielding
  • 3/8" Precision Machined F-Port Threads
  • 1" centered F-ports accommodate security tools
  • Supplied with Protective F-Port Plastic Caps
Physical Characteristics
Color Silver
Contacts Gold-Plated Beryllium-Copper Two-Prong
Housing Metal Enclosure
Shielding EMI-RFI
Circuitry High-Performance Printed Board
Performance
Frequency 3GHz
Impedance 75Ω
Amplitude 90dB (min)
Loss at 1GHz 12.8dB
Loss at 3GHz 18.5dB
Mounting Holes 2
Isolation Between Outputs
Frequency (Type (dB)) 5-40MHz ≥ 18
40-1000MHz ≥ 20
1000-2150MHz ≥ 20
2150-2500MHz ≥ 19
2150-3000MHz ≥ 16
Connector(s)
Input 1 x F-Type Female input
Output 8 x F-Type Female output
Environmental
RoHS Yes
Packaging Information
Package Quantity 1 - 3GHz 90dB Digital Splitters 8-Way with Plastic Caps
Product Weight 0.1 lbs [0.1kg]
Package Weight 0.2 lbs [0.1kg]
