Description

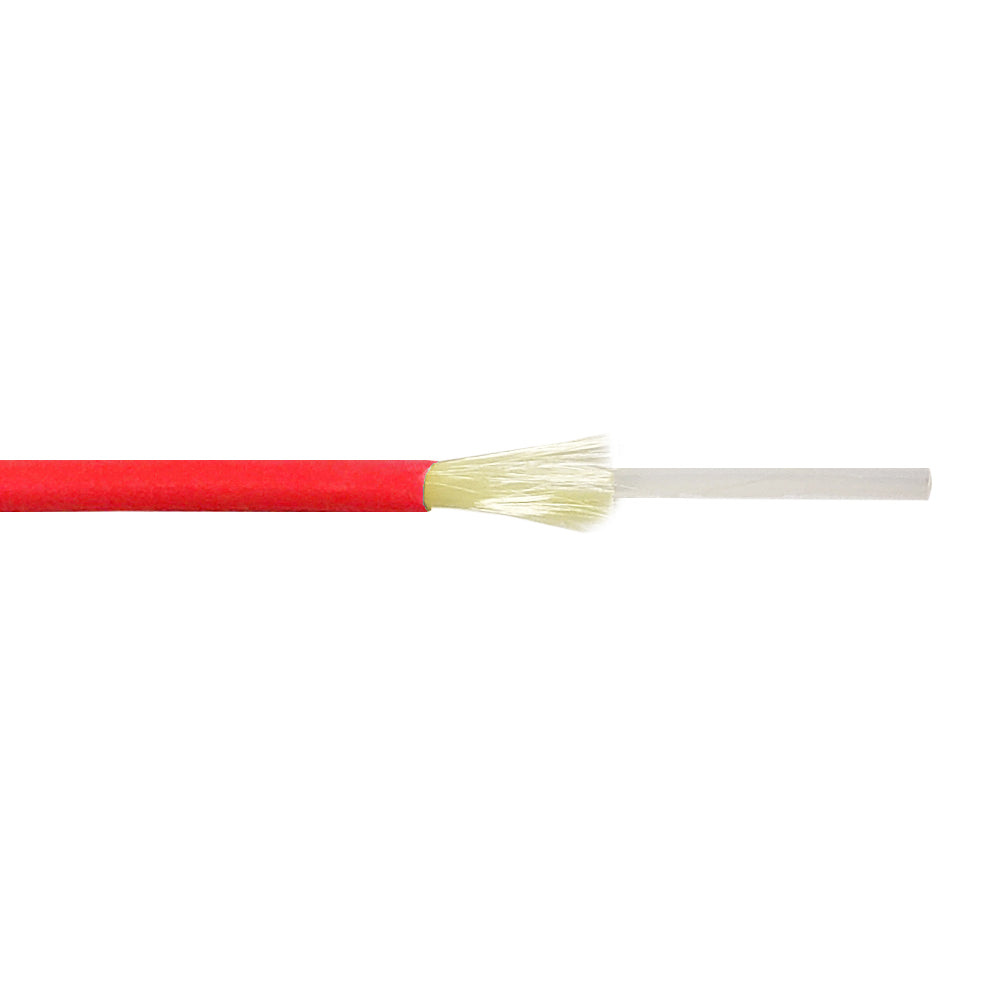

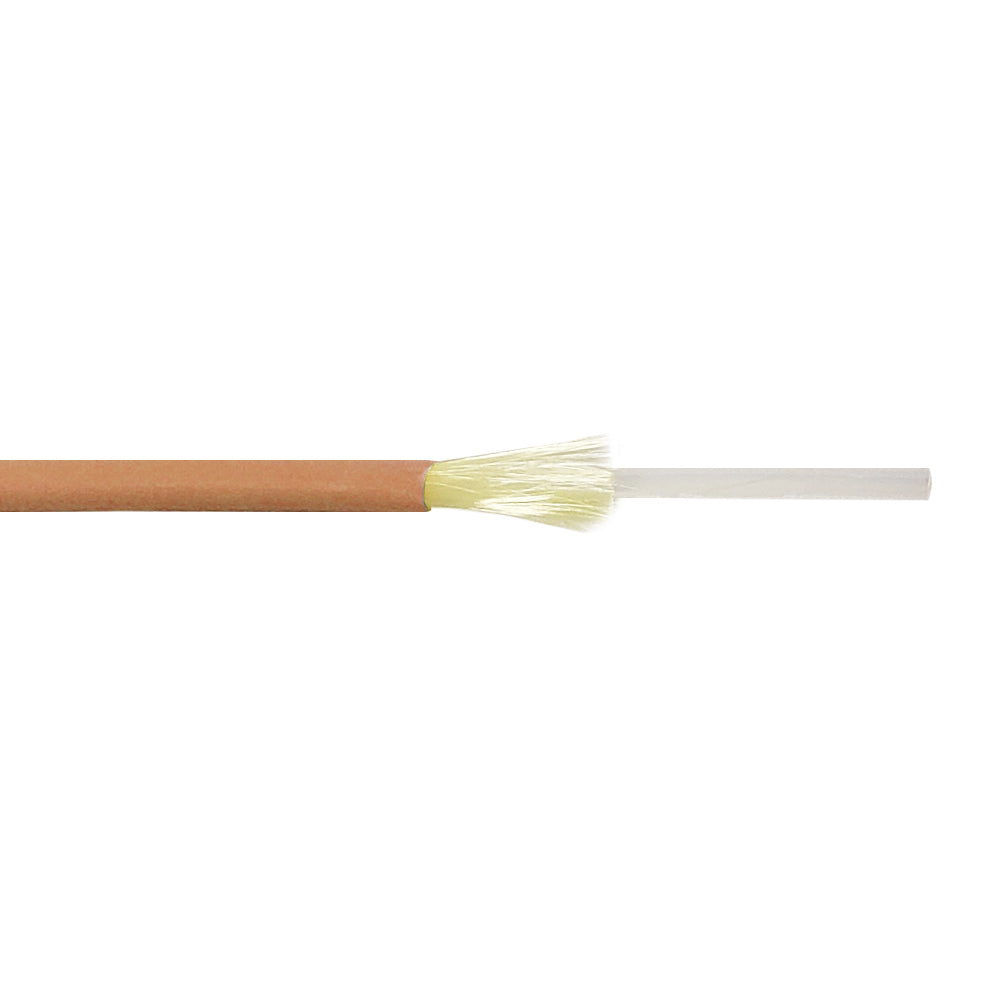

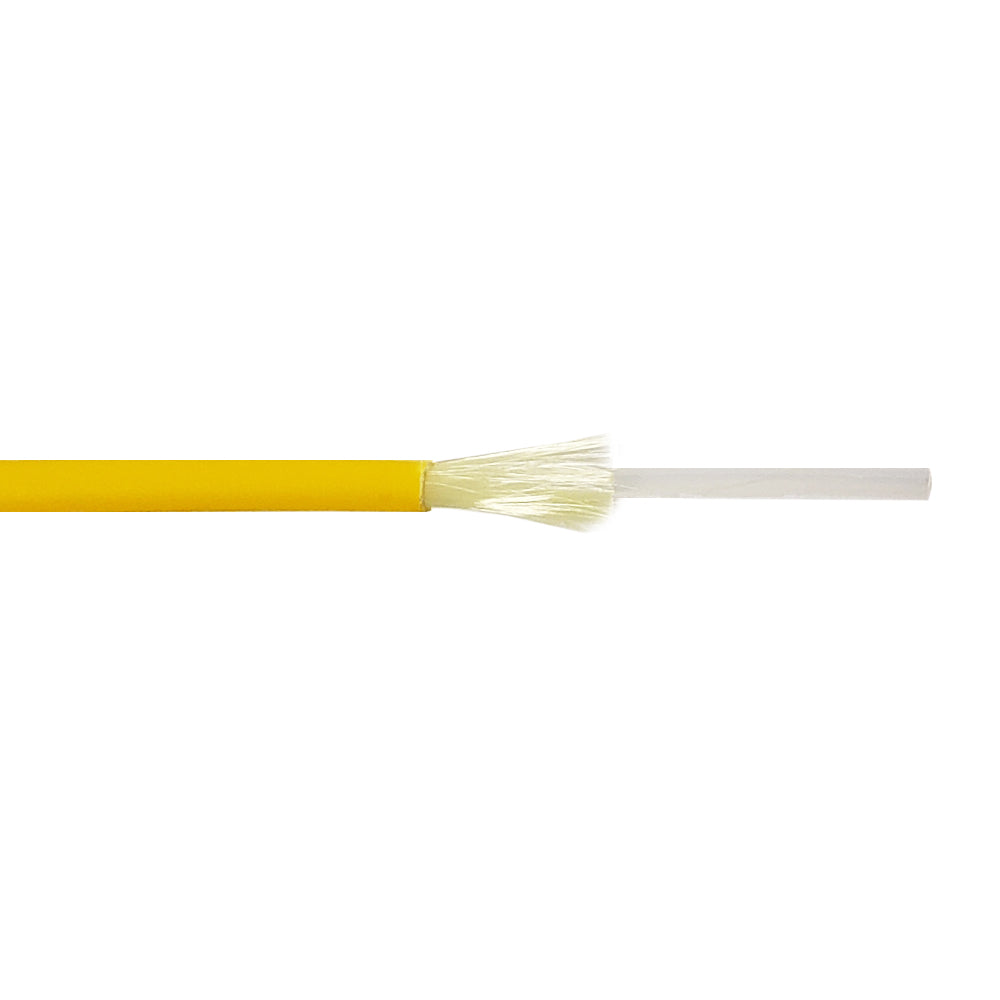

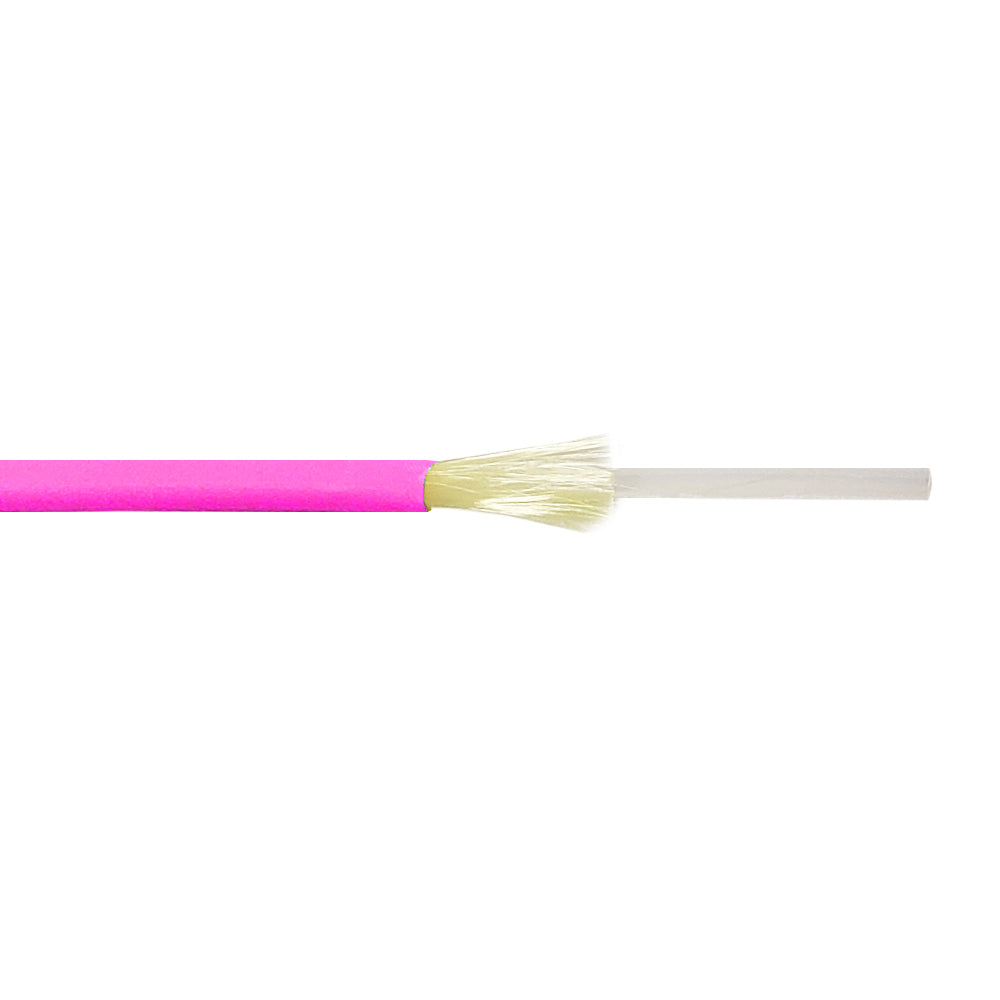

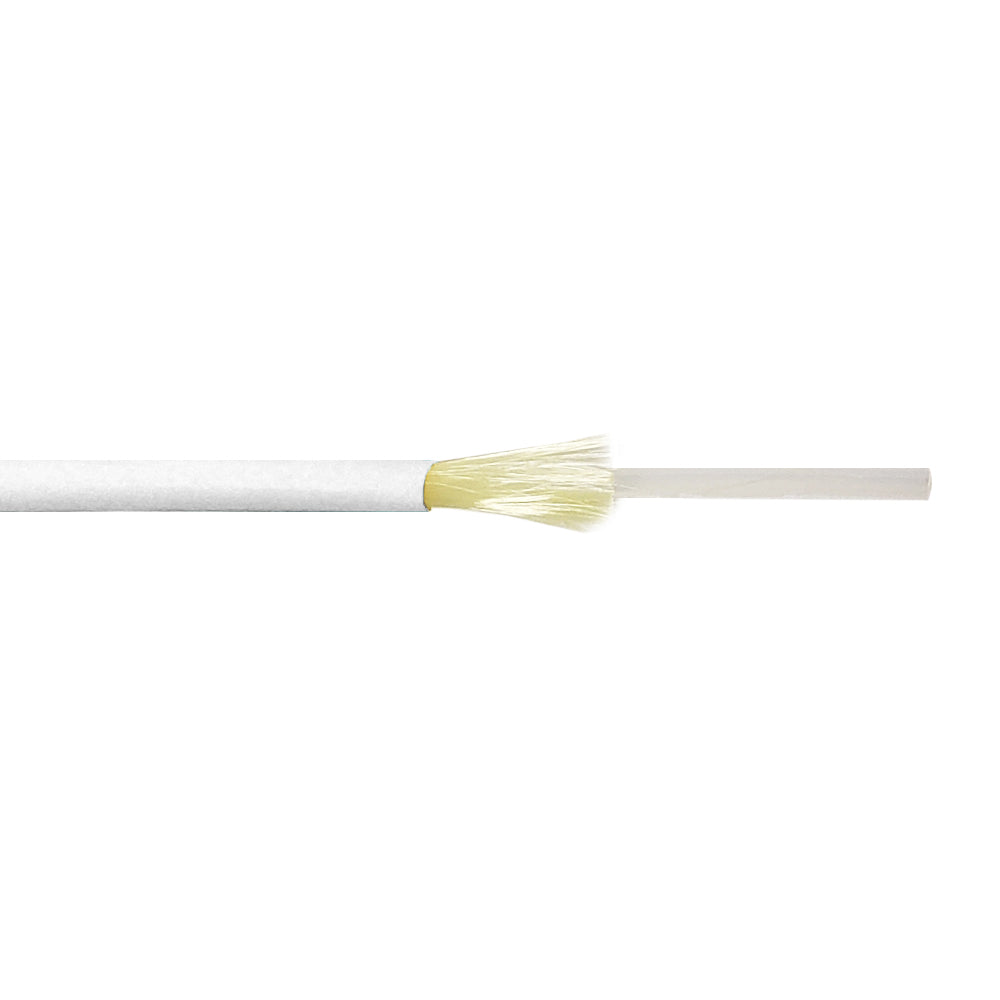

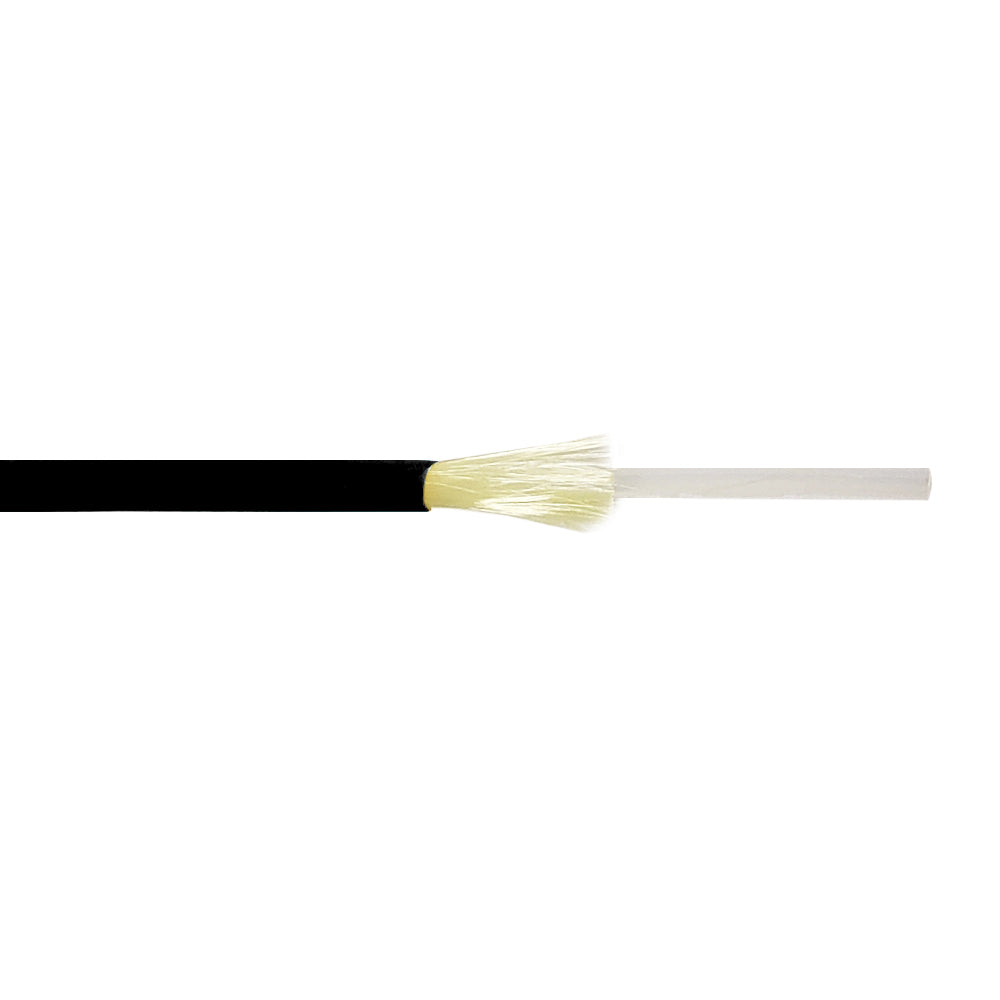

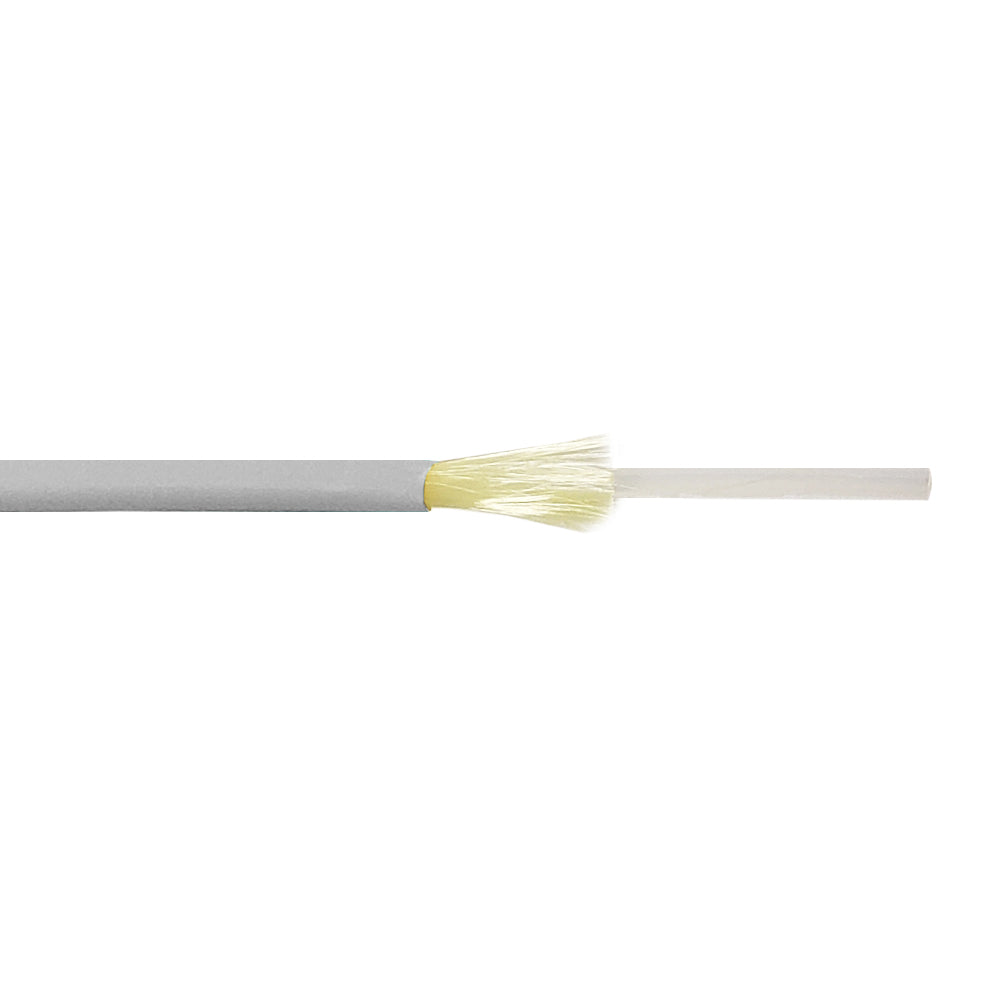

This tubing is used to furcate 900 micron fiber cable.
| Physical Characteristics | |
|---|---|
| Color | Black/ Blue/ Aqua/ Brown/ Green/ Slate/ Orange/ Purple/ Pink/ Red/ Yellow/ White |
| Outer Jacket Material | PVC |
| Strength Member | Aramid Yarn |
| Ribbon furcation tube material | PVC |
| Fucation tube material | Thermoplastic Polyester Elastomer |
| Sub Unit Diameter Supported | 900 Micron |
| Nominal Outer Diameter |
Inner Tube : 1.4mm Overall : 1.95mm |
| Nominal Inner Diameter | 1.0mm |
| Bending Radius | 3.0cm |
| Packaging Information | |
| Product Weight | 0.015 lbs/m |
Spec Sheets
Product Weights
The weights below are volumetric weight for shipping purposes, please see product specs for actual weights.
| SKU | Options | Weight |
| FO-FT2MM-AQ | Aqua | 0.05 lb |
| FO-FT2MM-BK | Black | 0.05 lb |
| FO-FT2MM-BL | Blue | 0.05 lb |
| FO-FT2MM-BR | Brown | 0.05 lb |
| FO-FT2MM-GN | Green | 0.05 lb |
| FO-FT2MM-OR | Orange | 0.05 lb |
| FO-FT2MM-PK | Pink | 0.05 lb |
| FO-FT2MM-PR | Purple | 0.05 lb |
| FO-FT2MM-RD | Red | 0.05 lb |
| FO-FT2MM-SL | Slate | 0.05 lb |
| FO-FT2MM-WH | White | 0.05 lb |
| FO-FT2MM-YL | Yellow | 0.05 lb |
