Unloaded Patch PanelsSKU: PP-24KSS-1U
Price:
$46.55 CAD
Stock:
In stock


Notify me when available


Description

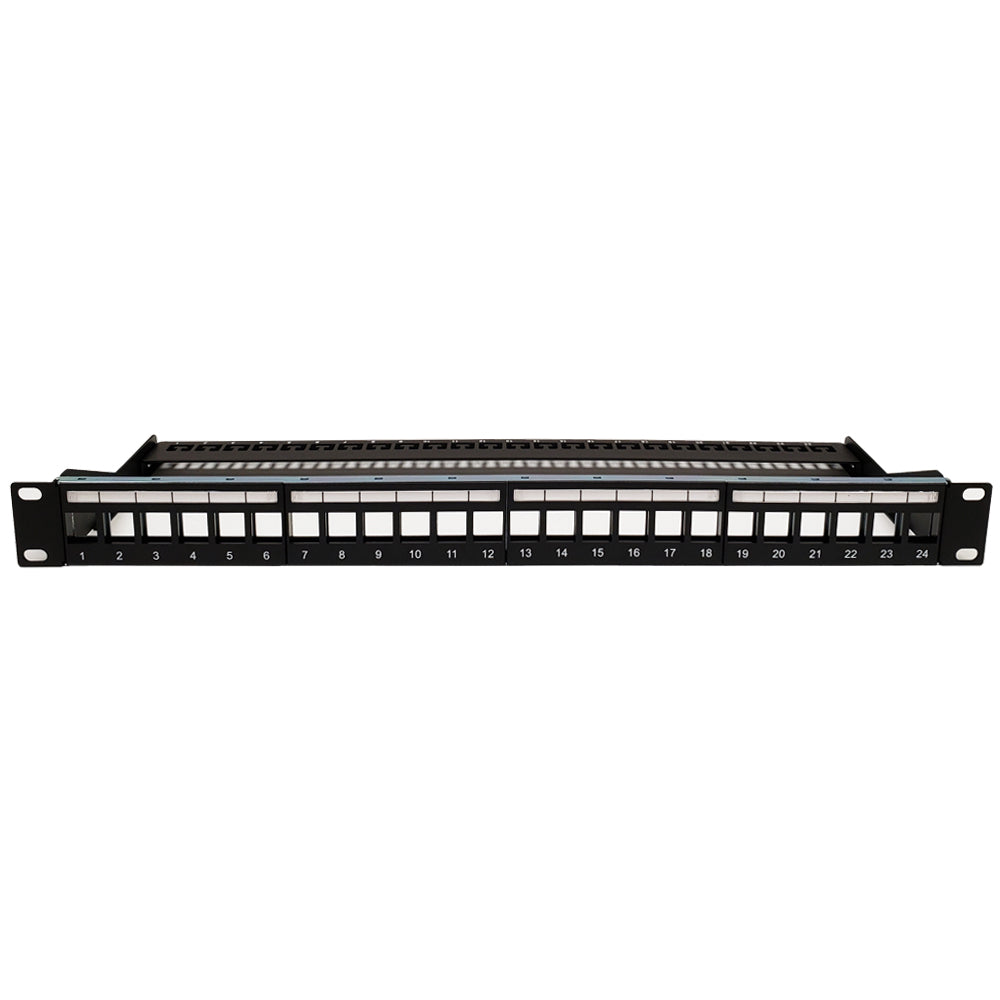

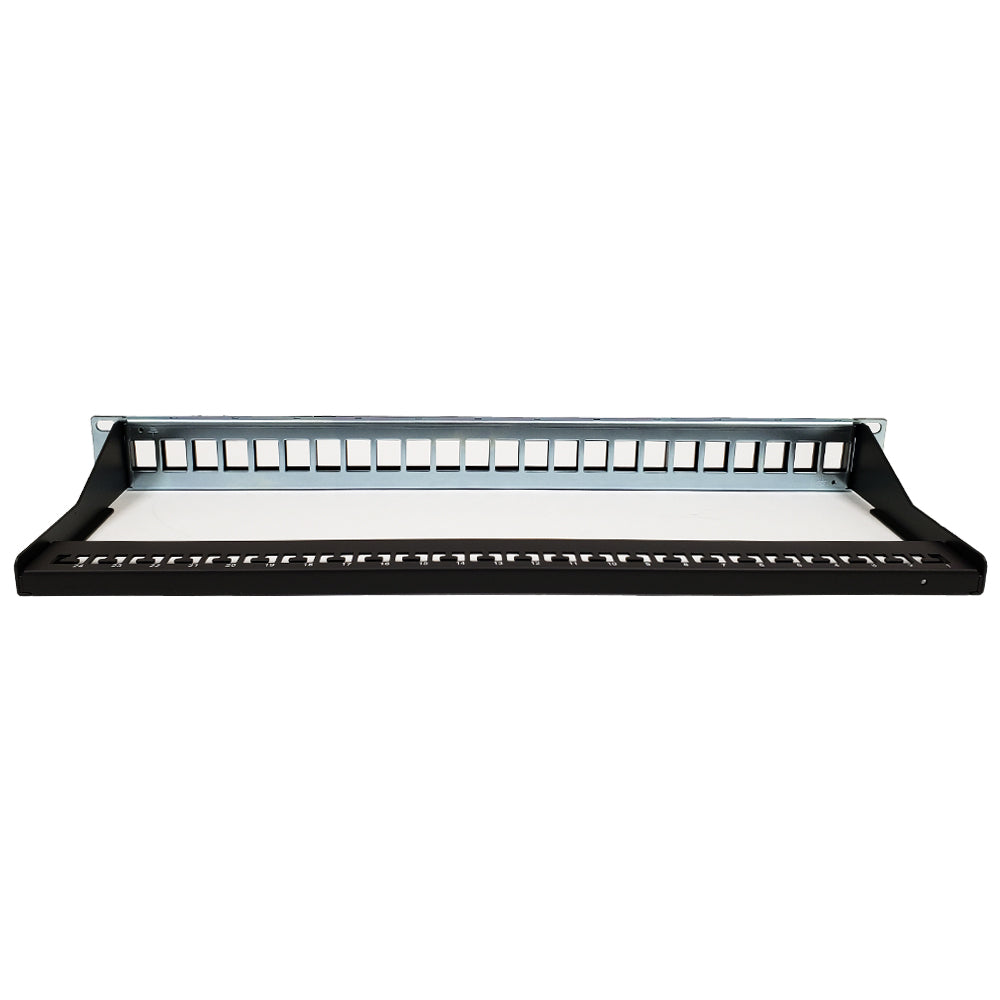

This 24 port patch panel comes unloaded and is 1U in height. It can be fitted with standard networking and audio/video keystone inserts and is meant to be mounted on a 19 inch rack or cabinet. It gives you the flexibility to customize the panel to your specific installation requirements. It also comes built in with cable management.

Physical Characteristics
Color Black
Material Steel
Connector Type Standard Keystone
Ports 24
Shielded Compliant
Product Dimensions 19 inch W 1.75 inch H [48 cm W, 4.45 cm H]
Rackmountable Compliant, 19 inch rack or cabinet
Intended Jacks
JK-8C6P-SS RJ45 Jack, 110 Style Punch-Down Cat6 Shielded
JK-C6-FFS RJ45 Keystone Jack, Female to Female Cat6 Shielded
JK-C6A-SS RJ45 Cat6a Slim Profile Jack, 110 Punch/Tool-Less, Shielded - Stainless Steel
JK-C6A-FFS RJ45 Keystone Jack, Female to Female Cat6a Shielded
JK-C8-SS RJ45 Cat8 Slim Profile Jack, 110 Punch/Tool-Less, Shielded - Stainless Steel
Also Compatible with
JK-C5P1-xx RJ45 Cat5e Slim Profile Jack, 110 Punch-Down
JK-C6P1-xx RJ45 Cat6 Slim Profile Jack, 110 Punch-Down
JK-C6PB1-xx RJ45 Cat6 Slim Profile 180 Degree Jack, 110 Punch-Down or Tool-Less
JK-C6A-xx RJ45 CAT6A Slim Profile 180 Degree Jack, 110 Punch-Down Style or Tool-Less
JK-C6AP1-xx RJ45 CAT6A Slim Profile Jack, 110 Punch-Down
JK-8C6AFF-WH Cat6a RJ45 Female to Female Keystone Jack
Environmental
RoHS Compliant
Packaging Information

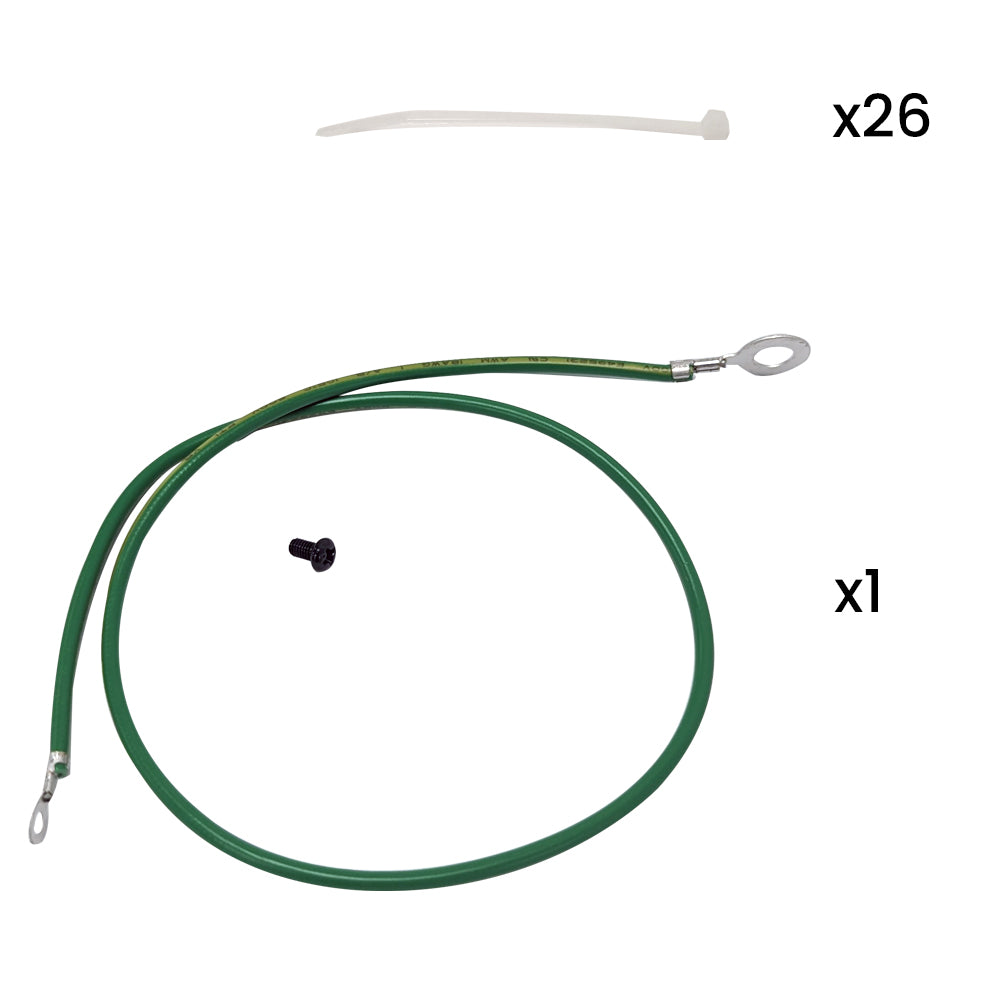

Package Quantity 1 - Patch Panel
1 - Grounding Cable
26 - Cable Ties
Product Weight 1.25 lbs [0.57 kg]

Download attachment

REACH Certificate

RoHS Certificate

The weights below are volumetric weight for shipping purposes, please see product specs for actual weights.
SKU Weight
PP-24KSS-1U 1.25 lb
