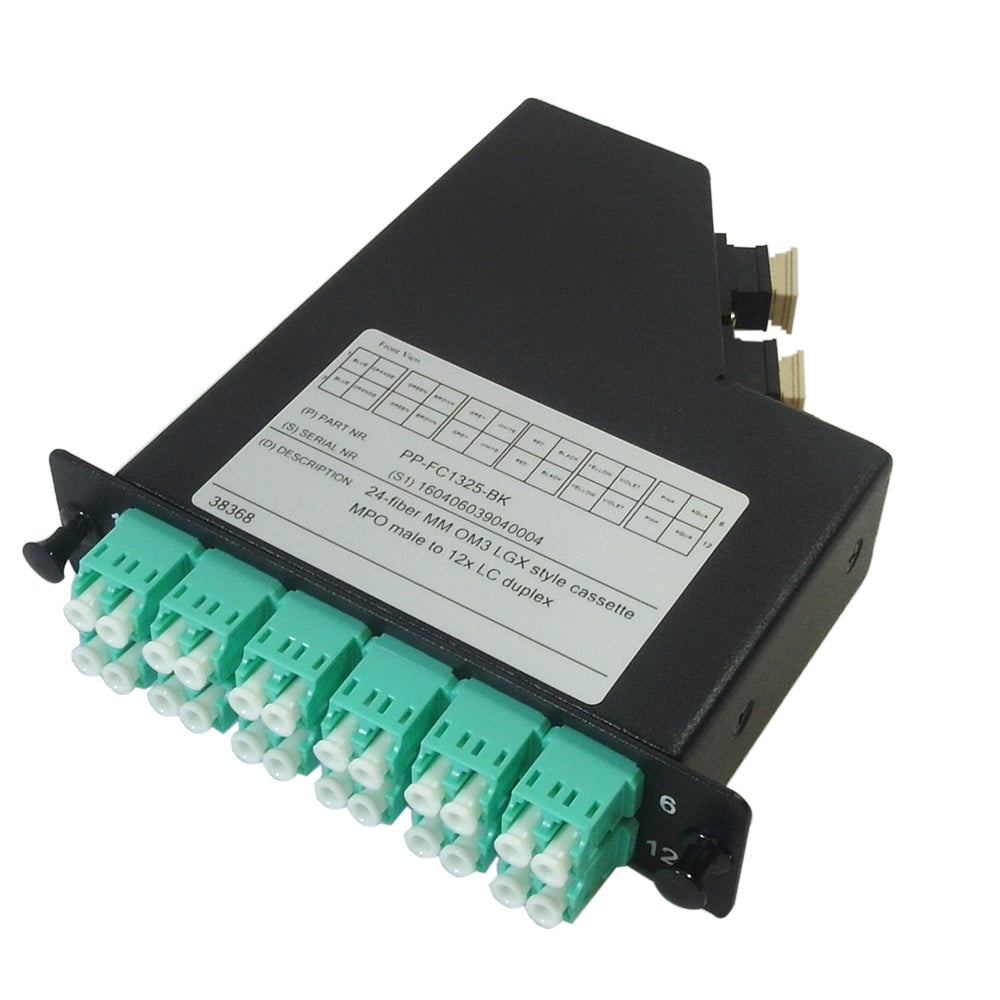

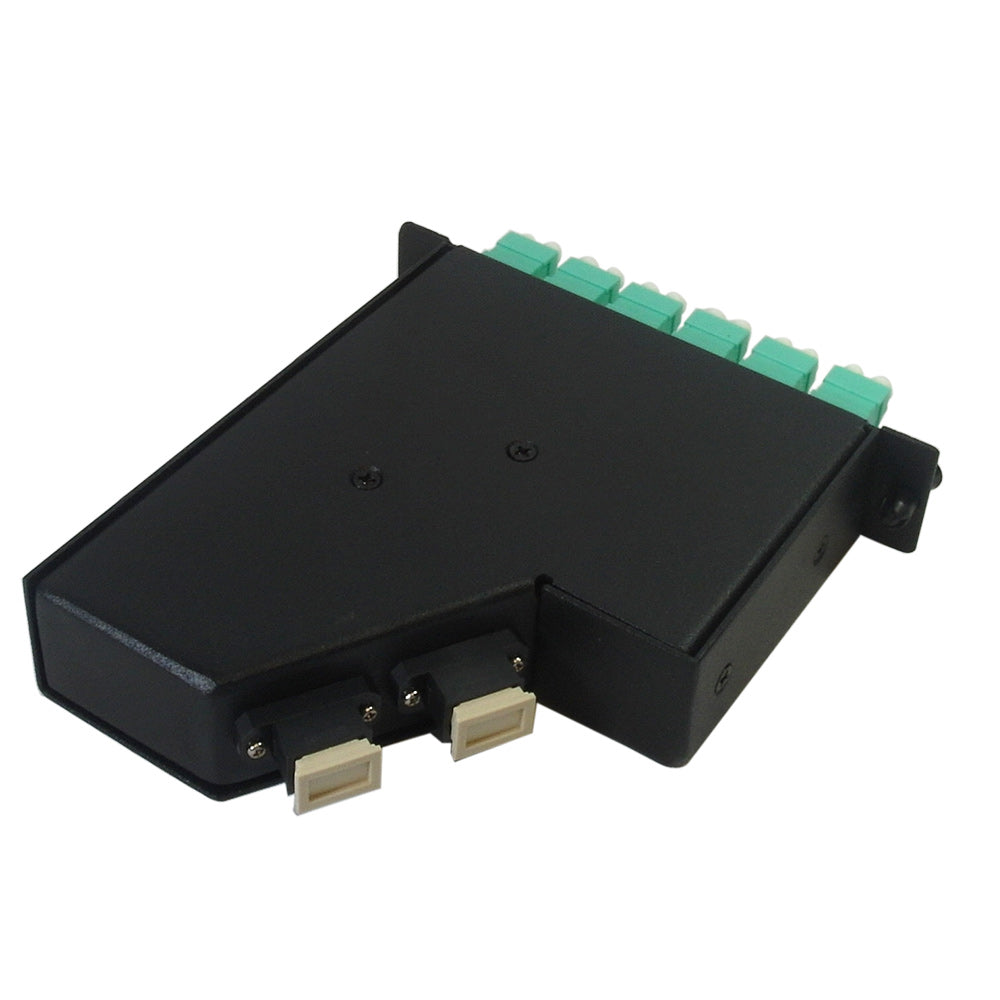

This multimode fiber optic MPO to LC cassette is made with Corning glass fiber and consists of a two MPO/MTP male connectors on one end and 12 duplex LC female connectors on the other. It is used in high bandwidth data center applications for breaking out MPO/MTP cables to LC female ports.
Physical Characteristics
|
Cassette Style/Size |
LGX Panel |
Fiber Count |
24 Fibers |
Fiber Type |
Multimode 50/125 Micron OM3 |
Glass Manufacturer |
Corning Glass |
Polarity |
Method A |
Connector(s)
|
Connector A |
2 x 12-Position MPO Male (with guide pins) Elite Connectors |
Connector B |
12 x LC Duplex Female |
Performance
|
MPO Insertion Loss |
≤0.35 dB |
MPO Return Loss |
≥20dB |
LC Insertion Loss |
≤0.3dB |
LC Return Loss |
≥20dB |
testing |
100% IL, RL and Interferometer Tested |
Environmental
|
RoHS |
Yes |
UL |
UL Listed Cable |
Packaging Information
|
Package Quantity |
1 |
Product Weight |
1.13 lbs [0.51kg] |
Warranty Information
|
Warranty |
Limited Lifetime |
