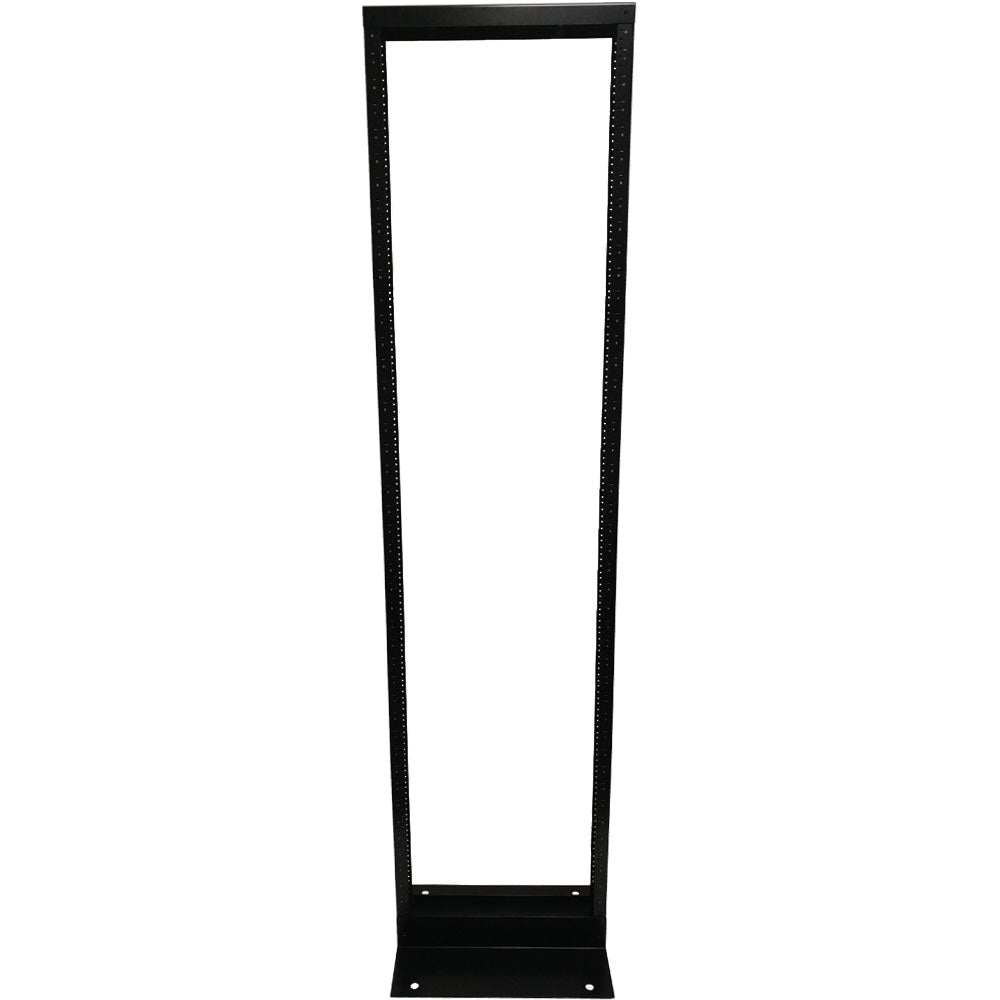

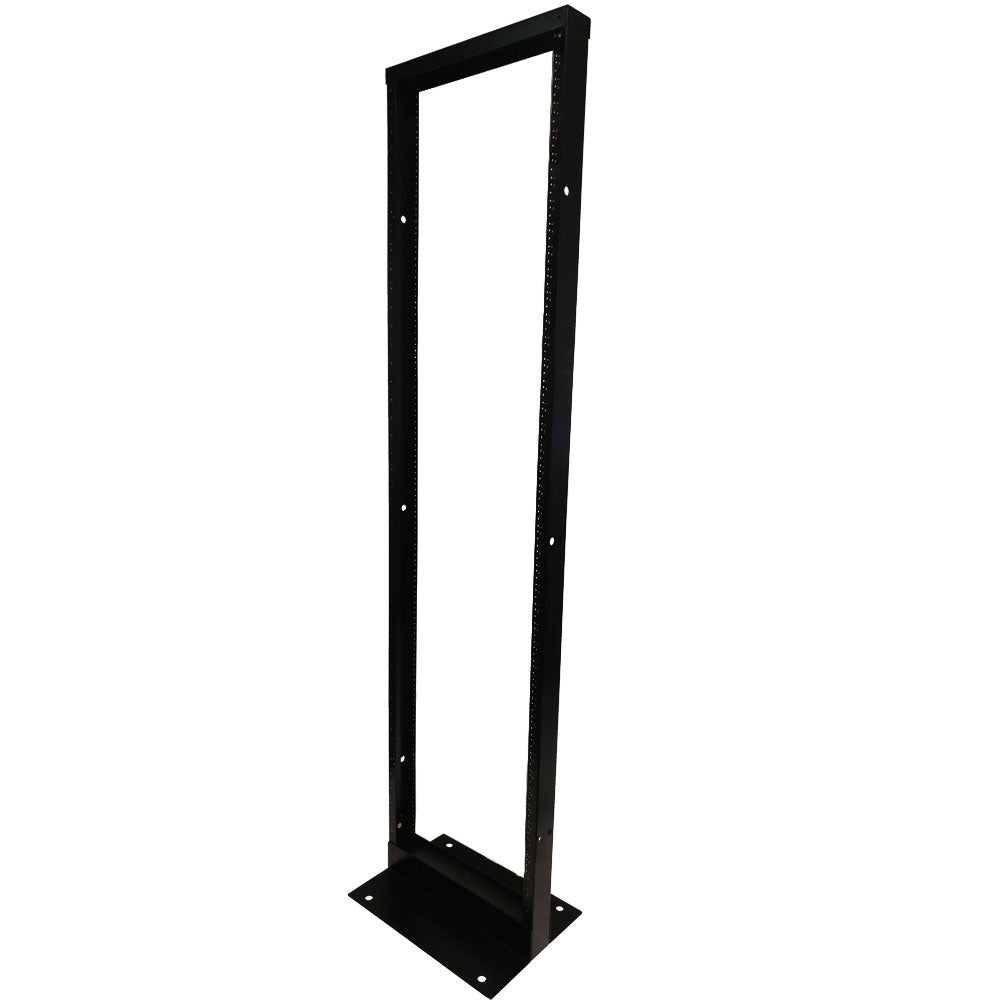

This double-tapped 2-post relay rack is 19 inches wide, and 44U in height. It is typically used to mount networking and audio/video rack mountable equipment. The rack is welded, no assembly required.
Physical Characteristics |
Color |
Black |
Finish |
Powder Painted |
Material |
SPCCC old Rolled Steel
|
Material Thickness |
Rails:2.0mm,Others:3.0 mm
|
Height in units |
44U |
Loading Capacity |
Maximum 330lbs [150kg]
|

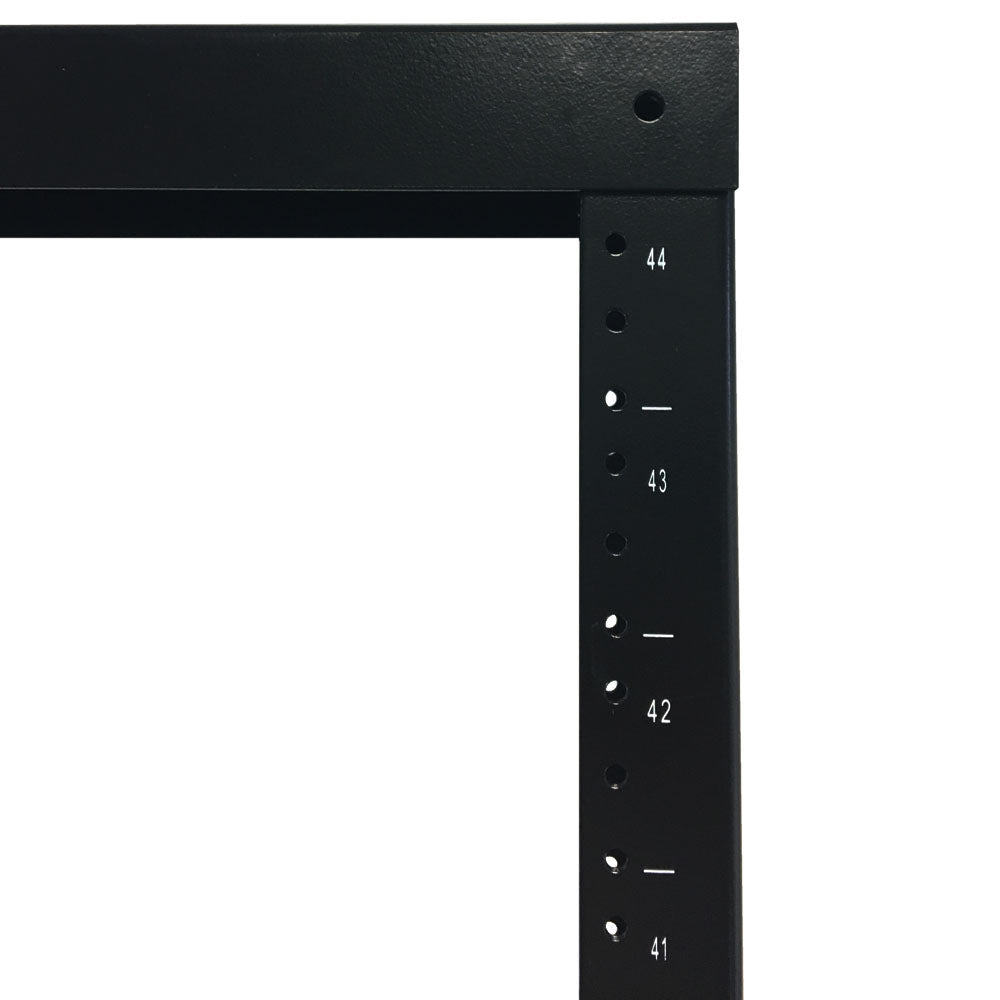

Mounting Rails |
19" EIA-310-D Compliant 10-32 Tapped Rails |

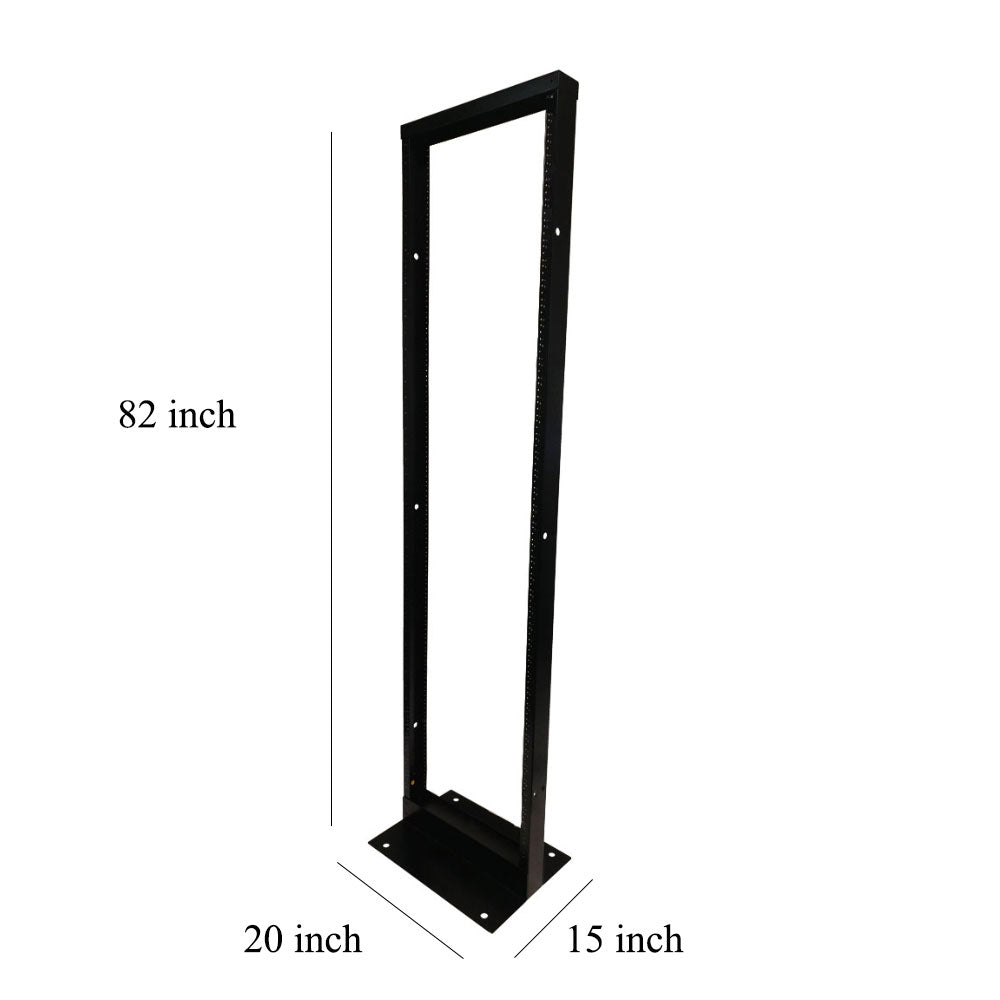

Overall Dimensions in inches |
82H x 20W x 15D |
Mounting Hardware |
Included |
Compatibility |
Compatible Vertical Cable Managers |
RM-450-42U - Vertical Cable Manager for Relay Rack - 42U |
|
RM-455-42U - 42U Vertical Cable Manager - Front Facing
|
Approvals |
ANSI/EIA |
Yes |
RS-310-D |
Yes |
IEC60297-2 |
Yes |
DIN41494 |
Yes |
PART1 |
Yes |
PART7 |
Yes |
Environmental |
RoHS |
Yes |
Reach |
Yes |
Packaging Information |
Package Quantity |
1 |
Mounting Hardware |
18 - 10-32 Screws |
Product Weight |
44 lbs [20kg] |
