OM3 Multimode 50 Micron Indoor/Outdoor Ruggedized Breakout AFL (Corning ClearCurve) - OFNR Riser Fiber Bulk Cable (per meter)

OM3 Multimode Bulk CableSKU: BK-F2R-OM3-R

Sale price$3.83 CAD
In stock

This item does not qualify for free shipping.

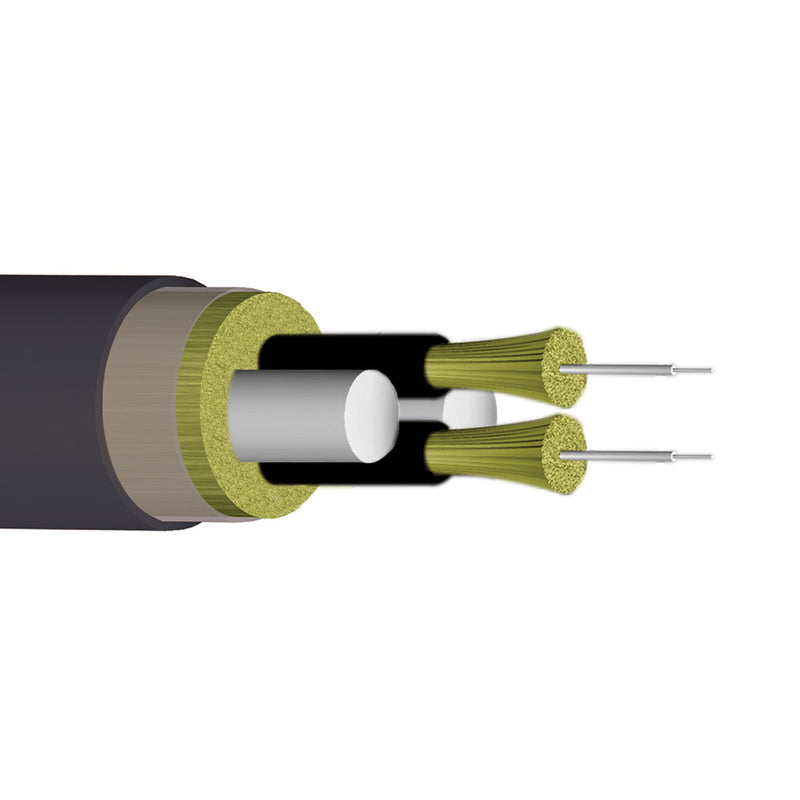

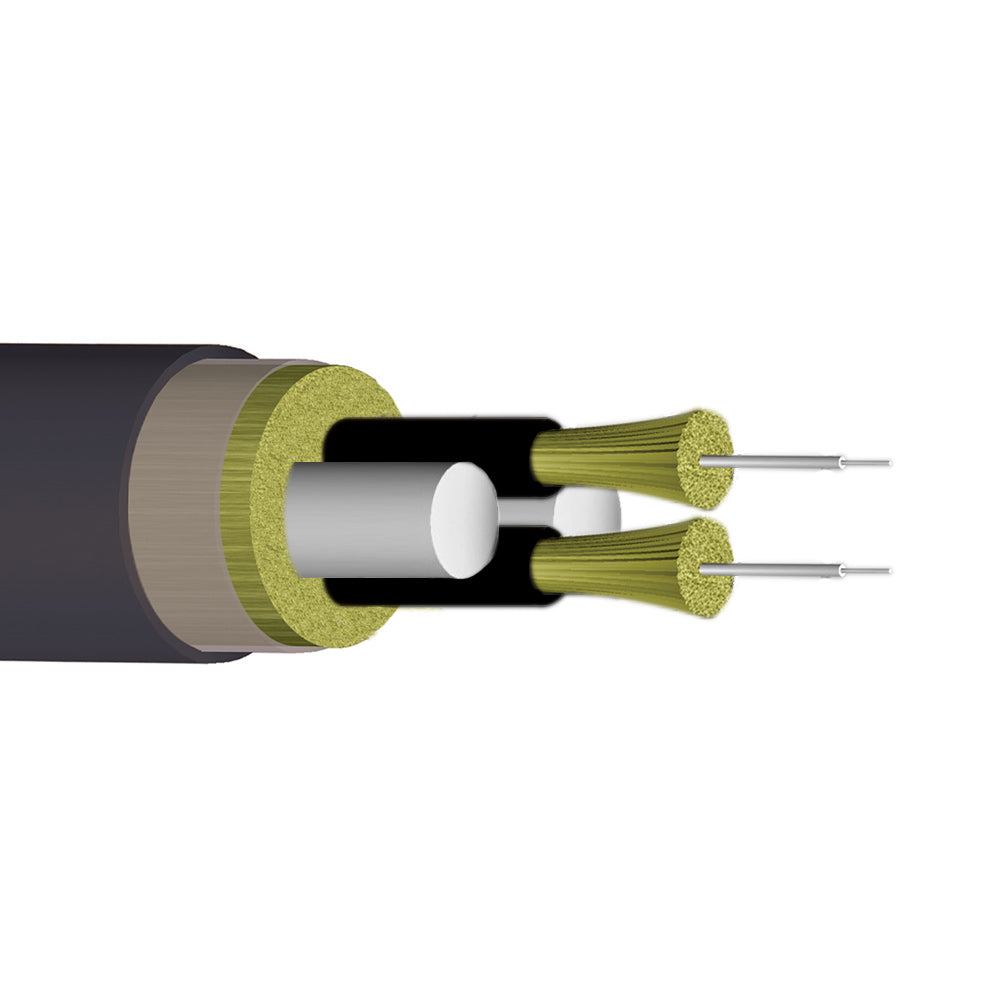

This bulk 2-strand OM3 ruggedized fiber cable is indoor/outdoor riser rated and has a tight buffer construction. It is OFNR rated for riser and general inside plant environments. It also has a UV stabilizer for protection against exposure to the sun plus an anti-fungus protection for use in underground applications. Ideal for harsh environments such as mining and industrial locations.


  • Fungus, water and UV-resistant PVC jacket featuring SP extrusion technology.
  • UL 1666 riser-rated with water-blocked sub-units.
  • Approved for harsh and campus environment, as well as mining and industrial applications.
  • Tested to meet or exceed GR-409-CORE and ICEA-S-104-696.
  • RoHS/REACH Compliant.
Physical Characteristics
Color Black
Fiber Optic Type OM3 50 micron Multimode Riser Indoor/Outdoor Ruggedized Breakout Cable
Fiber Count 2-Strand
Glass Fiber Corning ClearCurve
Micron Legs 3mm
Nominal Diameter 8.4mm
Tension(Installation) 300 lbs
Tension(Long Term) 90 lbs
Bending Radius(Installation) 12.7cm
Bending Radius(Long Term) 8.6cm
Operating Temperature -40℃ ~ +70℃
Storage Temperature -40℃ ~ +70℃
Installation -20℃ ~ +70℃
Attenuation Range @850nm 3.0dB/km
@1300nm 1.2dB/km
Bandwidth Range @850nm > 700 MHz/km
@1300nm > 500 MHz/km
Gigabit Ethernet Min. Link Distance 850nm = 800
1300nm = 550
10 Gigabit Ethernet Min. Link Distance 850nm = 150
Applications Harsh Environment, Mining, Industrial, Campus Environment
Fire Rating OFNR
UV Stabilizer Yes
Anti-Fungus Protection Yes
Enhanced Performance
Weathering 720 hours
Low/High Temp Bend -20℃ ~ 70℃
Cyclic Flex 2000 cycles
Impact 1500 impacts
Cold Impact -10℃
Crush Resistance 2200 N/cm
c(ETL) Yes
Product Support
RoHS Yes
Country of Origin USA
Packaging Information
Package Quantity 1
Product Weight 0.28 lbs
