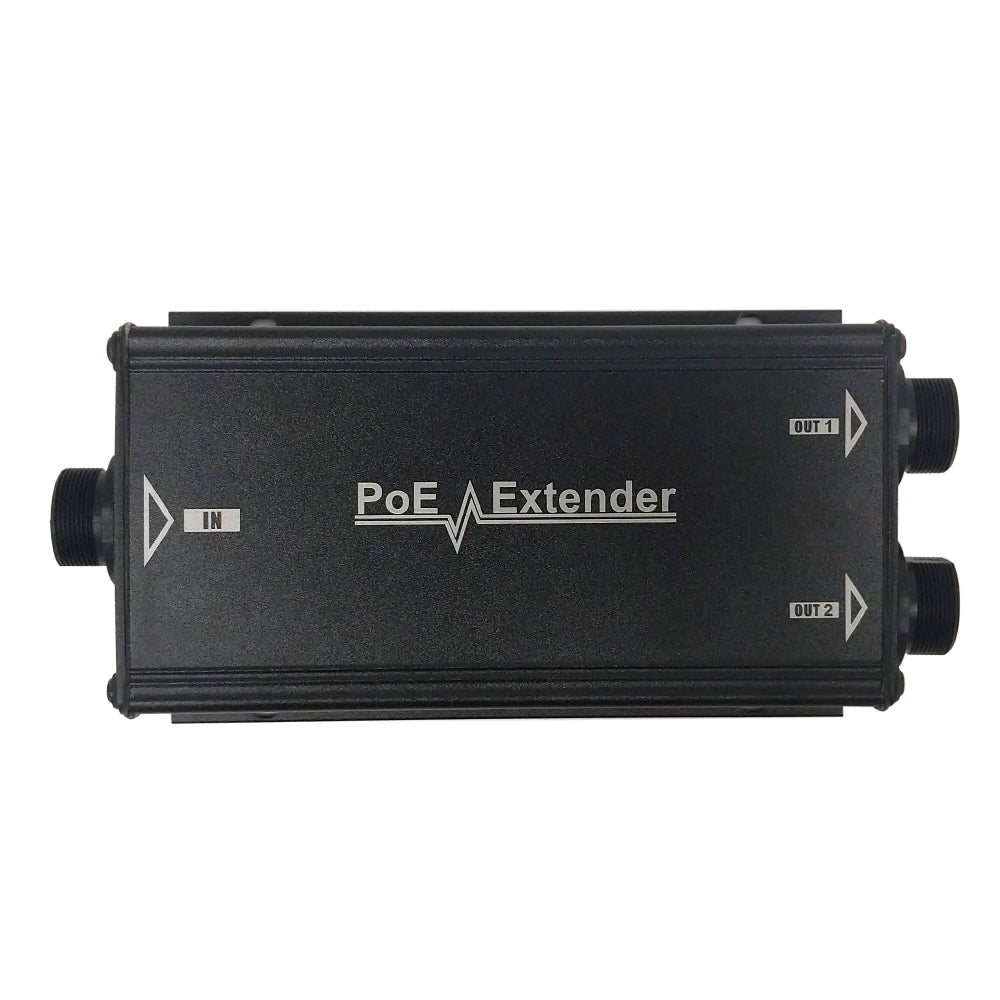

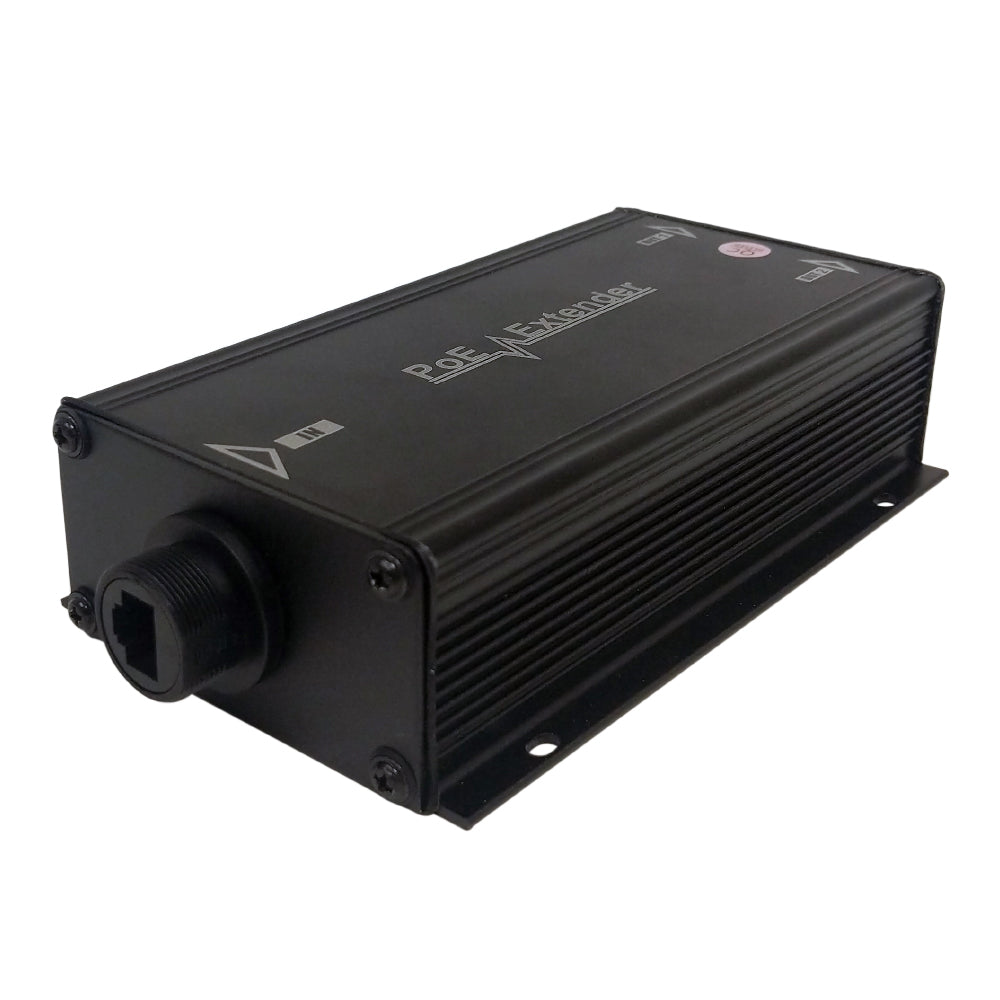

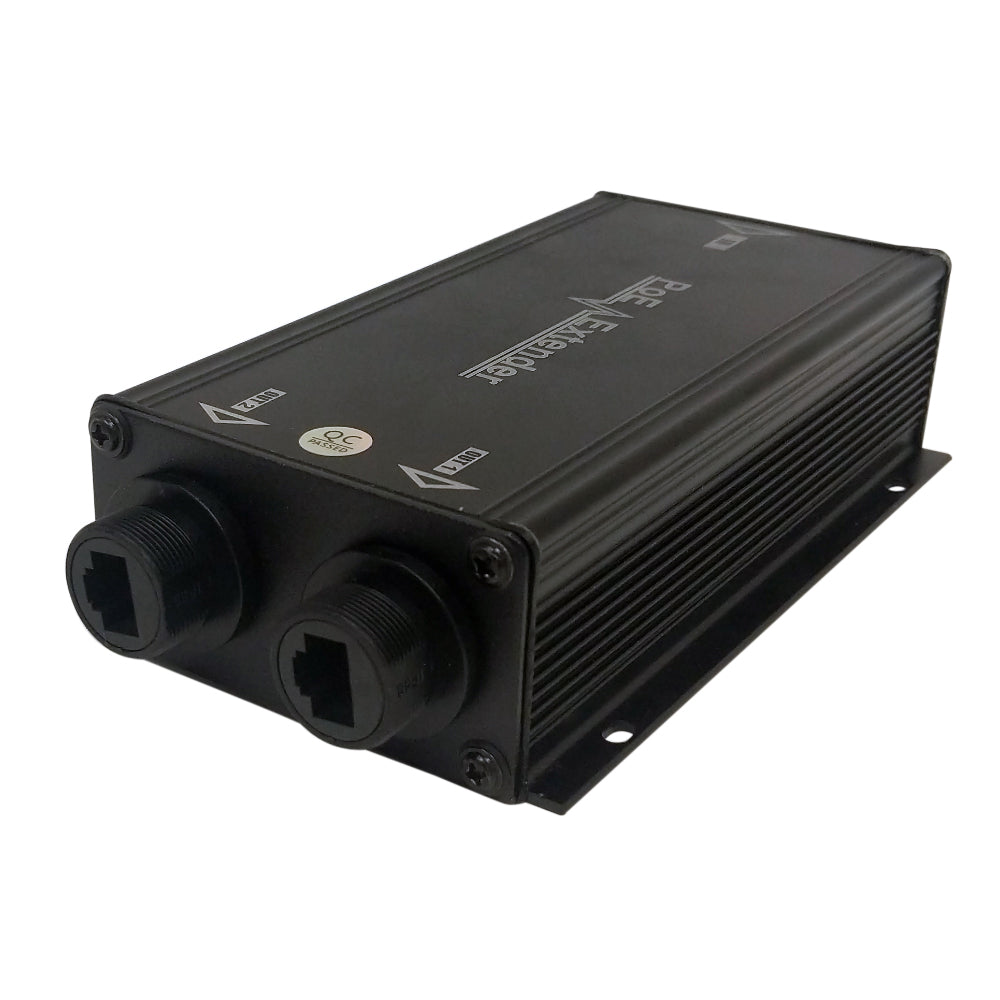

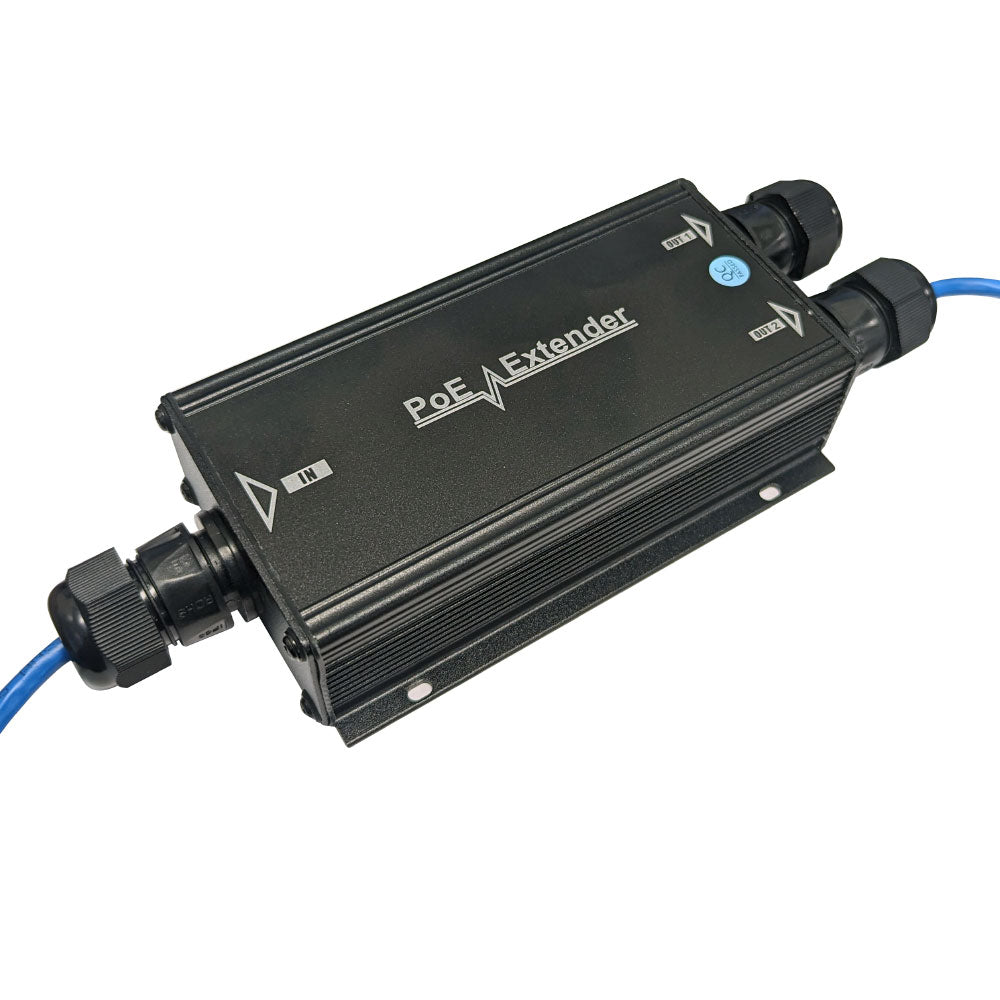

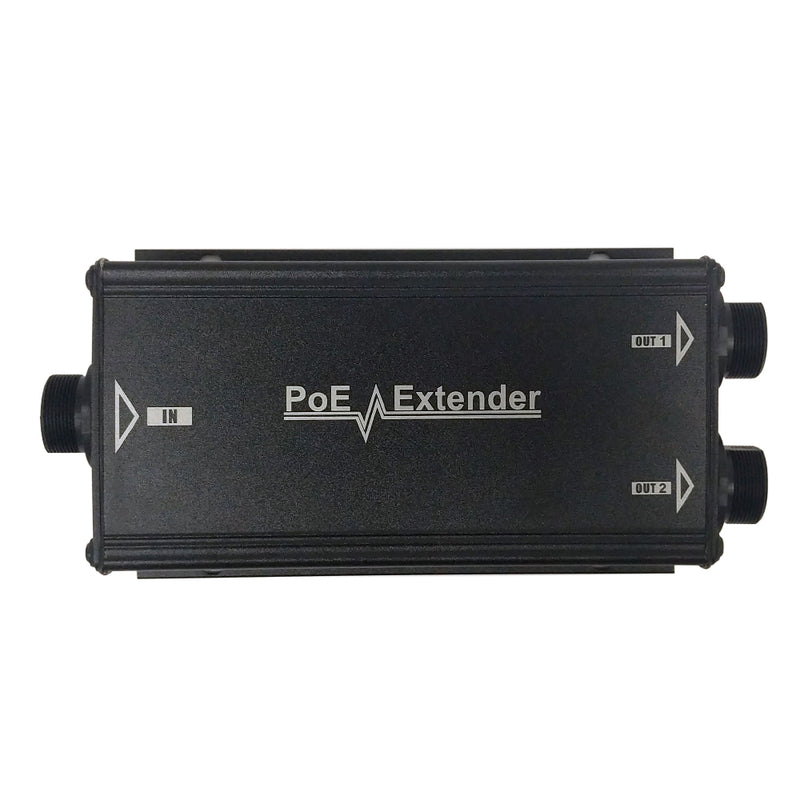

2-Channel 10/100/1000M PoE Extender - 60W - IEEE 802.3af/at - Outdoor IP68 Rated

PoE Injectors & ExtendersSKU: POE-EX250-60W

Price:
Sale price$101.55 CAD
Stock:
In stock


Description

Overview

This outdoor waterproof PoE extender is Gigabit PoE extender with one PoE input and two PoE output. it can be used inline with CAT5E and CAT6 cable runs to extend the Ethernet network range beyond 100m, delivering both data and power to network devices such as WLAN access points and network cameras. It does not require any additional power supply which simplifies installation. the Ethernet ports configured automatically for link speed, duplex and crossover and provides the full rate network throughout the whole extended distance.

Features

  • Compatible with 10/100/1000 Mbps Ethernet
  • Compatible with IEEE 802.3af and IEEE 802.3at
  • Outdoor waterproof IP68 rated
  • No additional power supply required
  • Automatically detects and protects PoE equipment from being damaged by incorrect installation
  • Gigabit full-rate network throughout the whole extended distance
  • Compact size, wall mountable design
  • Easy plug-and-play installation

Application

Specifications

Physical Characteristics
No. of Channels 1 (PoE IN) - 2 (PoE OUT)
Body Material Plastic Enclosure
Mounting Wall/Shelf
Environment Indoor/Outdoor
Operating Temperature -25°C to 55°C
Storage Temperature -30°C to 70°C
Dimensions 230 x 90 x 40mm
Connectors Waterproof RJ45, EIA 568A and 568B
Indicators Power Indicator: PoE Enabled
Network Indicator: Link/Act
Performance
Pass Through Data Rates 10/100/1000 Mbps Half/Full Duplex
Output Power Up to 25 Watts for 2 PSE
Power Consumption 2.5 Watts
PoE Input Pin Assignment & Polarity 1/2 (-), 3/6(+) and 4/5(+), 7/8(-)
PoE Output Pin Assignment & Polarity 1/2 (-), 3/6(+)
Regulatory Compliance IEEE 802.3af (15.4W)
IEEE 802.3at (30W)
IEEE 802.3at 4 Pairs (60W)
Protection Level IP68 Rated, Waterproof
Approval
c(UL)us Yes
CE, FCC Yes
Environmental
RoHS Yes
Warranty Information
Warranty 2 Years
Packaging Information
Package Quantity 1 - PoE Extender
3 - Cable Glands
Product Weight 0.81 lbs [0.37kg]

2-YEAR WARRANTY

Infinite Cables Inc. offers a 2-year warranty on selected Power Adapters, NVR/DVR's, network switches, PoE products and all video boxes to be free from defects in material and workmanship.

This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.

Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
