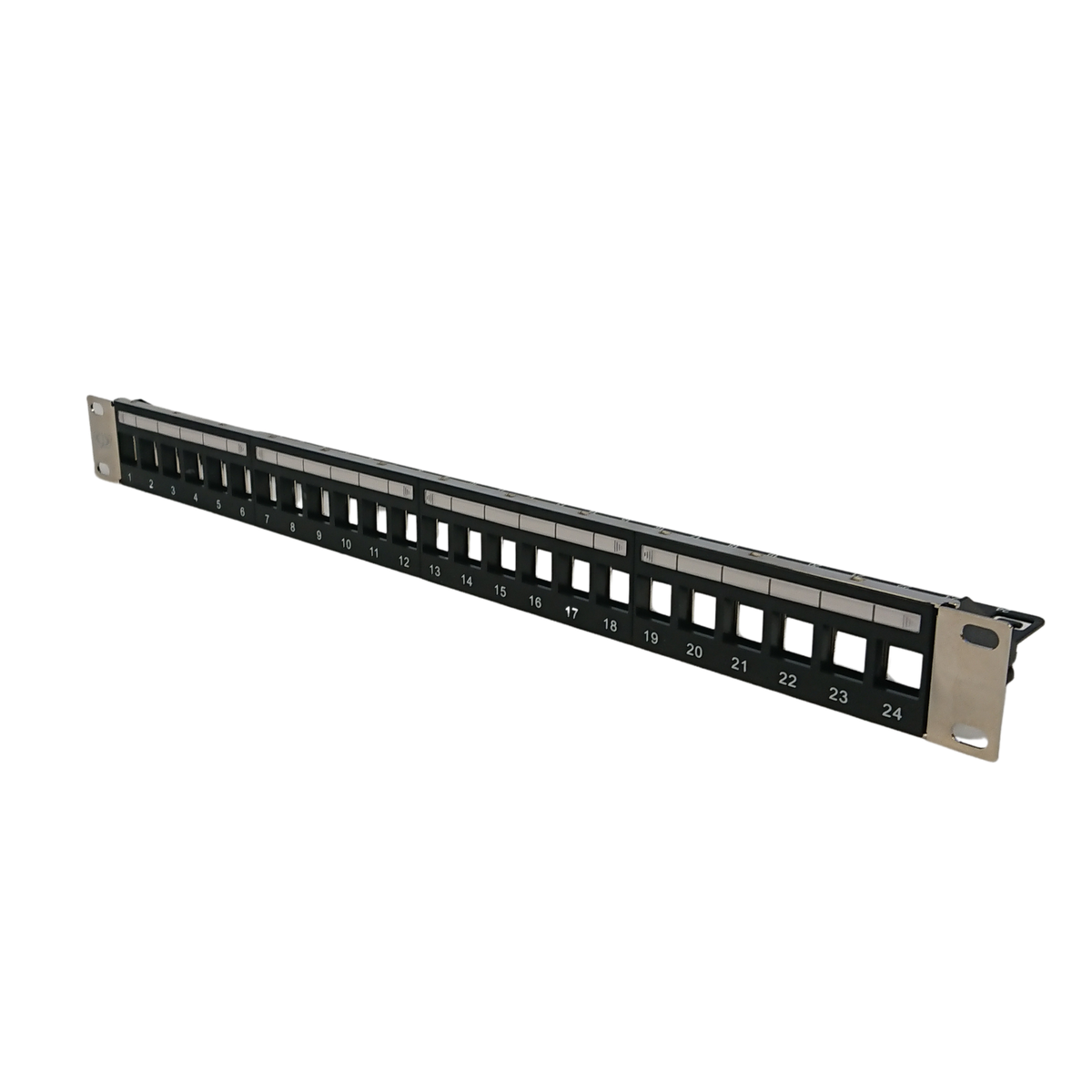

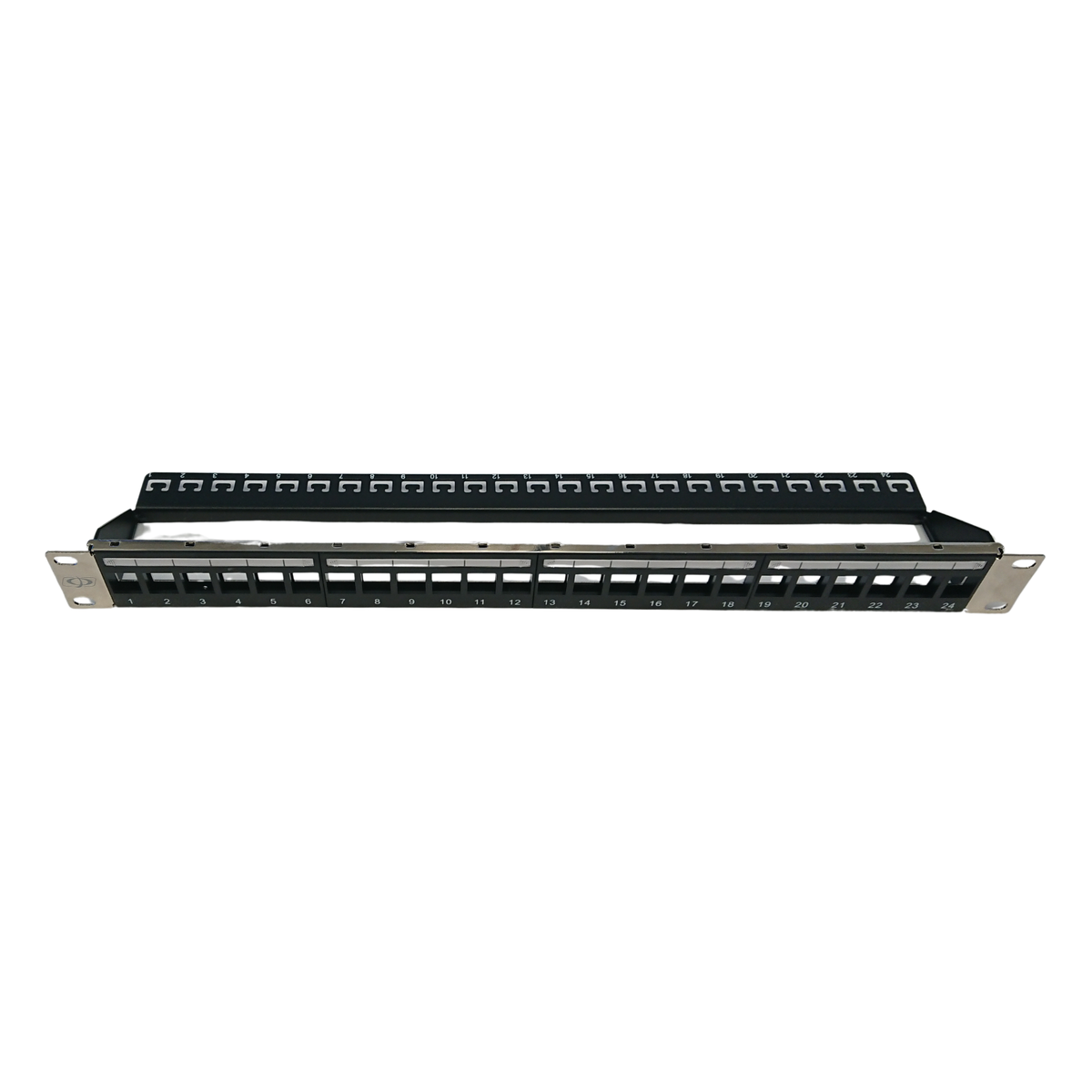

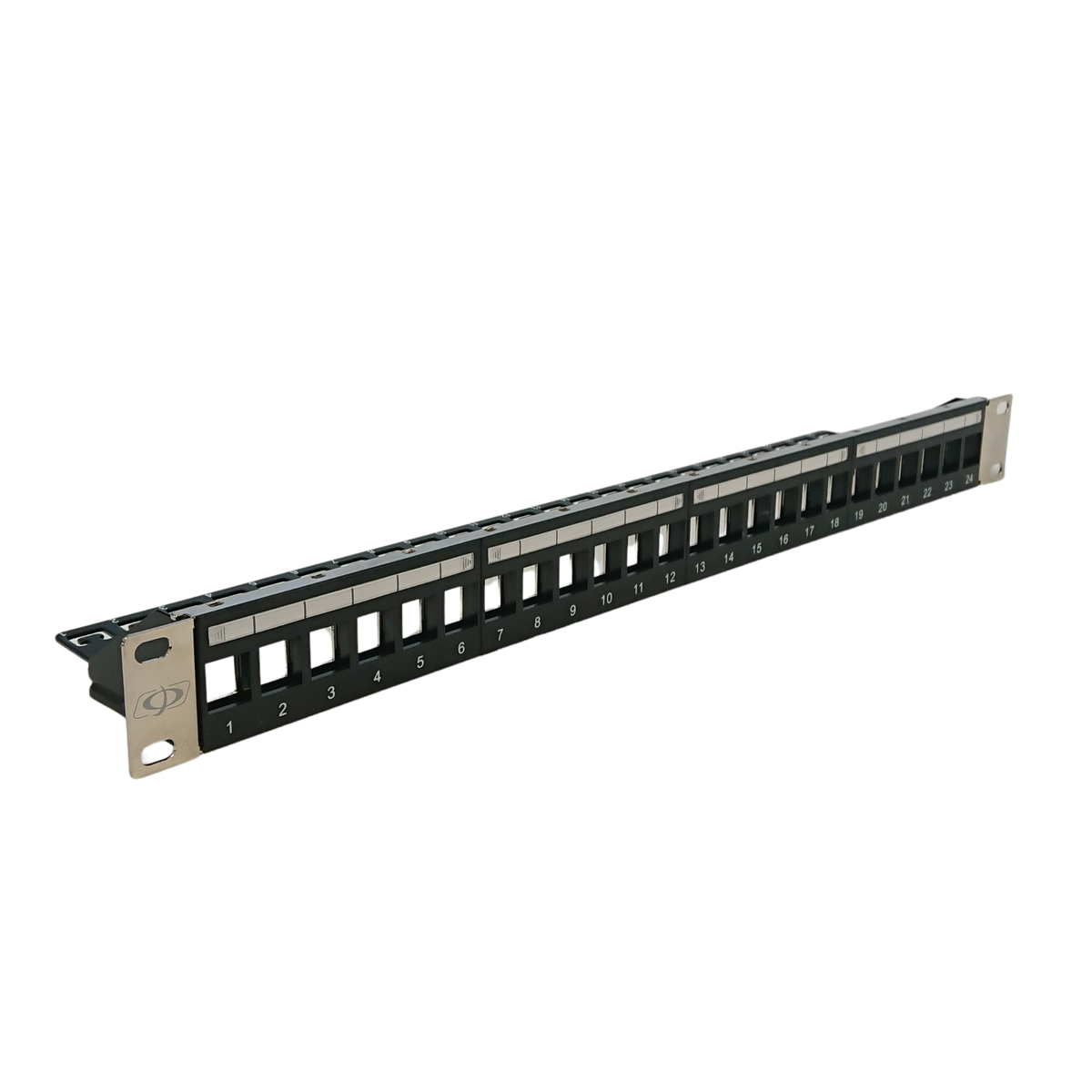

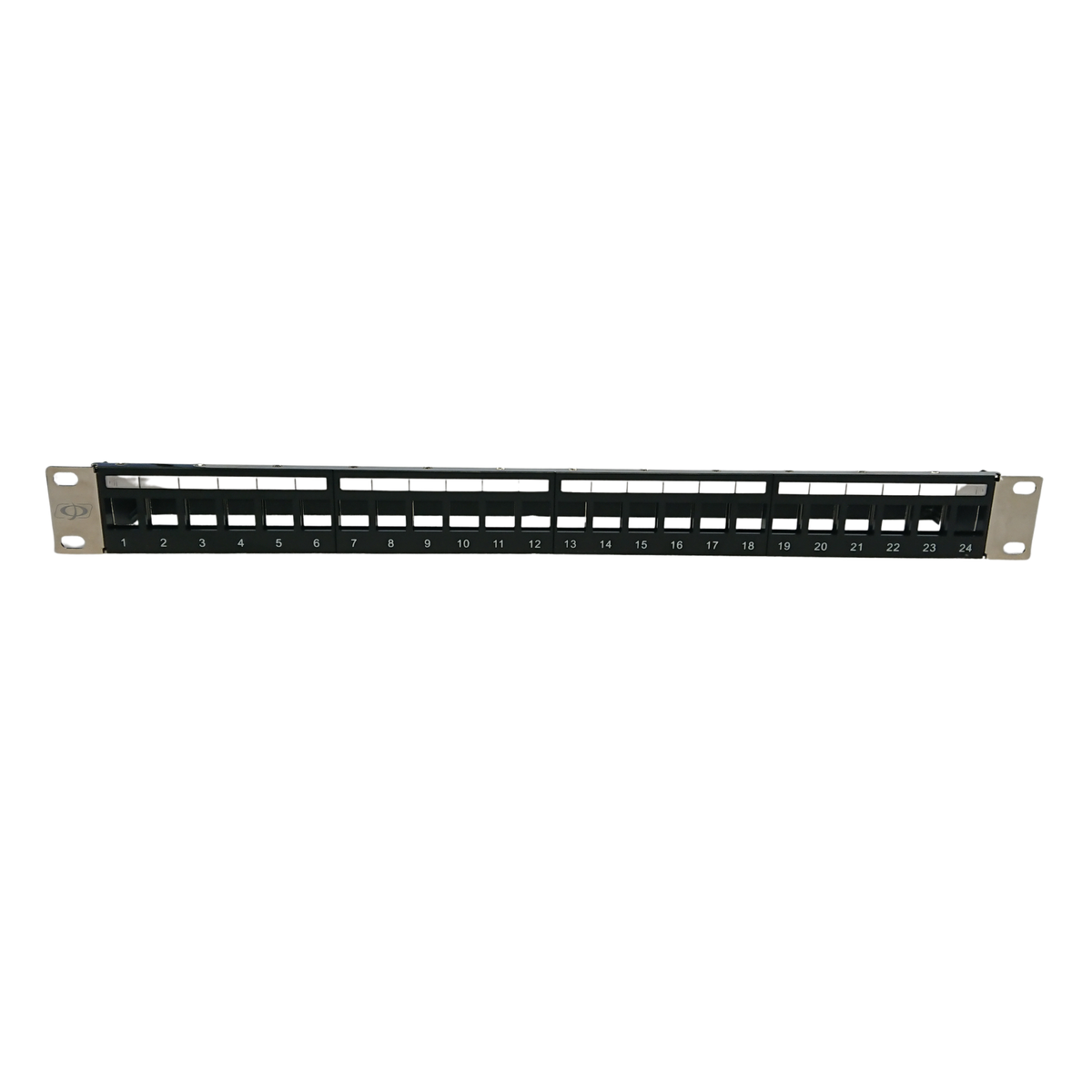

This 1U 24-port unloaded patch panel is for installation in a standard 19-inch rack or cabinet. It is designed specifically for shielded keystones with the included grounding cable or through direct contact of the rack rails (if the rails are grounded). It also accommodates standard networking and audio/video keystone inserts, allowing you to customize the panel to meet your application requirements. The panel also features integrated cable management for a clean and organized installation.
| Physical Characteristics |
| Color |
Black |
| Material |
Steel |
| Connector Type |
Standard Keystone |
| Ports |
24 |
| Shielded |
Yes |
| Product Dimensions |
L 18.98" W 3.62" H 1.73" (L 482 × W 92 × H 44 mm) |
| Rack Mountable |
Yes (19-inch rack or cabinet) |
| Intended Jacks |
| JK-8C6P-SS |
RJ45 Jack, 110 Style Punch-Down CAT6 Shielded |
| JK-C6-FFS |
RJ45 Keystone Jack, Female to Female CAT6 Shielded |
| JK-C6A-SS |
RJ45 CAT6A Slim Profile Jack, 110 Punch/Tool-Less, Shielded – Stainless Steel |
| JK-C6A-FFS |
RJ45 Keystone Jack, Female to Female CAT6A Shielded |
| JK-C8-SS |
RJ45 CAT8 Slim Profile Jack, 110 Punch/Tool-Less, Shielded – Stainless Steel |
| Also Compatible With |
| JK-C5P1-xx |
RJ45 CAT5e Slim Profile Jack, 110 Punch-Down |
| JK-C6P1-xx |
RJ45 CAT6 Slim Profile Jack, 110 Punch-Down |
| JK-C6PB1-xx |
RJ45 CAT6 Slim Profile 180° Jack, 110 Punch-Down or Tool-Less |
| JK-C6A-xx |
RJ45 CAT6A Slim Profile 180° Jack, 110 Punch-Down or Tool-Less |
| JK-C6AP1-xx |
RJ45 CAT6A Slim Profile Jack, 110 Punch-Down |
| JK-8C6AFF-WH |
CAT6A RJ45 Female to Female Keystone Jack |
| Environmental |
| RoHS Compliant |
Yes |
| REACH Compliant |
Yes |
| Packaging Information |

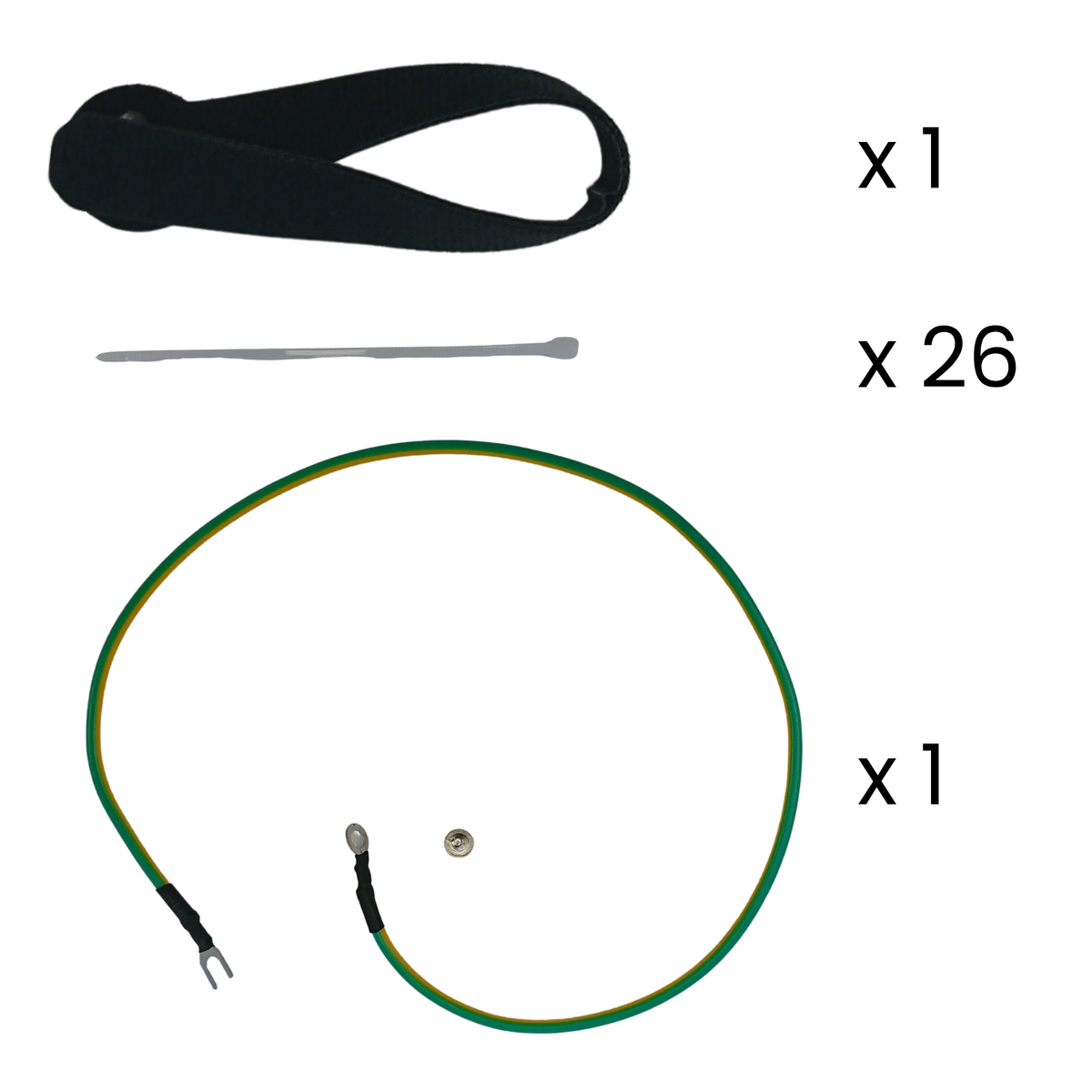

| Package Contents |
Patch Panel (1)
Cable Manager (1)
Cable Ties (26)
Grounding Cable (1)
|
| Product Weight |
1.25 lbs. [0.57 kg] |
