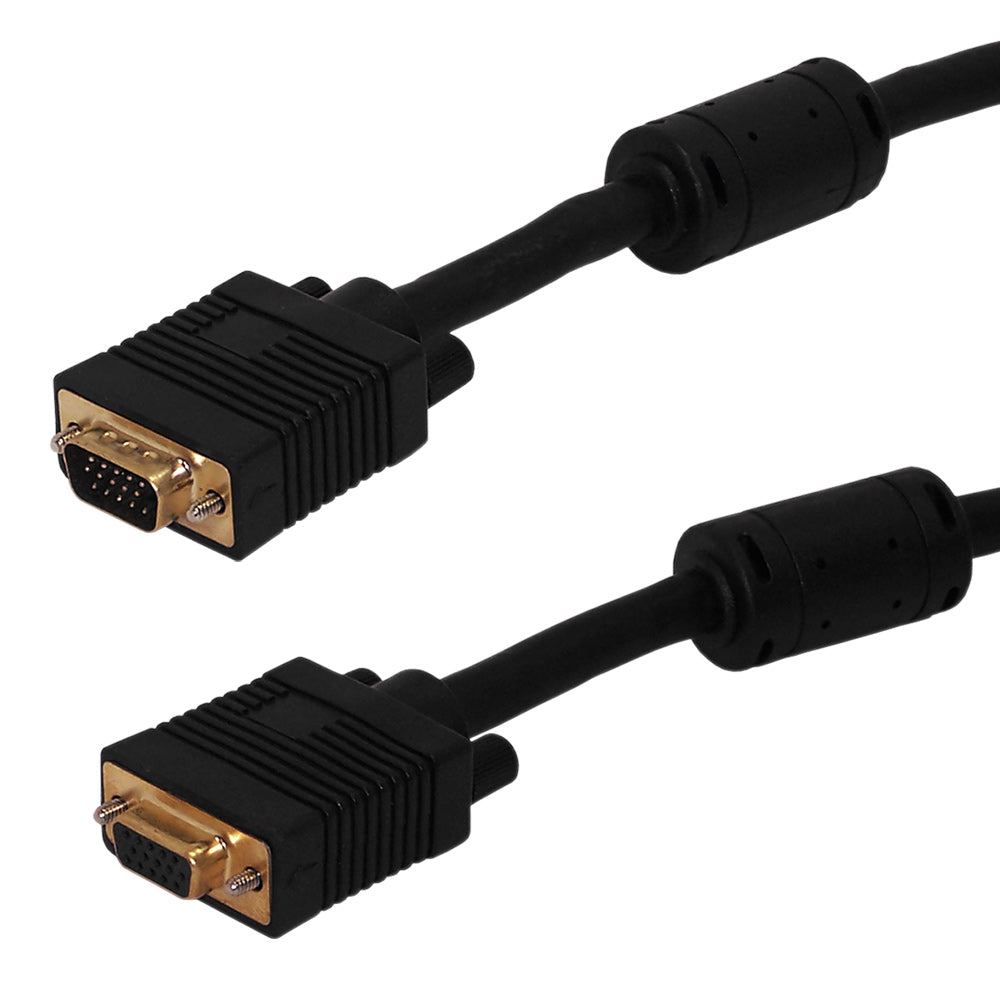

This SVGA/UXGA cable consists of a HD15 VGA male on one end and a HD15 VGA female on the other end. It is typically used to connect VGA ouputs such as computers/laptops to VGA inputs such as monitors/projectors.
|
Physical Characteristics
|
| Cable Length |
1 foot [0.3m] |
| Color |
Black |
| Connector Plating |
Gold |
| Wire Gauge - Coax |
3 - 28AWG Mini-Coax |
| Wire Gauge - Conducters |
5 - 24AWG Pairs, 2 - 24AWG Conductors |
| Cable Diameter |
9.0 mm |
| Shielding |
85% Copper Braid, 100% Mylar Foil, Ferrite Cores |
| Jacket Fire Rating |
CL2/FT4 |
| Jacket Material |
PVC |
| Strain Relief |
Molded PVC |
|
Connector(s)
|
| Connector A |
SVGA HD15 Male |
| Connector B |
SVGA HD15 Female |
|
Performance
|
| Resolution |
1600 x 1200px |
| Impedance |
75 ohm |
|
Approvals
|
| cUL |
Approved Cable |
|
Environmental
|
| RoHS |
Yes |
| Reach |
Yes |
|
Packaging Information
|
| Package Quantity |
1 |
| Product Weight |
0.37 lbs [0.16kg] |
|
Contents
|
| Included in Package |
1 - Cable |
|
Warranty Information
|
| Warranty |
Limited Lifetime |
