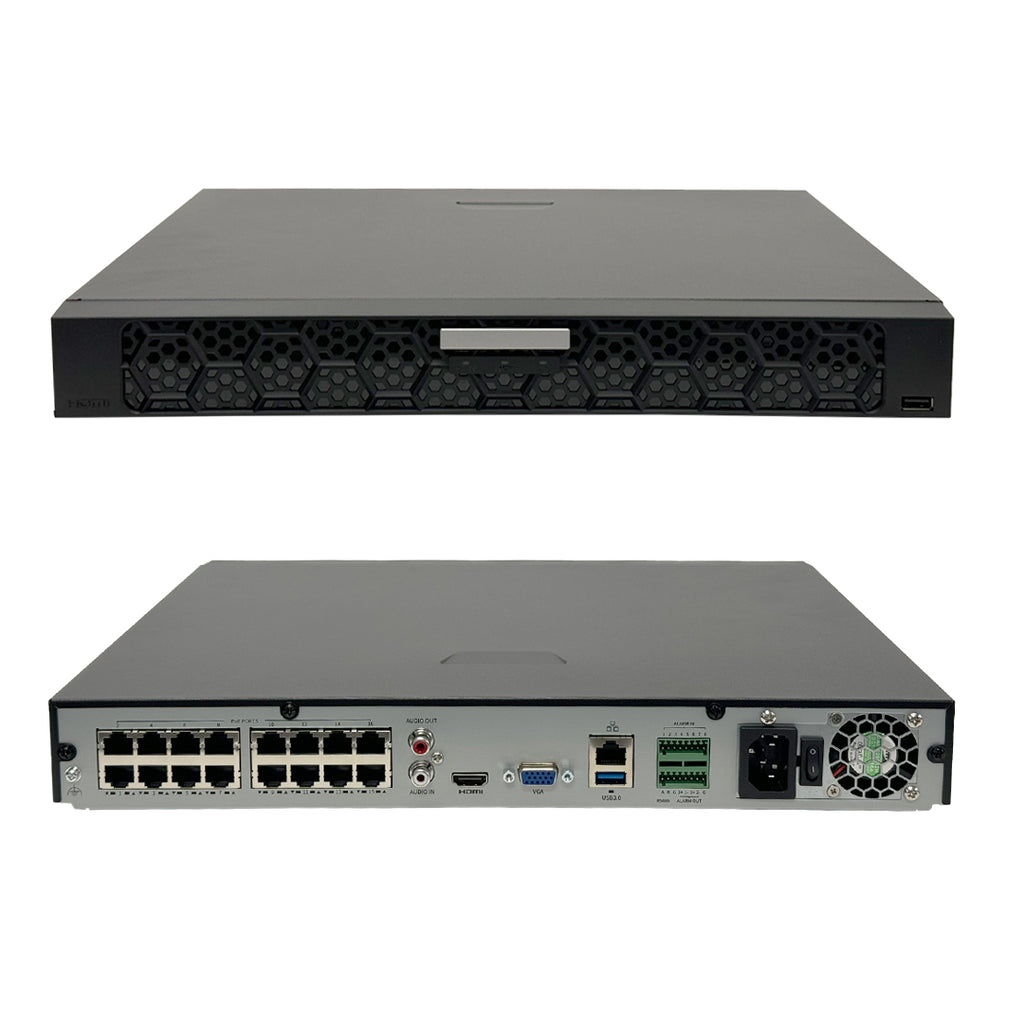

16-Channel IP NVR - 12MP - 4K 320Mbps - 16x PoE - 2x SATA

Phantom IP Cameras & RecordersSKU: SCD-NVR502-16B-P16

Price:
Sale price$757.40 CAD

Contact sales to place an order, 1-866-207-6442 or sales@infinitecables.com.



Description

Overview

This 16 channel NVR is a network video recorder that can support up to 12MP IP cameras. It has 16 built in plug & play PoE ports to make set up simple and easy. With a space for two hard drives with capacity up to 16TB and can support Ultra 265/H.265/H.264 video format compression to put less stress on storage and bandwidth usage. A local monitor can be connected either through the HDMI or VGA ports.

Features

  • Support Ultra 265/H.265/H.264 video formats
  • 16-channel input
  • Plug & Play with 16 independent PoE network interfaces
  • Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T) and RTSP protocols
  • Support 1-ch HDMI, 1-ch VGA. HDMI up to 4K (3840x2160) resolution
  • HDMI and VGA independent outputs provided
  • Up to 12 Megapixels resolution recording
  • 2 SATA HDDs, up to 16TB for each HDD
  • Various fisheye dewarping modes for live view and playback for both web
    interface and GUI
  • ANR technology to enhance the storage reliability when the network is disconnected
  • Support cloud upgrade

Application

Specifications

Physical Characteristics
Dimensions 380mm × 322mm × 53mm (15.0"×12.7"×2.1") (W×D×H)
Operating Temperature -10°C~+ 55°C (+14°F~+131°F),
Humidity ≤ 90% RH (non-condensing)
Power Supply 100 ~ 240 V AC
Power Consumption ≤20W (without HDD)
Video and Audio Input
IP Video Input 16-channel
Two-Way Audio Input 1-channel, RCA
Video and Audio Output
HDMI/VGA Output HDMI:
4K (3840 x 2160)@30, 1920 x 1080p@60, 1920 x 1080p@50, 1600 x 1200@60, 1280 x 1024@60, 1280 x 720@60, 1024 x 768@60
VGA:
1920 x 1080p@60, 1920 xx 1080p@50, 1280 x 1024@60, 1280 x 720@60, 1024 x 768@60
Recording Resolution 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output 1-channel, RCA
Two-way Audio 1-ch, RCA(Using the audio input and output)
Audio Compression G.711A, G.711U
Synchronous Playback 16-channel
Liveview Display 1/4/6/8/9/16
Corridor Mode Screen 3/4/5/7/9/10/12/16
Network
Incoming Bandwidth 320Mbps
Outgoing Bandwidth 160Mbps
Remote Users 128
Protocols TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPV6
Browser IE(IE10/11) for Windows
Firefox (version 52.0 and above) for Windows
Chrome(version 45 and above) for Windows
Edge(version 79 and above) for Windows
Snapshot
FTP/Schedule/Event Snapshot 4-ch snapshot, up to D1 resolution
Decoding
Decoding Format Ultra 265/H.265/H.264
Liveview/Playback 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability Ultra 265/H.265: 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x
1080P@30, 32 x 960P@25
H.264: 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30, 14 x
1080P@30, 30 x 720P@30, 32 x D1
Hard Disk
SATA 2 SATA interfaces
Capacity Up to 16TB for each disk
Smart
VCA Detection By Camera Vehicle Detection, Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Temperature Detection(Fire
Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), UMD(Ultra Motion
Detection), Video Metadata, Traffic Monitoring
VCA Search Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report
People Counting People Flow Counting, Crowd Density Monitoring
Smart Intrusion
Prevention (SIP),
Vehicle Detection,
UMD, Video
Metadata, Traffic
Monitoring by
Camera
All-channel
General Alarm
Network Interface Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion,
Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
Alert Alarm IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full,
Recording/Snapshot Abnormal
External Interface
Network Interface 1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface
USB Interface Front panel: 1 x USB2.0, Rear panel: 1 x USB3.0
Alarm In 8-channel
Alarm Out 2-channel
RS232 N/A
RS485 1
PoE
Interface 16 RJ-45 10M/100M self-adaptive Ethernet Interface
Max Power Max 30W for single port
Max 240W in total
Supported Standard IEEE 802.3af/at
Certification
Certification CE, FCC, UL, RoHS, WEEE
CE EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
FCC Part15 Subpart B
NDAA Compliant Yes
Packaging Information

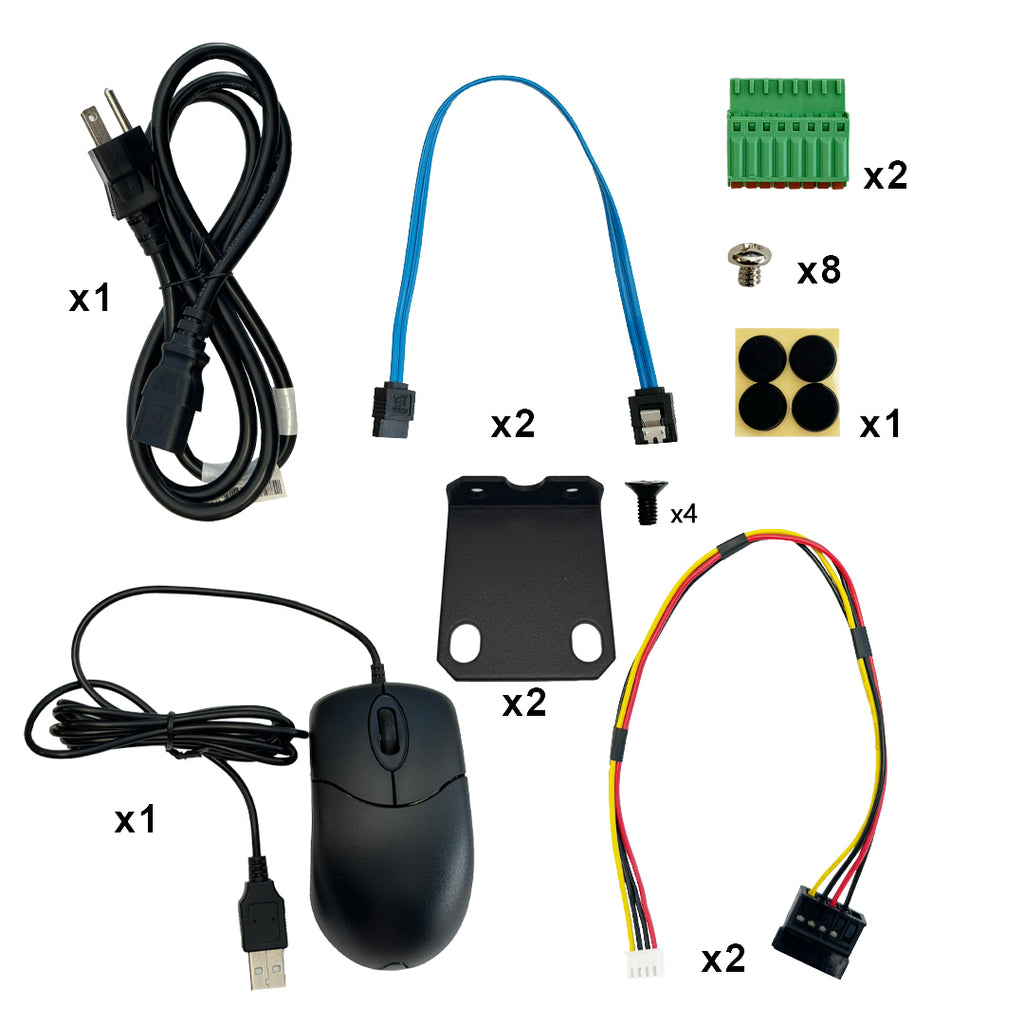

Package Contents 1 - NVR
2 - Hard Disk Data Cable
2 - Hard Disk Power Cable
1 - Power Cable
1 - Mouse
8 - Screws
1 - User Manual
Product Weight 5.73 lbs [2.6 kg]

This hard disk drive is engineered to work for surveillance security systems. It is designed for high temperature, always-on, surveillance security systems to ensure reliability and quality video playback.

Features

  • Engineered specifically for surveillance security systems
  • Prioritized write-operations for maximized surveillance performance
  • Tuned for write-intensive, low bit-rate, high stream-count applications typical to most surveillance applications
  • Reduced video frame loss
  • TLER and ATA streaming support
  • Optimized performance for up to 32 high-definition surveillance cameras
Physical Characteristics
Form Factor 3.5 inch
Dimensions €¦ 5.7" x 4.0" x 1.0" (ˆ… 147 x 102 x 26mm)
Operating Temperature 0°C to 65°C
Non-Operating Temperature -40°C to 70°C
Performance
Formatted Capacity (Part Number) 1TB (WD10PURX) 2TB (WD20PURX) 4TB (WD40PURX) 6TB (WD62PURX) 8TB (WD84PURZ) 16TB (WD101PURP)
Cache 64MB 128MB 256MB
Data Transfer Rate Buffer to Host - 6 GB/s
Host to/from drive (sustained) - 110 MB/s
Buffer to Host - 6 GB/s
Host to/from drive (sustained) - 145 MB/s
Buffer to Host - 6 GB/s
Host to/from drive (sustained) - 150 MB/s
Buffer to Host - 6 GB/s
Host to/from drive (sustained) - 175 MB/s
Buffer to Host - 6 GB/s
Host to/from drive (sustained) - 245 MB/s
Buffer to Host - 6 GB/s
Host to/from drive (sustained) - 265 MB/s
Hard Disk Interface SATA
Rotational Speed (RPM) IntelliPowerTM
Load/Unload Cycles 300,000 600,000
Non-Recoverable Read Errors per Bits Read < 1 in 1014 < 1 in 1015
Power Management
Average Power Requirements Read/Write - 3.3W
Idle - 2.9W
Standby and Sleep - 0.4W
Read/Write - 4.4W
Idle - 4.1W
Standby and Sleep - 0.4W
Read/Write - 5.1W
Idle - 4.5W
Standby and Sleep - 0.4W
Read/Write - 5.3W
Idle - 4.9W
Standby and Sleep - 0.4W
Read/Write - 8.6W
Idle - 7.4W
Standby and Sleep - 0.4W
Read/Write - 9W
Idle - 8W
Standby and Sleep - 0.5W
Approvals
RoHS Yes
Packaging Information
Package Quantity 1
Product Weight 0.99 lbs [0.45 kg] 1.40 lbs [0.64 kg] 1.50 lbs [0.68 kg] 1.65 lbs [0.75 kg] 1.58 lbs [0.72 kg] 1.65 lbs [0.75 kg]

Quick Start Guide

User Manual

Phantom Camview for Android

Phantom Camview iOS App
Supports iOS 8.0 or later & requires macOS 11.0 or later and a Mac with the Apple M1 chip or later. Compatible with iPhone, iPad, iPod touch and Mac.

PhantomCamTools Windows app

PhantomCamStation Windows app to set up cameras

3-YEAR WARRANTY

Infinite Cables Inc. offers a 3-year warranty on all cameras and hard drives to be free from defects in material and workmanship.

This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.

Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
