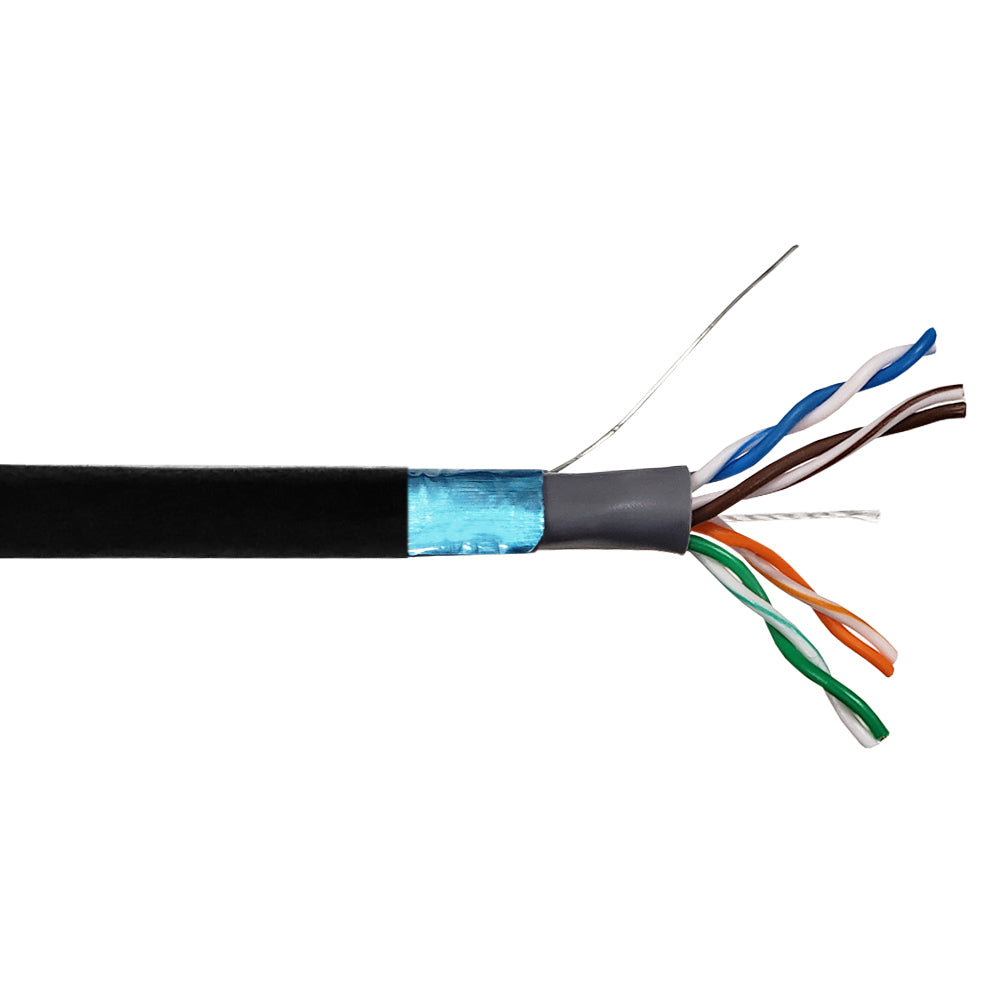

100ft 4 Pair CAT5E 350Mhz Shielded F/UTP Solid UV / Direct Burial Bulk Cable - Black

Category Bulk CableSKU: BK-C5ESL-4CMX-100

Price:
Sale price$29.40 CAD
Stock:
In stock


Description

This bulk outdoor rated Cat5e cable is 100 feet in length and consists of 4 pairs of 24AWG solid wires. It is typically used outdoors either above or below ground as premise wiring to connect network devices.

Physical Characteristics
Cable Length 100 foot [30.5m]
Color Black
Number of Pairs 4 Pairs
Wire Gauge 24AWG Solid
Conductor Material 100% Bare Copper
Product Standard Certification CMX
Jacket Material LSZH (UV)
Jacket Rating Direct Burial / UV

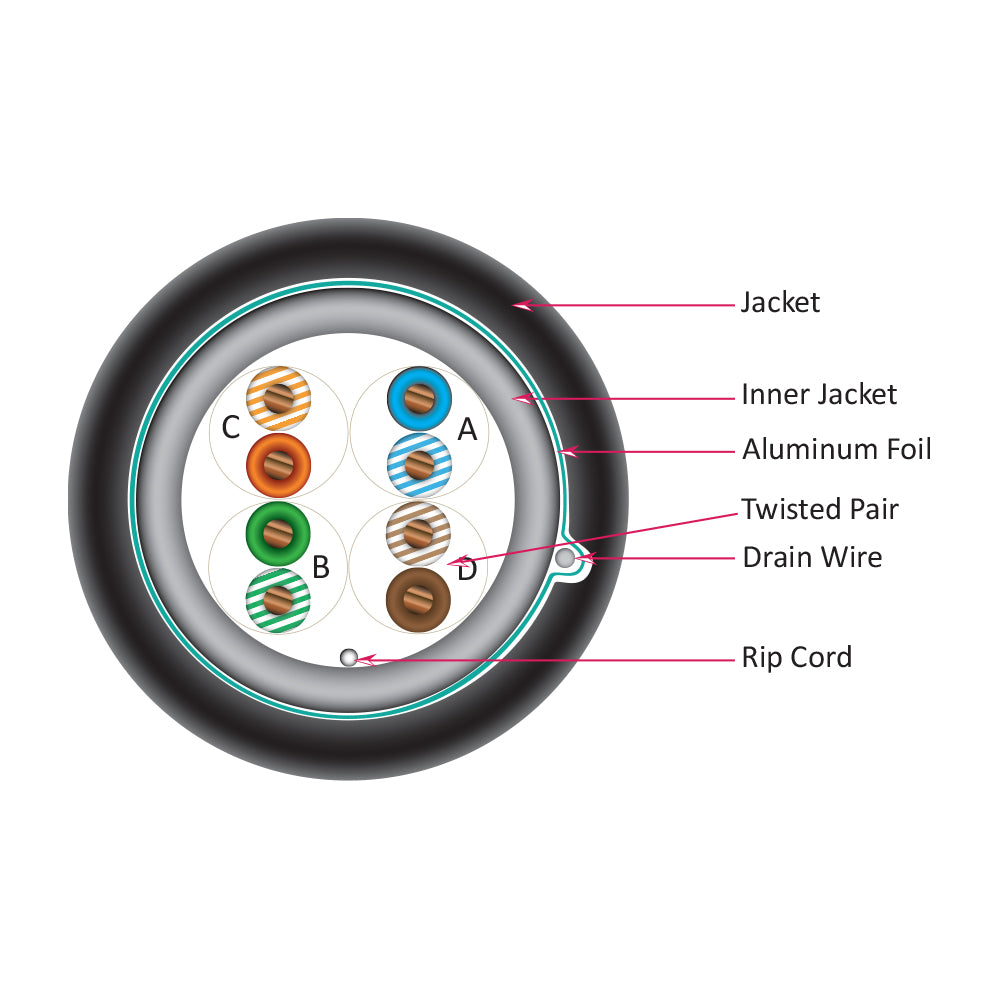

Inner Jacket Average Thickness 0.016 inch [0.40 mm]
Inner Jacket Minimum Point Thickness 0.014 inch [0.36 mm]
Inner Jacket Outer Diameter 0.19 inch [4.80±0.10 mm]
Aluminum Foil Yes
Drain Wire
(Tinned Copper)
7/0.16
Outer Jacket Average Thickness 0.023 inch [0.60 mm]
Outer Jacket Minimum Point Thickness 0.021 inch [0.54 mm]
Outer Diameter 0.24 inch [6.20±0.10 mm]
Rip Cord Yes
Cable Shielding None
Insulation PE
Insulation Average Thickness 0.008 inch [0.200mm]
Insulation Minimum Point Thickness 0.007 inch [0.185mm]
Insulation Diameter 0.036 inch [0.91±0.005mm]
Twisted Pair Diameter 0.072 inch [1.82±0.01mm]
Temperature Rating 75°C
Rated Voltage 60V
Mechanical Characteristics
Before Tensile Strength (Mpa)
≥13.8
Aging Elongation
(%)
≥100
Aging Condition
(ºCxhrs)
100x168
After Tensile Strength
(Mpa)
 ≥85% of unaged
Aging Elongation
(%)
≥50% of unaged
Cold Bend
(-20±2º Cx4hrs)
No Crack
Environmental Characteristics
1.0-350MHz Impendance
(Ohms)
100±15
1.0-350MHz Delay Skew (ns/100m) ≤45
Pair-to-Ground Capacitance Unbalance (pF/100m) ≤330
Max. Conductor DC Resistance 20°C (ohms/km) 88.5
Resistance Unbalance (%) ≤5
Environmental
RoHS, c(ETL)us Yes
Packaging Information
Package Quantity 1
Product Weight 3.3 lbs [1.5kg]
