Description

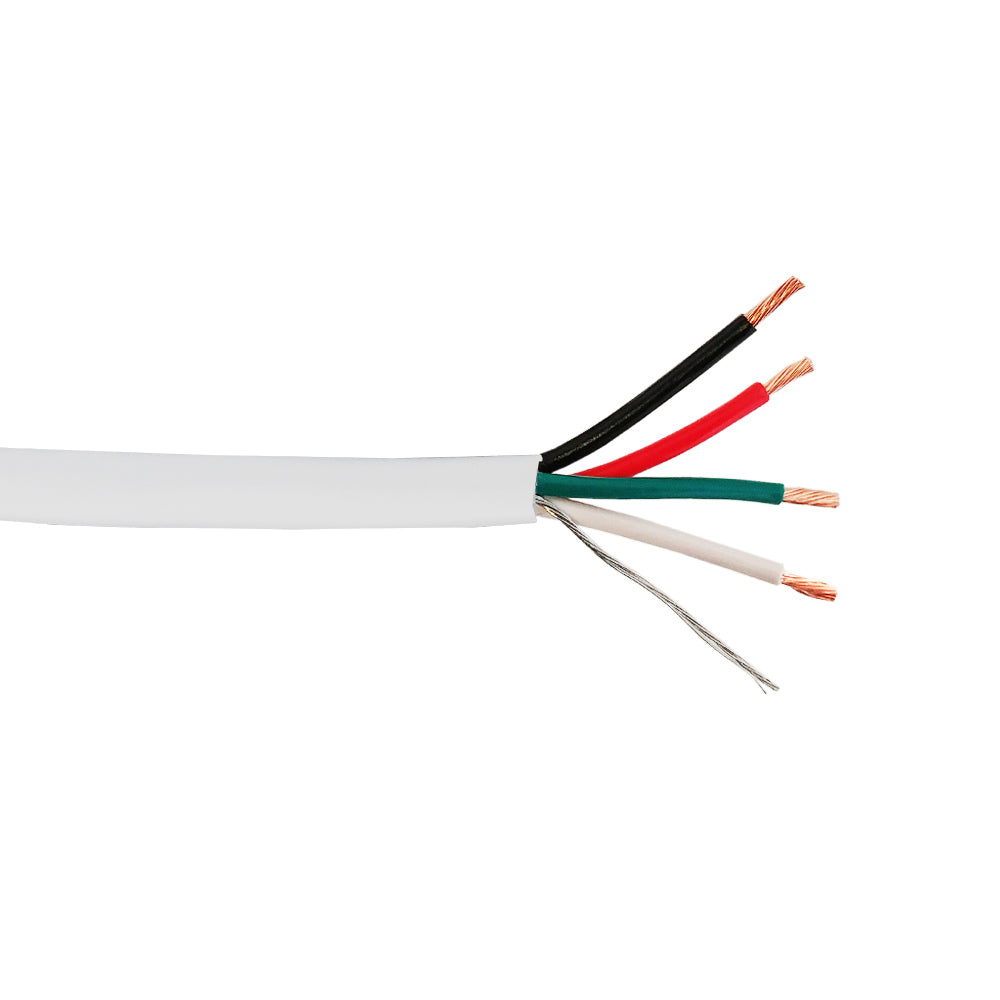

This 4 conductor 18AWG stranded unshielded control cable is plenum rated, white in color and 1000 feet in length. It is typically used in control panel and automation control applications.
| Physical Characteristics | |
|---|---|
| Cable Lengths Available | 1000 foot [305m] Pull Box |
| Color (Jacket) | White |
| Number of Conductors | 4 Conductors (Black/Red/Green/White) Oxygen Free Copper (OFC) |
| Jacket Material |
PL-PVC |
| Outer Diameter | 4.9±0.15mm |
| Dielectric | PL-PVC |
| Diameter Over Dielectric | 1.7±0.10mm |
| Nominal Jacket Thickness | 0.46mm |
| Minimum Spot | 0.36mm |
| Wire Gauge | 18 AWG |
| Material (conductors) | Bare Copper |
| Construction | 16/0.254mm |
| Ripcord | DuPont Kevlar® |
| Temperature Rating | -20℃ ~ 75℃ |
| DCR: Conductor | 6.649 Ohms/1000 FT. 21.8 Ohms/Km (Nom) |
| Flammability Test | Plenum Rated CMP |
| Certifications | |
| RoHS | Compliant |
| c(ETL)us | Compliant |
| Packaging Information | |
| Package Quantity | 1 Pull Box |
| Product Weight | 40 lbs |
Spec Sheets
Product Weights
| SKU | Weight | |
| BK-CON641-WH | 36.0 lb |
