1000ft 4 Pair CAT6 550Mhz 26AWG Stranded Shielded FFTP FT4/CMR Bulk Cable

Category Bulk CableSKU: BK-C6SM-4BKS

Color: Black
Sale price$301.90 CAD
In stock

This item does not qualify for free shipping.

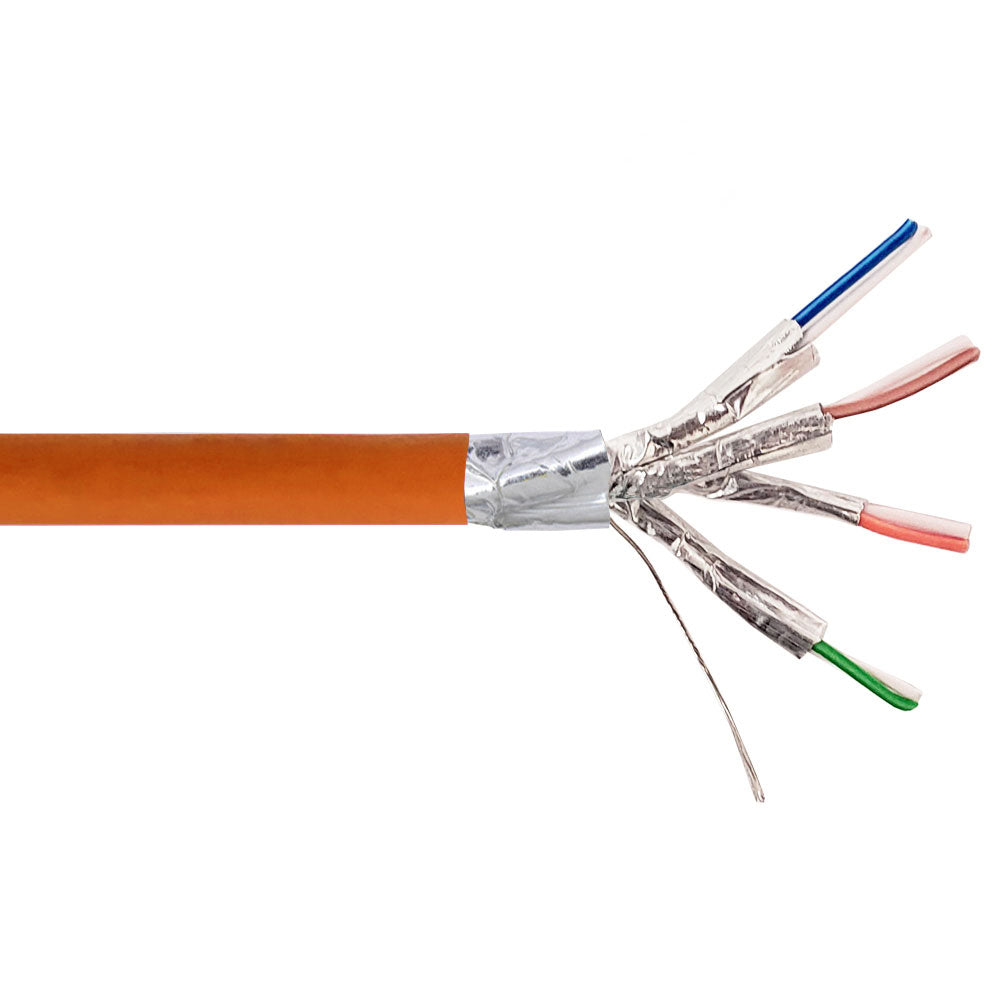

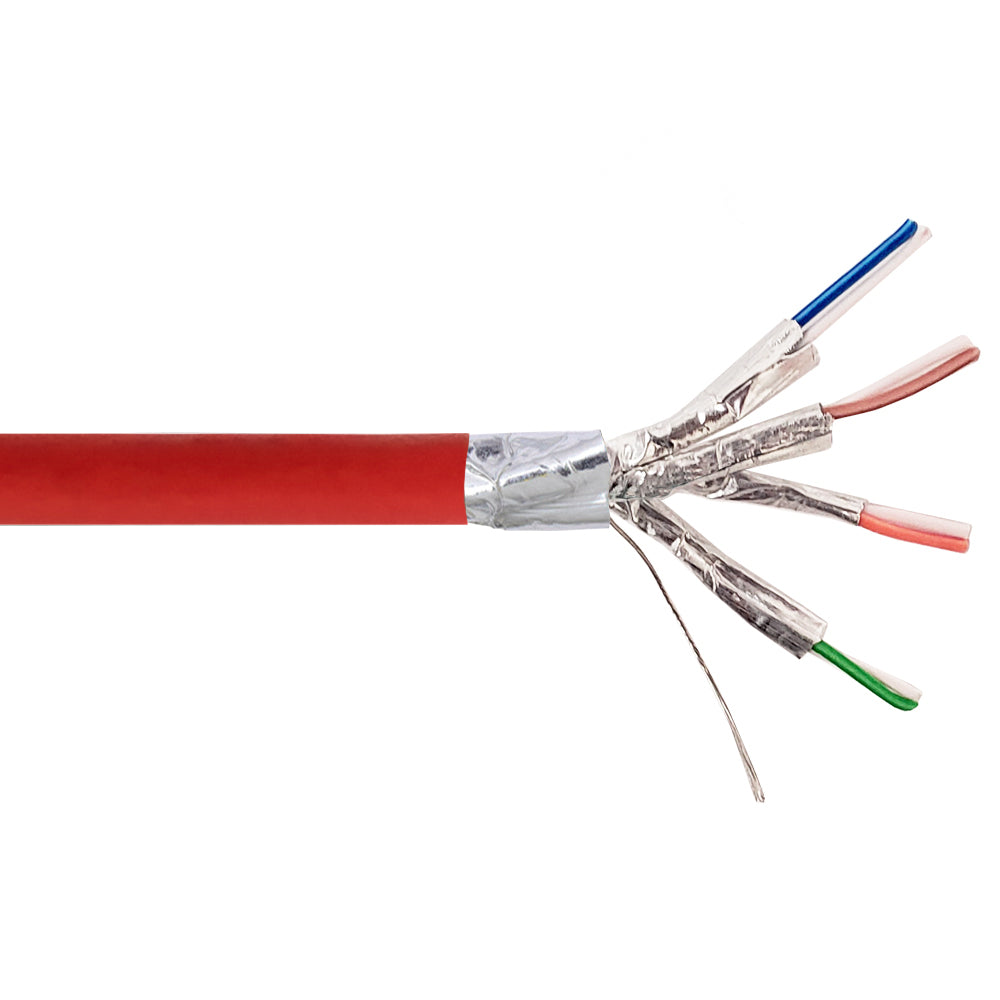

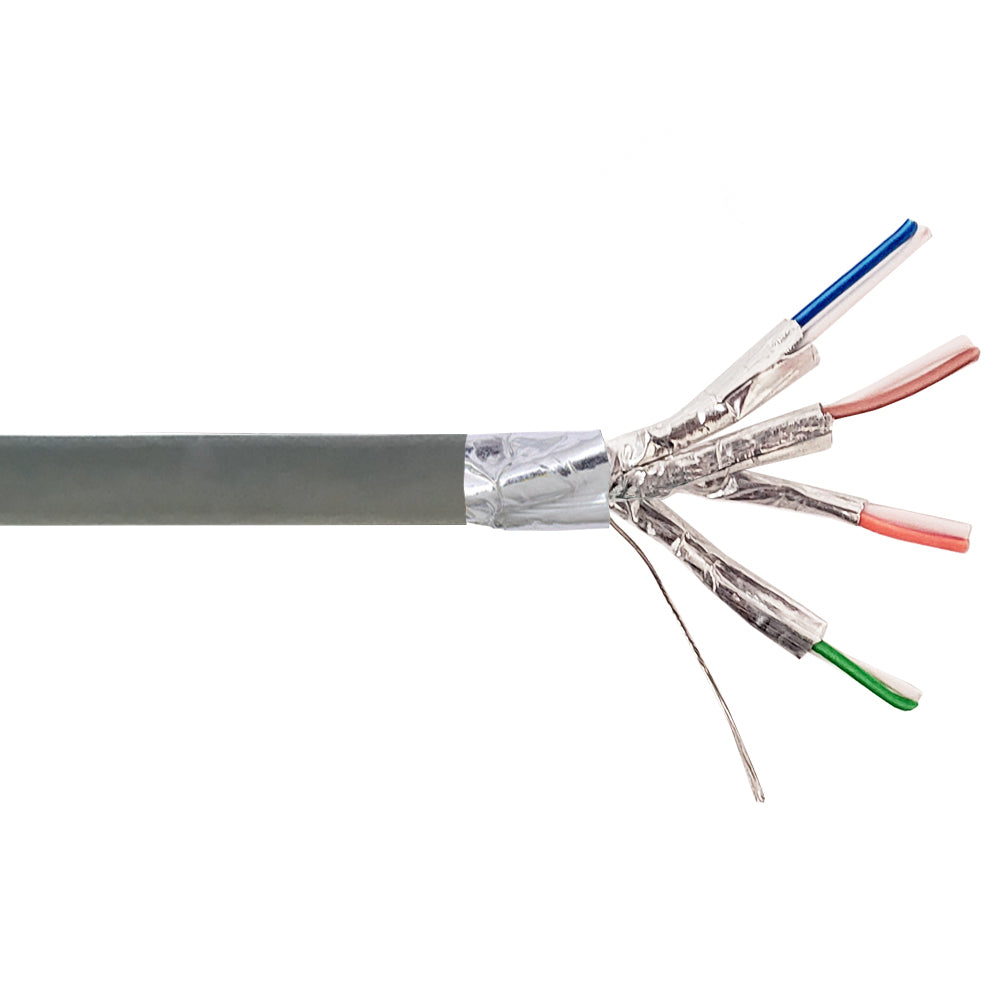

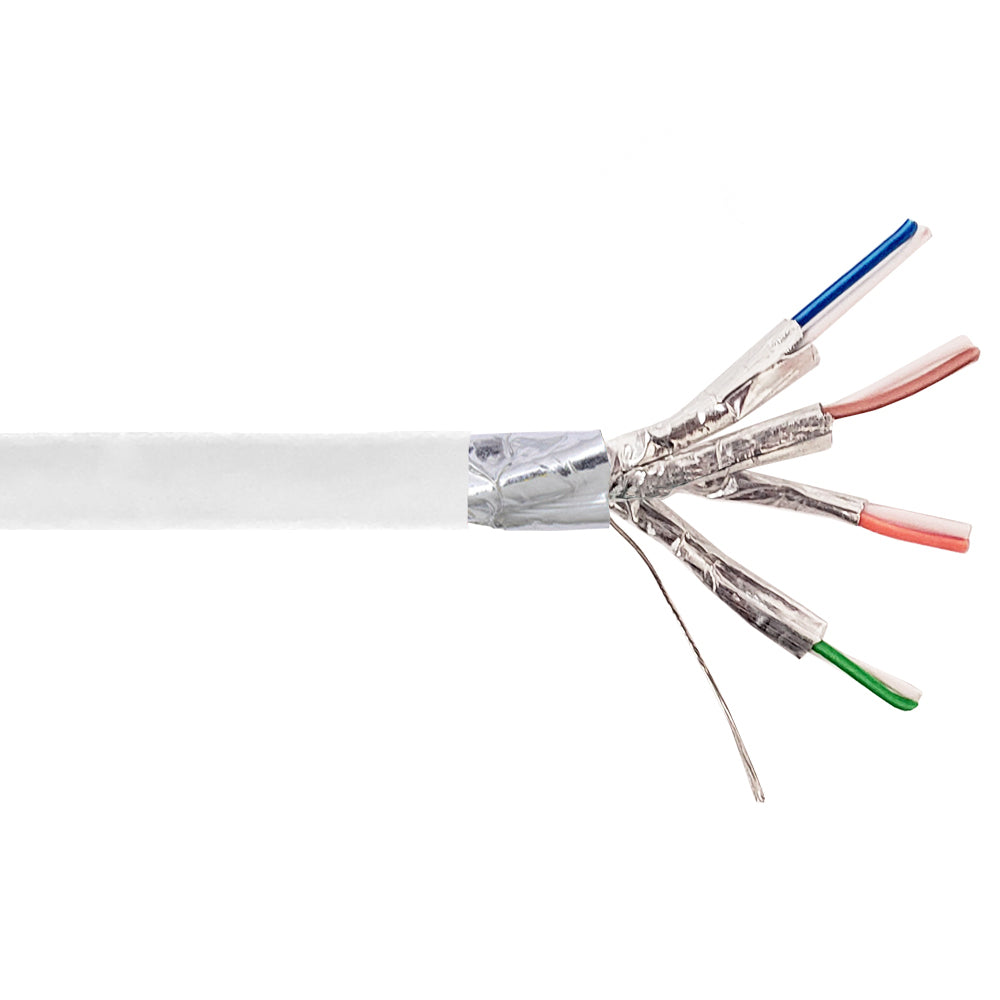

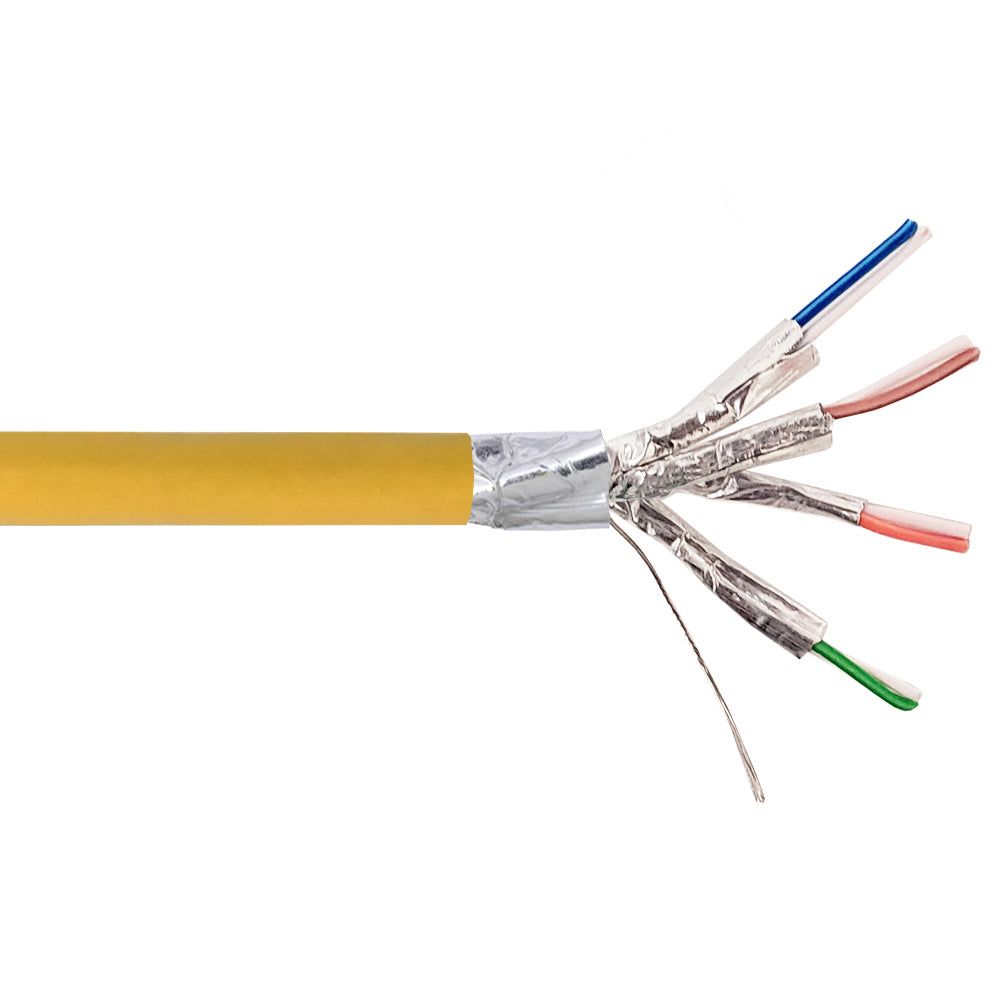

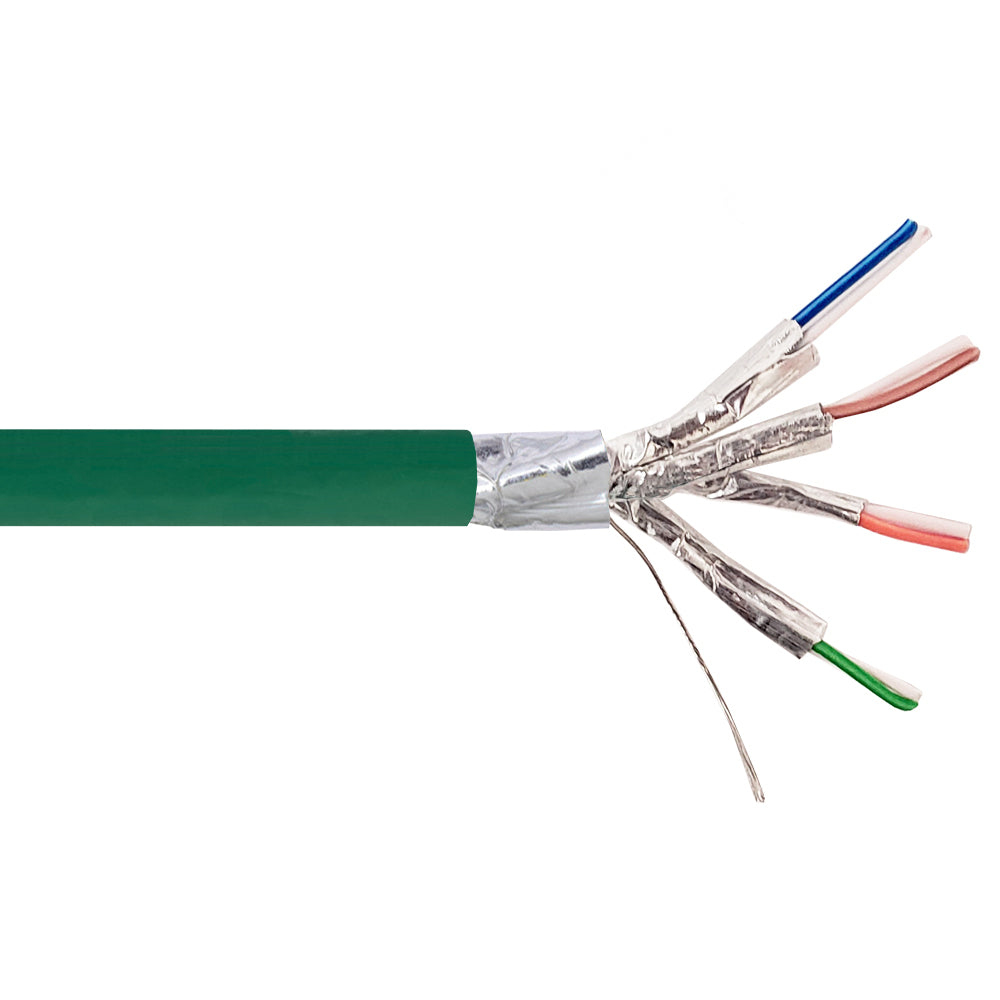

This bulk riser rated Cat6 cable is 1000 feet in length and consists of 4 pairs of 26AWG stranded wires with individually foil shielded pairs plus an overall foil shield. It is typically used to manufacture Cat6 shielded patch cables and terminated with shielded RJ45 plugs.

100% Bare Copper Stranded Conductors

This cables is manufactured using high quality pure bare copper to ensure maximum conductivity, optimal performance and longest lifetime. The stranded wires gives the cable more flexibility, makes it easier to handle and makes it perfect for touring and short patch links.

Great for High Speed Networks

Our CAT6 bulk cable is the most practical and economical solution for all your networking applications, it provides 550 MHz of bandwidth, and offers high speed, uninterrupted connection.

The Quality and Convenience You Need

This cable comes in a pull box for easy pulling, it features color striped pairs for easy identification, and a rip cord for easy stripping. also it uses a shielded twisted pair (FFTP) structure to retain a high quality signal when passing near high voltage or power cables.



Physical Characteristics
Cable Length 1000 foot [305m]
Cable Diameter 6.80 mm
Number of Pairs 4 Pairs
Twisted Pair Diameter 3.80 mm (±0.20 mm)
Color of Pairs White-Blue
Wire Gauge 26AWG Stranded
Stranding Count & Diameter 7x0.32 mm
Conductor Material 100% Bare Copper
Jacket Material PVC - Polyvinyl Chloride
Jacket Rating CMR/FT4 [Riser Rated]
Cable Shielding FFTP (Overall Foil and Individually Foil Shielding Pairs)
Temperature Rating 75ÂșC
UL Yes
RoHS Yes
Reach Yes
Conflict Minerals Yes
Packaging Information
Package Quantity 1

Product Weight

29.9 lbs [13.5kg]
