1000ft 4 Pair CAT5E 350Mhz Stranded Shielded STP FT4/CMR Bulk Cable

Category Bulk CableSKU: BK-C5EST-4BKS

Color: Black
Price:
Sale price$294.00 CAD
Stock:
In stock

This item does not qualify for free shipping.



Description

Overview

This bulk riser rated Cat5e cable is 1000 feet in length and consists of 4 pairs of 24AWG stranded wires with an overall foil shield. It is typically used to manufacture Cat5e shielded patch cables and terminated with shielded RJ45 plugs.

100% Bare Copper Stranded Conductors

This cables is manufactured using high quality pure bare copper to ensure maximum conductivity, optimal performance and longest lifetime. The stranded wires gives the cable more flexibility, makes it easier to handle and makes it perfect for touring and short patch links.

Great for High Speed Networks

Our CAT5E bulk cable is the most practical and economical solution for all your networking applications, it provides 350 MHz of bandwidth, and offers high speed, uninterrupted connection.

The Quality and Convenience You Need

This cable comes in a pull box for easy pulling, it features color striped pairs for easy identification, and a rip cord for easy stripping. also it uses an unshielded twisted pair (STP) structure to retain a high quality signal when passing near high voltage or power cables.

Application

Specifications

Physical Characteristics
Cable Length 1000 foot [305m]
Cable Diameter 6.10 mm
Number of Pairs 4 Pairs
Twisted Pair Diameter 3.80 mm (±0.20 mm)
Color of Pairs White-Blue
White-Green
White-Orange
White-Brown
Wire Gauge 24AWG Stranded
Stranding Count & Diameter 7x0.32 mm
Conductor Material 100% Bare Copper
Jacket Material PVC - Polyvinyl Chloride
Jacket Rating CMR/FT4 [Riser Rated]
Cable Shielding 100% Aluminum Foil Shield
Rip Cord
Yes - Nylon
Temperature Rating 75ºC
Approvals
UL Yes
CSA Yes
Environmental
RoHS Yes
Reach Yes
Conflict Minerals Yes
Packaging Information
Package Quantity 1

Product Weight

25.8 lbs [11.70 kg]

Product Weight

Black
BK-C5EST-4BKS
25.8 lb
Blue
BK-C5EST-4BLS
25.8 lb

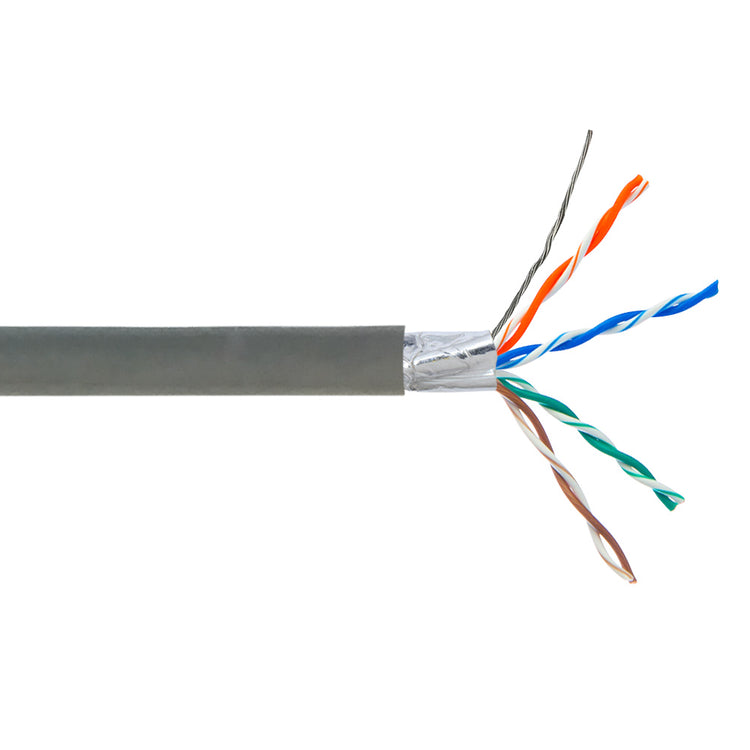

Grey
BK-C5EST-4GYS
25.8 lb

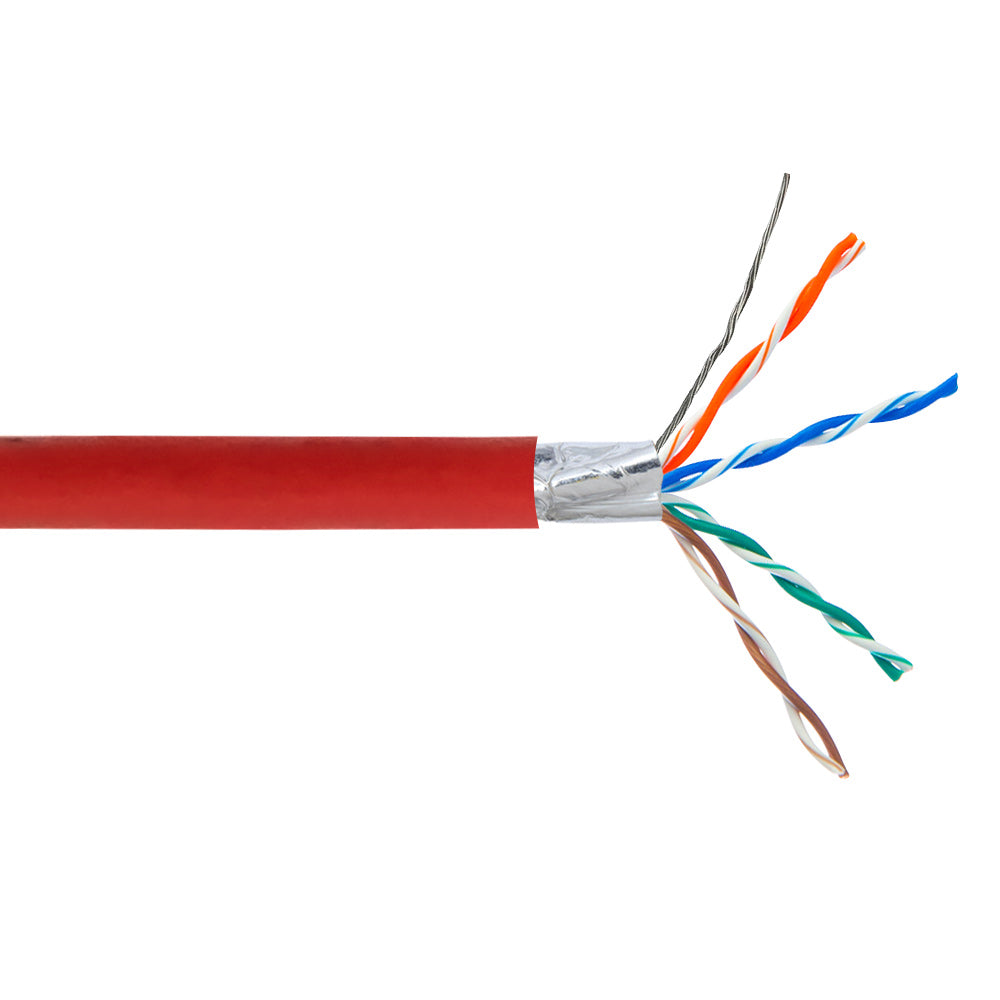

Red
BK-C5EST-4RDS
25.8 lb

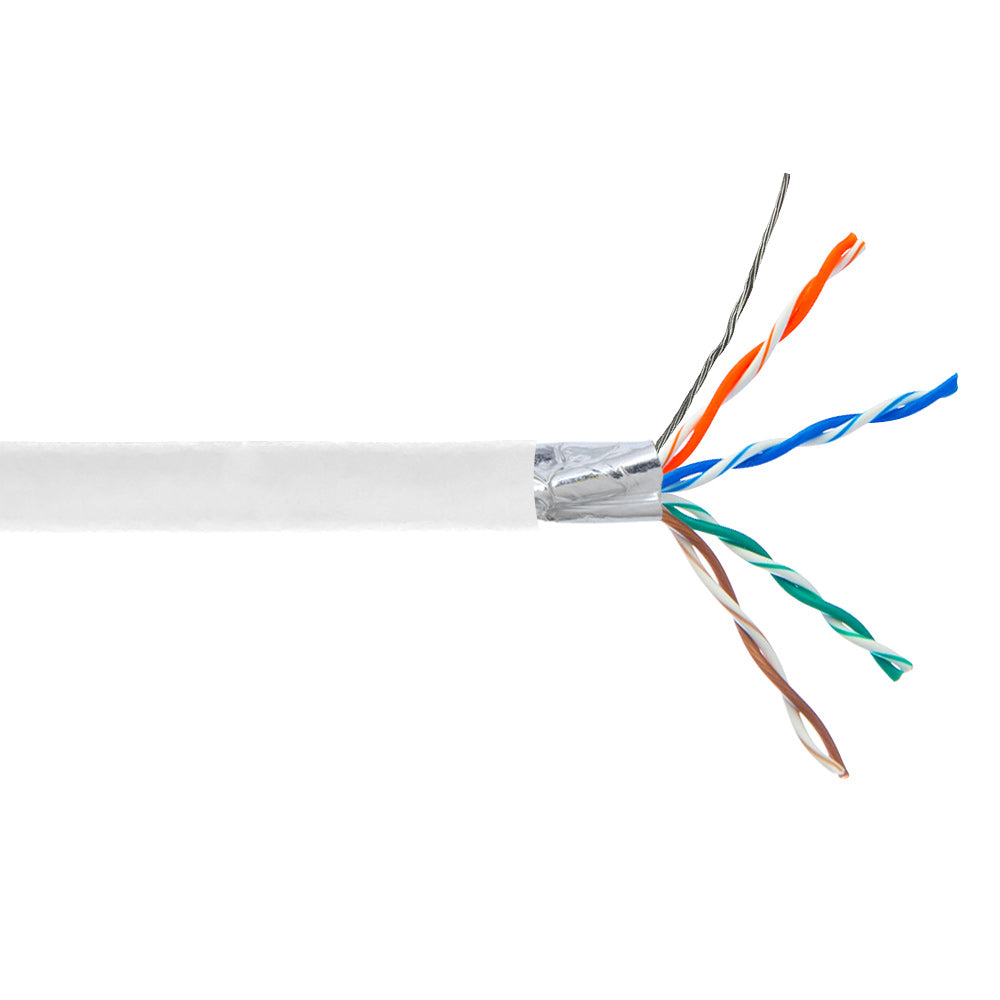

White
BK-C5EST-4WHS
25.8 lb
