Description

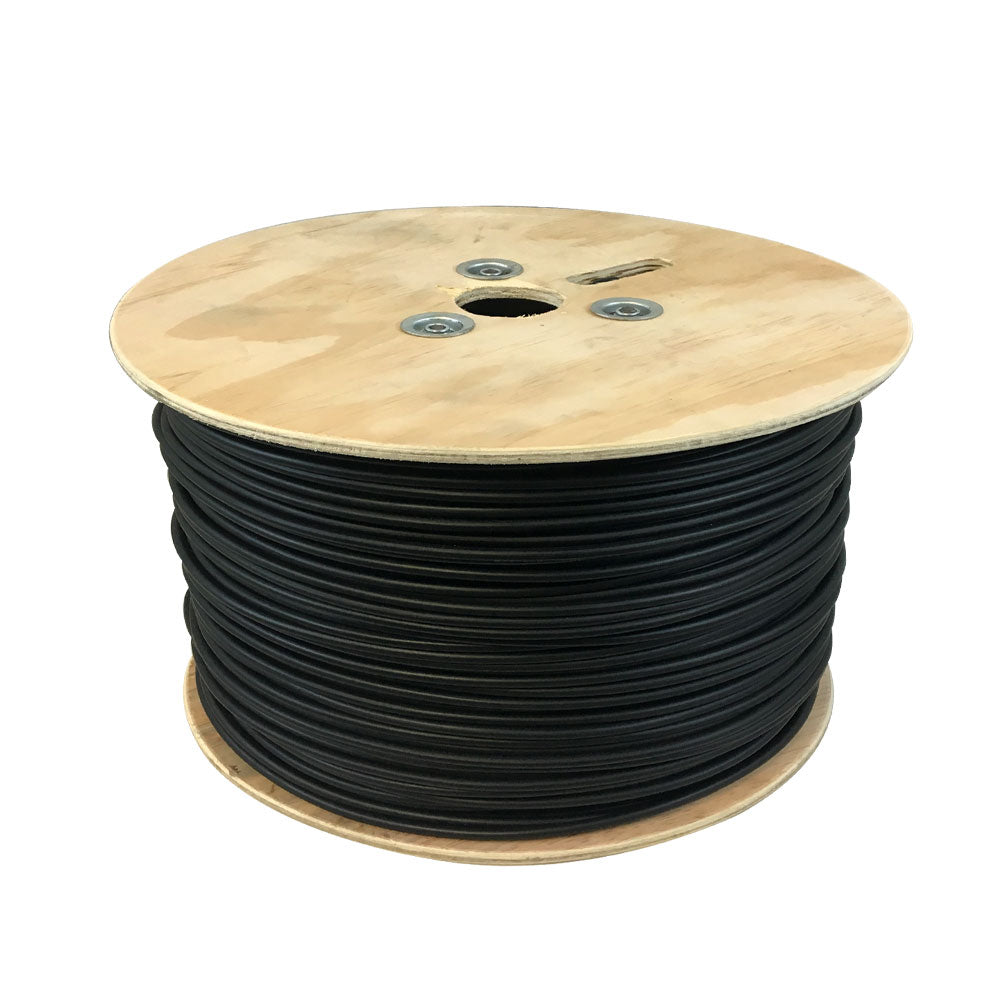

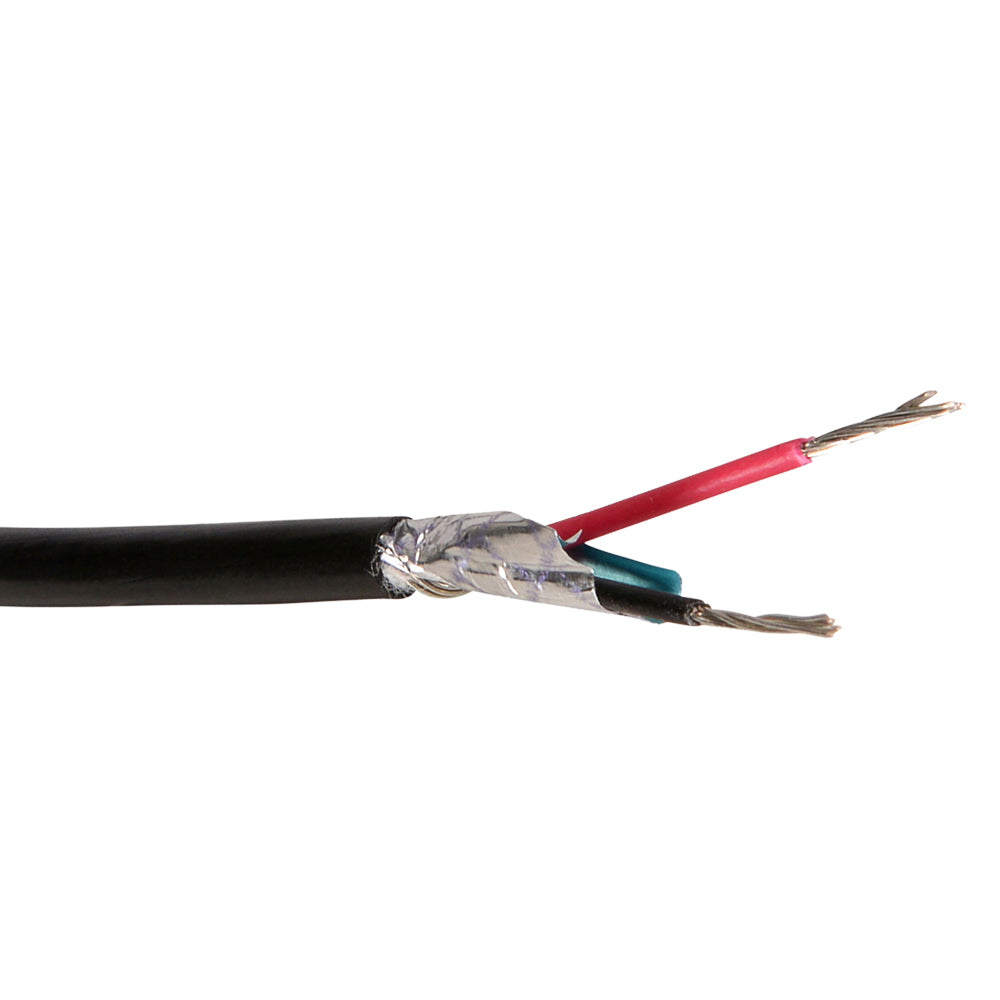

This bulk riser audio cable consists of 2 conductors of 22AWG stranded wire, is black in color and 1000 feet in length. It is typically used to interconnect audio devices in riser environments.
| Physical Characteristics | |
|---|---|
| Cable Length | 1000 foot [305m] |
| Color | Black |
| Cable Diameter | 6mm |
| Number of Conductors | 2 Conductors |
| Wire Gauge | 22AWG Stranded |
| Conductor Material | 100% Bare Copper |
| Stranding Count & Diameter | 27/0.12mm |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket Rating | CMR Riser (FT4) |
| Cable Shielding | 90% Copper Braid, 100% Mylar Foil |
| Temperature Rating | -10℃ to 60℃ |
| Electronic |
|
| AC Voltage with Standing | 2500V/ 1 minute |
| Insulation Resistance@20℃ | Above 50 mΩ/Km & above (20℃) |
| Conductor Resistance@20℃ | Below 64.85 mΩ/Km & below (20℃) |
| Approvals | |
| c(UL) | No |
| Environmental | |
| RoHS | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 28.16 lbs |
Spec Sheets
Product Weights
| SKU | Weight | |
| BK-AD02C22-BK | 36.0 lb |
