Description

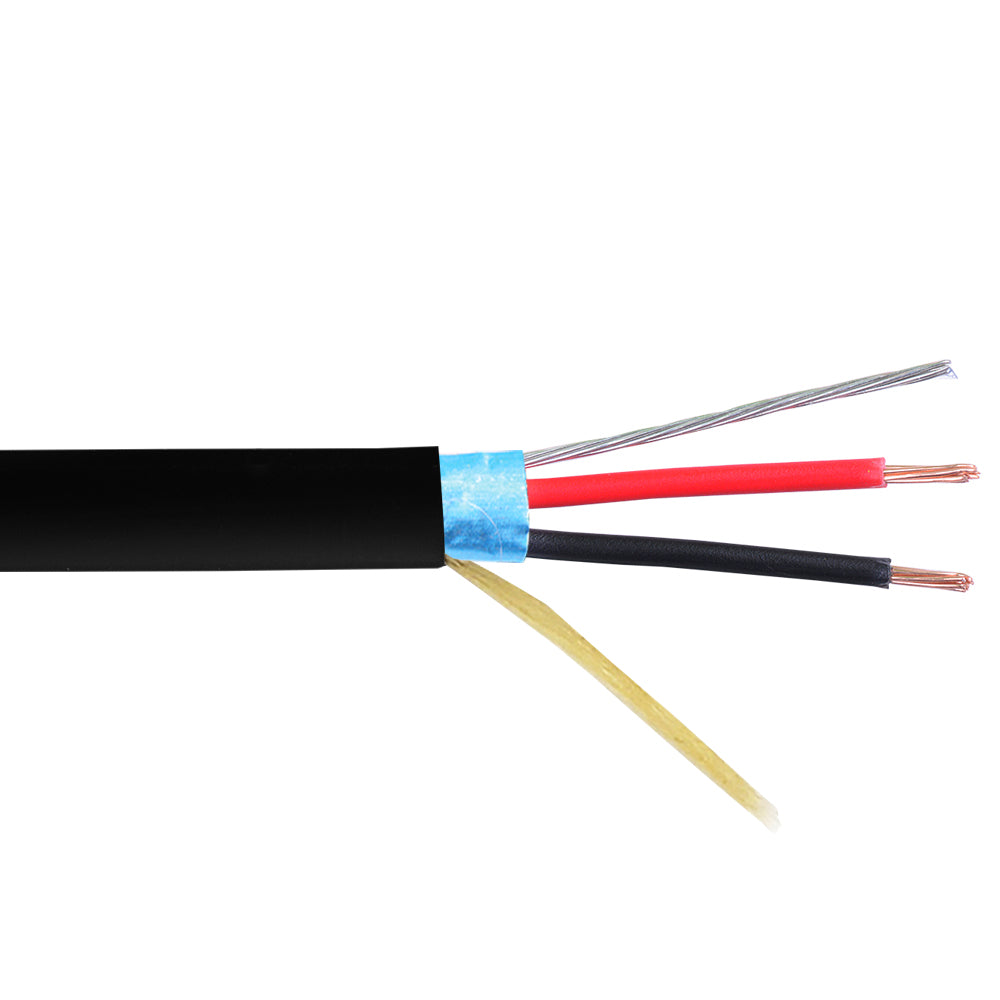

This 2 conductor 22AWG stranded shielded control cable is black and white in color and 1000 feet in length. It is typically used in control panel and automation control applications.
| Physical Characteristics | |
|---|---|
| Cable Lengths Available | 1000 foot [305m] Pull Box |
| Color (jacket) | Black/White |
| Number of Conductors | 2 Conductors (Red/Black) |
| Jacket Material | PVC - Polyvinyl Chloride |
| Stranding | 7*0.254mm |
| Min Average Jacket Thickness | 0.38mm |
| Jacket Outer Diameter | 4.6 ± 0.15mm |
| Insulation Material | PVC - Polyvinyl Chloride |
| Insulation Outer Diameter | 1.9mm |
| Min. Ave. Jacket Thickness | 0.45 mm |
| Wire Gauge | 22 AWG |
| Maximum Voltage | 300V |
| Material (conductors) | Bare Copper |
| Ripcord | Yes |
| Shielding |
Overall Foil Shielded 110% |
| Drain Wire | 7*0.2mm Stranded Tinned Copper |
| Operating Temperature | -20℃ ~ +75℃ |
| Before Tensile Strength | >=13.8 Mpa |
| Aging Elongation | >=100% |
| Aging Condition | 100x168ºCxhrs |
| After Tensile Strength | >=85%Mpa of unaged |
| Aging Elongation | >=50% of unaged |
| Cold Bend | No Crack (-20±2º Cx4hrs) |
| Approvals | |
| c(ETL)us | Compliant |
| Environmental | |
| RoHS | Compliant |
| REACH | Compliant |
| Packaging Information | |
| Package Quantity | 1 Pull Box |
| Product Weight | 22.53 lbs |
Spec Sheets
Product Weights
| SKU | Options | Weight |
| BK-CON428-BK | Black | 22.53 lb |
| BK-CON428-WH | White | 22.53 lb |
