Description

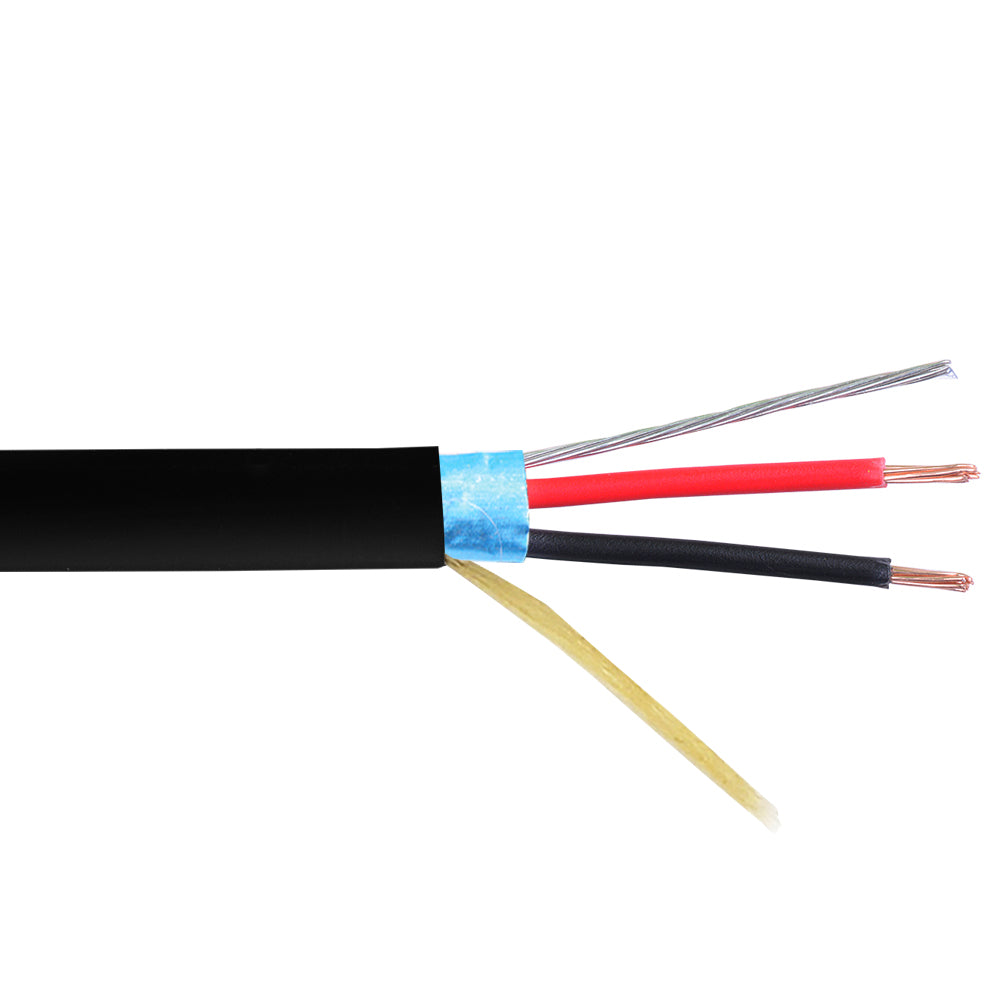

This 2 conductor 18AWG stranded shielded control cable isĀ black in color and 1000 feet in length. It is typically used in control panel and automation control applications.
| Physical Characteristics | |
|---|---|

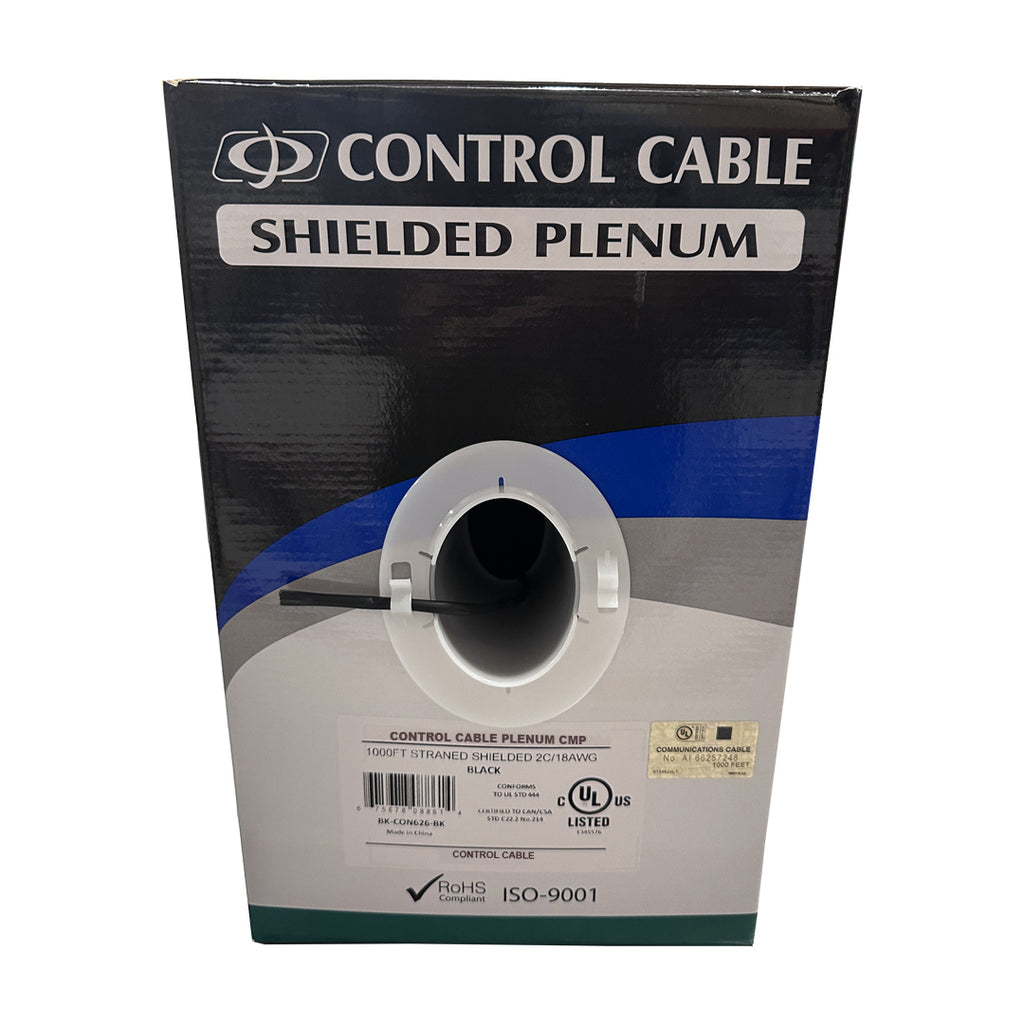

| Cable Lengths Available | 1000 foot [305m] Pull Box |
| Color (jacket) | Black |
| Number of Conductors | 2 Conductors (Red/Black) |
| Jacket Material | PVC - Polyvinyl Chloride |
| Min Average Jacket Thickness | 0.36mm |
| Jacket Outer Diameter | 4.6 Ā± 0.15mm |
| Insulation Material | PVC - Polyvinyl Chloride |
| Min Average Insulation Thickness | 0.18mm |
| Insulation Outer Diameter | 1.7 Ā± 0.10mm |
| Min. Ave. Jacket Thickness | 0.46 mm |
| Wire Gauge | 18 AWG |
| Maximum Voltage | 300V |
| Material (conductors) | Bare Copper |
| Ripcord | DuPont KevlarĀ® |
| Shielding |
100% AL-Mylar & PET Coverage with 25% Overlapping |
| Drain Wire | 24 AWG Stranded Tinned Copper |
| Conductor Resistance |
6.65 Ohms/1000FT. 21.8 ohms/km (at 20ā Max) |
| Operating Temperature | -20ā ~ +75ā |
| Approvals | |
| c(UL)us | Yes |
| Environmental | |
| RoHS | Yes |
| Packaging Information | |
| Package Quantity | 1 Pull Box |
| Product Weight | 22.53 lbs |
