Description

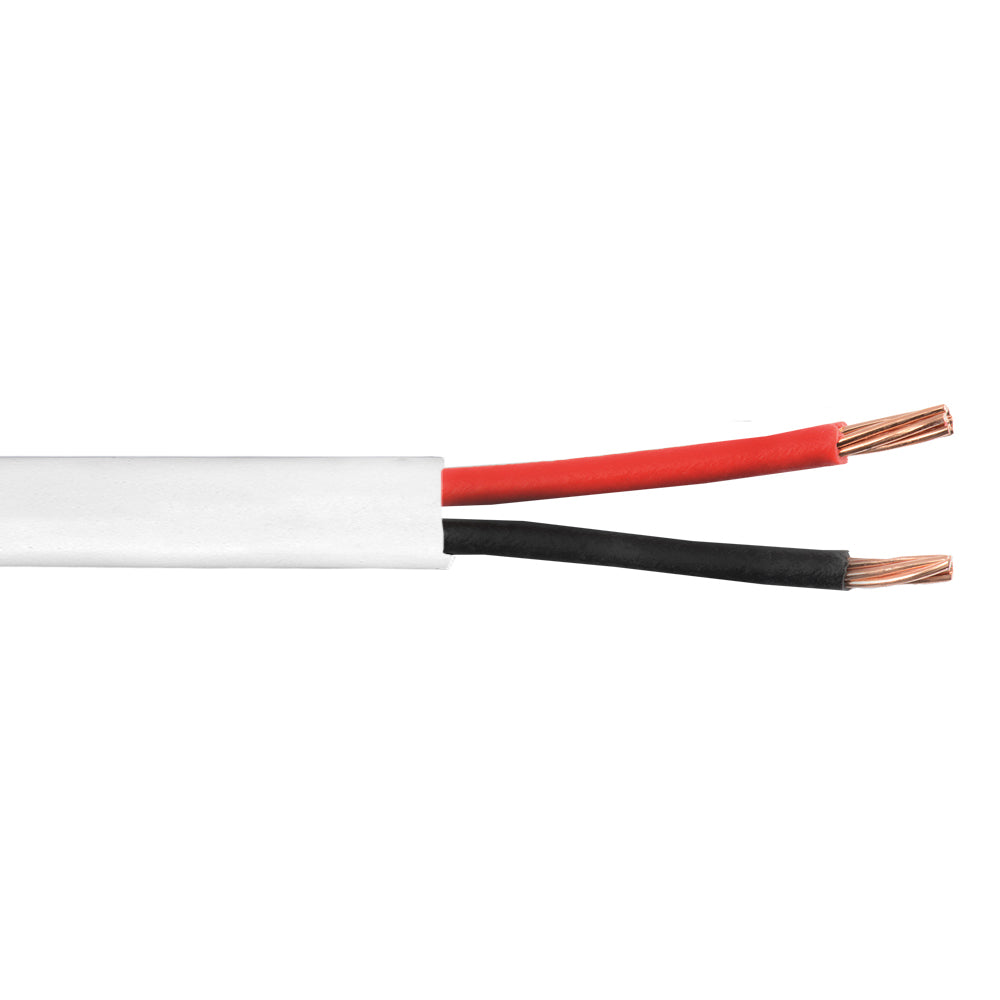

This 2 conductor 18AWG stranded unshielded control cable is white in color and 1000 feet in length. It is typically used in control panel and automation control applications.
| Physical Characteristics | |
|---|---|

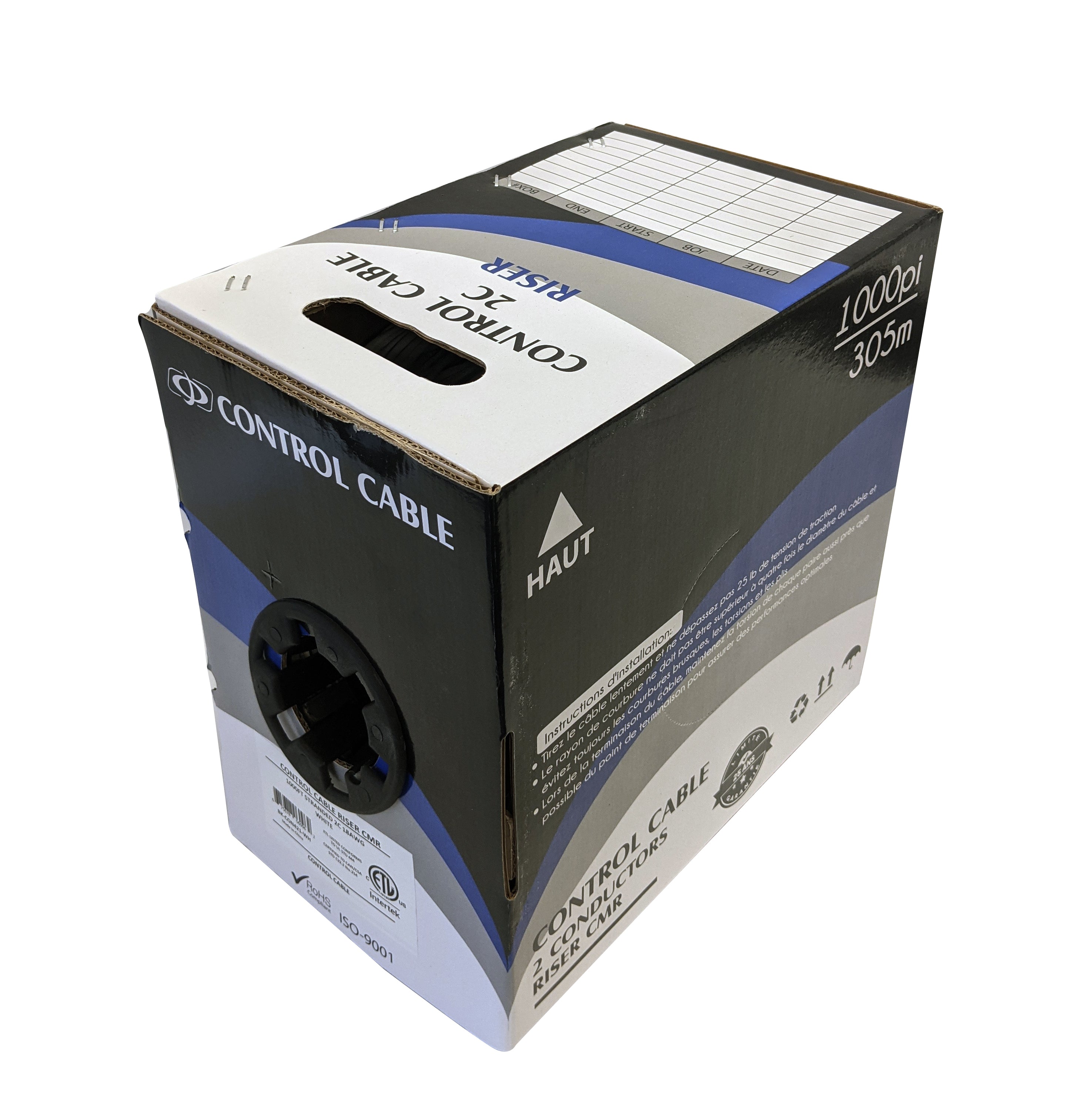

| Cable Lengths Available | 1000 foot [305m] Pull Box |
| Color (jacket) | Black / White |
| Number of Conductors | 2 Conductors (Red/Black) |
| Jacket Material | PVC - Polyvinyl Chloride |
| Nominal Jacket Thickness | 0.45mm |
| Nominal Overall Diameter | 5.1mm |
| Insulation Material | PVC - Polyvinyl Chloride |
| Nominal Insulation Thickness | 0.38mm |
| Nominal Insulation Diameter | 1.9mm |
| Min. Ave. Jacket Thickness | 0.36 mm |
| Wire Gauge | 18 AWG |
| Maximum Voltage | 300V |
| Material (conductors) | Bare Copper - Oxygen-Free |
| Stranding | 16*30AWG |
| Temperature Rating | -20℃ ~ 75℃ |
| Before Tensile Strength (Mpa) | >=13.8 |
| Aging Elongation (%) | >=100 |
| Aging Condition (℃xhrs) | 100x168 |
| After Tensile Strength (Mpa) | >=85% of unaged |
| Aging Elongation (%) | >=50% of unaged |
| Cold Bend (-20±2º Cx4hrs) | No Crack |
| Approvals | |
| c(ETL)us | Compliant |
| Packaging Information | |
| Package Quantity | 1 Pull Box |
| Product Weight | 22.53 lbs |
Spec Sheets
Product Weights
| SKU | Options | Weight |
| BK-CON421-BK | Black | 23.0 lb |
| BK-CON421-WH | White | 23.0 lb |
