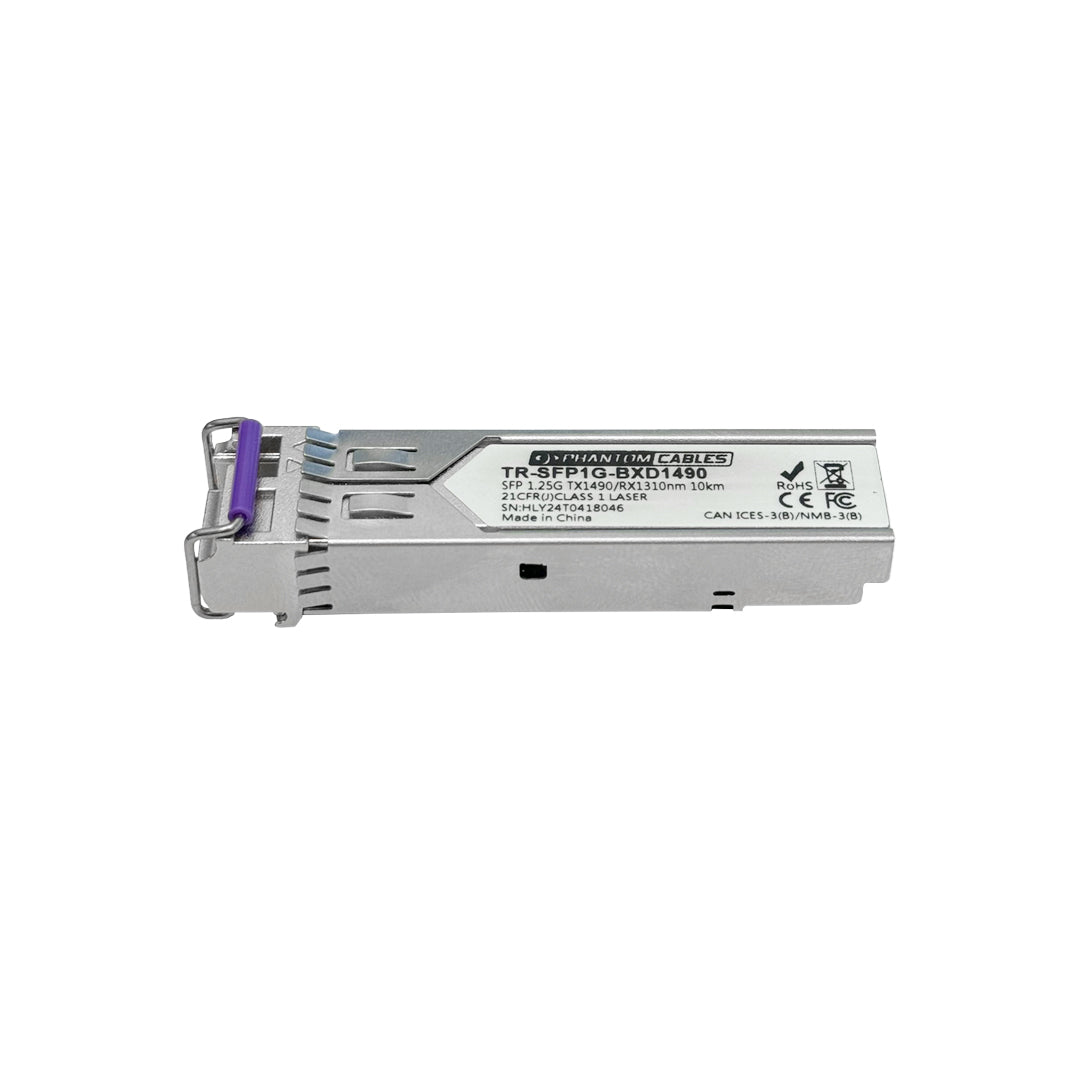

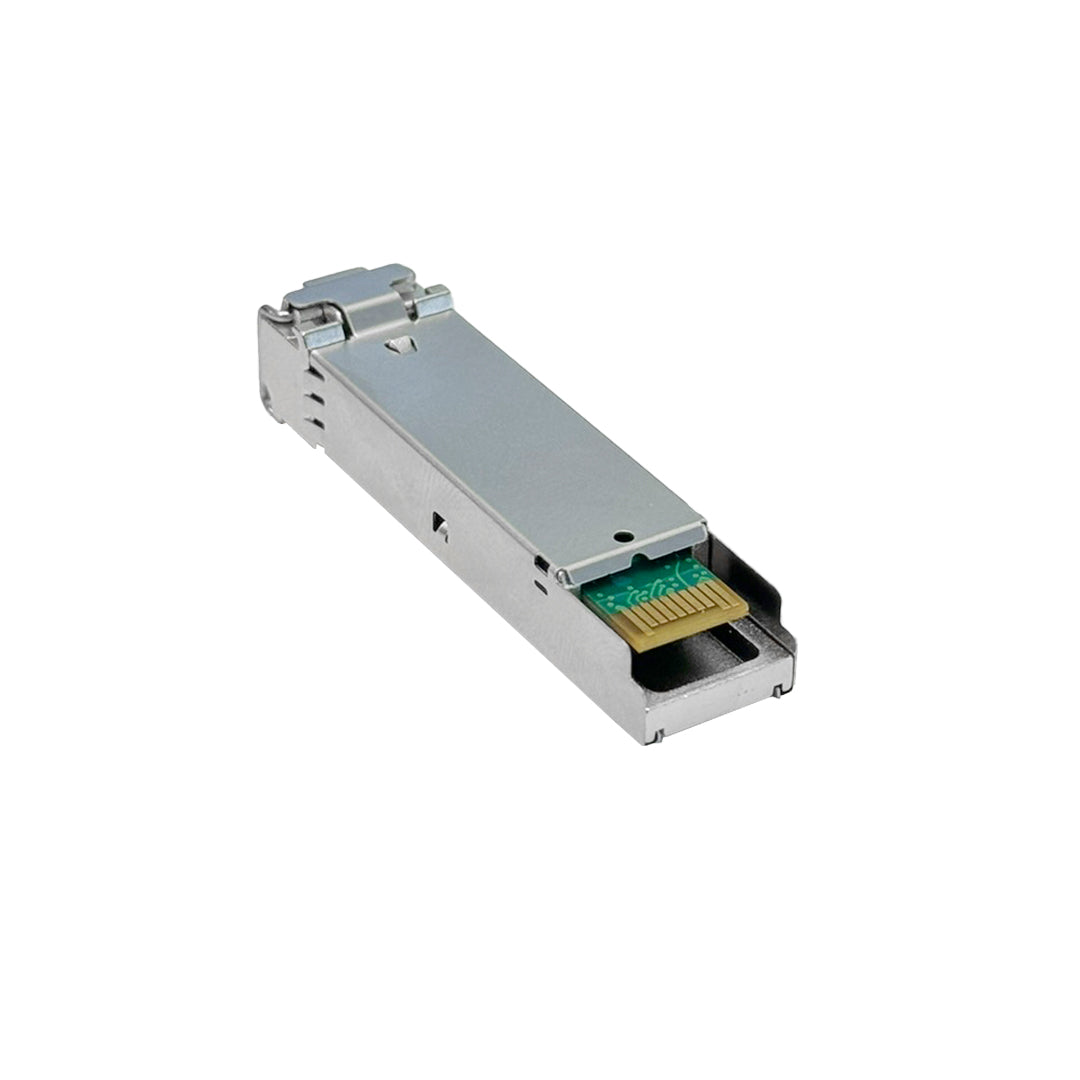

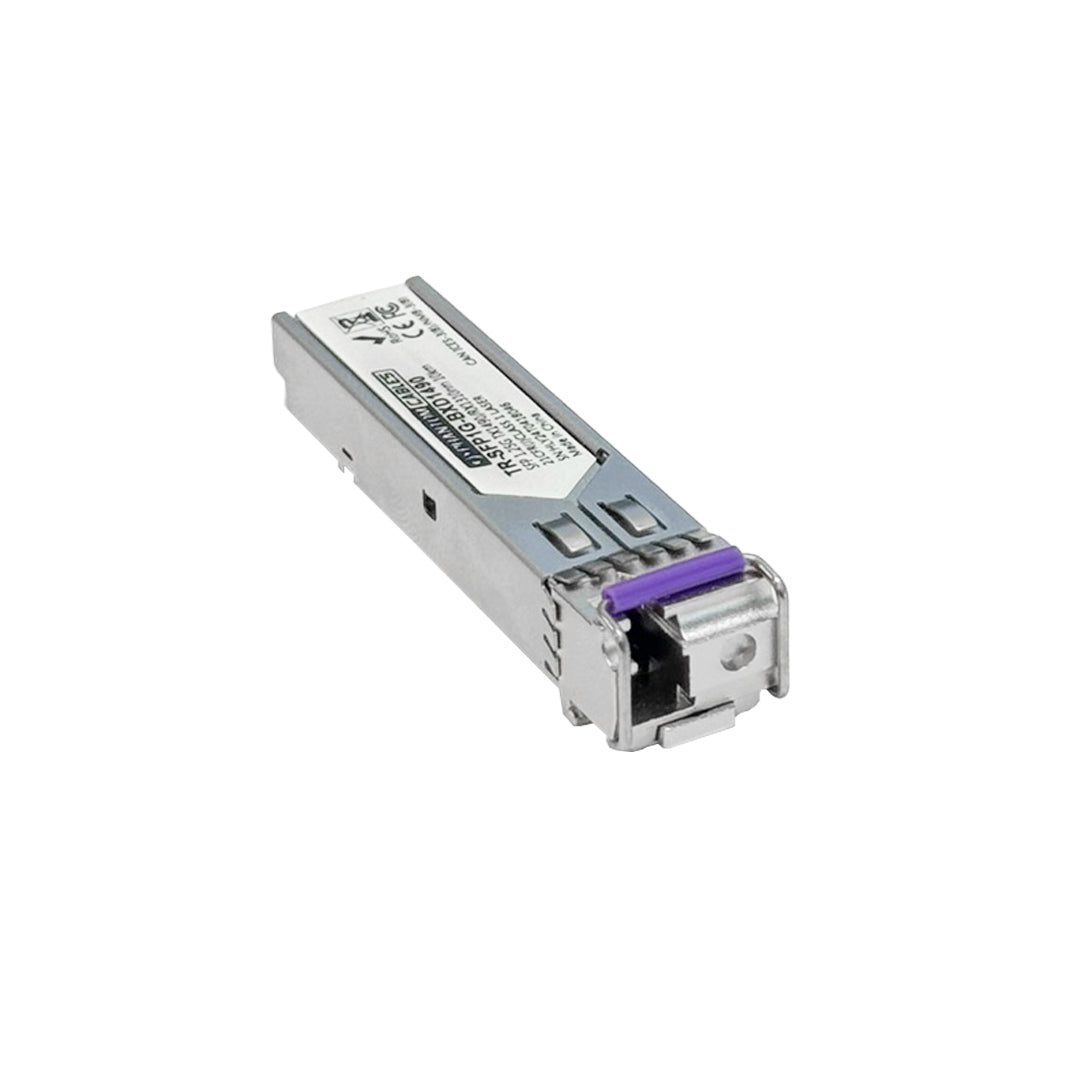

1000base-BX-D BiDi SFP 1490nm/1310nm LC Transceiver, 10km

SFP+ / QSFP+ TransceiversSKU: TR-SFP-1G-BXD-1490

Compatible Brand: Generic
Price:
Sale price$11.85 CAD
Stock:
In stock


Description

This is a bidirectional Enhanced Small Form-factor Pluggable (SFP) transceiver module with maximum data transfer rate of 1.25 Gbps up to 10km over a simplex singlemode fiber cable. It is used in network devices with an SFP slots.  The transceivers are Multi-Source Agreement (MSA) compliant and built to OEM specifications.

Features:

  • Dual data-rate of 1.25Gbps/1.063Gbps operation
  • Two types:

    A:1310nm FP Laser transmitter,1490nm PIN receiver

    B:1490nm DFB Laser transmitter,1310nm PIN receiver

  • Compliant with SFP MSA and SFF-8472 with simplex LC receptacle
  • Digital Diagnostic Monitoring: Internal Calibration or External Calibration
  • Compatible with RoHS
  • Compatible with SONET OC-24-LR-1
  • +3.3V single power supply

Applications:

  • Gigabit Ethernet
  • Fiber Channel
  • Switch to Switch interface
  • Switched backplane applications
  • Router/Server interface
  • Other optical transmission systems

Specifications

Physical Characteristics
Dimensions 57mm x 15mm x 9mm (L x W x H)
Operating Temperature 0°C ~ 70°C
Storage Temperature -40°C ~ 85°C
Laser Type Class 1
Connectors
Connector LC Simplex
Performance
Media Supported 1000base-BX-D Singlemode Fiber
Maximum Transmission Distance

10km


Data Transfer Rate

1.25Gbps


Wave Length

TX: 1490nm

RX: 1310nm


DDM Support Yes
Certifications
CE Yes
FCC Yes
RoHS Yes
Packaging Information
Package Quantity 1
Product Weight 0.02 lbs [0.01kg]
Warranty Information
Warranty Limited Lifetime

- Avaya

- Force10

- D-Link

- EMC2

- F5 Networks

- Fortinet

- Hirschmann

- Linksys

- Moxa

- MRV

- Netgear

- Nokia Siemens Networks

- Palo Alto Network

- Qlogic

- RAD

- Ruijie Networks

- Supermicro

- Synology

- Telco Systems

- TP-Link

- Trendnet

- Ubiquiti

- WatchGuard

- ZTE

SKU Weight
TR-SFP-1G-BXD-1490 0.08 lb
