Description
This converter consists of a VGA and stereo audio input and a HDMI output. It is used to convert analog video and audio signal to a HDMI signal. A typical application would be to connect a computer or laptop with an analog video card to a HDMI display.
Features：
- One VGA+R/L input signal converts to TMDS signal which supports HDMI
- Support video input : VGA analog
- Support audio input : R/L analog
- HDMI output : Support up to 1920x1080, same format as input
- LED indication: when source or sink is working, the related LED lights up
- Support output up to 20 meters cable length
- No loss of quality
- Installs in minutes
- Need DC5V/1A power supply or USB to DC cable for charging
Application
Specification
| Physical Characteristics | |
|---|---|
| Color | Black |
| Housing | Metal |
| Dimension (L x W x H) | 90x69x31(mm) |
| Power | |
| Power Supply |
Input: AC (50HZ, 60HZ) 100V-240V output: DC5V/1A |
| Connector(s) | |
| Input |

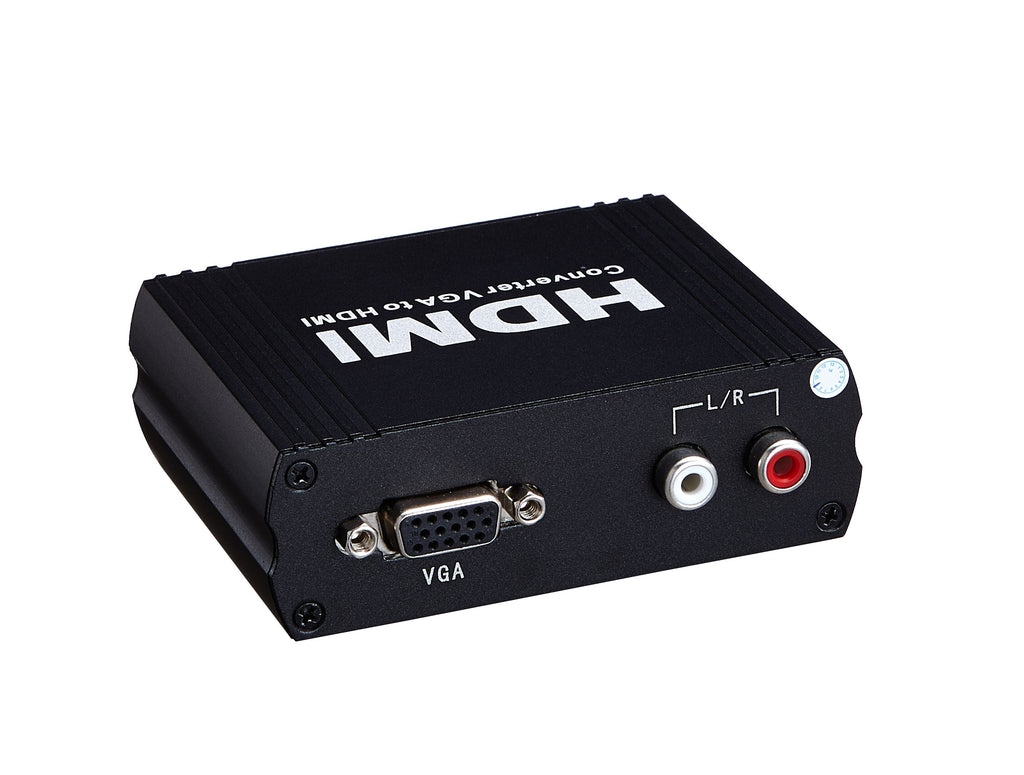

1 - VGA Female Port 1 - R/L Audio RCA Female Port |

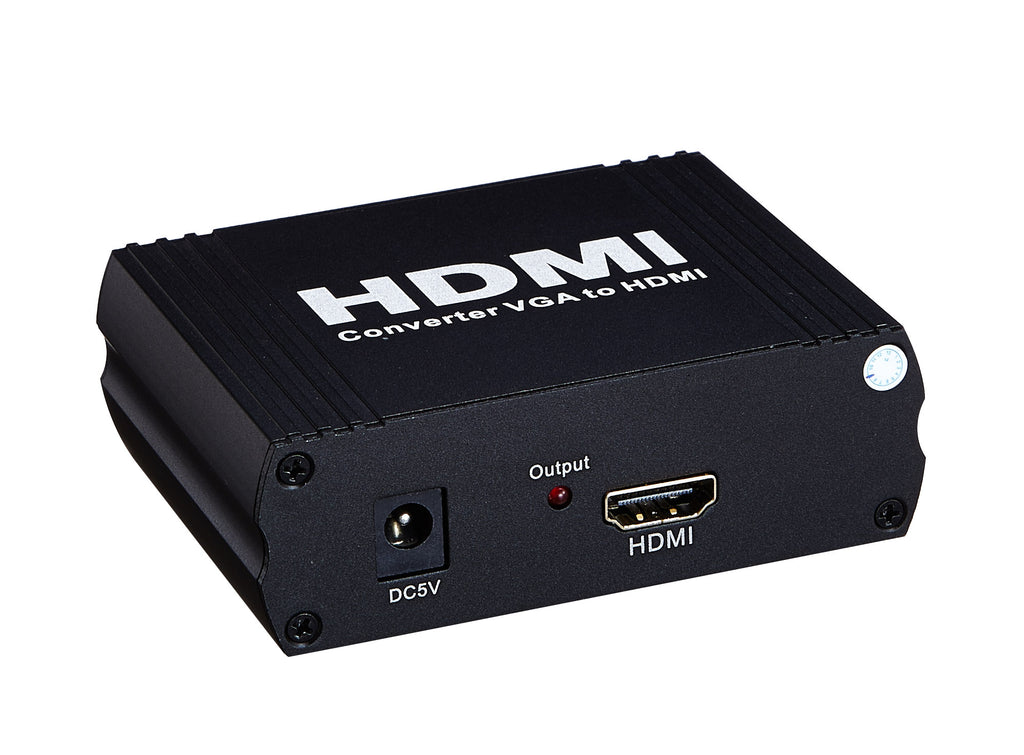

| Output | 1 - HDMI Female |
|
Performance |
|
| VGA Input |
Support SXGA/SGA/UGA(50/60/75HZ) |
| Audio Input |
R/L Analog |
| HDMI Output Resolution | Support up to 1920x1080/60Hz |
| Max bandwidth | 165Mhz |
| Max baud rate | 1.65Mhz |
| Output cable distance | ≤20m AWG26 HDMI standard cable |
| Input Video signal | 0.5~1.5Volts p-p |
| Output DDC signa | 5Volts p-p (TTL) |
| Max Working Current | 500mA |
| Operating Temperature Range | -15 to +55 °C |
| Operating Humidity Range | 5 to 90%RH (No Condensation) |
| Approvals | |
| Power Adapter | c(UL)us |
| Environmental | |
| RoHS | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Package Weight | 0.30 lbs |
| Contents | |
| Included in Package | 1 - VGA to HDMI converter |

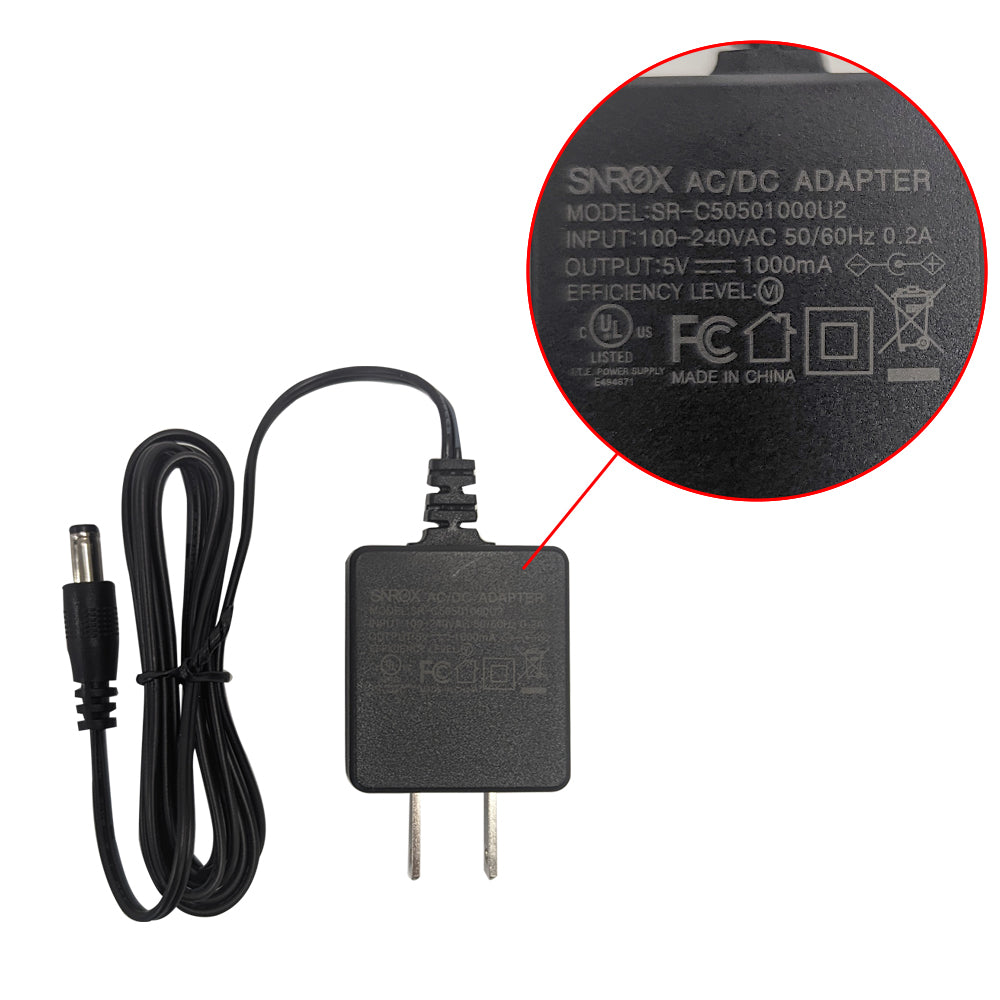

| 1 - 5V DC Power adapter | |
| 1 - Manual | |
Product Weights
| SKU | Weight | |
| VC-009 | 0.3 lb |
