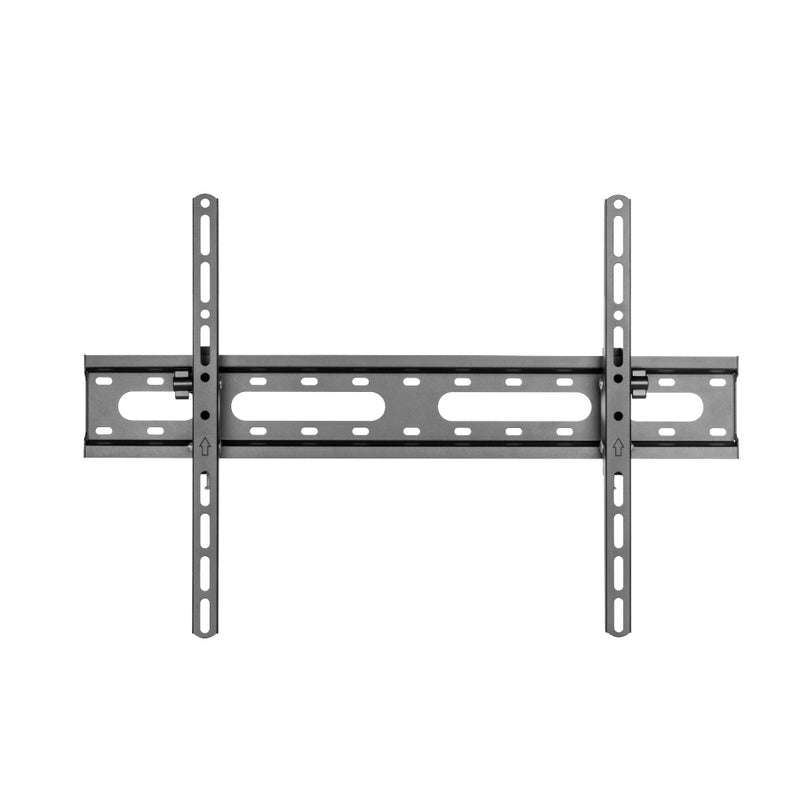

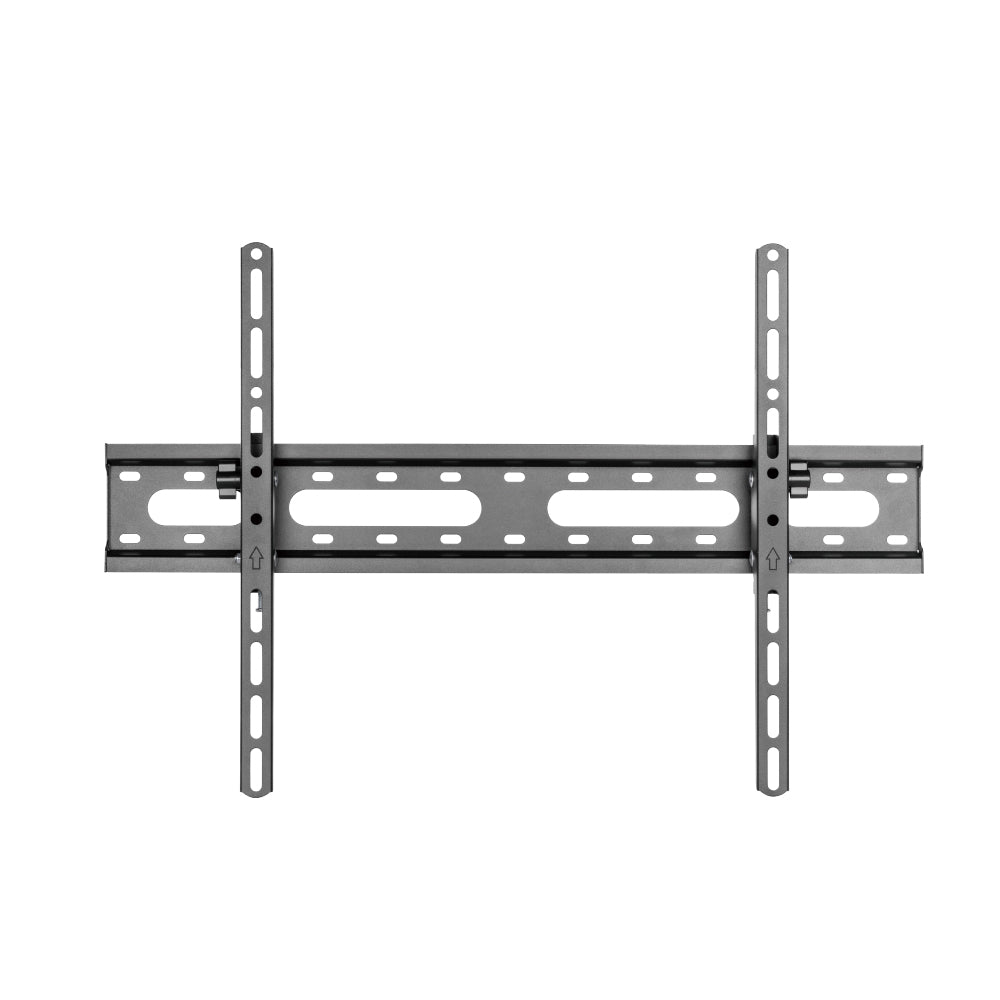

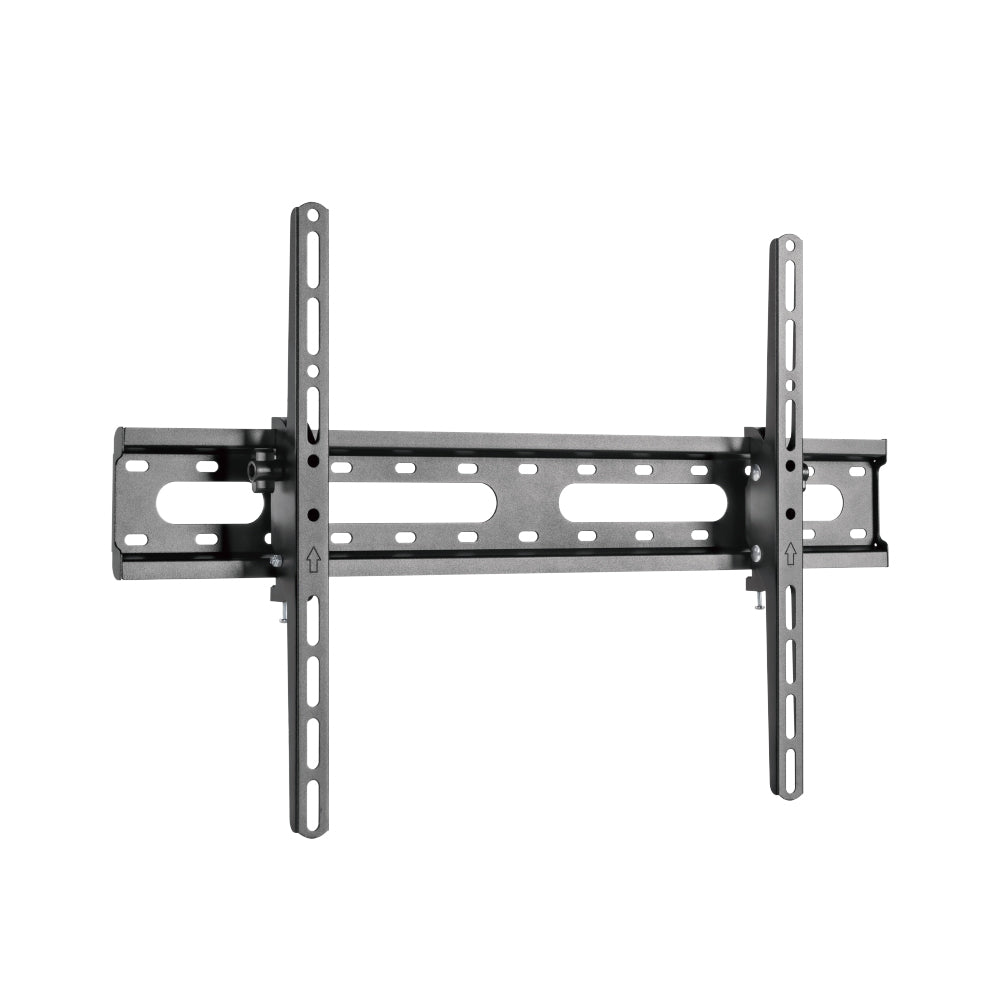

Tilting Mount TV Wall Mount Bracket for Flat and Curved LCD/LEDs - Fits Sizes 37-70 inches - Max VESA 600x400

Wall Mount TV BracketsSKU: MT-436-BK

Sale price$13.05 CAD
In stock



This LCD/LED tilting TV wall mount bracket is designed to hold most 37 inch to 70 inch LCD/LED displays with a maximum VESA hole pattern of 600x400. It offers up to a +12° to -12° tilt. It can be used in both residential and commercial environments.

Easy-Grip Knobs

This TV mount has easy grip knobs which allow for quick tilting and locking.

Convenient Rail Security Screws

This TV mount has security screws that can hold the TV securely to the wall plate.

Easy Installation and Inexpensive

This TV mount with its simple construction, allows for easy installation as a cost-effective solution.


Physical Characteristics
Mounting Style Fixed & Tilting TV Wall Mount
Color Powder Coated Black
Material Steel, Plastic
Metal Sheet Thickness Bracket Arm Thickness=1.4mm [0.055 inch] cold-rolled sheet
Wall Plate Thickness=1.4mm [0.055 inch] cold-rolled sheet
Dimensions 663 x 420 x 53mm [26.1 x 16.5 x 2.1 inches]
Mounting Pattern VESA 200x200,300x200,400x200,300x300,400x300,400x400,600x400
Screen Size 37 - 70 inches [93 - 177cm]
Weight Capacity 99 lbs [45kg]
Profile 53 mm [2.1 inch]
Installation Solid Wall
Panel Type Detachable Panel
Wall Plate Type Fixed Wall Plate
Bubble Level Hook-on Bubble Level (Included in Components Package)
Fits Curved TV Yes
Tilt Range +12°~-12°
Direction Indicator Yes
Cable Management No
Anti-Theft No
RoHS Yes
Reach Yes
Packaging Information
Package Quantity 1
Product Weight 3.85 lbs


Infinite Cables Inc. offers a 5-year warranty on all TV mounts to be free from defects in material and workmanship.

This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.

Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
