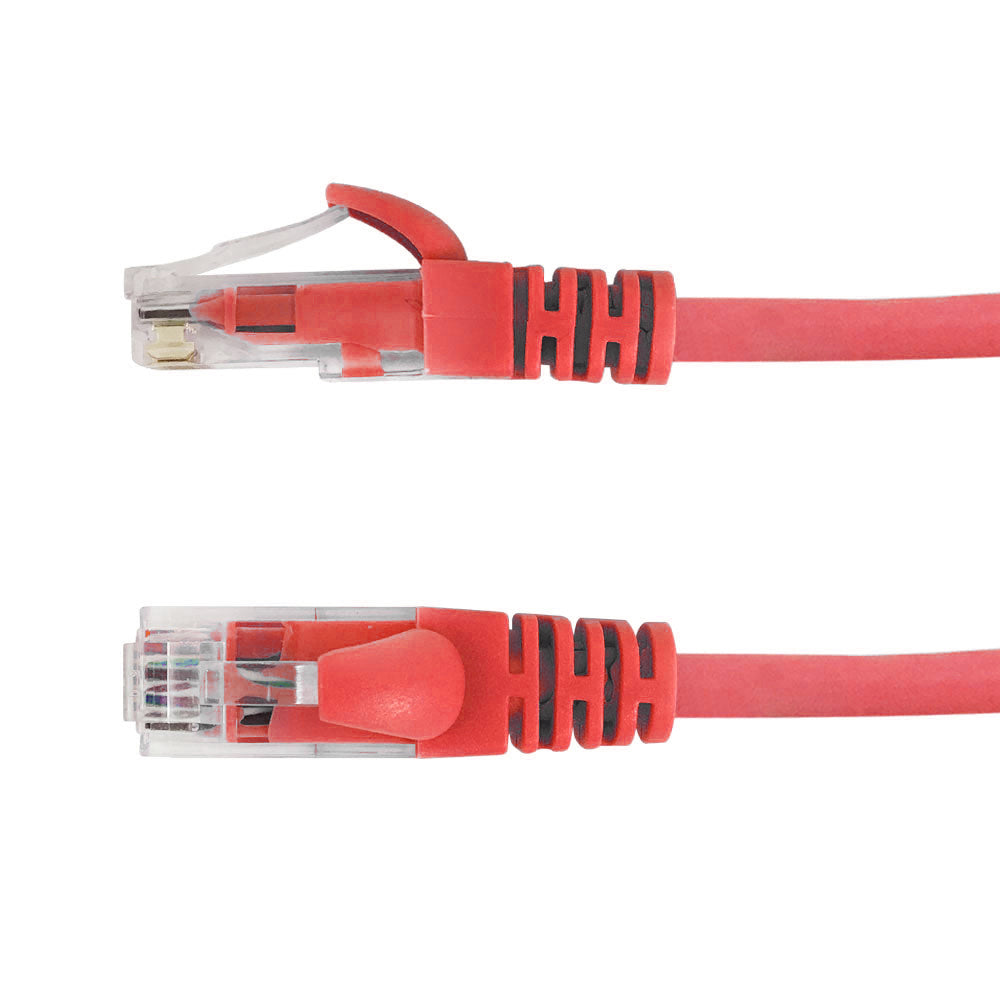

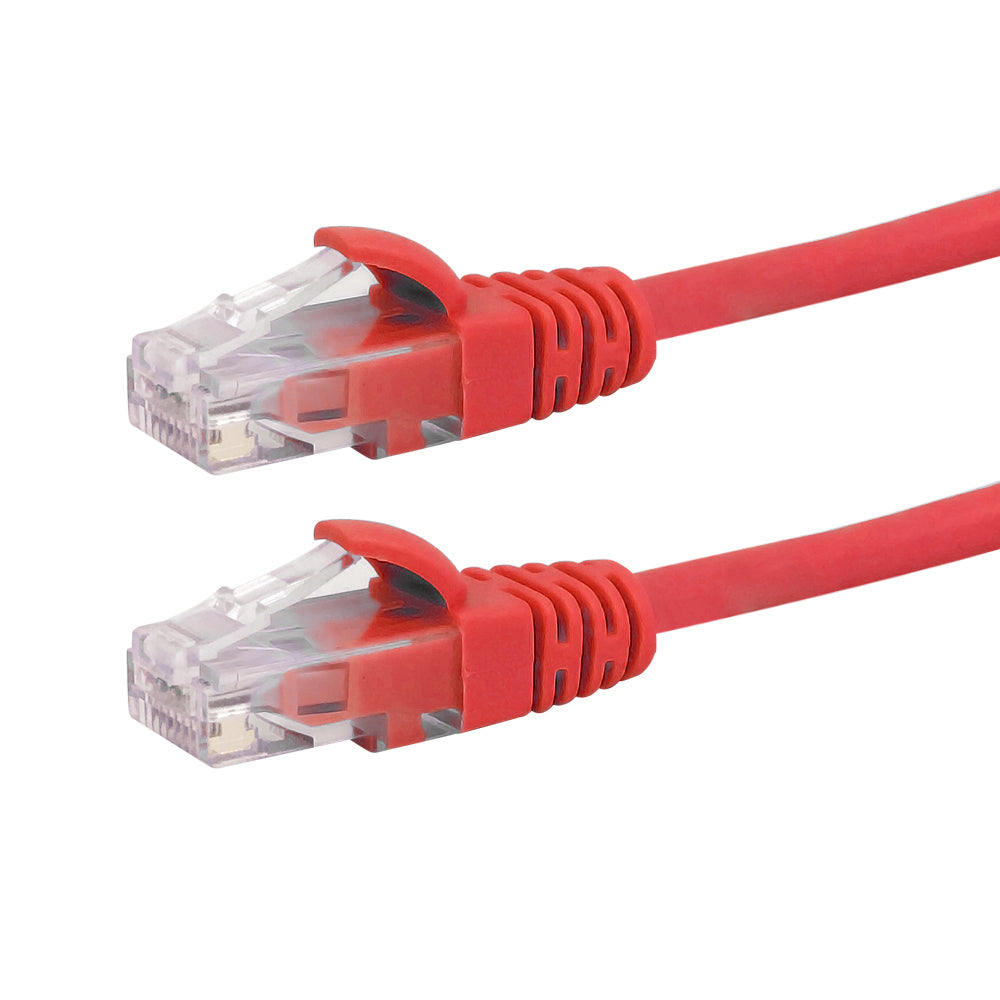

RJ45 Cat6a UTP 10GB Molded Patch Cable - Premium Fluke® Patch Cable Certified - CMR Riser Rated - Red

CAT6A Patch CablesSKU: CAT6A-01RD

Length: 1ft
Price:
Sale price$2.44 CAD
Stock:
In stock


Description

Overview

This Cat6a ethernet cable consists of a RJ45 male on one end and a RJ45 male on the other. It is typically used for ethernet network connections such as patch panels, switches and computers to routers. These cables are Fluke® Cat6a patch cable certified. The cable jacket is also CMR (riser) fire rated.

100% Pure Copper

This cables is manufactured using high quality pure bare copper to ensure optimal performance and longest lifetime.

50 Micron Gold Plated Connectors

This non-corrosive, thickest available gold plating delivers optimum conductivity and maintains a stable signal connection with little risk of getting damaged over time.

Fluke® Patch Cable Certified

Our cables are 100% tested to pass a Fluke® CAT6a patch cable test.

Specifications

Physical Characteristics
Color Black/Black/Blue/Green/Grey/Purple/Orange/Red/Yellow/White
Connector Plating Gold Plated 50 Micron
Cable Diameter 6.2mm
Wire Gauge 24AWG Stranded
Shielding UTP (Unshielded)
Pairs 4
Fire Rating CMR (FT4 Riser Rated)
Molding Molded Tab Style Strain Relief
Jacket Type PVC
Bend Radius 24mm
Connectors
Connector A RJ45 Long Body Male
Connector B RJ45 Long Body Male
Performance
Fluke® CAT6a Patch Cable Test Yes
Frequency 550 MHz
Speed 10Gb
Approvals
c(UL)us
Yes - Cable
ISO/IEC 11801 Yes
Environmental
RoHS Yes
Reach Yes
Conflict Materials Yes
Package Information
Package Quantity 1
Warranty Information
Warranty Limited Lifetime
Cable Weights
1ft 2ft 3ft 5ft 7ft 10ft 15ft 25ft 35ft 50ft 75ft 100ft
0.05 lbs 0.09 lbs 0.12 lbs 0.17 lbs 0.23 lbs 0.32 lbs 0.45 lbs 0.73 lbs 0.98 lbs 1.40 lbs 2.09 lbs 2.65 lbs
