Overview

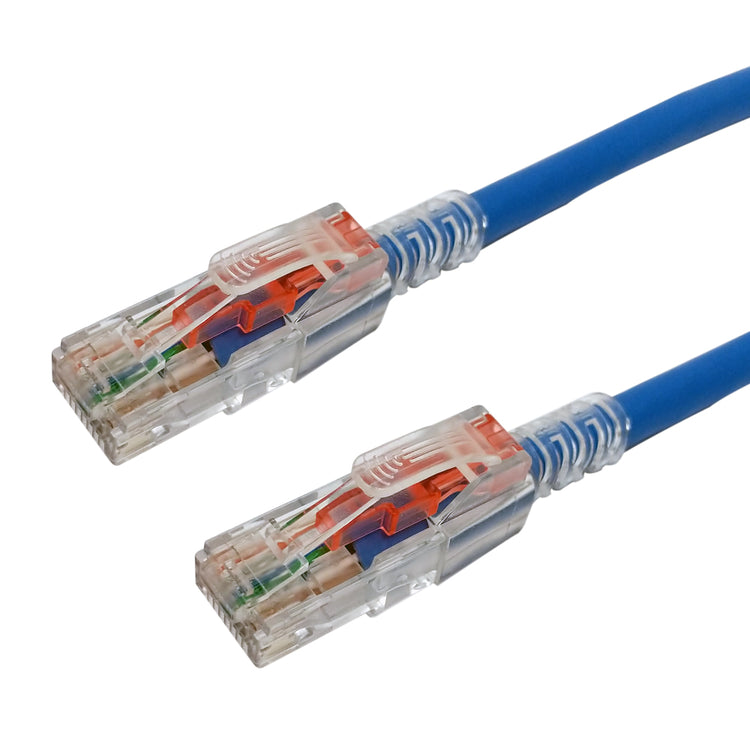

This custom Cat6a ethernet cable consists of a locking style RJ45 male on both ends. It is typically used for ethernet network connections such as patch panels, switches and computers to routers. The plug has a push-in locking tab which helps prevent accidental disconnects for critical networking applications. Each cable comes with a key which is required to easily unlock the connector.

TERMS: non-cancelable & non-returnable

Application

Specifications

Physical Characteristics
Connector A	RJ45 Long Body Male (Locking Style)
Connector B	RJ45 Long Body Male (Locking Style)
Performance
Frequency	550 MHz
Speed	10Gb
Approvals
c(UL)us	Yes - Cable
ETL Verified	Yes
ANSI/TIA - 568 - C.2	Yes
ISO/IEC 11801	Yes
EN 50173-1	Yes
Environmental
RoHS	Yes
Reach	Yes
Conflict Materials	Yes
Package Information
Package Quantity	1
Warranty Information
Warranty	Limited Lifetime

Cable Weights
0.8ft	1ft	2ft	3ft	4ft	5ft	6ft	7ft	8ft	9ft	10ft	11ft	12ft	13ft	14ft	15ft	16ft	17ft	18ft	19ft	20ft	21ft	22ft	23ft	24ft	25ft	30ft	35ft	40ft	45ft	50ft	75ft	100ft
0.04 lbs	0.05 lbs	0.08 lbs	0.10 lbs	0.13 lbs	0.15 lbs	0.17 lbs	0.20 lbs	0.22 lbs	0.24 lbs	0.25 lbs	0.30 lbs	0.35 lbs	0.37 lbs	0.40 lbs	0.43 lbs	0.45 lbs	0.47 lbs	0.49 lbs	0.51 lbs	0.53 lbs	0.55 lbs	0.57 lbs	0.58 lbs	0.59 lbs	0.60 lbs	0.70 lbs	0.80 lbs	0.90 lbs	1.00 lbs	1.10 lbs	1.90 lbs	2.15 lbs
