Description

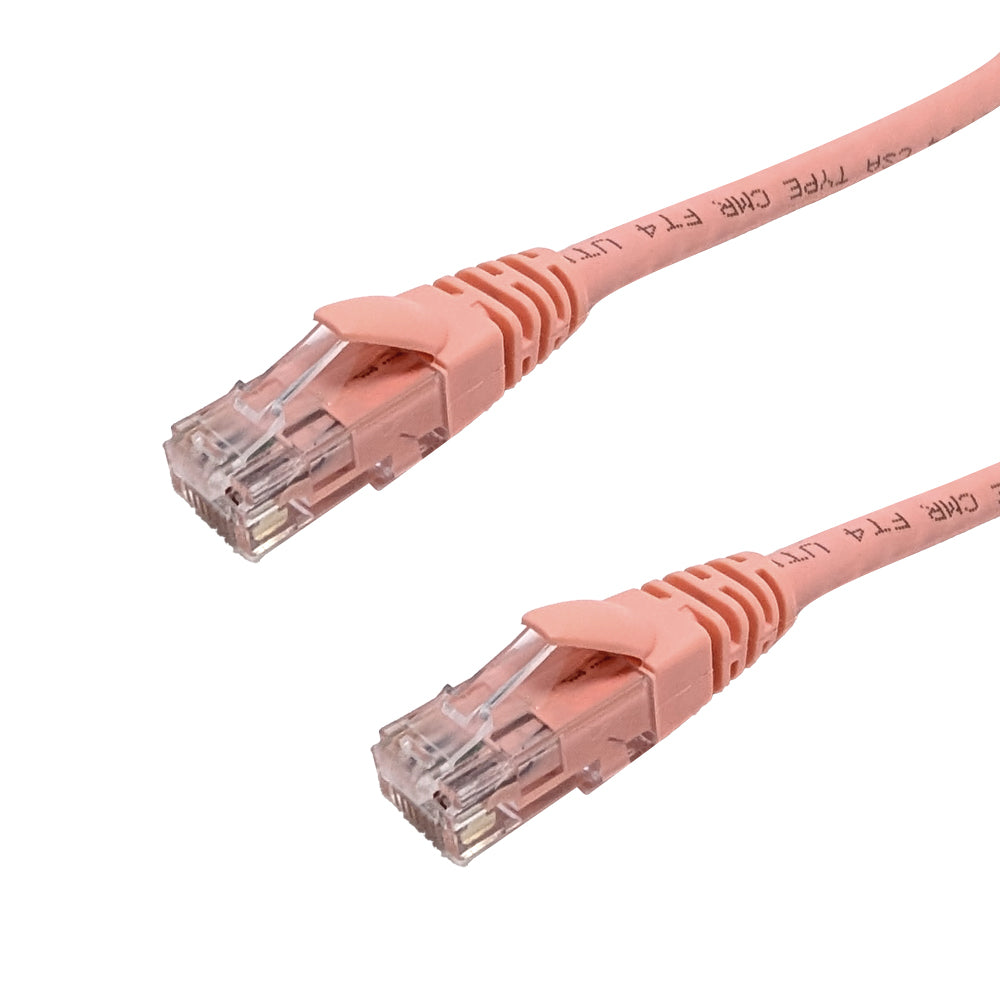

This Cat6 ethernet cable consists of a RJ45 male on one end and a RJ45 male on the other. It is typically used for ethernet network connections such as patch panels, switches and computers to routers. These cables are Fluke® Cat6 patch cable certified. The cable jacket is also CMR (riser) fire rated.
| Physical Characteristics | |
|---|---|
| Color | Pink |
| Connector Plating | Gold Plated 50 Micron |
| Cable Diameter | 6.2mm |
| Wire Gauge | 24AWG Stranded |
| Shielding | UTP (Unshielded) |
| Pairs | 4 |
| Fire Rating | CMR (FT4 Riser Rated) |
| Color Code | 568B |
| Molding | Molded Tab Style Strain Relief |
| Jacket Temperature Rating | -10C to +75C |
| Jacket Type | PVC |
| Bend Radius | 24mm |
| Connectors | |
| Connector A | RJ45 Long Body Male |
| Connector B | RJ45 Long Body Male |
| Performance | |
| Fluke® CAT6 Patch Cable Test | Compliant |
| Frequency | 550 MHz |
| Approvals | |
| c(UL)us |
Compliant - Cable |
| ETL Verified | Compliant |
| ANSI/TIA - 568 - C.2 | Compliant |
| Environmental | |
| RoHS | Compliant |
| Package Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 0.8ft | 1ft | 2ft | 3ft | 4ft | 5ft | 6ft | 7ft | 8ft | 10ft | 12ft | 14ft | 15ft | 20ft | 25ft | 30ft | 35ft | 50ft | 75ft | 100ft |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.05 lbs | 0.07 lbs | 0.10 lbs | 0.15 lbs | 0.17 lbs | 0.20 lbs | 0.21 lbs | 0.24 lbs | 0.26 lbs | 0.33 lbs | 0.38 lbs | 0.46 lbs | 0.50 lbs | 0.63 lbs | 0.77 lbs | 0.95 lbs | 1.10 lbs | 1.55 lbs | 2.26 lbs | 3.0 lbs |
Product Weights
| SKU | Options | Weight |
| CAT6-08PK-L | 8ft | 0.26 lb |
| CAT6-14PK-L | 14ft | 0.46 lb |
| CAT6-100PK-L | 100ft | 3.0 lb |
