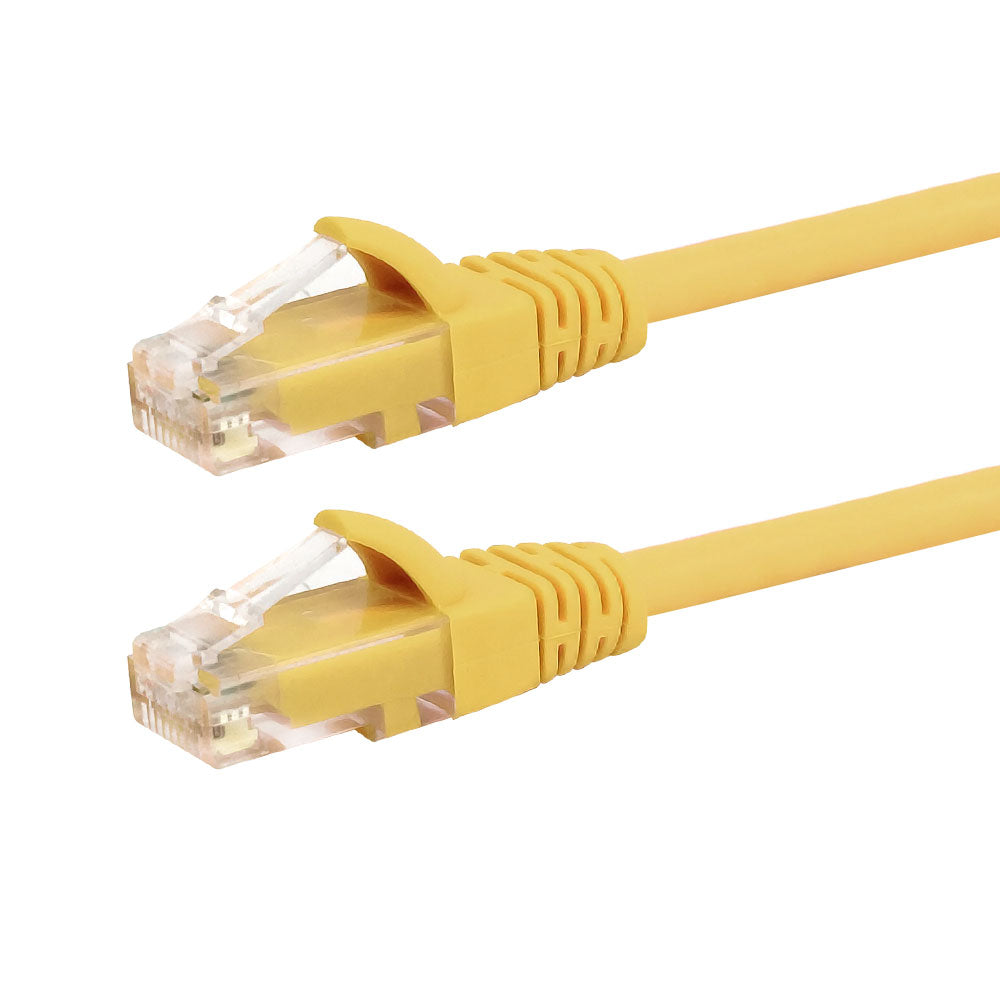

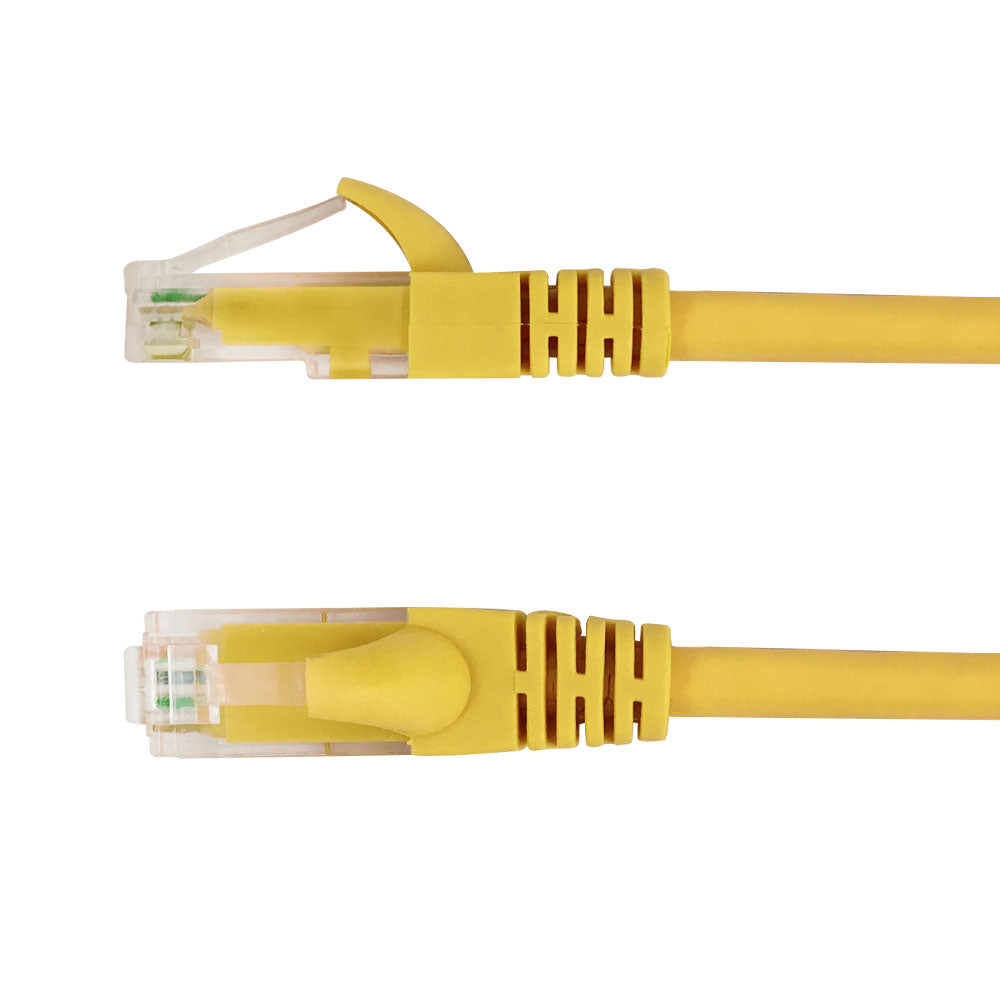

RJ45 Cat6 550MHz Molded Patch Cable - Premium Fluke® Patch Cable Certified - CMR Riser Rated - Yellow

CAT6 Patch CablesSKU: CAT6-0.8YL

Length: 8 inch
Price:
Sale price$1.80 CAD
Stock:
In stock


Description

Overview

This Cat6 ethernet cable consists of a RJ45 male on one end and a RJ45 male on the other. It is typically used for ethernet network connections such as patch panels, switches and computers to routers. These cables are Fluke® Cat6 patch cable certified. The cable jacket is also CMR (riser) fire rated.

100% Pure Copper

This cables is manufactured using high quality pure bare copper to ensure optimal performance and longest lifetime.

50 Micron Gold Plated Connectors

This non-corrosive, thickest available gold plating delivers optimum conductivity and maintains a stable signal connection with little risk of getting damaged over time.

Fluke® Patch Cable Certified

Our cables are 100% tested to pass a Fluke® CAT6 patch cable test.

Specifications

Physical Characteristics
Color Black/Blue/Green/Grey/Orange/Pink/Purple/Red/White/Yellow
Connector Plating Gold Plated 50 Micron
Cable Diameter 6.2mm
Wire Gauge 24AWG Stranded
Shielding UTP (Unshielded)
Pairs 4
Fire Rating CMR (FT4 Riser Rated)
Color Code 568B
Molding Molded Tab Style Strain Relief
Jacket Temperature Rating -10C to +75C
Jacket Type PVC
Bend Radius  24mm
Connectors
Connector A RJ45 Long Body Male
Connector B RJ45 Long Body Male
Performance
Fluke® CAT6 Patch Cable Test Yes
Frequency 550 MHz
Approvals
c(UL)us
Yes - Cable
ETL Verified Yes
ANSI/TIA - 568 - C.2 Yes
ISO/IEC 11801 Yes
EN 50173-1 Yes
Environmental
RoHS Yes
Reach Yes
Conflict Materials Yes
Package Information
Package Quantity 1
Warranty Information
Warranty Limited Lifetime
Cable Weights
0.8ft 1ft 2ft 3ft 4ft 5ft 6ft 7ft 8ft 10ft 12ft 14ft 15ft 20ft 25ft 30ft 35ft 50ft 75ft 100ft
0.05 lbs 0.07 lbs 0.10 lbs 0.15 lbs 0.17 lbs 0.20 lbs 0.21 lbs 0.24 lbs 0.26 lbs 0.33 lbs 0.38 lbs 0.46 lbs 0.50 lbs 0.63 lbs 0.77 lbs 0.95 lbs 1.10 lbs 1.55 lbs 2.26 lbs 3.0 lbs

Product Weight

8 inch
CAT6-0.8YL
0.05 lb
1ft
CAT6-01YL
0.07 lb
2ft
CAT6-02YL
0.1 lb
3ft
CAT6-03YL
0.15 lb
4ft
CAT6-04YL
0.17 lb
5ft
CAT6-05YL
0.2 lb
6ft
CAT6-06YL
0.21 lb
7ft
CAT6-07YL
0.24 lb
8ft
CAT6-08YL
0.26 lb
10ft
CAT6-10YL
0.33 lb
12ft
CAT6-12YL
0.38 lb
14ft
CAT6-14YL
0.46 lb
15ft
CAT6-15YL
0.5 lb
20ft
CAT6-20YL
0.63 lb
25ft
CAT6-25YL
0.77 lb
30ft
CAT6-30YL
0.95 lb
35ft
CAT6-35YL
1.1 lb
50ft
CAT6-50YL
1.55 lb
75ft
CAT6-75YL
2.26 lb
100ft
CAT6-100YL
3.0 lb
