Description
- Description
- Spec Sheets
- Lead-time
Description

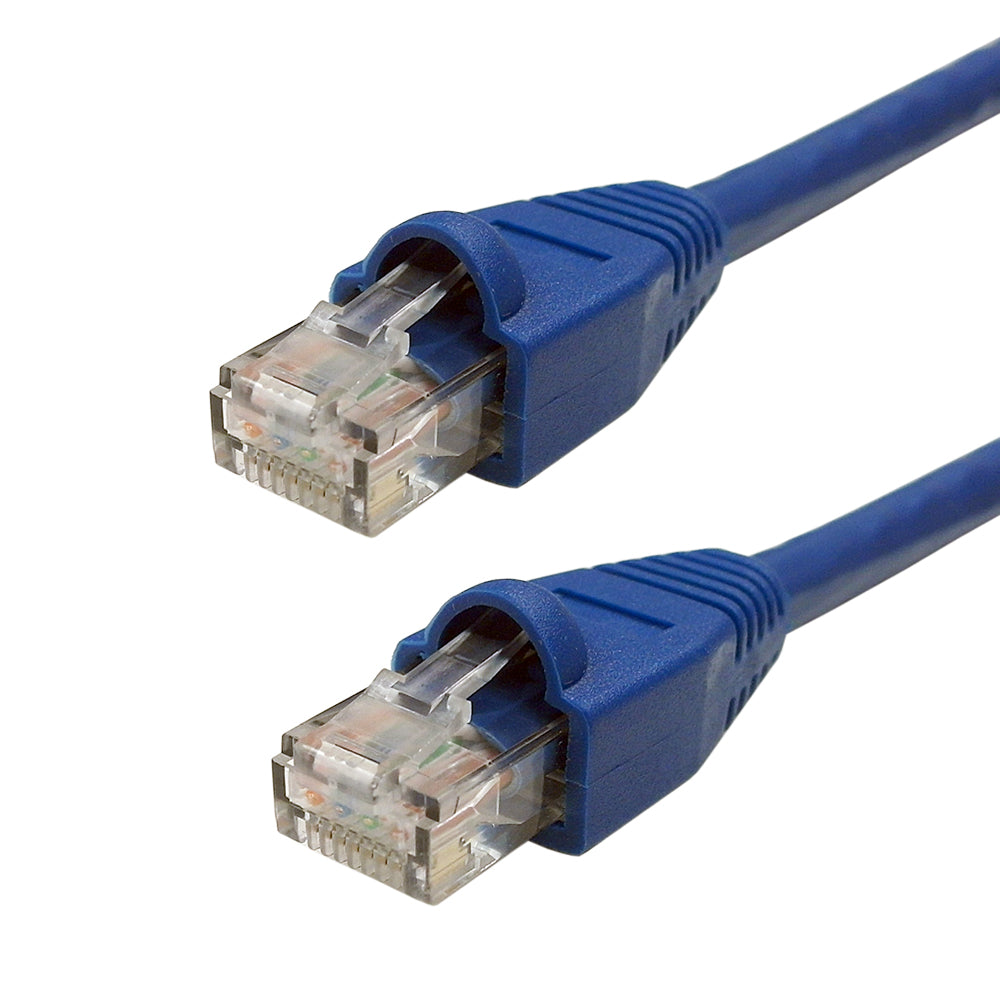

This custom Cat6 ethernet cable consists of a RJ45 male on one end and a RJ45 male on the other. It is typically used for ethernet network connections such as patch panels, switches and computers to routers.
TERMS: non-cancelable & non-returnable
| Physical Characteristics | |
|---|---|
| Colors Available | Black/Blue/Green/Grey/Orange/ Purple/Red/White/Yellow |
| Connector Plating | Gold Plated 50 Micron |
| Cable Diameter | 6.2mm |
| Wire Gauge | 24AWG Stranded |
| Shielding | UTP (Unshielded) |
| Pairs | 4 |
| Fire Rating | CMR (FT4 Riser Rated) |
| Color Code | 568B |
| Temperature Rating | 75 Deg C |
| Jacket Type | PVC |
| Connectors | |
| Connector A | RJ45 Long Body Male |
| Connector B | RJ45 Long Body Male |
| Performance | |
| Frequency | 550 MHz |
| Approvals | |
| c(UL)us | Yes - Cable |
| ETL Verified | Yes |
| ANSI/TIA - 568 - C.2 | Yes |
| ISO/IEC 11801 | Yes |
| EN 50173-1 | Yes |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Materials | Yes |
| Package Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
Spec Sheets
Lead-time
This item is assembled once an order is received.
All parts required to assemble this item are in stock and small quantities typically ship out the same business day or the next business day.
For the lead-time on a larger quantity orders, please contact us via phone at
Product Weight
8 inch
CAT6CR-0.8BL
0.05 lb
CAT6CR-0.8BL
0.05 lb
1ft
CAT6CR-01BL
0.07 lb
CAT6CR-01BL
0.07 lb
2ft
CAT6CR-02BL
0.1 lb
CAT6CR-02BL
0.1 lb
3ft
CAT6CR-03BL
0.15 lb
CAT6CR-03BL
0.15 lb
4ft
CAT6CR-04BL
0.17 lb
CAT6CR-04BL
0.17 lb
5ft
CAT6CR-05BL
0.2 lb
CAT6CR-05BL
0.2 lb
6ft
CAT6CR-06BL
0.21 lb
CAT6CR-06BL
0.21 lb
7ft
CAT6CR-07BL
0.24 lb
CAT6CR-07BL
0.24 lb
8ft
CAT6CR-08BL
0.26 lb
CAT6CR-08BL
0.26 lb
9ft
CAT6CR-09BL
0.24 lb
CAT6CR-09BL
0.24 lb
10ft
CAT6CR-10BL
0.33 lb
CAT6CR-10BL
0.33 lb
11ft
CAT6CR-11BL
0.32 lb
CAT6CR-11BL
0.32 lb
12ft
CAT6CR-12BL
0.38 lb
CAT6CR-12BL
0.38 lb
13ft
CAT6CR-13BL
0.44 lb
CAT6CR-13BL
0.44 lb
14ft
CAT6CR-14BL
0.46 lb
CAT6CR-14BL
0.46 lb
15ft
CAT6CR-15BL
0.5 lb
CAT6CR-15BL
0.5 lb
16ft
CAT6CR-16BL
0.57 lb
CAT6CR-16BL
0.57 lb
17ft
CAT6CR-17BL
0.64 lb
CAT6CR-17BL
0.64 lb
18ft
CAT6CR-18BL
0.71 lb
CAT6CR-18BL
0.71 lb
19ft
CAT6CR-19BL
0.78 lb
CAT6CR-19BL
0.78 lb
20ft
CAT6CR-20BL
0.63 lb
CAT6CR-20BL
0.63 lb
21ft
CAT6CR-21BL
0.7 lb
CAT6CR-21BL
0.7 lb
22ft
CAT6CR-22BL
0.71 lb
CAT6CR-22BL
0.71 lb
23ft
CAT6CR-23BL
0.72 lb
CAT6CR-23BL
0.72 lb
24ft
CAT6CR-24BL
0.74 lb
CAT6CR-24BL
0.74 lb
25ft
CAT6CR-25BL
0.77 lb
CAT6CR-25BL
0.77 lb
30ft
CAT6CR-30BL
0.95 lb
CAT6CR-30BL
0.95 lb
35ft
CAT6CR-35BL
1.1 lb
CAT6CR-35BL
1.1 lb
40ft
CAT6CR-40BL
1.33 lb
CAT6CR-40BL
1.33 lb
45ft
CAT6CR-45BL
1.4 lb
CAT6CR-45BL
1.4 lb
50ft
CAT6CR-50BL
1.55 lb
CAT6CR-50BL
1.55 lb
75ft
CAT6CR-75BL
2.26 lb
CAT6CR-75BL
2.26 lb
100ft
CAT6CR-100BL
3.0 lb
CAT6CR-100BL
3.0 lb
