Description

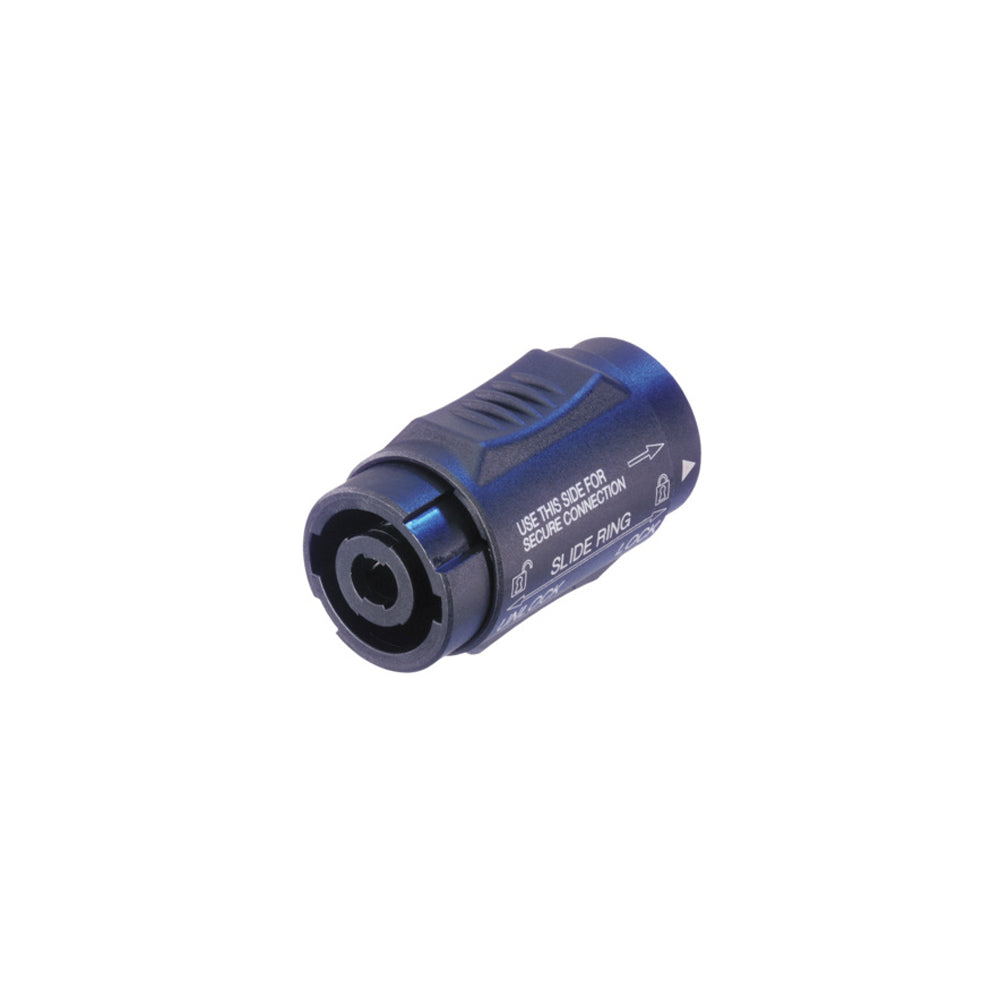

This coupler can be used for cable extension and changes the gender to male when locked onto the cable. It features a permanent secure connection on a speakON cable connector.
| Physical Characteristics | |
|---|---|
| Color | Blue |
| Connector Type | speakON |
| Temperature Range | -30ā to +80ā |
| Contact Plating | 4 Āµm Ag |
| Contacts | Bronze |
| Insert | Polyamide |
| Shell | Polyamide |
| Gender | Male |
| Electrical Characteristics | |
| Contact Resistance | ? 3 mā¦ (after lifetime) |
| Dielectric Strength | 4 kVdc (peak) |
| Insulation Resistance | > 1 Gā¦ (after damp heat) |
| Rated Current Per Contact | 15 A rms continuous 30 A audio signal, duty cycle 50% |
| Rated Voltage | 250 V (Insulation) |
| Mechanical Characteristics | |
| Lifetime | > 5000 mating cycles |
| Locking Device | Quick Lock |
| Environmental | |
| Flammability | UL 94 HB |
| Solderability | Complies with IEC 68-2-20 |
| Manufacturer Information | |
| Neutrik Part Number | NL4MMX |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.02 lbs [0.01 kg] |
Spec Sheets
Product Weights
The weights below are volumetric weight for shipping purposes, please see product specs for actual weights.
| SKU | Weight | |
| NT-NL4MMX | 0.02 lb |
