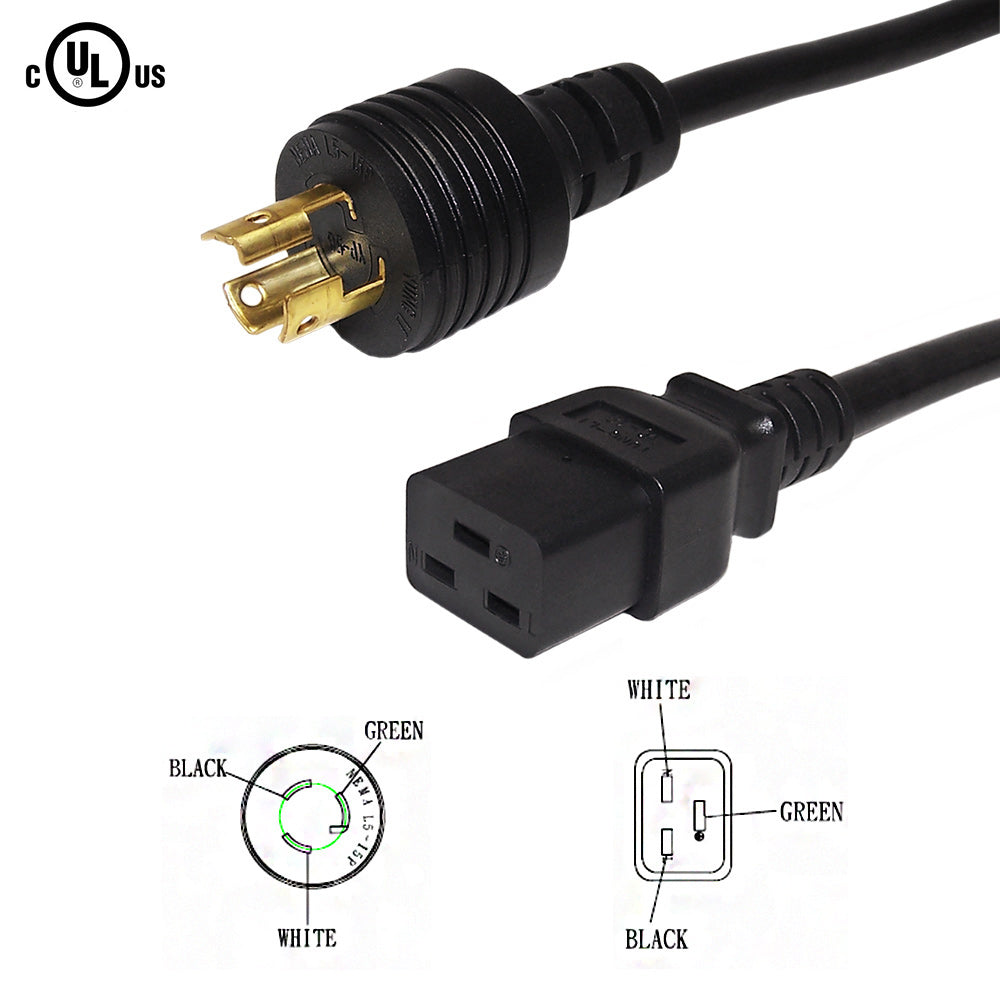

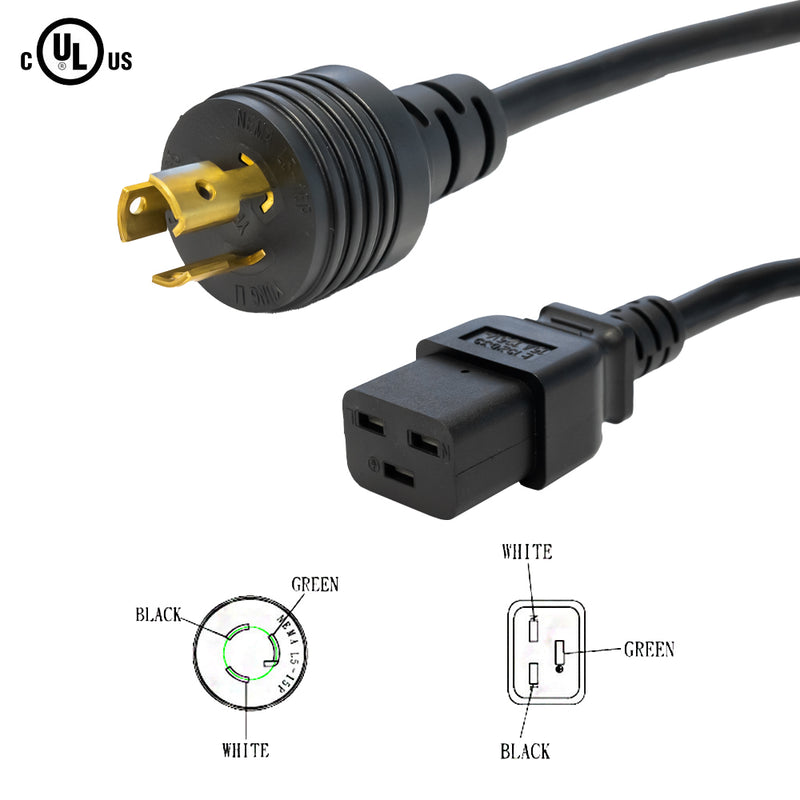

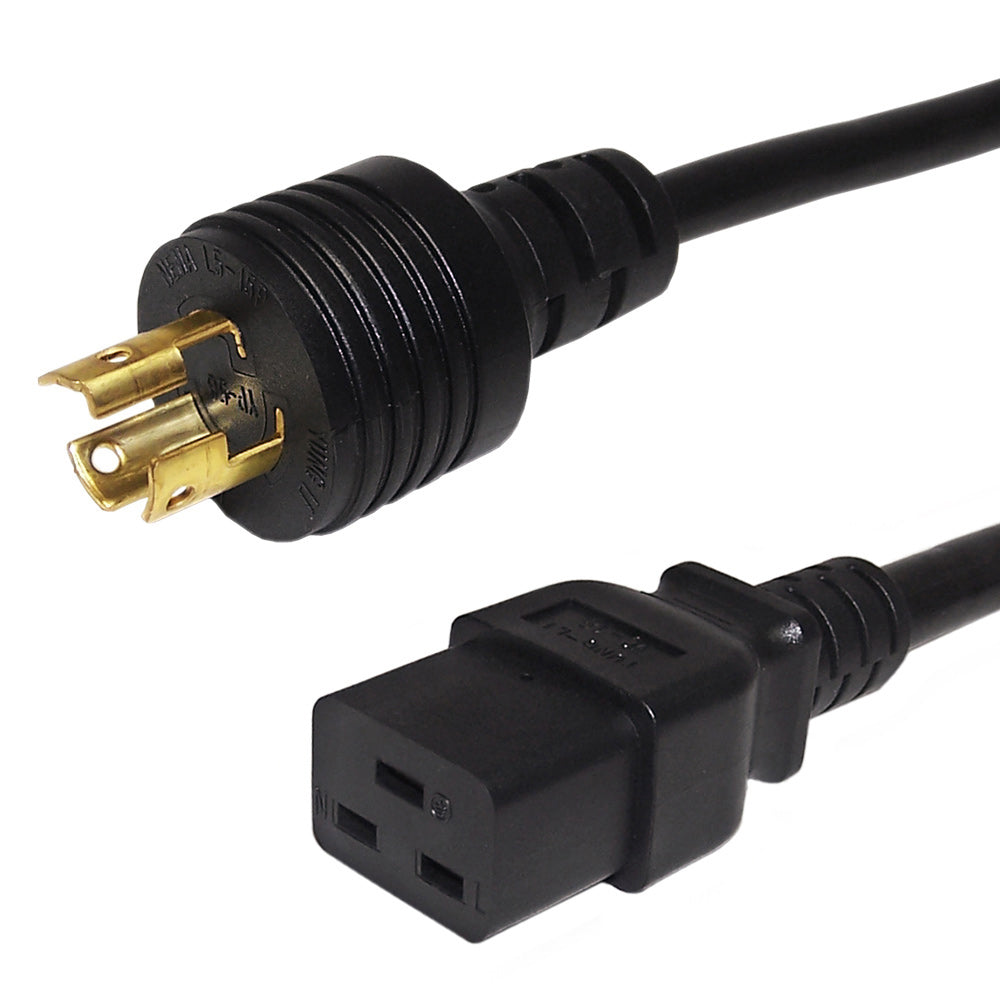

This power cord consists of a L5-15P male on one end and a C19 female on the other end. It is typically used to connect a server or UPS to a PDU or a wall outlet. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector. The connectors premium quality ensures a snug fit with receptacles. Each assembly is 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.
|Number of Conductors||3 Conductor|
|Wire Gauge||14 AWG|
|Jacket||Heavy duty SJT|
|Jacket Material||100% Virgin PVC - Polyvinyl Chloride|
|Jacket Fire Rating||FT2
|Strain Relief||Molded 100% Virgin PVC|
|Temperature Rating||-20 deg C to 105 deg C|
|Connector A||NEMA L5-15P|
|Connector B||IEC 60320 C19|
|Power Rating||15 Amp / 125 Volt|
|ISO||ISO 9001:2000, ISO 14000|
This cord are UL approved, UL does not certify or allow configurations where the receptacle amp capabilities exceed those of the plug as a General Use item. Infinite Cables urges caution when using this product and is not responsible is any way for any damages caused by using this cord. It is the responsibility of the user to determine if the configuration is dangerous or could cause damage in any way.
|1.20 lbs||2.00 lbs|
