Indoor 16-Port Metal Fiber Optic Wall Mount Terminal Box - Black
Indoor 16-Port Metal Fiber Optic Wall Mount Terminal Box - Black
Indoor 16-Port Metal Fiber Optic Wall Mount Terminal Box - Black
Indoor 16-Port Metal Fiber Optic Wall Mount Terminal Box - Black
Indoor 16-Port Metal Fiber Optic Wall Mount Terminal Box - Black
Indoor 16-Port Metal Fiber Optic Wall Mount Terminal Box - Black

Indoor 16-Port Metal Fiber Optic Wall Mount Terminal Box - Black

Fiber Optic Wall Boxes & Splice EnclosuresSKU: PP-F1520-BK
Price:
$29.90 CAD
Stock:
In stock


Notify me when available


Description

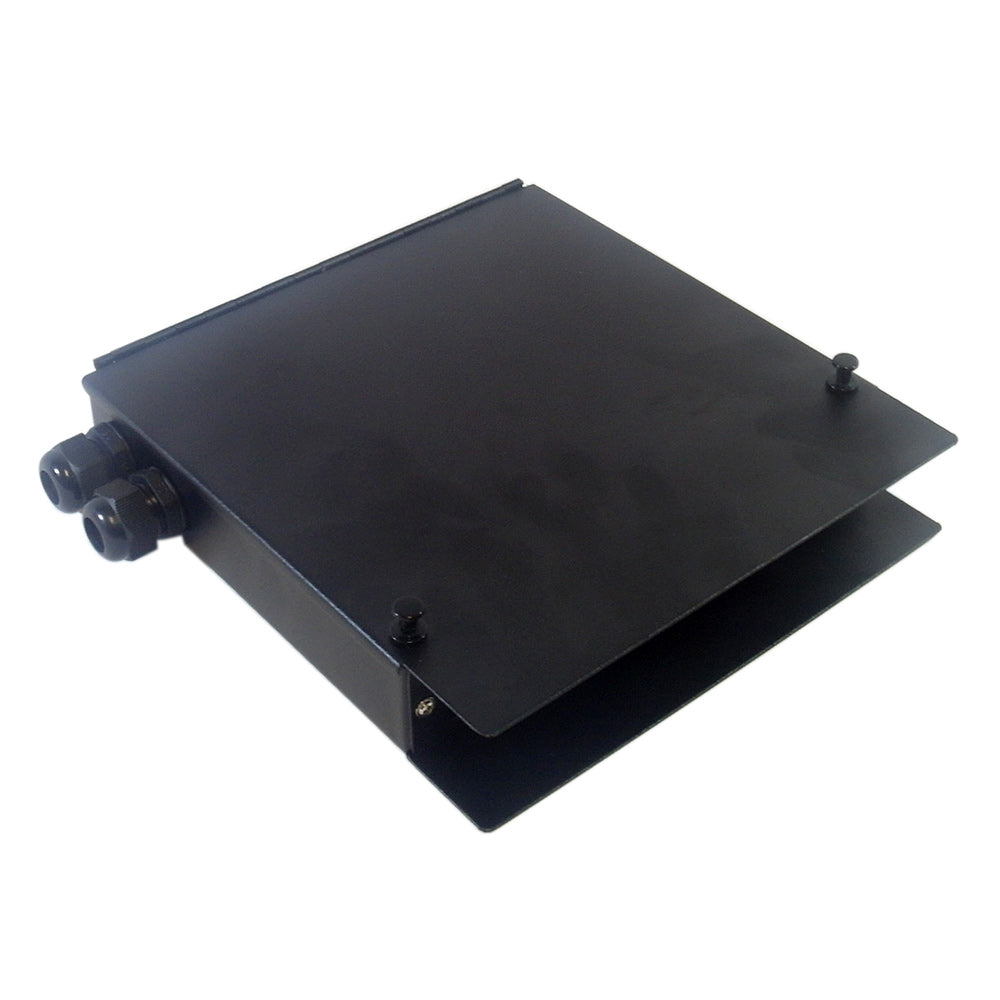

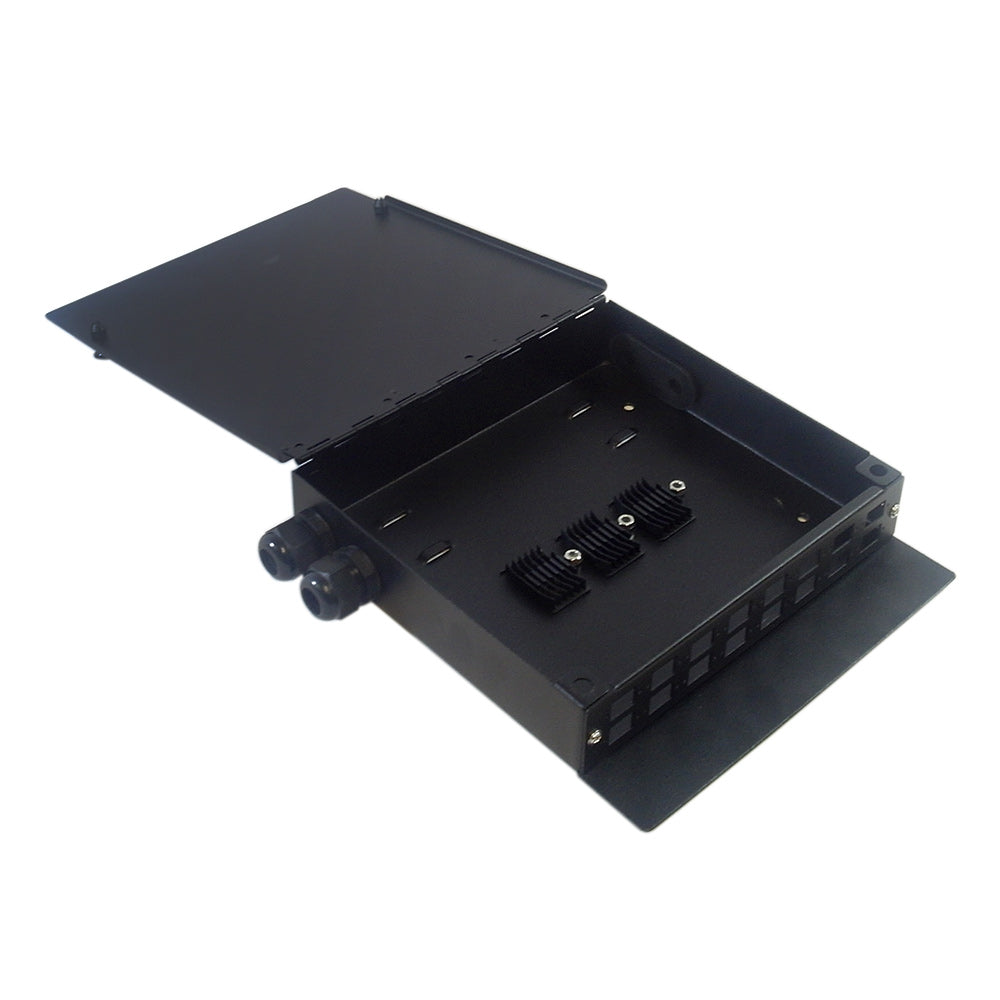

This fiber optic terminal box has a latching top for easy access and accepts up to 16 SC simplex or 16 LC duplex panel mount couplers. It is used to interconnect fiber splices and terminated fiber cables. The unit comes with four splice sleeves, one cable grommet, four pairs of screws to secure the couplers in place, cable ties, cable management and mounting hardware.

Physical Characteristics
Color Black (Powder Coat)
Material Steel
Product Dimensions 7.87"W x 8.45" L (overall) x 1.5" H
Compatible Adapters
FO-AD604-PM SC/SC Fiber Coupler F/F Singlemode Simplex Ceramic Panel Mount, Blue
FO-AD604-PMA SC/SC APC Fiber Coupler F/F Singlemode Simplex Ceramic Panel Mount, Green
FO-AD804-PM SC/SC Fiber Coupler F/F Multimode 50 Micron 10gig OM3/OM4 Simplex Ceramic Panel Mount, Aqua
FO-AD108-PM LC/LC Fiber Coupler F/F Multimode OM1/OM2 Duplex Ceramic Panel Mount, Beige
FO-AD208-PM LC/LC Fiber Coupler F/F Singlemode Duplex Ceramic Panel Mount, Blue
FO-AD208-PMA LC/LC APC Fiber Coupler F/F Singlemode Duplex Ceramic Panel Mount, Green
FO-AD408-PM LC/LC Fiber Coupler F/F Multimode 50 Micron 10gig OM3/OM4 Duplex Ceramic Panel Mount, Aqua
Environmental
RoHS Compliant
Packaging Information
Package Quantity 1
Product Weight 2.35 lbs [1.06kg]
Contents
Included in Package 1 - Fiber Terminal Box
1 - Cable Grommet
16 - Splice Sleeves
32 - Adapter Screws
4 - Cable Ties
3 - Cable Managers
3 - Mounting Hardware

Download attachment

REACH Certificate

RoHS Certificate

The weights below are volumetric weight for shipping purposes, please see product specs for actual weights.
SKU Weight
PP-F1520-BK 2.35 lb
