HDMI 2.0 4K@60Hz 4:2:0 HDCP2.2 Wireless Extender - 50m

Video ExtendersSKU: VE-HDWL-201

Price:
Sale price$290.80 CAD
Stock:
In stock


Description

Overview

This high-performance wireless HDMI2.0 extender that delivers 4K@60Hz UHD video transmission with ultra-low latency and crisp image quality. Equipped with ipcolor STREAM technology, it ensures reliable, high-definition streaming over the 5G wireless frequency band, offering excellent anti-interference capability and secure signal transmission.

Designed to simplify complex wiring environments, it supportsĀ 1-to-1 wireless transmission up to 50 meters, even through walls. This makes it an ideal solution for a wide range of scenarios including video conferencing, home theater setups, multimedia classrooms, and corporate presentations.

Note:

  • Transmission distances may vary depending on the environment.
  • Signals may be reduced or completely lost by solid structures such as walls, bricks, and glass.
  • The surrounding wireless signal may cause certain interference to the transmission, and the channel can be switched to reduce the interference.

Features

  • Adopting ipcolor STREAM technology can realize high definition andĀ low-latency transmission
  • Support up to 4096x2160@60Hz resolution, backward compatible
  • Support wireless transmission up to 50 meters (line of sight)
  • The transmitter supports HDMI loop out
  • In case of multiple sets of products in the same area, support SSID pairingĀ and channel switching to avoid interference.
  • Support IR passback
  • Support 5G wireless frequency bands, strong anti-interference
  • Support firmware upgrade via Micro USB port
  • Supports stable 24/7 operation

Connection

Applications

Specifications

Physical Characteristics
Color Black
Housing Metal Enclosure
Operating Temperature -20ā„ƒ ~ 60ā„ƒ
Storage Temperature -30ā„ƒ ~ 70ā„ƒ
Operating Humidity
0 to 90%RH (No Condensation)
Dimensions (L x W x H) TX: 106 x 103 x 20.6 mm
RX: 106 x 103 x 20.6 mm
Power
Power Supply 5V/2A DC Power Adapter
Power Consumption TX ≤ 5W, RX ≤ 4W
Connector(s)
Transmitter HDMI Input Female, HDMI Output Female, 4 x RJ45 Female
Receiver HDMI Output Female, RJ45 Female
Performance
HDMI Version HDMI 2.0
HDCP Version HDCP 1.4/HDCP 2.2
Input Video Format 4096x2160@24/30/50/60Hz,
3840x2160@24/30/50/60Hz,
1080P@50/60Hz, 720P@50/60Hz,
1920x1200, 2560x1440
Maximum Transfer
Rate
18Gbps
Input and Output TMDS Signal 0.7~1.2Vp-p(TMDS)
Input and Output
DDC Signal
5Vp-p(TTL)
Wi-Fi Frequency
Bands
5.18~5.24 GHz
TransmissionĀ Distance ≤ 50m
Latency 4K@60Hz: 130~220ms
1080P@60Hz: 70~120ms
Connection Types One-to-one
SSID Pairing Supported
ESD Protection 1a Contact discharge level 3
1b Air discharge level 3
Standard: IEC61000-4-2
Lightning protection, Surge protection
Infrared Frequency 20~60kHz
Receiving Range ≤ 5m
Approvals
Power Adapter c(UL)us
Environmental
RoHS Compliant
Certification(s)
CE Compliant
FCC Compliant
Packaging Information
Package Quantity 1
Package Weight 2.65 lbs
Contents

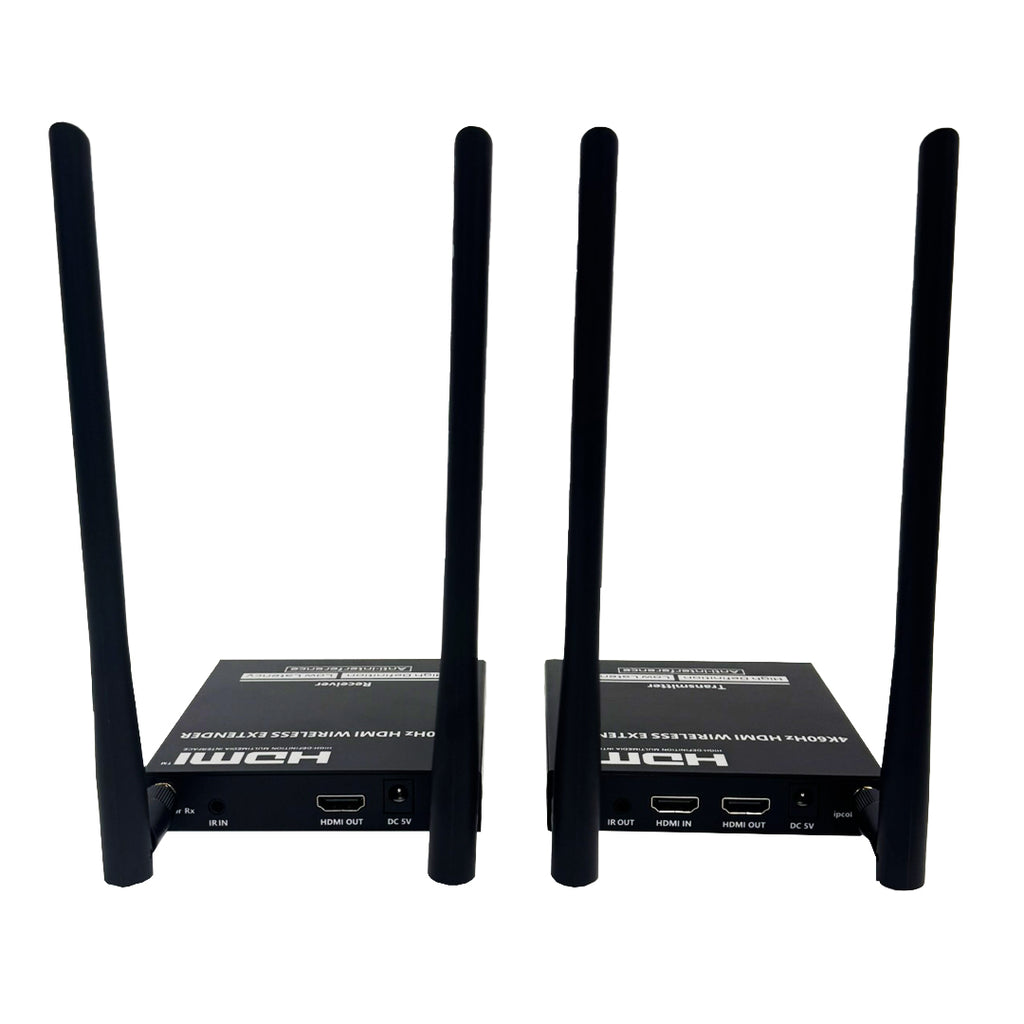

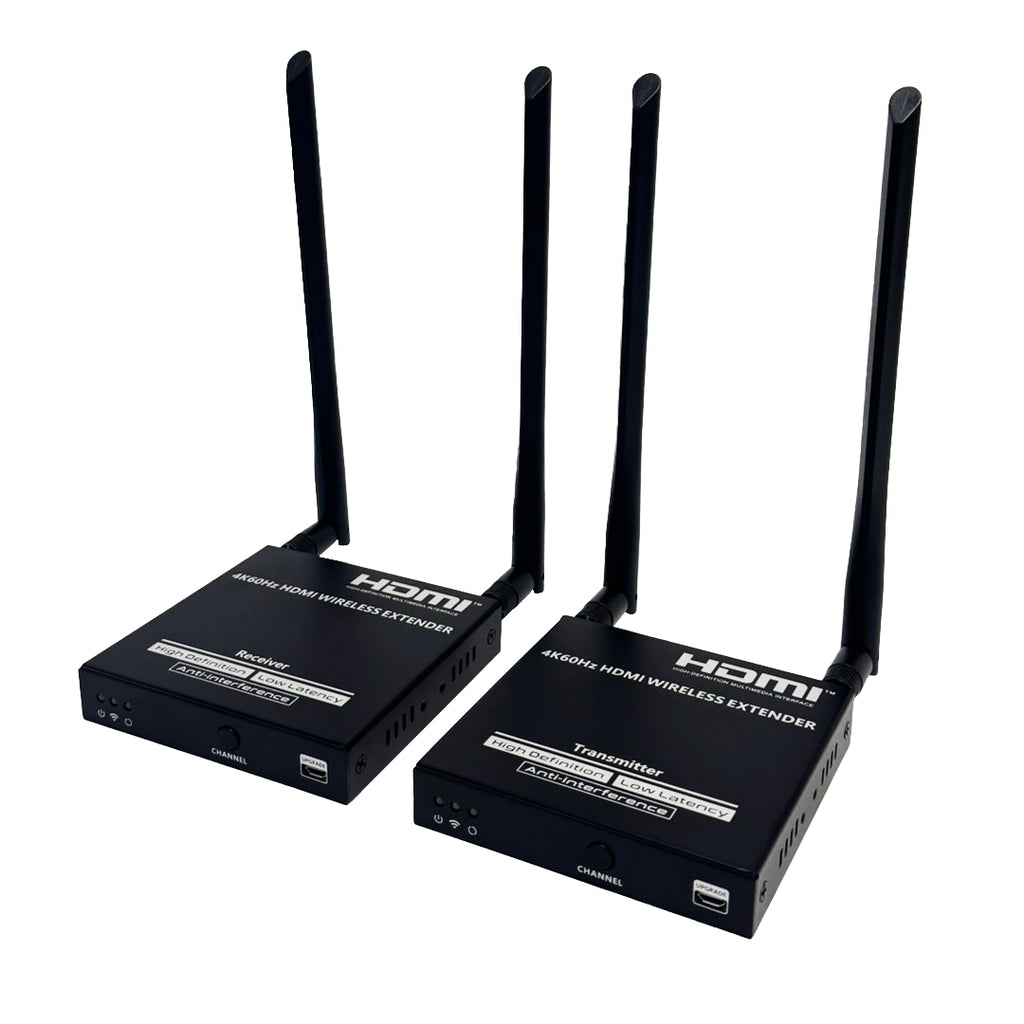

Included in Package 1 - Transmitter Unit
1 - Receiver Unit

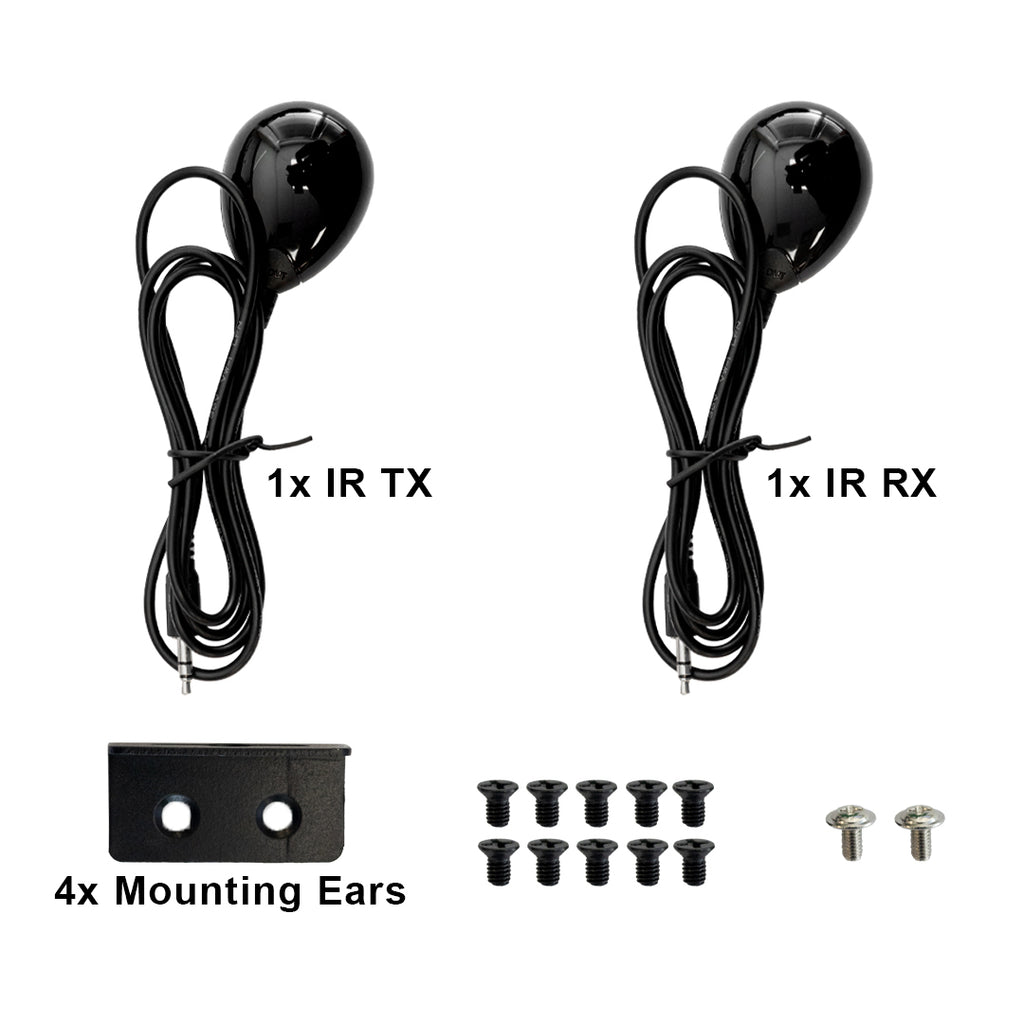

1 - IR Receiver Extension Cable
1 - IR Blaster Extension Cable

4 - Antenna

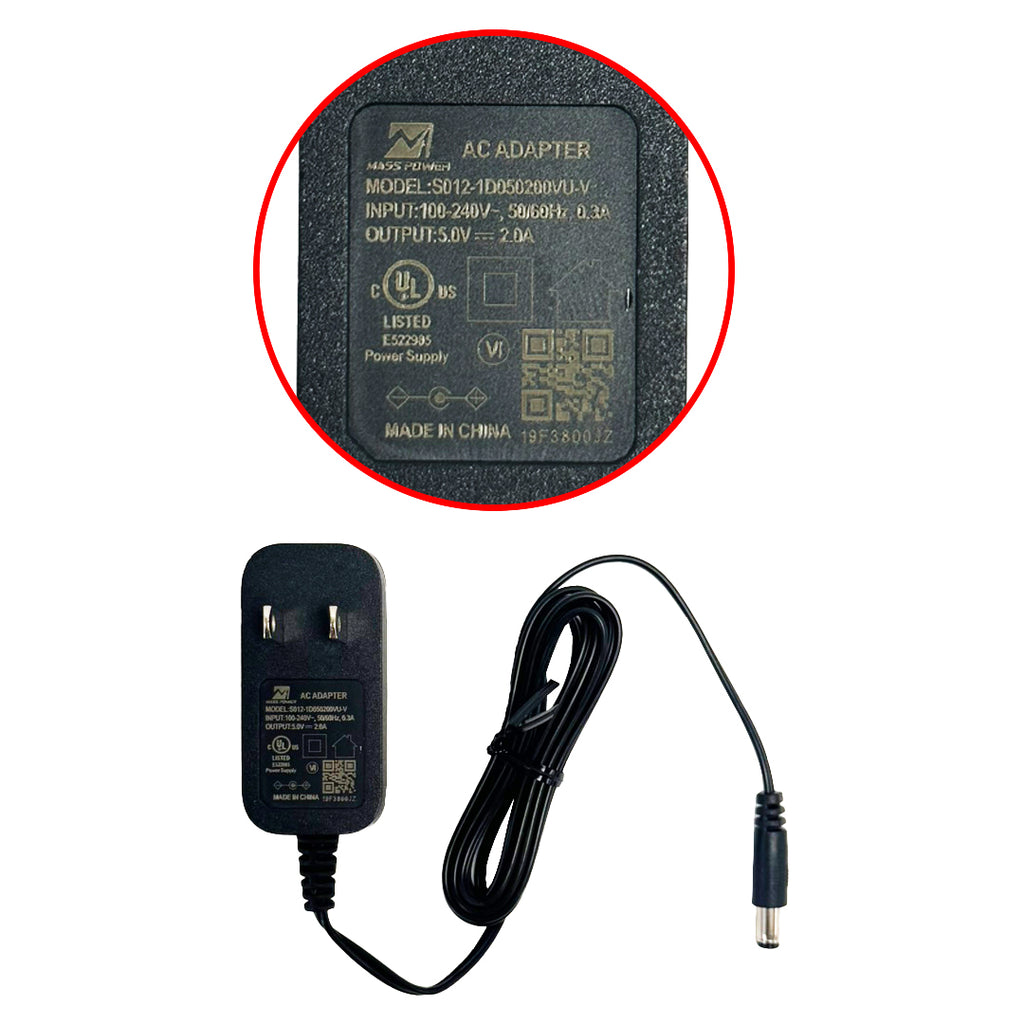

2 - DC5V/2A DC Power Adapter
1 - Manual

4 - Mounting EarsĀ

10 - Screw

2 - Grounding Screw
