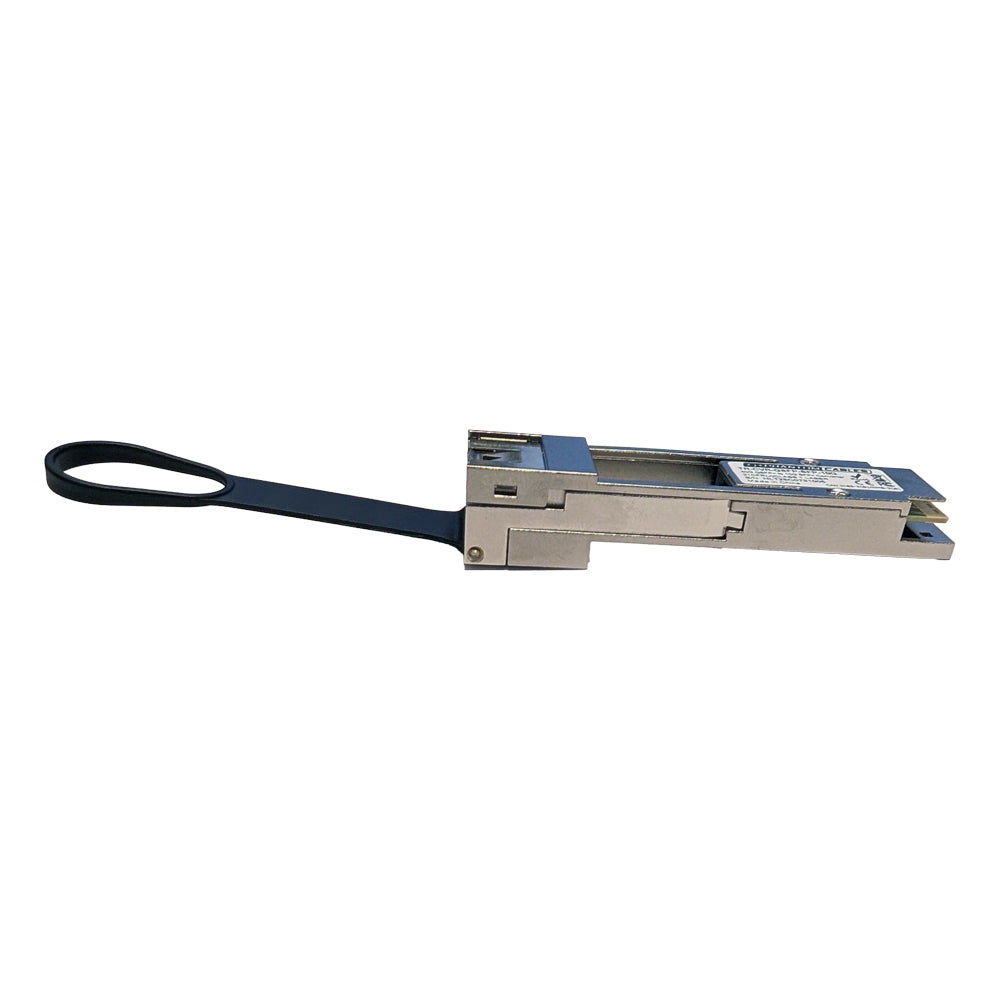

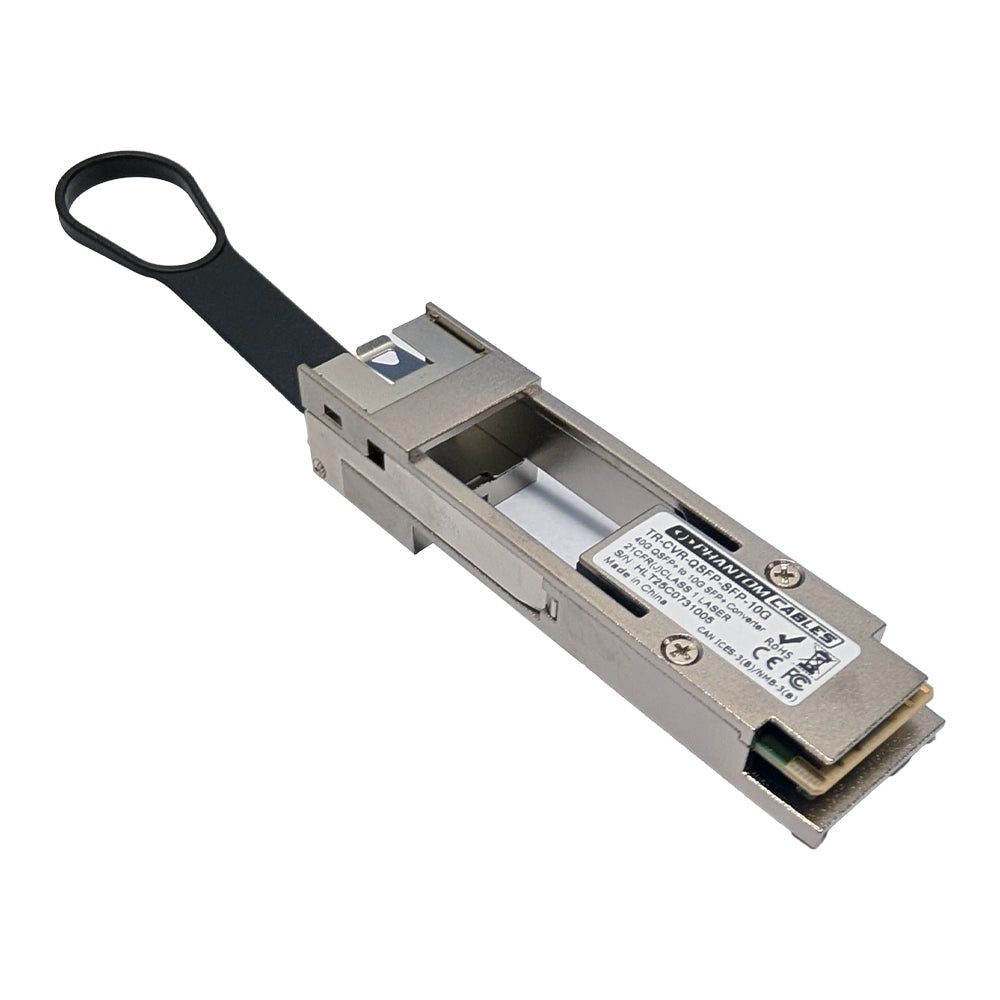

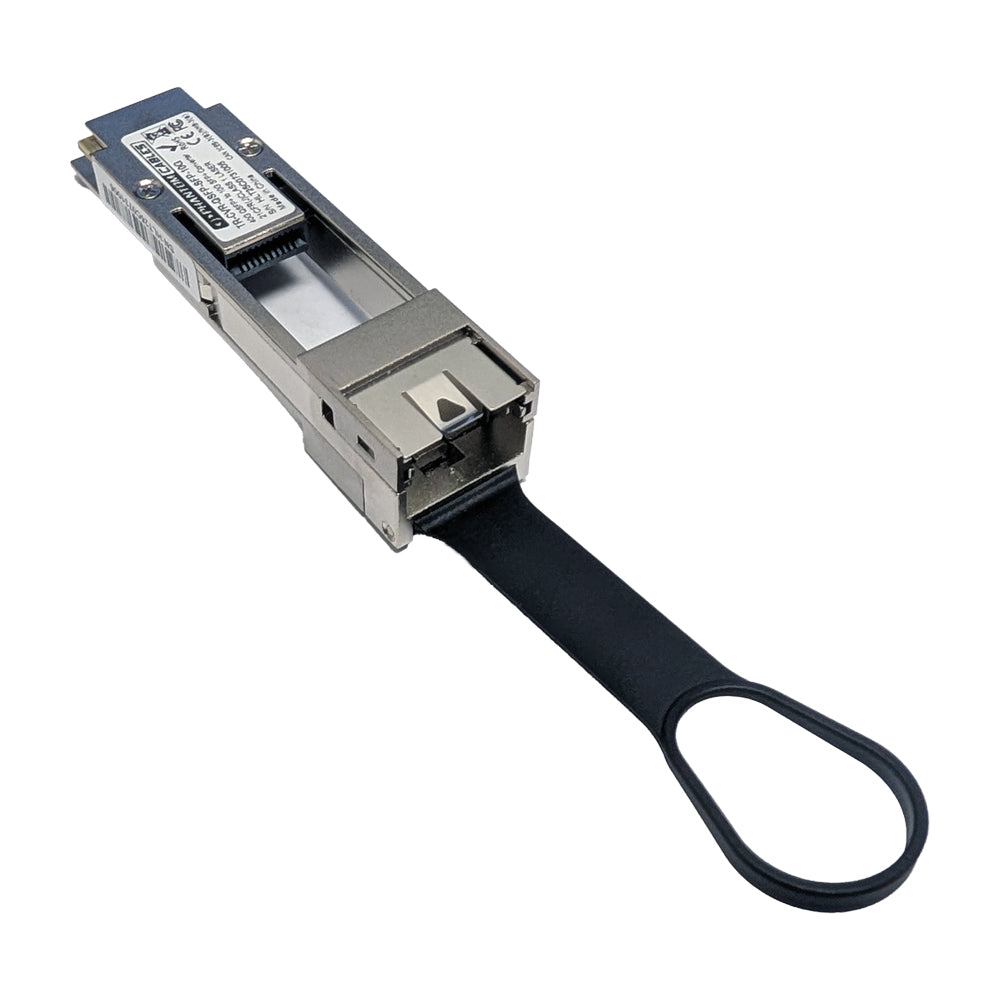

This Cisco compatible QSFP+ to SFP+ converter module provides 10G Ethernet connectivity for QSFP+ 40G ports. It allows smooth and cost-effective migration to 40 Gigabit Ethernet by providing an option to use lower-speed Enhanced Small Form-Factor Pluggable (SFP+) modules in empty QSFP ports or when the other end of the network is running at lower speeds. The SFPs are Multi-Source Agreement (MSA) compliant and built to OEM specifications.
Cisco and the Cisco logo are trademarks or registered trademarks of Cisco Systems, Inc. This product is not certified or endorsed by Cisco Systems Inc.
| Physical Characteristics | ||
|---|---|---|
| Dimensions | 72mm x 18mm x 9mm (L x W x H) | |
| Operating Temperature | 0°C ~ 70°C | |
| Storage Temperature | -20°C ~ 85°C | |
| Laser Type | Class 1 | |
| Connectors | ||
| Connector A | SFP/SFP+ port |
|
| Connector B | QSFP plug | |
| Performance | ||
| Data Transfer Rate | Max 10Gbps | |
| Power Consumption | ≤1.5W Without Module | |
| DDM/DOM Support | Yes | |
| Certifications | ||
| CE | Compliant | |
| FCC | Compliant | |
| RoHS | Compliant | |
| Packaging Information | ||
| Package Quantity | 1 | |
| Product Weight | 0.02 lbs [0.01kg] | |
| Warranty Information | ||
| Warranty | 5 Year Warranty | |
| 2x100GE-FLEX-40 | A900-IMA2F | A9K-MPA-1X40GE | A9K-MPA-2X40GE | C3850-NM-2-40G | C6800-16P10G(-XL) |
| C6800-32P10G(-XL) | C6800-8P10G(-XL) | C6800-SUP6T | C6800-SUP6T-XL | C6824-X-LE-40G | C6840-X-LE-40G |
| C9300-24P | C9300-24T | C9300-24U | C9300-24UX | C9300-48P | C9300-48T |
| C9300-48U | C9300-48UXM | C9400-SUP-1 | C9400-Sup-1XL | C9500-12Q | C9500-24Q |
| C9500-40X | FPR4K-NM-4X40G | FPR9K-NM-4X40G | N2K- 2332TQ | N2K-2348TQ | N2K-2348UPQ |
| N2K-C2348TQ-E | N3K-C3016Q-40GE | N3K-C3064PQ | N3K-C3064PQ-10GE | N3K-C3064PQ-10GX | N3K-C3064TQ-10GT |
| N3K-C3064TQ-32T | N3K-C3132Q-40GE | N3K-C3132Q-40GX | N3K-C3132Q-V | N3K-C3132Q-XL | N3K-C3172TQ-10GT |
| N3K-C3172TQ-32T | N3K-C3232C | N3K-C3264Q | N55-M4Q | N5600-M12Q | N5696-M12Q |
| N56-M24UP2Q | N5K-C55XX | N5K-C56128P | N5K-C5624Q | N5K-C5648Q | N5K-C5672UP |
| N5K-C5672UP-16G | N5K-C5696Q | N6004-96Q | N6004-B-24Q | N6K-C6001-64P | N6K-C6001-64T |
| N6K-C6004-M12Q | N77-F324FQ-25 | N77-M312CQ-26L | N77-M324FQ-25L | N7K-F312FQ-25 | N7K-M206FQ-23L |
| N9K-9736C-EX | N9K-9736C-FX | N9K-C92160YC-X | N9K-C92300YC | N9K-C92304QC | N9K-C9236C |
| N9K-C9272Q | N9K-C93108TC-EX | N9K-C93108TC-FX | N9K-C93120TX | N9K-C93180LC-EX | N9K-C93180YC-EX |
| N9K-C93180YC-FX | N9K-C93240YC-FX2 | N9K-C9332PQ | N9K-C9336C-FX2 | N9K-C9336PQ | N9K-C9348GC-FXP |
| N9K-C9364C | N9K-C9372PX | N9K-C9372PX-E | N9K-C9372TX | N9K-C9372TX-E | N9K-M12PQ |
| N9K-M6PQ | N9K-M6PQ-E | N9K-X9432C-S | N9K-X9432PQ | N9K-X9464PX | N9K-X9464TX |
| N9K-X9464TX2 | N9K-X9536PQ | N9K-X9564PX | N9K-X9564TX | N9K-X9636C-R | N9K-X9636C-RX |
| N9K-X9636PQ | N9K-X97160YC-EX | N9K-X9732C-EX | N9K-X9736C-FX | N9K-X9736PQ | NC55-18H18F |
| NC55-24H12F-SE | NC55-24X100G-SE | NC55-36X100G | NC55-36X100G-A-SE | NC55-36X100G-S | NCS 5011 |
| NCS1002-K9 | NCS-5501 | NCS-5501-SE | NCS-5502 | NCS-5502-SE | NCS-55A1-24H |
| NCS-55A1-36H-S | NCS-F-SCSW | UCSC-MLOM-C40Q-03 | UCSC-PCIE-C40Q-03 | UCS-FI-6332-16UP-U | UCS-FI-6332-U |
| WS-C3560X-24P | WS-C3560X-24T | WS-C3560X-48P | WS-C3560X-48PF | WS-C3560X-48T | WS-C3850-48XS |
| WS-C3850-48XS-E | WS-C3850-48XS-F-E | WS-C3850-48XS-F-S | WS-C3850-48XS-S | WS-X45-SUP9-E | |
| Avaya | Force10 | D-Link | EMC2 | F5 Networks | |
| Fortinet | Hirschmann | Linksys | Moxa |
MRV |
|
| Netgear |
Nokia Siemens Networks |
Palo Alto Network |
Qlogic |
RAD |
Ruijie Networks |
| Supermicro | Synology |
Telco Systems |
TP-Link |
Trendnet |
WatchGuard |
| ZTE |
5-YEAR WARRANTY
Infinite Cables Inc. offers a 5-year warranty on SFP+/QSFP+ Cables & Transceivers to be free from defects in material and workmanship.
This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.
Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
| SKU | Weight | |
| TR-CVR-QSFP-SFP10G | 0.08 lb |
