Overview

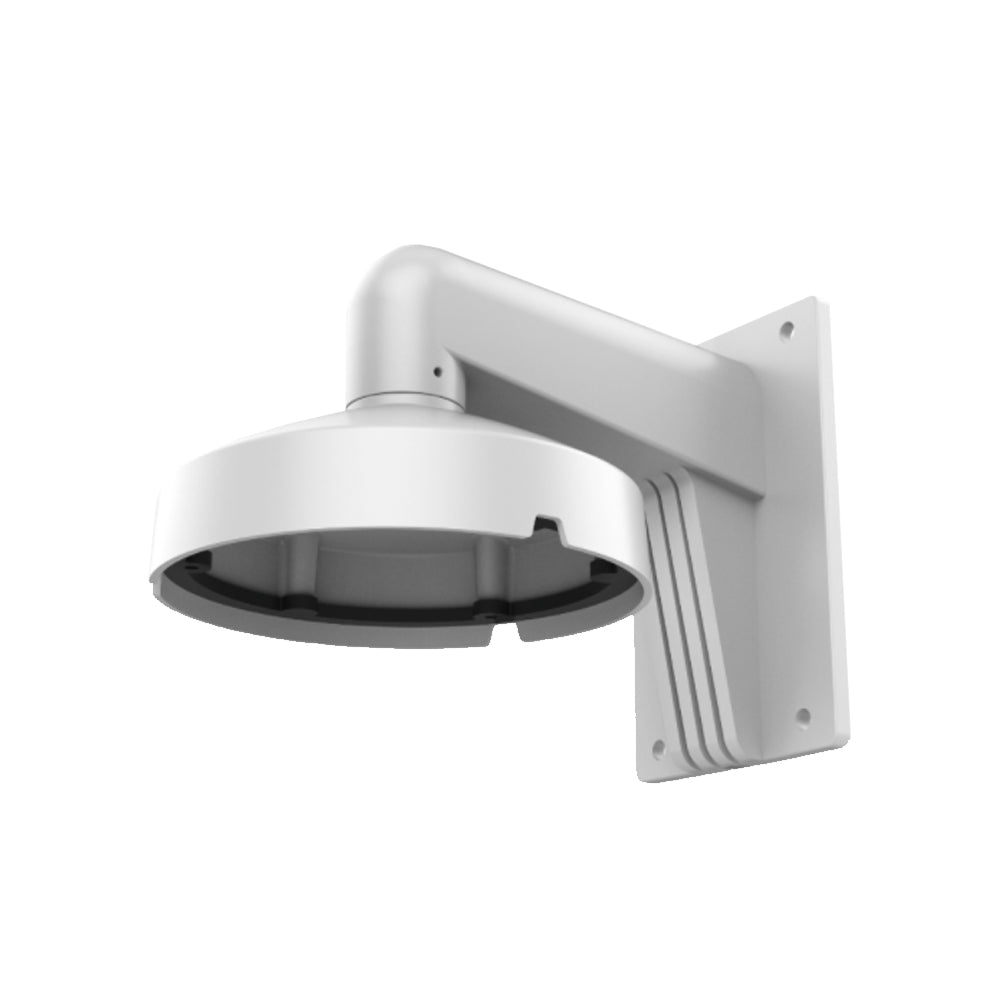

This wall mounting bracket is designed to hold a fisheye IP dome camera. It is constructed of treated aluminum alloy material for better protection against the elements in outdoor applications.
Note:
- The bracket should be installed on flat wall.
- The wall must be capable of supporting over 3 times as much as the total weight of the camera and the mount.
- The maximum load capacity of the bracket is 4.5 kg.
Specifications
|
Physical Characteristics
|
| Color |
White |
| Material |
Aluminum alloy
|

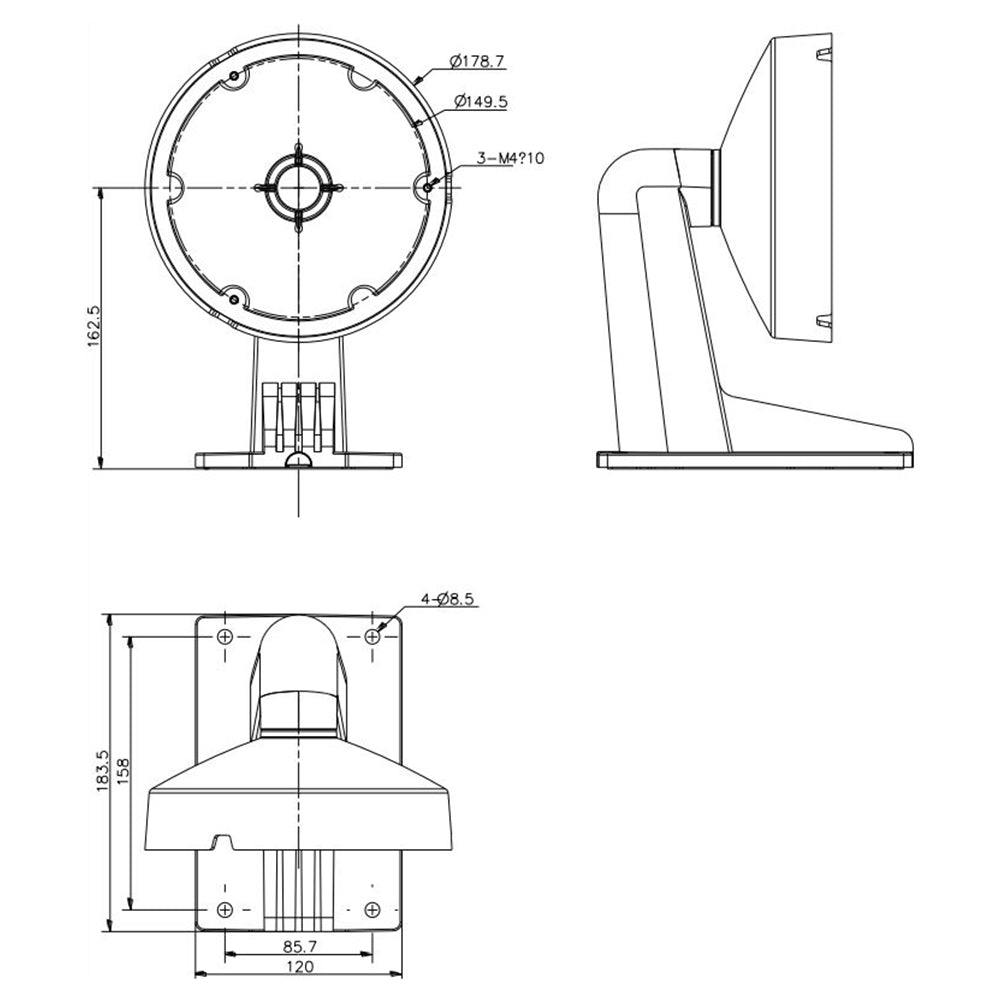

| Dimension |
250 x 178 x 82.5mm (9.84 x 7 x 3.24 inch)
|
| Maximum Load Capacity |
9.92 lb [4.5 kg] |
|
Compatible Cameras
|
| CA-NCA16-FEA |
6MP Fisheye IP Fixed Dome Camera - Outdoor IP66 - White |
|
Packaging Information
|
| Package Quantity |
1 |
| Product Weight |
2.43 lbs [1.11 kg] |
