Wall Mount Swing-Out Cabinet 12U x 18.5" Usable Depth - Perforated Doors - Black

Save 17%
Wall Mount CabinetsSKU: RM-560-12U
No reviews

Sale price$567.35 CAD Regular price$680.80 CAD
In stock

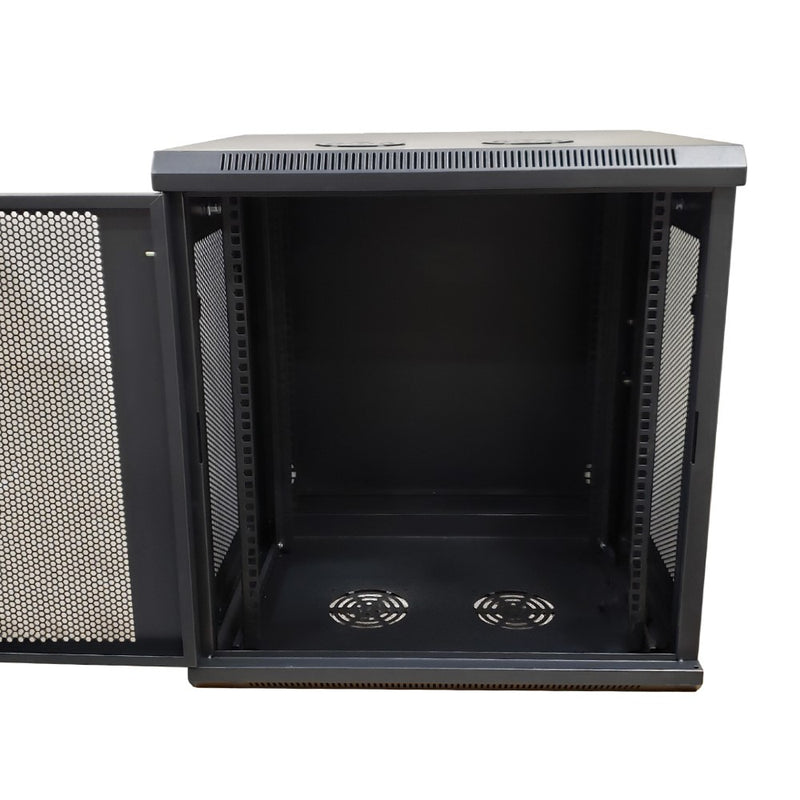

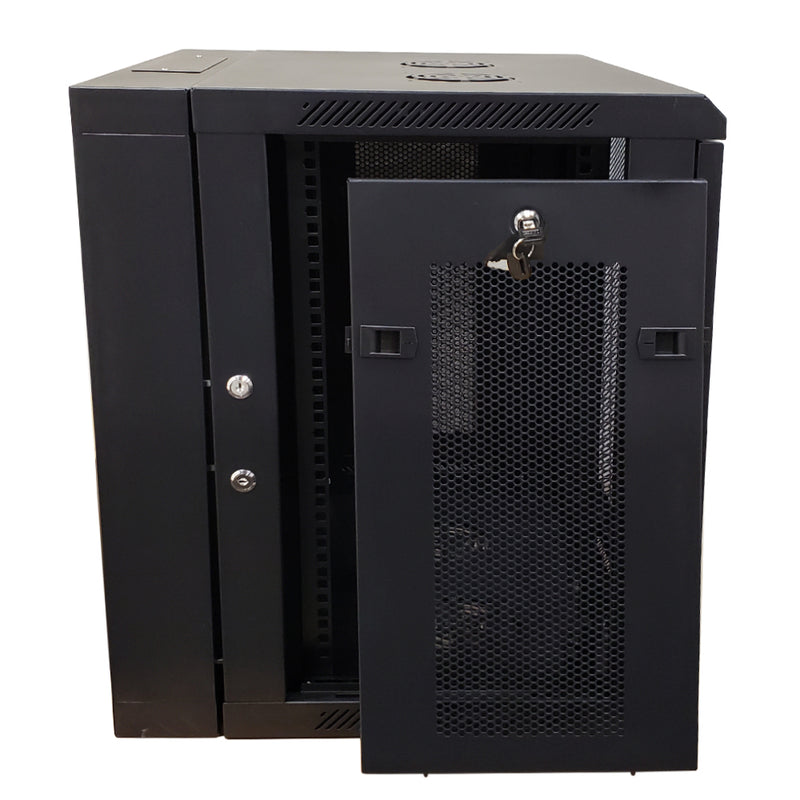

This 12U wall mount swing-out cabinet comes with a lockable front door, lockable swing out back and removable/lockable side panels. The cabinet can be mounted so that the swing-out function can sing right. The front door can be installed to swing open left or right as well. It is typically used for housing network and DVR equipment used in small offices and homes. (Fans sold separately. Click here for fan kit).

Physical Characteristics
Color Black - Powder Coated
Material SPCC Cold Rolled Steel
Material Thickness Rails:1.35mm, Others:1.0 mm
Front Door Removable Perforated Front Door, Opening Angle is Over 180 Degrees, Lockable
Can be Mounted to Swing Open Left
Swing Out Back Opening Angle is Over 90 Degrees, Lockable - Requires Two Keys to Open
Can be Mounted to Swing Open Left
Lockable Side Panels Yes - Perforated - Can be flipped so lock faces up
Removable Side Panels Yes - Perforated - Can be flipped so lock faces up
Adjustable Mounting Profile Installation Yes
Assembly Required No
Loading Capacity Maximum 110 lbs [50 kg]
Cable Entries Cable Entry on Top and Bottom Panels
Width 19 inches
Capacity 12U
Product Dimensions 24.8 H, 23.6 W, 21.6 D inches [63 H, 60 W, 55 D cm]
Mounting Rails 2 pairs of square hole rails
Adjustable depth 75mm, 85mm, 95mm 105mm, 115mm (Measured from the Glass to the Rail)
Usable Mounting Dimensions 12U Height x 19" Wide x 18.5" Deep
Cooling Fans Not Included, Sold Separately (RM-615)
Optional fan holes located at both the top and bottom of the cabinet
Grounding Stud Yes
Compatible Products
RM-500-BRUSH Brush Opening Cover for Cable Knockout with Screws for RM-5XX Cabinets
RM-615 Fan Kit for RM-500 Series Wall Mount Cabinets – Low Decibel 28dBa - 55 CFM - Pair
RS-310-D Yes
IEC60297-2 Yes
DIN41494 Yes
RoHS Yes
Reach Yes
Packaging Information
Package Quantity 1 - Wall Mount Swing-Out Cabinet 12U (Assembled)
Mounting Hardware
10 Sets – M6 Screws and Cage Nuts
Product Weight 54 lbs
