- Spec Sheets

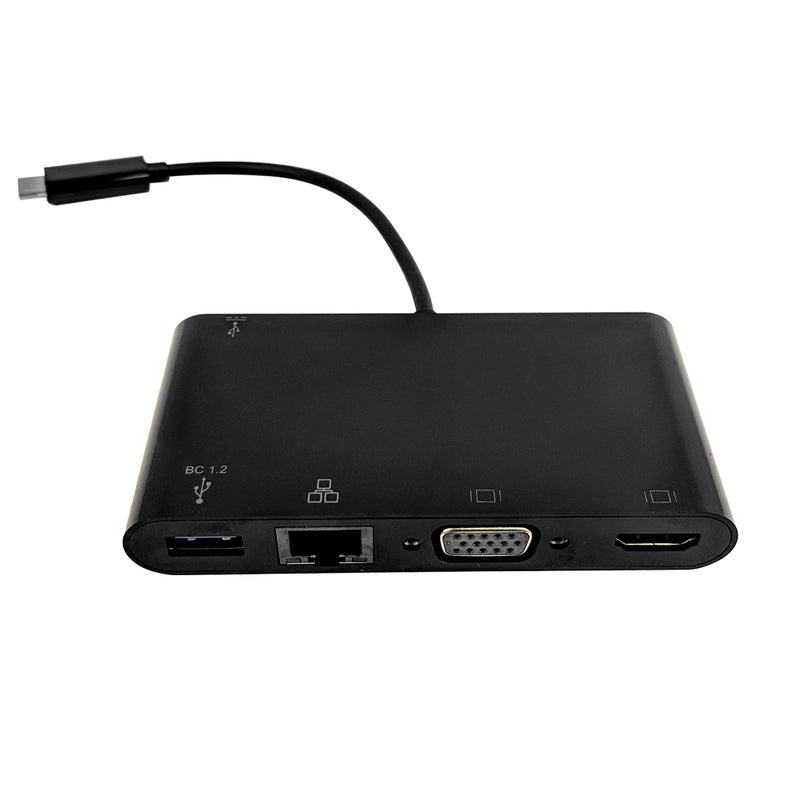

This USB 3.1 Type-C adapter consists of a USB 3.1 Type-C male on one end and a HDMI female, USB 3.1 Type-C female, RJ45 female, VGA female and USB 3.0 female on the other end. It allows you to connect additional devices through your USB Type-C port and create a permanent or temporary workstation.
Please note that the USB Type-C port on the input side can be used to simultaneously charge your device.
*Not intended for uses with multiple monitors. Additional monitors should be connected through the USB Type-C port of the docking station.
Expand your Type-C Devices Connectivity
This 5x1 USB Type-C docking station has an HDMI and VGA ports for connecting external displays, an Ethernet port for network connection, a USB 3.0 Super Speed port and a USB Type-C port with Power Delivery charging.
High Performance and Quality Video Output
The HDMI output provides a simple Plug & Play connection to almost any HDMI display with an Ultra HD 4K resolution. The VGA output support monitors with 1920x1200 resolution.
Stable Internet Access and Fast Data Transfer
Wired network connection supports 10/100/1000 Mbps Bandwidth via the RJ45 port provides a faster, more secure and more stable Internet connection. And the Super Speed USB 3.0 Port supports faster data transfer up to 5Gbps.
|Cable Length||6 inches|
|Connector A||USB 3.1 Type-C Male|
|Connector B||HDMI Female|
|USB 3.1 Type-C Female|
|USB 3.0 Female|
|USB Type-C Port||Supports Data Transmission + Power Delivery Charging|
|HDMI Resolution||4Kx2K@30Hz, 9Gbps Bandwidth|
|USB Type A Port||
Supports USB 3.0 Super Speed (5Gbps), Downward Compatible with USB 2.0 / Supports BC 1.2, Max 7.5W(5V/1.5A)
|Compatibility||Compliant with USB 3.1,Backward Compatible with USB 3.0 and USB 2.0|
|Product Weight||0.44 lbs [0.19kg]|
