Overview

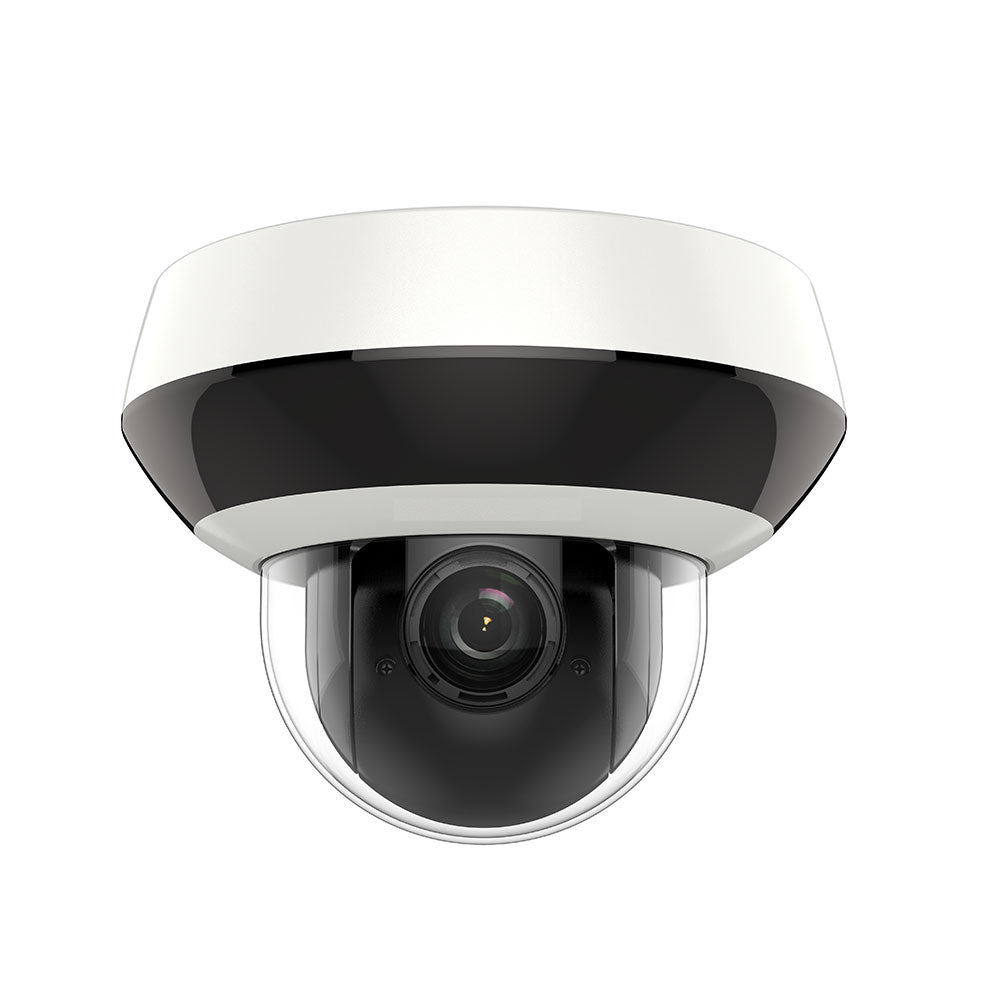

This 4MP PTZ indoor/outdoor, IP based dome camera provides a sharp, high definition images in daylight or nighttime settings. The camera has a focal length of 2.8 mm to 12 mm lens with 4x optical zoom and 16x digital zoom which delivers 100° to 33° (Wide-Tele) horizontal field of view. Its maximum resolution is 2560 x 1440 at 25 fps and supports H.265+ video compression technology, which assures savings in bandwidth and storage. The camera is IP based with integrated PoE technology which makes for a quick and easy installation over a single CAT5e/CAT6 cable. Its housing is IP66 rated for outdoor use and has 65 feet of night vision using an IR cut filter and IR LEDs.
 |
Features
|
Application
The typical application for most security cameras networks is to connect the IP cameras to a NVR/DVR for simplified playback and additional storage space. Alternatively you can use an IP cameras as a standalone camera and not part of a network by connecting it directly to a POE switch and save the recording on a micro SD card.
NVR Setup
Specifications
| Camera | |
|---|---|
| Image Sensor | 1/3" (4 MP) progressive scan CMOS |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) 0 Lux with IR |
| White Balance | Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp |
| Gain | Auto/Manual |
| Shutter Time | 50Hz: 1/1 s to 1/30,000 s 60Hz: 1/1 s to 1/30,000 s |
| Day /Night | IR cut filter |
| Digital Zoom | 16x |
| Digital Noise Reduction | 3D DNR |
| Privacy Mask | 24 programmable privacy masks |
| WDR | 120dB |
| Focus Mode |
Auto/Semi-automatic/Manual |
| Lens | |
| Focal Length | 2.8 mm to 12 mm, 4— optical zoom |
| Zoom Speed |
Approx. 2 s (optical lens, wide-tele) |
| FOV | Horizontal field of view: 100° to 33° (Wide-Tele) Vertical field of view: 53° to 18° (Wide-Tele) Diagonal field of view: 119° to 37.5° (Wide-Tele) |
| Working Distance |
10 mm to 1500 mm (wide-tele) |
| Aperture Range | F1.6 to F2.7 |
| PTZ | |
| Movement Range (Pan) | 0° to 330° |
| Pan Speed |
Configurable, from 0.1°/s to 100°/s, Preset speed: 100°/s |
| Movement Range (Tilt) |
From 0° to 90° |
| Tilt Speed |
Configurable, from 0.1°/s to 100°/s Preset Speed: 100°/s |
| Proportional Zoom | Support |
| Presets | 300 |
| Power-off Memory | Support |
| IR | |
| IR Range | Up to 65 ft (20 m) |
| Smart IR |
Support |
| Compression Standard | |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.264+ | Support |
| H.265 Type | Baseline Profile/Main Profile/High Profile |
| H.265+ | Support |
| Video Bit Rate | 32 Kbps to 16384 Kbps |
| Audio Compression | G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM |
| Audio Bit rate | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 160 Kbps(MP2L2) |
| SVC | Support |
| Smart Features | |
| Basic Event |
Motion Detection, Video Tampering Detection, Exception |
| Smart Event |
Face Detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Object Removal Detection, Unattended Baggage Detection, Audio Exception Detection |
| Smart Record | ANR (Automatic Network Replenishment), Dual-VCA |
| Region of Interest | Main stream, sub-stream, and third stream respectively support two fixed areas |
| Image | |
| Maximum Resolution | 2560 — 1440 |
| Main Stream | 50Hz: 25fps (2560 — 1440, 2048 — 1536, 1920 — 1080, 1280 — 960, 1280 — 720) 60Hz: 24fps (2560 — 1440), 30fps (2048 — 1536, 1920 — 1080, 1280 — 960, 1280 — 720) |
| Sub-Stream | 50Hz: 25fps (704 — 576, 640 — 480, 352 — 288) 60Hz: 30fps (704 — 480, 640 — 480, 352 — 240) |
| Third Stream | 50Hz: 25fps (1280 — 720, 704 — 576, 640 — 480, 352 — 288) 60Hz: 30fps (1280 — 720, 704 — 480, 640 — 480, 352 — 240) |
| Image Enhancement | 3D DNR, HLC, EIS, Regional Exposure, Regional Focus |
| Network | |
| Network Storage | Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/CIPS), ANR |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour |
| General Function | One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
| API | Open-ended, support ONVIF, ISAPI, support SDK and Third-Party Management Platform |
| Security Measures | User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering |
| Simultaneous Live View | Up to 20 channels |
| User / Host | Up to 32 users; three levels: administrator, operator, and user |
| Client | iVMS-4200, Guarding Vision |
| Web Browser | IE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51, Safari 8.0+ |
| Interface | |
| Communication Interface | 1-port RJ-45 10M/100M self-adaptive Ethernet port |
| On-board storage | Built-in microSD/SDHC/SDXC slot, up to 256 GB |
| SVC | H.264 and H.265 encoding |
| Audio Interface |
1-ch audio input and 1-ch audio output |
| General | |
| Operating Conditions | -20°C to 60°C (-4°F to 140°F); humidity: 90% or less (non-condensing) |
| Power | 12 VDC & PoE; Max.: 12 W (Max. 3.9 W for IR) |
| Protection Level | IP66 Standard, IK10, TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection |
| Material | Aluminum alloy, PC, PC+ABS |

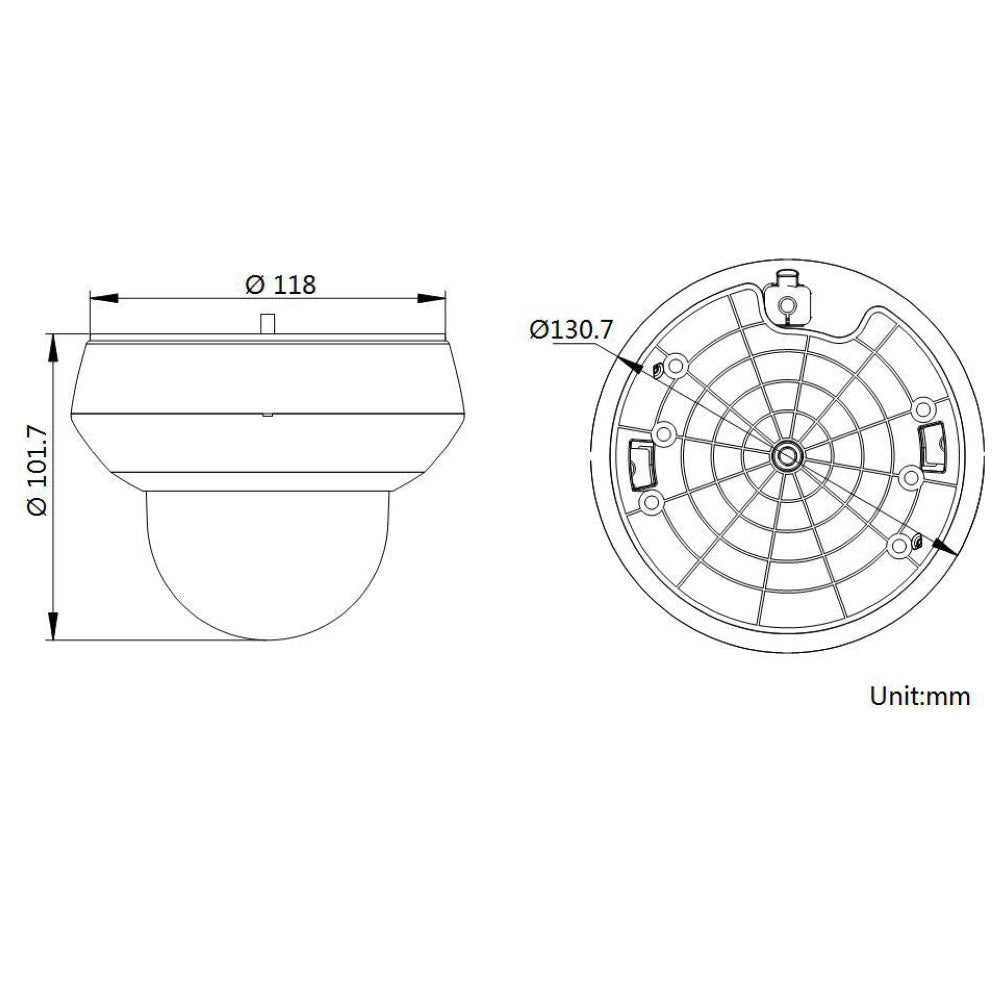

| Dimensions | Camera: Œ€ 5.15" x 4.00" (Œ€ 130.7 mm x 101.7 mm) |
| Weight | Camera: 1.17 lbs (0.53 kg) |
| Approvals | |
| c(UL)us | Yes |
| CE | Yes |
| FCC | Yes |
| ONVIF | Yes |
Compatible Mounts
| CA-DS-1294ZJ-PT | Wall Mounting Bracket for PTZ Dome Camera - White |
| CA-DS-1297ZJ | Pendant Mounting Bracket for Fisheye IP Camera (40 to 78 inches) - White |
Data Sheet
RJ45 pin out diagram
Web Portal Remote Access
Register/login with your Guarding Vision account for access to all devices in your account remotely from the browser. Supports Internet Explorer 8+, Chrome 41.0 to 44, Firefox 30.0 to 51 and Safari 8.0 to 11
Guarding vision Android app
Supports Android 4.1 and up
Guarding vision iOS app
Supports iOS 8.0 or later. Compatible with iPhone, iPad and iPod touch
iVMS-4200 video management software for the DVRs, NVRs and IP cameras
Supports macOS version 10.12,10.13 and 10.14 (64-bit)
iVMS-4200 video management software for the DVRs, NVRs and IP cameras
Supports Microsoft Windows 7/Windows 8.1/Windows 10 (32-bit or 64-bit)/Windows XP SP3 (32-bit)/Windows 2008 R2/Windows Server 2012 (64-bit)
SADP Tool V3.1.0.8
Search, activate devices on the network and modify the basic network information
