Overview

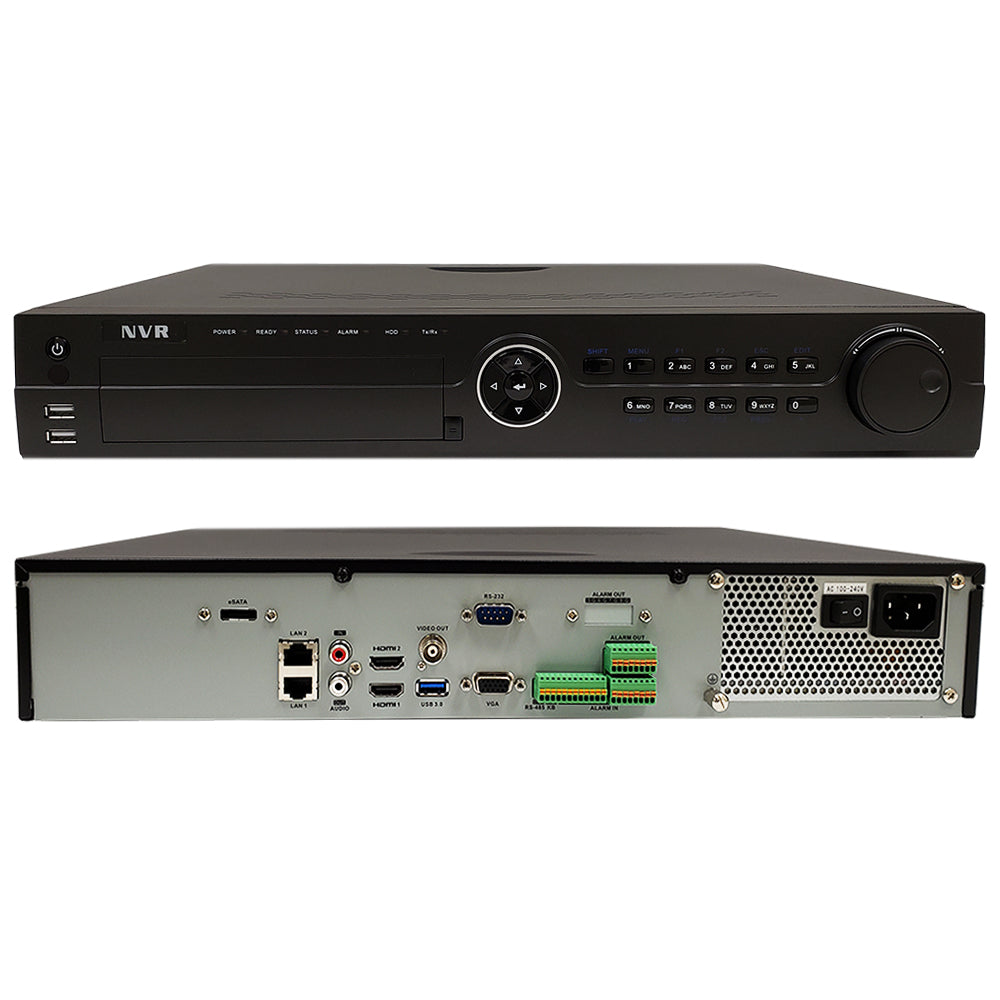

This 32 channel NVR is a network video recorder that can support up to 12MP IP cameras. It has 4 SATA interfaces and a space for 4 hard drives with capacity up to 6TB and can support H.265/H.264/MPEG4 video format compression to put less stress on storage and bandwidth usage. A local monitor can be connected either through the HDMI or VGA ports. (Hard drive sold separately).
Features
- 32CH Embedded NVR
- H.265/H.264/MPEG4 video formats
- Connectable to the third-party network cameras
- Up to 32 IP cameras can be connected
- Recording at up to 12 MP resolution
- Supports live view, storage, and playback of the connected camera at up to 12 MP resolution
- Total 256M Incoming Bandwidth
- 1-Port HDMI with 4K Output; 1-Port VGA Output @ 1080P
- 4-Port SATA up to 24TB HDD Capacity
- 2 Self-Adaptive 10/100/1000M Network Interface
- Dual-OS design to ensure high reliability of system running
- ANR technology to enhance the storage reliability when the network is disconnected
Application
Specifications
| Video/Audio Input and Output | |
|---|---|
| Two-way audio input | 1-ch, RCA (2.0 Vp-p, 1KΩ) |
| IP video input | 32-ch Up to 12 MP resolution |
| HDMI Output | 4K (3840 — 2160)/60Hz, 4K (3840 — 2160)/30Hz, 1920 — 1080p/60Hz, 1600 — 1200/60Hz, 1280 — 1024/60Hz, 1280 — 720/60Hz, 1024 — 768/60Hz |
| VGA Output |
1920 — 1080p/60Hz, 1280 — 1024/60Hz, 1280 — 720/60Hz, 1024 — 768/60Hz |
| Recording Resolution |
12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF /CIF/QCIF |
| Audio Output |
1-ch, RCA (Linear, 1kΩ) |
| Network | |
| Network Interface |
2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces |
| Remote connection | 128 |
| Incoming bandwidth | 256 Mbps |
| Outgoing bandwidth | 256 Mbps |
| Decoding | |
| Decoding Format | H.265/H.264/MPEG4 |
| Capability | 4-ch @ 4K, or 16-ch @ 1080p |
| Synchronous Playback | 16-ch |
| Live view / Playback | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF /CIF/QCIF |
| Hard Disk and External Interface | |
| eSATA |
1 eSATA interface |
| SATA |
4 SATA interfaces for 4HDDs |
| Capacity |
Up to 6TB capacity for each HDD |
| USB Interface |
Front panel: 2 — USB 2.0 Rear panel: 1 — USB 3.0 |
| Serial Interface | 1 RS-485 (half-duplex), 1 RS-232 |
| Alarm In/Out | 16/4 |
| General | |
| Power Supply | 100 to 240 VAC |
| Power | ‰¤80 W |
| Consumption(without hard disk) | ‰¤ 20 W |
| Working Temperature | -10 to +55ºC (14 to 131ºF) |
| Working Humidity | 10 % ~ 90 % |
| Chassis | 19-inch rack-mounted 1.5U chassis |
| Dimensions | 445 — 390 —70 mm ( 17.5"— 15.3" — 2.8") |
| Weight(without HDD)Communication | ‰¤ 5 Kg (11 lb) |
| Approvals | |
| c(UL)us | Yes |
| FCC | Yes |
| CE | Yes |
This hard disk drive is engineered to work for surveillance security systems. It is designed for high temperature, always-on, surveillance security systems to ensure reliability and quality video playback.
Features
- Engineered specifically for surveillance security systems
- Prioritized write-operations for maximized surveillance performance
- Tuned for write-intensive, low bit-rate, high stream-count applications typical to most surveillance applications
- Reduced video frame loss
- TLER and ATA streaming support
- Optimized performance for up to 32 high-definition surveillance cameras
| Physical Characteristics | |||||||
|---|---|---|---|---|---|---|---|
| Form Factor | 3.5 inch | ||||||
| Dimensions | ˆ… 5.7" x 4.0" x 1.0" (ˆ… 147 x 102 x 26mm) | ||||||
| Operating Temperature | 0°C to 65°C | ||||||
| Non-Operating Temperature | -40°C to 70°C | ||||||
| Performance | |||||||
| Formatted Capacity (Part Number) | 1TB (WD10PURX) | 2TB (WD20PURX) | 4TB (WD40PURX) | 6TB (WD62PURX) | 8TB (WD84PURZ) | 10TB (WD101PURP) | |
| Cache | 64MB | 128MB | 256MB | ||||
| Data Transfer Rate | Buffer to Host - 6 GB/s Host to/from drive (sustained) - 110 MB/s |
Buffer to Host - 6 GB/s Host to/from drive (sustained) - 145 MB/s |
Buffer to Host - 6 GB/s Host to/from drive (sustained) - 150 MB/s |
Buffer to Host - 6 GB/s Host to/from drive (sustained) - 175 MB/s |
Buffer to Host - 6 GB/s Host to/from drive (sustained) - 245 MB/s |
Buffer to Host - 6 GB/s Host to/from drive (sustained) - 265 MB/s |
|
| Hard Disk Interface | SATA | ||||||
| Rotational Speed (RPM) | IntelliPowerTM | ||||||
| Load/Unload Cycles | 300,000 | 600,000 | |||||
| Non-Recoverable Read Errors per Bits Read | < 1 in 1014 | < 1 in 1015 | |||||
| Power Management | |||||||
| Average Power Requirements | Read/Write - 3.3W Idle - 2.9W Standby and Sleep - 0.4W |
Read/Write - 4.4W Idle - 4.1W Standby and Sleep - 0.4W |
Read/Write - 5.1W Idle - 4.5W Standby and Sleep - 0.4W |
Read/Write - 5.3W Idle - 4.9W Standby and Sleep - 0.4W |
Read/Write - 8.6W Idle - 7.4W Standby and Sleep - 0.4W |
Read/Write - 9W Idle - 8W Standby and Sleep - 0.5W |
|
| Approvals | |||||||
| RoHS | Yes | ||||||
| Packaging Information | |||||||
| Package Quantity | 1 | ||||||
| Product Weight | 0.99 lbs [0.45 kg] | 1.40 lbs [0.64 kg] | 1.50 lbs [0.68 kg] | 1.65 lbs [0.75 kg] | 1.58 lbs [0.72 kg] | 1.65 lbs [0.75 kg] | |
Latest firmware V4.61.000_230329
Web Portal Remote Access
Register/login with your Guarding Vision account for access to all devices in your account remotely from the browser. Supports Internet Explorer 8+, Chrome 41.0 to 44, Firefox 30.0 to 51 and Safari 8.0 to 11
Guarding vision Android app
Supports Android 4.1 and up
Guarding vision iOS app
Supports iOS 8.0 or later. Compatible with iPhone, iPad and iPod touch
iVMS-4200 video management software for the DVRs, NVRs and IP cameras
Supports macOS version 10.12,10.13 and 10.14 (64-bit)
iVMS-4200 video management software for the DVRs, NVRs and IP cameras
Supports Microsoft Windows 7/Windows 8.1/Windows 10 (32-bit or 64-bit)/Windows XP SP3 (32-bit)/Windows 2008 R2/Windows Server 2012 (64-bit)
SADP Tool V3.1.0.8
Search, activate devices on the network and modify the basic network information
2-YEAR WARRANTY
Infinite Cables Inc. offers a 2-year warranty on selected USB cables, NVR/DVR's, network switches and all video boxes to be free from defects in material and workmanship.
This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.
Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
