Description

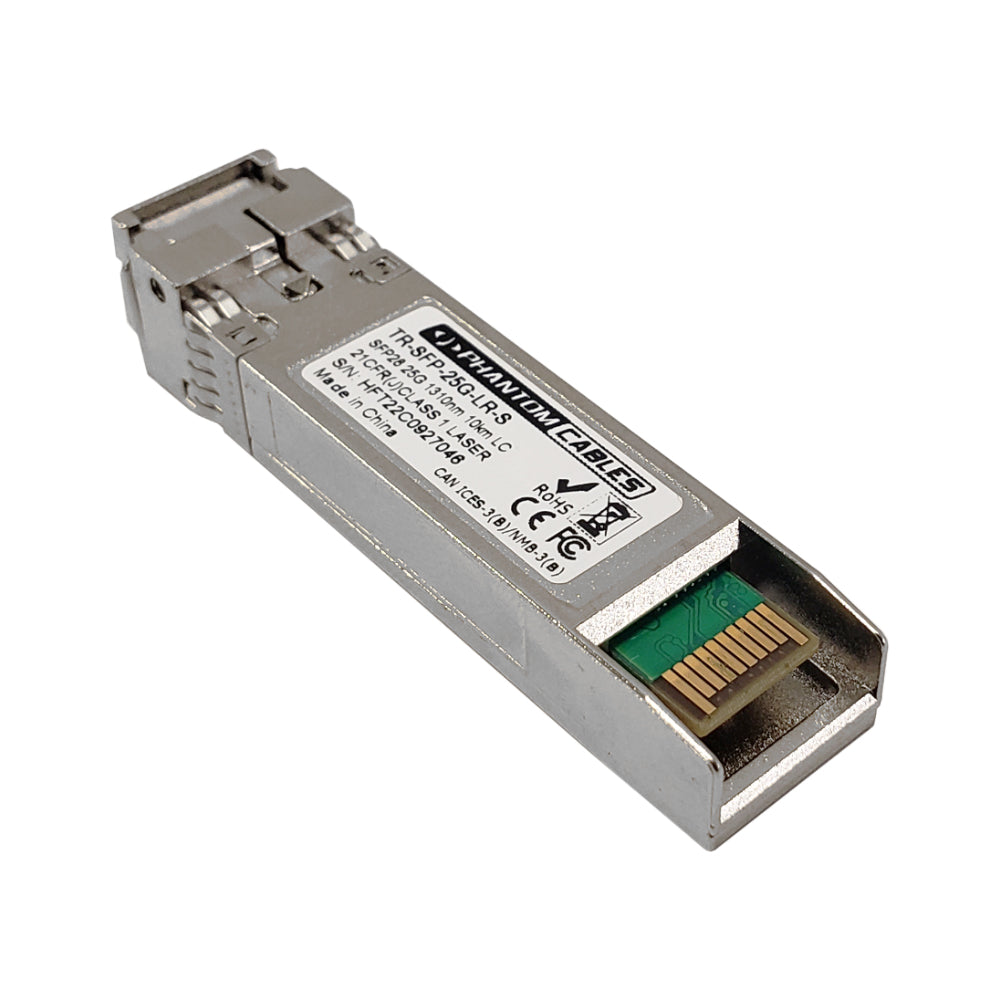

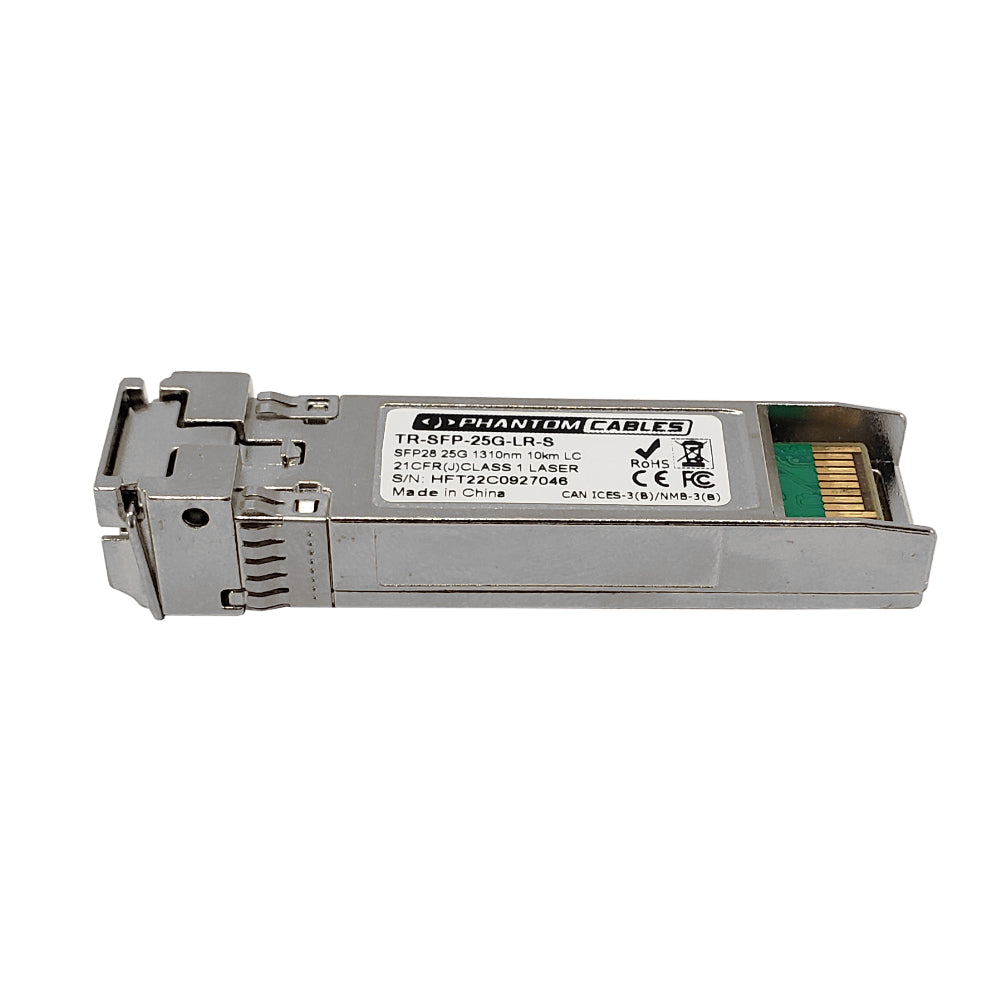

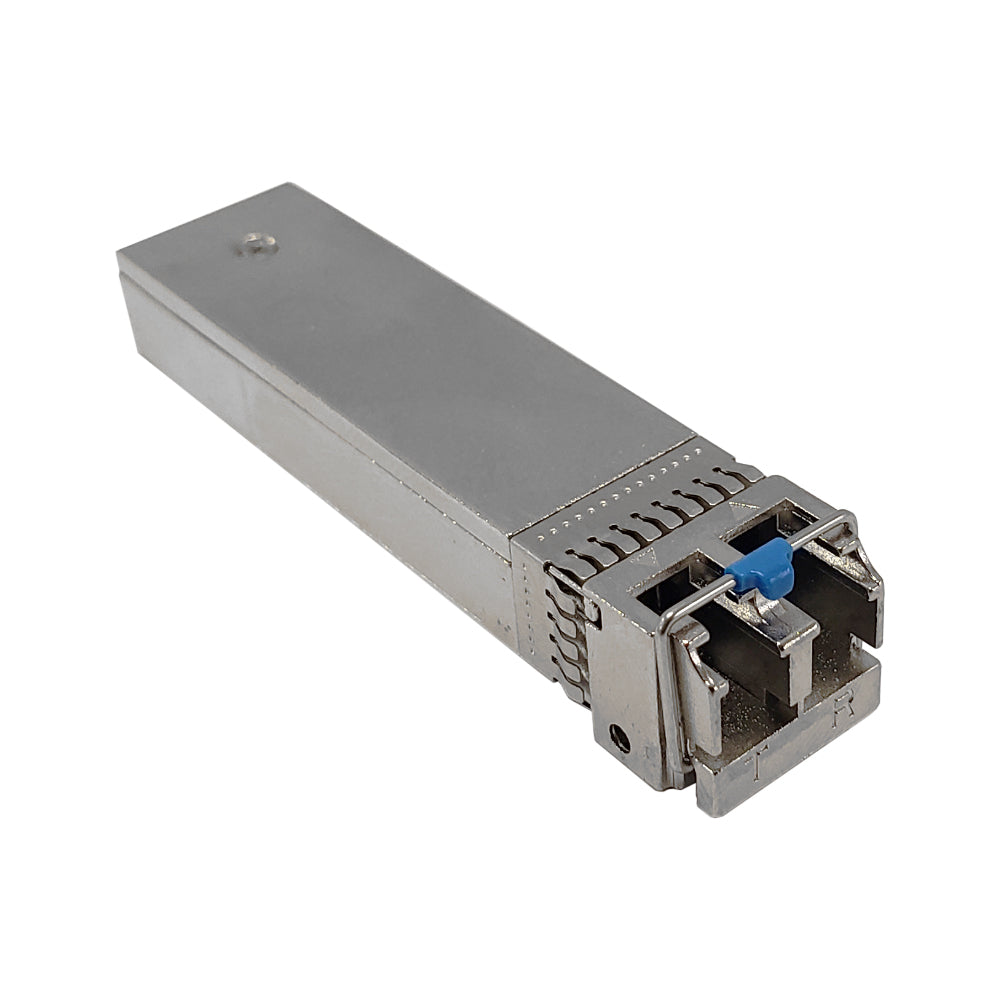

This is an Enhanced Small Form-factor Pluggable (SFP28) transceiver module with maximum data transfer rate of 25 Gbps up to 10km over singlemode fiber cable. It is used in compatible network devices with an SFP slot. The SFPs are Multi-Source Agreement (MSA) compliant and built to OEM specifications.
Cisco and the Cisco logo are trademarks or registered trademarks of Cisco Systems, Inc. This product is not certified or endorsed by Cisco Systems Inc.
| Physical Characteristics | ||
|---|---|---|
| Dimensions | 57mm x 15mm x 9mm (L x W x H) | |
| Operating Temperature | 0°C ~ 70°C | |
| Laser Type | Class 1 | |
| Connectors | ||
| Connector | LC Duplex | |
| Performance | ||
| Media Supported | 25GBase-LR Singlemode Fiber | |
| Data Rate | Up to 25Gbps | |
| Maximum Transmission Distance | 10km |
|
| Wave Length | 1310nm | |
| Power Consumption | < 1.5W | |
| Voltage Supply | 3.3V | |
| Compliance | SFP28 MSA and CPRI/eCPRI | |
| Certifications | ||
| CE | Yes | |
| FCC | Yes | |
| RoHS | Yes | |
| Packaging Information | ||
| Package Quantity | 1 | |
| Product Weight | 0.02 lbs [0.01kg] | |
| Warranty Information | ||
| Warranty | Limited Lifetime | |
